80026-096-01 / 80026-096-01-R / MIM105-Q6949 Switching Mode Power Supply | Replacement, Equivalent & Selection Guide

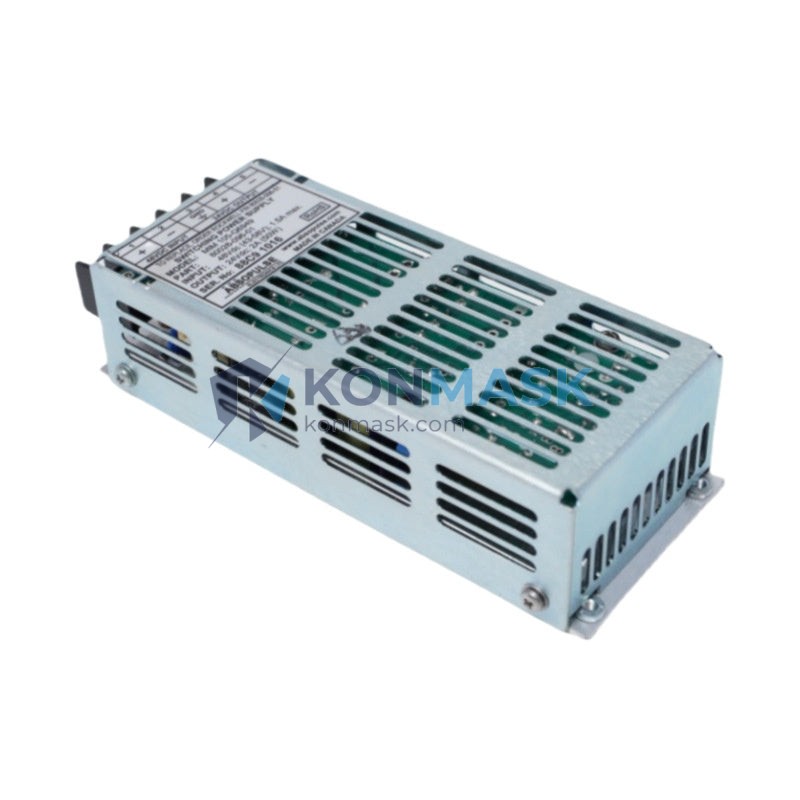

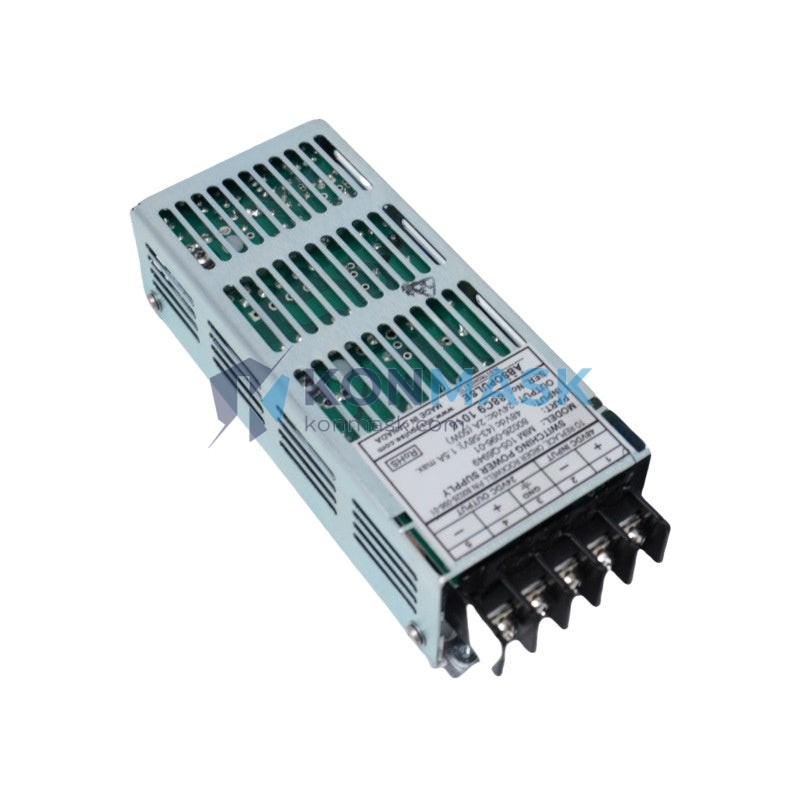

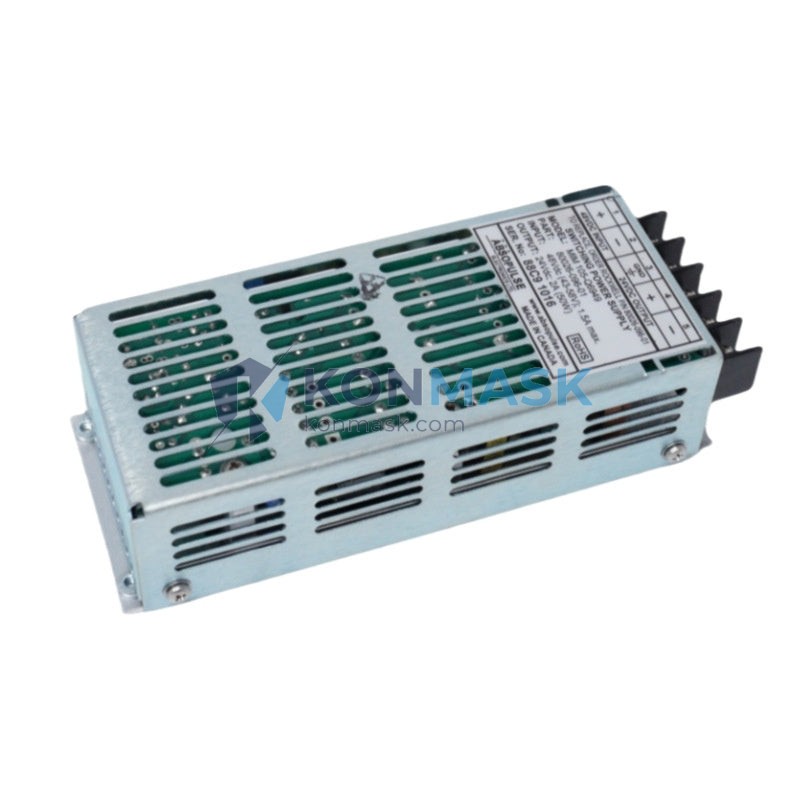

Konmask.com supplies the 80026-096-01 (also referenced as 80026-096-01-R and MIM105-Q6949) switching mode power supply — a compact, reliable industrial-grade SMPS used in lighting control, building automation, and PLC-based systems. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make the right sourcing decision.
Technical Specifications
- Part Numbers: 80026-096-01 / 80026-096-01-R / MIM105-Q6949
- Type: Switching Mode Power Supply (SMPS)
- Application: Industrial control panels, lighting control systems, building automation
- Output: Regulated DC output (refer to unit label for exact voltage/current rating)
- Input: Universal AC input (100–240 VAC, 50/60 Hz typical)
- Mounting: Panel / DIN-rail compatible (verify with unit dimensions)
- Weight: Approx. 350 g
- Compliance: UL/CE listed (verify on unit label)
- Condition Available: New OEM, Refurbished (80026-096-01-R), Tested Surplus
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents. Always verify output voltage, current rating, connector type, and mounting configuration before substitution:
- 80026-096-01-R — Factory-refurbished variant of the same unit; direct drop-in replacement
- MIM105-Q6949 — OEM cross-reference / alternate part number for the same assembly
- Third-party SMPS modules with matching output specs (consult Konmask technical team for validated alternatives)
- Mean Well, PULS, or Phoenix Contact equivalents with identical output voltage/current and form factor
Note: Konmask.com recommends using original or factory-refurbished parts for safety-critical applications. Contact us for a compatibility assessment before substituting.
Why Choose the Original Model
- Guaranteed compatibility — designed and validated for the target control system
- Regulatory compliance — maintains UL/CE certification of the host system
- Reduced integration risk — no re-engineering of connectors, firmware, or mounting
- Warranty support — OEM and refurbished units carry traceable warranty coverage
- Long service life — industrial-grade components rated for continuous duty cycles
Typical Applications
- Acuity Brands / Lithonia Lighting control panels and dimming systems
- Building management system (BMS) power rails
- PLC and DCS auxiliary power supply circuits
- Industrial automation enclosures requiring regulated 24 VDC (or equivalent) rails
- Retrofit and maintenance replacement in existing installed systems
System Compatibility
The 80026-096-01 is primarily associated with Acuity Brands / Lithonia Lighting control system assemblies. It may also be compatible with third-party panels that share the same power rail specification. Confirm the following before ordering:
- Output voltage and current match your system’s power rail requirements
- Physical dimensions and mounting holes align with your enclosure
- Connector pinout matches the existing wiring harness
- Input voltage range is compatible with your facility’s supply
Selection Guide
Use the decision tree below to select the correct part for your application:
- Need an exact OEM replacement? → Order 80026-096-01 (new) or 80026-096-01-R (refurbished)
- Have an alternate part number MIM105-Q6949? → Same unit, fully interchangeable
- Need a cost-optimized equivalent? → Contact Konmask for a validated third-party SMPS alternative with matching specs
- Unsure of your system’s power requirements? → Share your panel model or wiring diagram with our technical team for a free compatibility check
- Need multiple units or a long-term supply agreement? → Request a wholesale quote via support@konmask.com
Quality Assurance & Sourcing
- All units sourced from authorized distributors, OEM overstock, or certified refurbishment centers
- Each unit undergoes functional power-on testing and output voltage verification before shipment
- Refurbished units (80026-096-01-R) are cleaned, re-tested, and labeled with refurbishment date
- Traceability documentation available upon request for regulated industries
- Secure anti-static packaging with foam insert protection for international shipping
How to Order
- Online: Add to cart directly on this page — stock availability shown in real time
- Email: support@konmask.com — include part number, quantity, and required delivery date
- Phone/WhatsApp: +0086 19859288691
- Bulk / OEM orders: Request a formal quotation for orders of 5+ units
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days
Replacement & Compatibility FAQ
Q: Is 80026-096-01-R the same as 80026-096-01?
A: Yes. The “-R” suffix denotes a factory-refurbished unit. Electrically and mechanically identical to the new OEM part.
Q: What does MIM105-Q6949 refer to?
A: MIM105-Q6949 is an alternate OEM cross-reference or internal assembly number for the same switching mode power supply. It is fully interchangeable with 80026-096-01.
Q: Can I use a generic SMPS as a replacement?
A: Potentially, if output voltage, current, connector type, and physical dimensions match. However, Konmask recommends OEM or validated equivalents for safety-critical and warranty-sensitive installations.
Q: Do you offer a warranty on refurbished units?
A: Yes. Refurbished units carry a 90-day functional warranty. New OEM units follow manufacturer warranty terms. Contact us for details.
Q: Can you source this part if it is out of stock?
A: Yes. Contact our team with your timeline and we will provide sourcing options and lead time estimates.
