AB 1336S-B010-AN-EN AC Drive | Replacement, Equivalent & Selection Guide

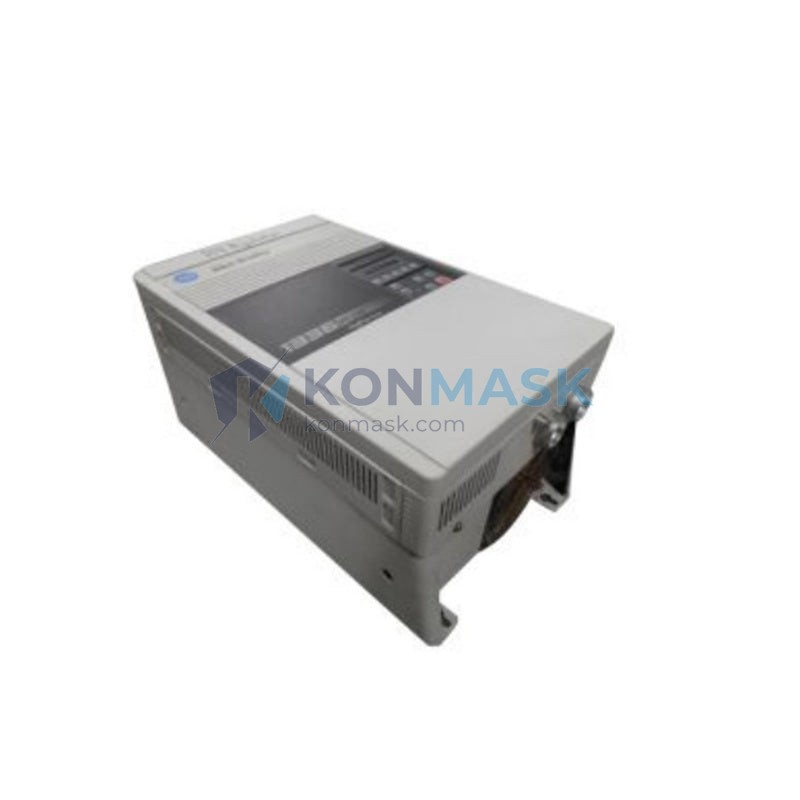

The Allen-Bradley 1336S-B010-AN-EN is a SENSORLESS VECTOR AC Drive from the 1336 PLUS II series, rated at 1.0 HP (0.75 kW) for 200–240 V AC three-phase input. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing this drive or its equivalents.
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 1336S-B010-AN-EN
- Series: 1336 PLUS II
- Output Power: 1.0 HP / 0.75 kW
- Input Voltage: 200–240 V AC, 3-Phase
- Output Voltage: 0–240 V AC, 3-Phase
- Output Frequency: 0–400 Hz
- Control Mode: Sensorless Vector
- Enclosure: Open Type (IP00)
- Communication: EN (EtherNet/IP capable with optional adapter)
- Weight: Approx. 1.8 kg
- Compliance: UL, CE
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the 1336S-B010-AN-EN. Always verify electrical and mechanical compatibility before substitution:
- Allen-Bradley 22B-D010N104 – PowerFlex 40, 1.0 HP, 240 V, direct series upgrade with enhanced features
- Allen-Bradley 25B-D010N104 – PowerFlex 525, 1.0 HP, 240 V, EtherNet/IP native, modern replacement
- Allen-Bradley 1336F-BRF10-AN-EN – 1336 FORCE series, same voltage class, higher control precision
- Siemens 6SL3210-1KE11-8UF1 – SINAMICS G120C, 0.75 kW, 240 V, cross-brand equivalent
- ABB ACS355-03E-02A4-4 – 0.75 kW, 380–480 V (verify voltage class before use)
Note: Cross-brand replacements require full parameter re-commissioning. Consult Konmask technical support for application-specific guidance.
Why Choose the Original Model
- Proven reliability in legacy Allen-Bradley control architectures
- Drop-in compatibility with existing 1336 PLUS II wiring and parameter sets
- Sensorless vector control delivers precise torque at low speeds without encoder feedback
- Minimal re-commissioning — retains original parameter structure for fast swap-out
- Long field service history with extensive spare parts availability
Typical Applications
- Conveyor and material handling systems
- Pump and fan speed control
- Packaging machinery
- HVAC air handling units
- Light-duty compressor drives
- General-purpose industrial motor control
System Compatibility
- PLC Integration: Compatible with Allen-Bradley SLC 500, MicroLogix, ControlLogix, and CompactLogix via DeviceNet or EtherNet/IP adapter modules
- Motor Type: Standard NEMA/IEC induction motors, 3-phase
- HMI: Compatible with PanelView terminals via RSLinx/Studio 5000
- Software: DriveExplorer, DriveExecutive, Studio 5000 Logix Designer
- Accessories: 1336-MOD-D2 (DeviceNet adapter), 1336-GM1 (remote keypad), dynamic braking resistors
Selection Guide
Use the following criteria to confirm the 1336S-B010-AN-EN is the correct drive for your application, or to select an appropriate alternative:
- Power rating: Match motor nameplate HP/kW — this drive suits 0.75 kW (1 HP) motors
- Input voltage: Confirm 200–240 V AC 3-phase supply availability
- Control requirement: Sensorless vector for moderate torque accuracy; choose encoder-based drives for high-precision positioning
- Communication protocol: Verify EtherNet/IP or DeviceNet adapter requirement for your network topology
- Environment: Open-type enclosure — install in a sealed control cabinet rated IP54 or higher
- Duty cycle: Suitable for normal duty (ND) applications; verify overload requirements (>150% for 1 min)
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus inventory
- Pre-shipment inspection: visual, label verification, and functional power-on test where applicable
- Original factory packaging preserved where available
- Traceability documentation available upon request (COC, test reports)
- Warranty: 90-day replacement warranty on all stocked units
How to Order
- Step 1: Confirm part number: 1336S-B010-AN-EN
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via email or phone for stock confirmation and pricing
- Step 4: Submit PO or place order directly on Konmask.com
- Step 5: Receive order confirmation with tracking within 1 business day
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the PowerFlex 40 (22B-D010N104) directly replace the 1336S-B010-AN-EN?
A: Yes, with re-wiring and parameter re-commissioning. The PowerFlex 40 offers enhanced features but is not a plug-and-play swap.
Q: Is the 1336S-B010-AN-EN still in production?
A: This model has been discontinued by Rockwell Automation. Konmask supplies new-surplus and refurbished units with warranty.
Q: What communication adapter is needed for EtherNet/IP?
A: The 1336-GM6 or compatible EtherNet/IP adapter module is required. Contact us for compatibility confirmation.
Q: Can this drive control a single-phase motor?
A: No. This drive requires 3-phase input and outputs 3-phase power for standard induction motors only.
Q: What is the lead time for this part?
A: Typically 1–5 business days for in-stock units. Contact us for current availability.
