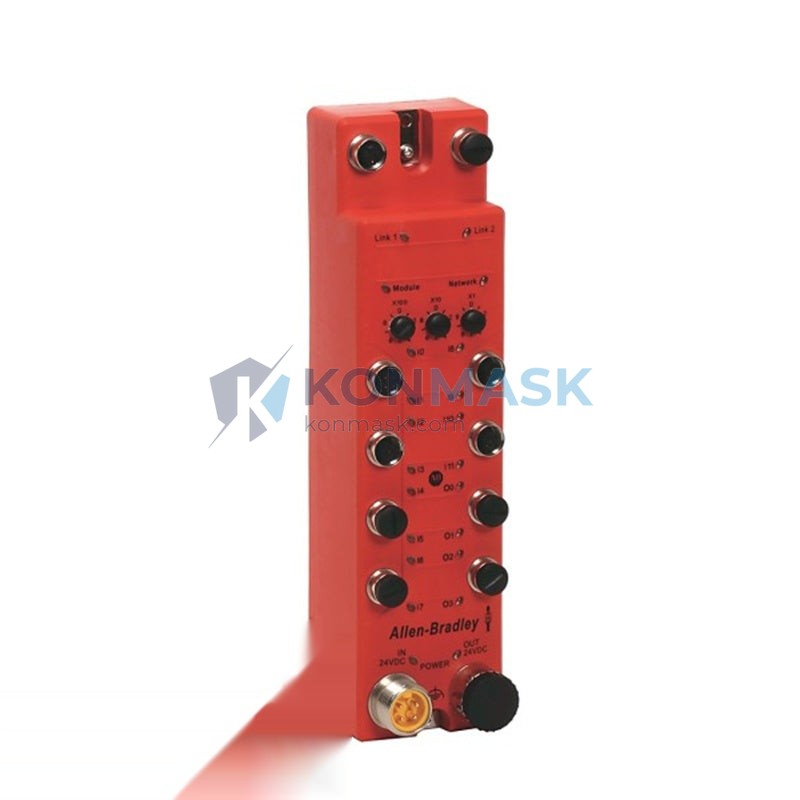

Allen-Bradley 1732DS-IB8 – 8-Point Digital Combo Safety I/O Module | Guard I/O DeviceNet Safety Platform
Engineering Background
The 1732DS-IB8 is part of Rockwell Automation’s Guard I/O™ family — a distributed safety I/O platform purpose-built for machine-level functional safety applications. Designed to operate on the DeviceNet Safety network, this module enables engineers to architect decentralized safety architectures without routing every safety signal back to a central safety controller, dramatically reducing wiring complexity and panel footprint in large-scale machinery.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant automation engineers who require IEC 61508 SIL 2 / ISO 13849 PLe certified I/O at the field level. The 1732DS-IB8 is the preferred choice for press lines, robotic cells, packaging machinery, and any application where distributed safety I/O reduces installation cost while maintaining full safety integrity.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1732DS-IB8 |
| Brand / Manufacturer | Allen-Bradley / Rockwell Automation |
| Series / Platform | Guard I/O™ DeviceNet Safety |
| Module Type | 8-Point Digital Combo (Input/Output) |
| Safety Rating | SIL 2 (IEC 61508), PLe / Cat. 4 (ISO 13849-1) |
| Network Protocol | DeviceNet Safety (CIP Safety) |
| Input Points | 8 × Digital Safety Inputs (configurable as dual-channel) |
| Output Points | Combo module — supports safety output configuration |
| Input Voltage | 24V DC (nominal) |
| Input Current | Per IEC 61131-2 Type 3 |
| Supply Voltage | 24V DC ± 20% |
| Power Consumption | Refer to Rockwell Publication 1732DS-UM001 |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Mounting | DIN Rail (35 mm) |
| Dimensions (W × H × D) | Refer to Rockwell dimensional drawing |
| Weight | Approx. 600 g |
| Certifications | UL, CE, TÜV, cULus |
| Country of Origin | USA |
Proven Application Environments
- Robotic Work Cells: Distributed safety I/O at each robot station eliminates long safety cable runs; dual-channel input wiring supports light curtains, safety mats, and E-stops.
- Press & Stamping Lines: PLe / Cat. 4 rating satisfies EN ISO 13849 requirements for two-hand control and guard interlocking on hydraulic and mechanical presses.
- Packaging & Palletizing Machinery: Compact DIN-rail form factor fits inside machine-mounted junction boxes; DeviceNet Safety trunk-and-drop topology minimizes field wiring.
- Conveyor & Material Handling: Zone-based safety I/O allows independent zone control with a single safety network segment.
- Automotive Assembly: Proven in Tier 1 automotive plants where functional safety audits require full SIL 2 documentation and traceability.
Engineering Advantages
- Distributed Architecture: Place safety I/O at the point of use — no home-run safety wiring to the main panel, reducing installation labor by up to 40% on large machines.
- CIP Safety Protocol: Black-channel communication over DeviceNet Safety ensures data integrity without additional safety relays between the network and the controller.
- Dual-Channel Input Support: Native support for Category 3 / Category 4 dual-channel safety device wiring (E-stops, safety gates, light curtains).
- Diagnostic Transparency: Per-point LED diagnostics and network-level fault reporting via RSLogix / Studio 5000 Logix Designer reduce MTTR in production environments.
- Scalability: Mix and match with other 1732DS-series modules (OB8, OBV2, IB8S) on the same DeviceNet Safety segment for flexible zone configuration.
- Rockwell Ecosystem Integration: Seamless integration with GuardLogix® and Compact GuardLogix® safety controllers; pre-built Add-On Instructions (AOIs) available.
System Architecture & Signal Flow
The 1732DS-IB8 connects to a DeviceNet Safety trunk cable via a T-port tap. Each of the 8 digital inputs is individually configurable via RSNetWorx™ for DeviceNet as single-channel (SIL 1) or dual-channel (SIL 2 / PLe) operation. Safety data is encapsulated in CIP Safety I/O messages and transmitted to the GuardLogix safety controller, where it is processed in the safety task. The module performs internal cross-checking and diagnostics at each scan cycle; any detected fault (short circuit, discrepancy error, supply undervoltage) is reported as a module fault and the corresponding output is de-energized within the module’s reaction time.
Typical Network Topology: GuardLogix Controller → DeviceNet Safety Scanner (1756-DNB) → DeviceNet Safety Trunk → 1732DS-IB8 (T-port tap) → Field Safety Devices (E-stop, light curtain, safety gate switch).
Sourcing & Quality Verification
- Source: Konmask.com sources 1732DS-IB8 units from authorized Rockwell Automation distribution channels and verified secondary-market suppliers with full traceability documentation.
- Inspection Protocol: Each unit undergoes visual inspection, label verification (catalog number, series, firmware revision), and functional power-on check prior to shipment.
- Authenticity: Holographic Rockwell Automation labels and factory serial numbers are verified against manufacturer records where applicable.
- Condition: New (factory-sealed) and Refurbished (tested, warranted) stock available — specify condition at time of inquiry.
- Documentation: Certificate of conformance and test report available upon request for safety-critical procurement.
Procurement Process
- Submit RFQ: Contact support@konmask.com with quantity, required condition (new/refurbished), and delivery timeline.
- Quotation: Receive itemized quotation with unit price (HKD/USD), lead time, and shipping options within 1 business day.
- Order Confirmation: Place order via Konmask.com checkout or purchase order (PO) for qualified B2B accounts.
- Quality Check & Dispatch: Unit inspected, packed with anti-static protection, and dispatched with tracking number.
- After-Sales Support: 12-month warranty on refurbished units; technical support available via email or phone.
Technical FAQ
Q: Is the 1732DS-IB8 compatible with a standard (non-safety) DeviceNet scanner?
A: No. The module requires a DeviceNet Safety scanner (e.g., 1756-DNB in safety mode or a dedicated safety scanner) to exchange CIP Safety I/O data. Standard DeviceNet scanners cannot process safety-rated messages.
Q: Can I use this module with a CompactLogix (non-safety) controller?
A: The module can be placed on the network, but safety data will not be processed in a safety task. A GuardLogix or Compact GuardLogix controller is required to utilize the SIL 2 safety functions.
Q: What is the maximum number of 1732DS-IB8 modules per DeviceNet Safety segment?
A: DeviceNet supports up to 63 nodes per segment. Actual limits depend on network load, cable length, and power budget. Refer to Rockwell Publication DNET-UM004 for detailed network design guidelines.
Q: Does the module support firmware updates in the field?
A: Firmware updates are managed via RSNetWorx for DeviceNet. Consult Rockwell Automation’s firmware compatibility matrix before updating safety-rated modules in a validated system.
Q: What replacement or equivalent modules are available?
A: Within the Guard I/O family: 1732DS-IB8S (with integrated safety outputs), 1732DS-OB8 (output-only). For newer projects, consider the 1791DS series (EtherNet/IP Safety) for higher bandwidth and diagnostics.
