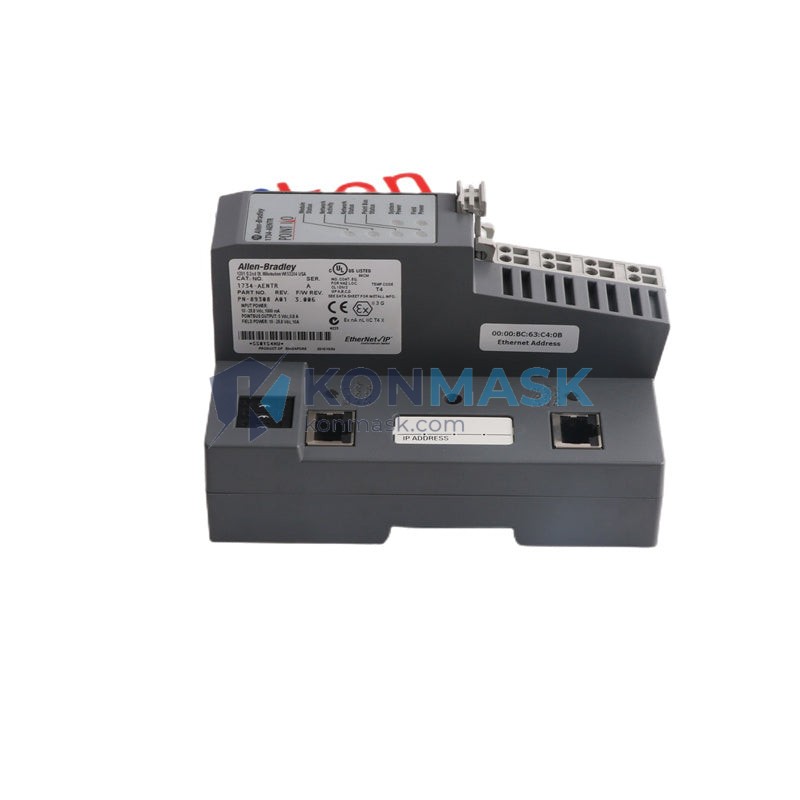

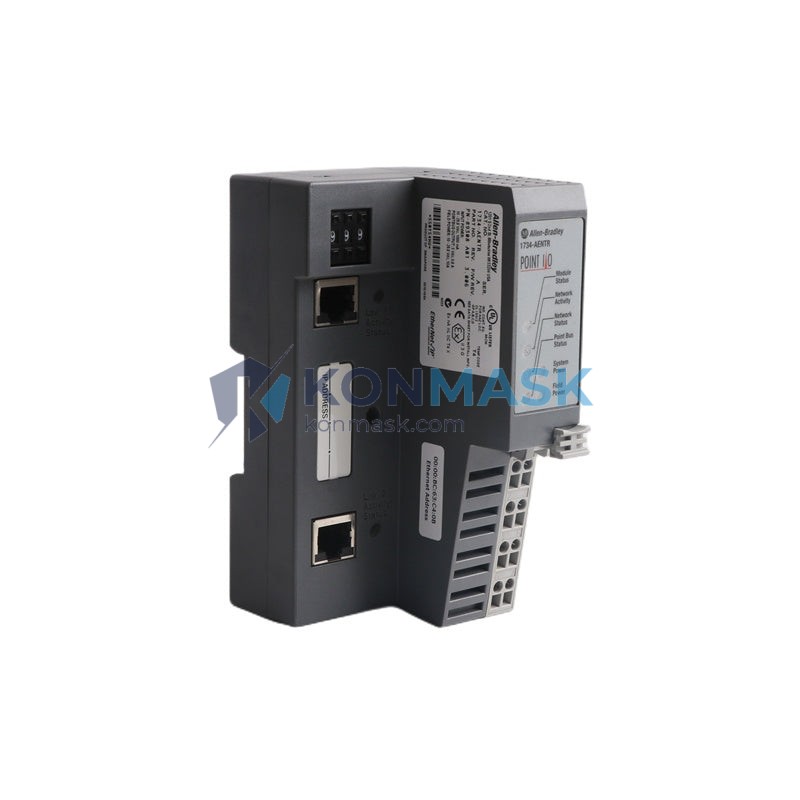

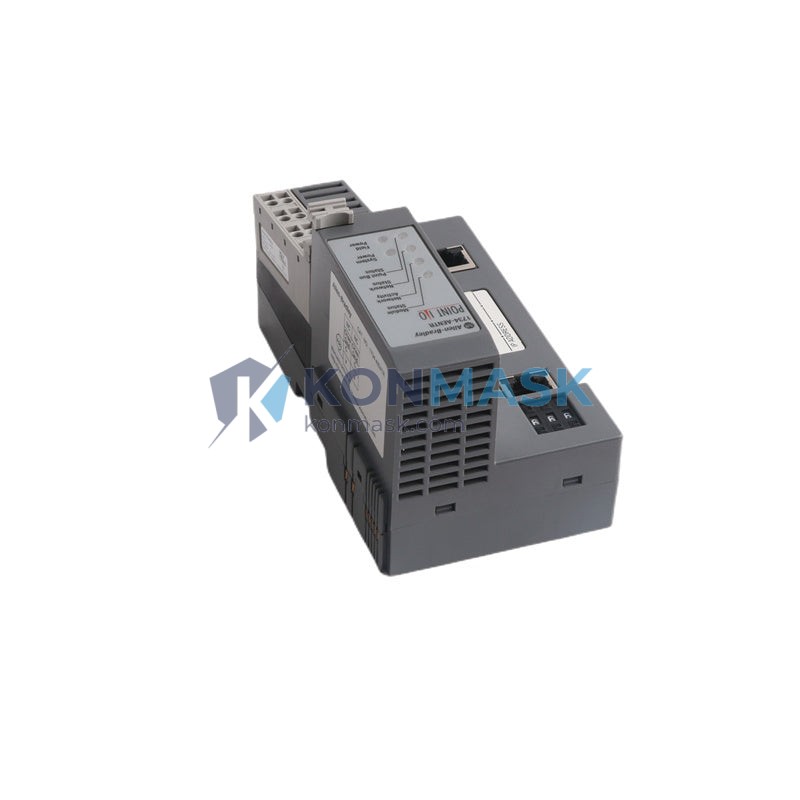

EtherNet/IP Distributed I/O Solution — Allen-Bradley 1734-AENT | POINT I/O Series
The Allen-Bradley 1734-AENT is a high-performance EtherNet/IP network adapter designed for POINT I/O distributed I/O systems. It enables seamless integration of field-level I/O modules into standard Ethernet infrastructure, making it the preferred choice for engineers building scalable, high-availability control architectures in demanding industrial environments.
Where This Product Is Used
The 1734-AENT is deployed across a wide range of industrial automation applications where distributed I/O over EtherNet/IP is required:
- Automotive Assembly Lines — Connects distributed I/O nodes on body-in-white welding and paint shop conveyors, reducing panel footprint and wiring costs.
- Food & Beverage Processing — Supports hygienic zone I/O distribution in bottling, filling, and packaging lines with IP20-rated DIN-rail mounting.
- Water & Wastewater Treatment — Provides reliable remote I/O communication for pump stations, filtration skids, and SCADA-integrated lift stations.
- Oil & Gas Upstream/Midstream — Used in wellhead control panels and compressor skids requiring deterministic EtherNet/IP communication.
- Pharmaceutical Manufacturing — Supports 21 CFR Part 11-compliant control systems with traceable I/O mapping in batch processing lines.
- Material Handling & Logistics — Deployed in sortation systems, conveyor networks, and automated storage/retrieval systems (AS/RS).
- Machine Tool & OEM Equipment — Integrated into CNC machine tool panels and custom OEM equipment requiring compact, modular I/O expansion.
Technical Specifications
| Catalog Number | 1734-AENT |
| Series | POINT I/O |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Communication Protocol | EtherNet/IP (IEEE 802.3) |
| Network Speed | 10/100 Mbps, Auto-negotiate, Full/Half Duplex |
| Network Ports | 1 × RJ-45 (single port) |
| Max I/O Modules Supported | Up to 63 POINT I/O modules per adapter |
| Backplane Current (5V) | 1.0 A max |
| Supply Voltage | 24V DC (±10%) |
| Power Consumption | 2.5 W typical |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail (35 mm) |
| Enclosure Rating | IP20 |
| Dimensions (H × W × D) | 94 mm × 12 mm × 60 mm |
| Weight | Approx. 240 g (with base) |
| Agency Certifications | UL, CE, C-Tick, ATEX (Zone 2) |
Why Engineers Specify This Model
- Ultra-Slim 12 mm Profile — The narrowest EtherNet/IP adapter in the POINT I/O family, maximizing panel density without sacrificing I/O capacity.
- Single-Cable Ethernet Connectivity — Eliminates proprietary fieldbus wiring; leverages standard Cat5e/Cat6 infrastructure already present in most facilities.
- Deterministic EtherNet/IP Communication — Supports both Class 1 (cyclic) and Class 3 (explicit messaging) connections for real-time control and configuration.
- Integrated Web Server — Built-in HTTP server for module diagnostics, I/O status monitoring, and configuration without additional software.
- QuickConnect™ Support — Enables sub-100ms reconnection after power cycle, critical for high-speed machine restart sequences.
- Scalable Architecture — Supports up to 63 I/O modules per adapter node, allowing phased expansion without replacing the adapter.
- Studio 5000 / RSLogix 5000 Native Integration — Add-On Profiles (AOPs) available for rapid configuration in Rockwell Automation programming environments.
Complete System Bill of Materials
A typical POINT I/O EtherNet/IP node built around the 1734-AENT includes the following components:
- 1734-AENT — EtherNet/IP Network Adapter (this unit)
- 1734-TOP or 1734-TOP3 — POINT I/O Terminal Base (screw or spring clamp)
- 1734-IB8 / 1734-OB8 — 8-point 24V DC Digital Input / Output Modules
- 1734-IE4C / 1734-OE4C — 4-channel Analog Input / Output Modules (current)
- 1734-IE4V / 1734-OE4V — 4-channel Analog Input / Output Modules (voltage)
- 1734-EP24DC — POINT I/O Power Supply Expander (for extended node power)
- 1734-ACNR — ControlNet Adapter (alternative network option)
- 1585J-M8CBJM-x — EtherNet/IP Patch Cable (M8 to RJ-45, various lengths)
- 1492-CABLE series — Pre-wired I/O cables for rapid field termination
Contact Konmask for complete BOM pricing and availability on multi-line orders.
Compliance & Industry Standards
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EN 61131-2, EN 61000-6-2 (EMC Immunity), EN 61000-6-4 (EMC Emissions)
- ATEX Certified — II 3 G Ex nA IIC T4 Gc (Zone 2 hazardous locations)
- IECEx — IECEx compliant for international hazardous area installations
- C-Tick / RCM — Australian and New Zealand EMC compliance
- EtherNet/IP Conformance Tested — ODVA conformance tested and certified
- RoHS Compliant — Directive 2011/65/EU
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of genuine Allen-Bradley / Rockwell Automation automation components for industrial OEM and end-user applications. Every 1734-AENT unit we supply is:
- Sourced from authorized distribution channels or verified surplus with full traceability documentation
- Inspected for physical integrity, label authenticity, and firmware revision prior to dispatch
- Shipped in original or equivalent ESD-safe packaging with all factory accessories
- Supported by our technical team for pre-sale specification confirmation and post-sale integration guidance
We maintain stock of both current-production and legacy/discontinued Rockwell Automation catalog numbers to support brownfield retrofit projects and emergency replacement requirements.
How to Source This Part
- Request a Quote — Email support@konmask.com with your required quantity, delivery timeline, and project details.
- Phone / WhatsApp — Call or message +0086 19859288691 for urgent sourcing inquiries.
- Add to Cart — Place your order directly on this page for standard lead-time fulfillment.
- Bulk / Project Orders — We offer volume pricing for orders of 5+ units. Contact us for a project BOM review.
- Lead Time — In-stock units ship within 1–3 business days. Special-order items: 5–15 business days depending on origin.
Application-Specific FAQ
Q: Can the 1734-AENT be used with a CompactLogix or ControlLogix controller?
A: Yes. The 1734-AENT is fully compatible with any EtherNet/IP scanner, including CompactLogix (1769-L series), ControlLogix (1756-EN2T/EN3TR), and GuardLogix platforms. Configure via Studio 5000 using the available AOP.
Q: What is the maximum cable distance between the 1734-AENT and the Ethernet switch?
A: Standard IEEE 802.3 limits apply — up to 100 meters (328 ft) per segment using Cat5e or Cat6 copper cable. For longer distances, use fiber media converters.
Q: Does the 1734-AENT support Device Level Ring (DLR) topology?
A: No. The 1734-AENT (single-port) does not support DLR. For ring topology redundancy, specify the 1734-AENTR (dual-port) variant instead.
Q: Is the 1734-AENT compatible with third-party EtherNet/IP scanners (e.g., Siemens, Omron, Mitsubishi)?
A: The 1734-AENT is ODVA-conformance tested and will function with any compliant EtherNet/IP scanner. An EDS file is available from Rockwell Automation’s product compatibility download center (PCDC) for third-party integration.
Q: What firmware revision should I specify for a new installation?
A: Always specify the latest available firmware revision for new installations. Current production units ship with firmware 4.x series. Verify compatibility with your controller firmware using the Rockwell Automation Product Compatibility and Download Center (PCDC) at compatibility.rockwellautomation.com.
Q: Can I hot-swap POINT I/O modules while the 1734-AENT is powered?
A: Yes. POINT I/O modules support removal and insertion under power (RIUP), allowing maintenance without shutting down the entire I/O node — a key advantage in continuous-process industries.
