Genuine Allen-Bradley 5069-OW16 16-Point Relay Output Module | Compact 5000 Series – Verified Source

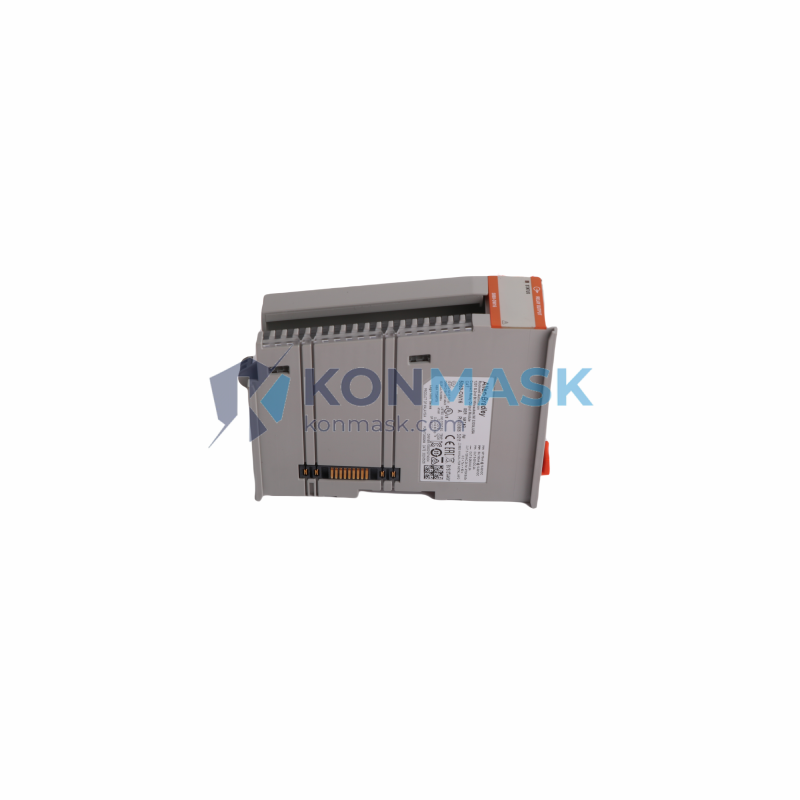

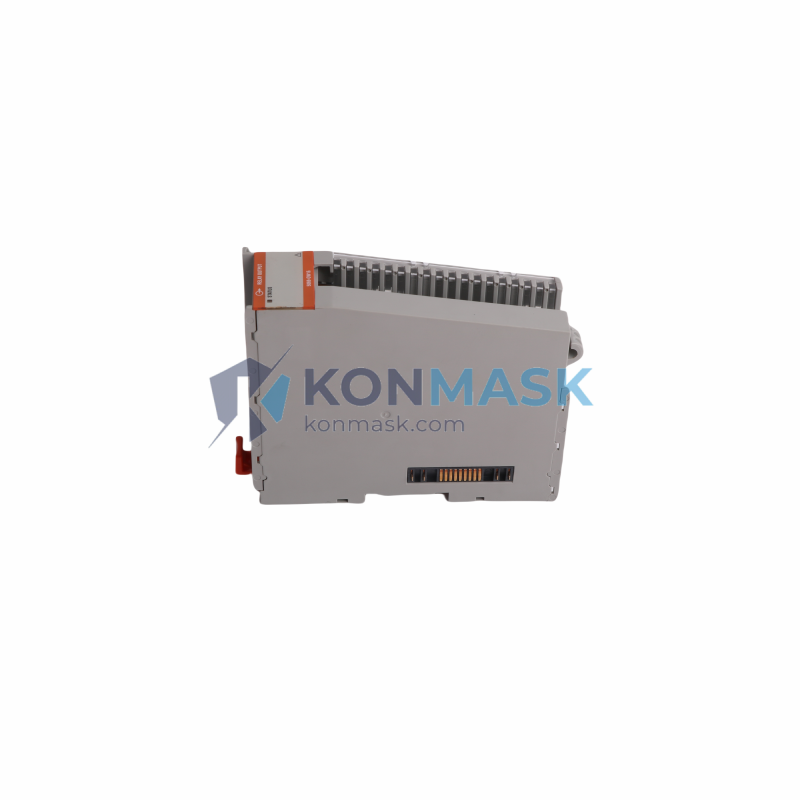

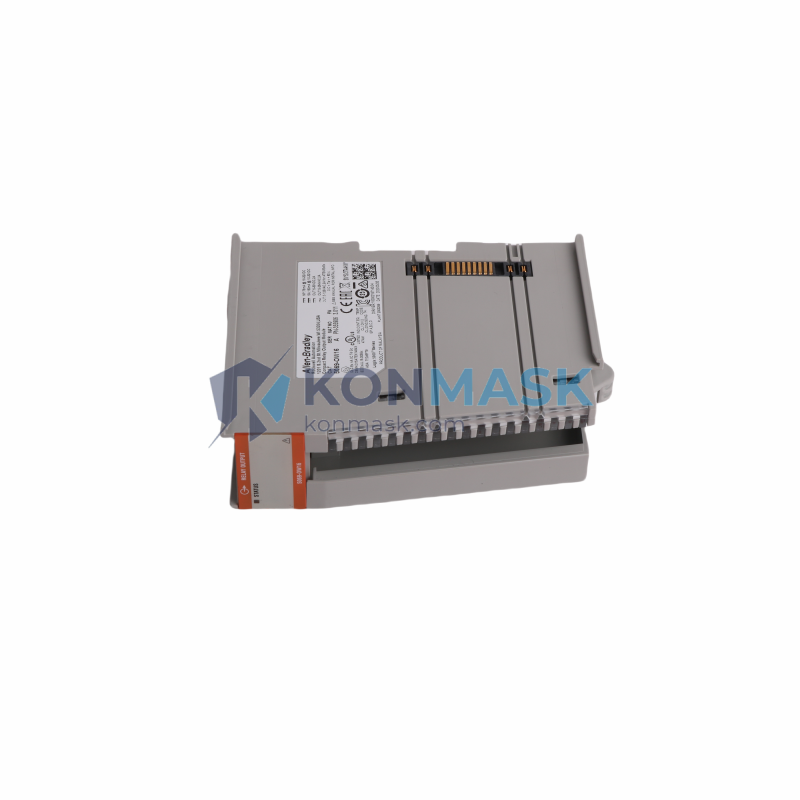

The Allen-Bradley 5069-OW16 is a 16-point relay output module designed for the Rockwell Automation Compact 5000 I/O platform. Engineered for demanding industrial environments, this module delivers reliable discrete control with isolated relay contacts, making it ideal for motor starters, solenoids, and high-voltage switching applications. Every unit sold through Konmask.com passes our documented 4-step verification process before shipment.
Technical Specifications
- Part Number: 5069-OW16
- Series: Compact 5000 I/O
- Manufacturer: Allen-Bradley / Rockwell Automation
- Output Type: Relay (Form A – SPST-NO)
- Number of Points: 16
- Output Voltage Range: 10–265 V AC/DC
- Maximum Load Current: 2 A per point
- Isolation: Point-to-point isolated outputs
- Backplane Current (5 V DC): 105 mA
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Weight: 240 g (approx.)
- Certifications: UL, CE, cUL, RCM
- Compatible Controllers: CompactLogix 5380, 5480 series
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are sourced directly from authorized distributors or verified secondary-market suppliers with traceable documentation.
- Step 2 – Physical Inspection: Each module is inspected for label integrity, housing condition, connector pin alignment, and counterfeit indicators.
- Step 3 – Functional Bench Test: Where applicable, modules undergo power-on and I/O point continuity testing prior to packaging.
- Step 4 – Secure Packaging: Units are packed in anti-static bags with foam inserts and shipped with a Konmask inspection certificate.
Key Features & Benefits
- Point-to-point isolated relay outputs eliminate cross-channel interference
- Wide voltage range (10–265 V AC/DC) supports diverse field devices
- Hot-swap capable within the Compact 5000 chassis for minimal downtime
- Compact form factor reduces panel space requirements
- Compatible with Studio 5000 Logix Designer for seamless configuration
- LED status indicators per output point for rapid diagnostics
Typical Applications
- Motor starter and contactor control in manufacturing lines
- Solenoid valve switching in fluid handling systems
- Conveyor and material handling automation
- Building automation and HVAC control panels
- Oil & gas process control skids
- Water/wastewater treatment plant automation
Compatible System Components
- Controllers: 5069-L306ERM, 5069-L310ERM, 5069-L320ERM, 5069-L380ERM
- Power Supplies: 5069-PA4, 5069-PB4
- Expansion Cables: 5069-RTBN16, 5069-RTBN32
- Communication Adapters: 5069-AEN2TR (EtherNet/IP)
- Programming Software: Studio 5000 Logix Designer v32+
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global procurement network for Allen-Bradley Compact 5000 components. We ship to North America, Europe, Southeast Asia, the Middle East, and Australia via DHL Express, FedEx International Priority, and UPS Worldwide. Lead times for in-stock units are typically 3–7 business days door-to-door. For urgent requirements, same-day dispatch is available on confirmed stock.
- Export documentation (commercial invoice, packing list, COO) provided on request
- HS Code: 8537.10 (Boards, panels, consoles for electric control)
- Minimum order: 1 unit | Volume pricing available for 5+ units
Certifications & Compliance Statement
The 5069-OW16 carries the following certifications as issued by Rockwell Automation:
- UL Listed – UL 508 (Industrial Control Equipment)
- CE Marked – EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- cUL Listed – Canadian Standards
- RCM – Australian/New Zealand compliance
- RoHS Compliant – Restriction of Hazardous Substances
Konmask.com does not manufacture or modify any Rockwell Automation products. All trademarks remain the property of their respective owners.
How to Order
- Click Add to Cart or Contact Us for a formal quotation.
- Provide your required quantity, delivery address, and any project timeline.
- Receive a proforma invoice within 24 business hours.
- Payment accepted via T/T (bank transfer), PayPal, and major credit cards.
- Tracking number issued upon dispatch; full export documentation provided.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Authenticity & Trust FAQ
Q: Are these units genuine Allen-Bradley products?
A: Yes. All 5069-OW16 units are sourced from traceable supply chains. We provide supplier documentation upon request for enterprise and OEM buyers.
Q: Do you offer a warranty?
A: We offer a 90-day functional warranty on all modules. DOA (Dead on Arrival) units are replaced or refunded within 7 business days of confirmed receipt.
Q: Can I request a test report or inspection certificate?
A: Yes. A Konmask inspection certificate is included with every shipment. Third-party test reports can be arranged for orders of 10+ units.
Q: What if I need a different Compact 5000 module?
A: We stock a wide range of 5069-series I/O modules. Contact us with your BOM and we will provide a consolidated quote.
Q: How do I verify the firmware revision before purchase?
A: Firmware revision information is available on request. Specify your Studio 5000 version and we will confirm compatibility before shipment.
