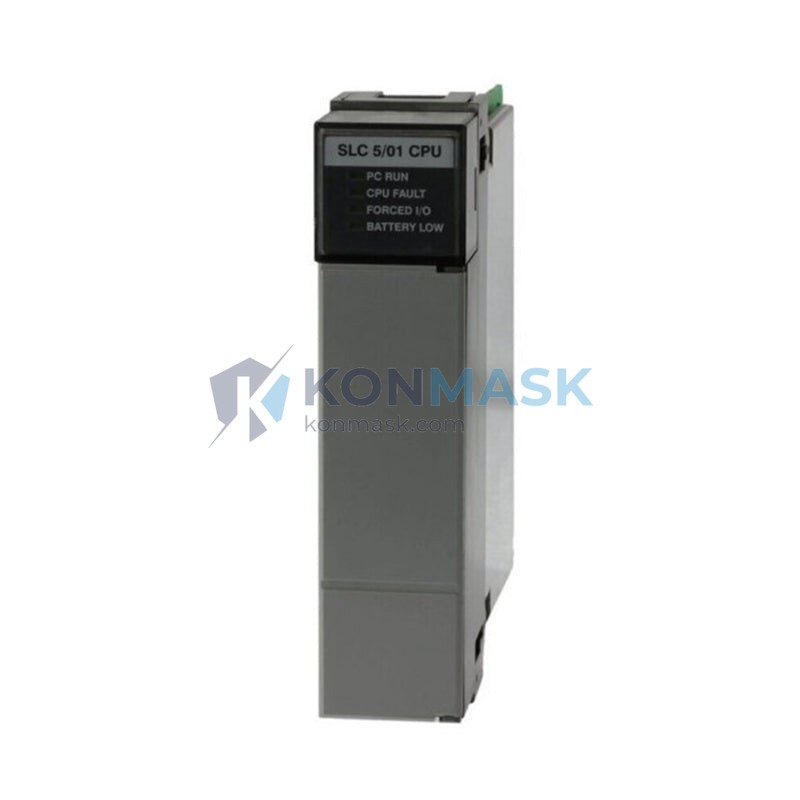

Allen-Bradley 1747-L511 SLC 5/01 Controller | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1747-L511 is a fixed-memory SLC 5/01 processor module from Rockwell Automation’s SLC 500 series. Designed for small-to-mid-scale discrete control applications, it offers reliable DH-485 network communication and a compact form factor suited for panel-space-constrained installations. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 1747-L511
- Series: SLC 500
- Processor Type: SLC 5/01
- User Memory: 1K words (fixed)
- Communication Port: DH-485 (RS-485)
- Max I/O: Up to 960 I/O points (with expansion chassis)
- Programming Software: RSLogix 500 / RSLogix Micro
- Operating Temperature: 0°C to 60°C
- Power Supply: Requires SLC 500 chassis power supply (e.g., 1746-P1, 1746-P2, 1746-P4)
- Chassis Compatibility: 1746-A4, 1746-A7, 1746-A10, 1746-A13
- Weight: Approx. 300 g
- Certifications: UL, CE, CSA
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the 1747-L511. Compatibility depends on memory requirements, communication needs, and existing program structure.
- 1747-L514 — SLC 5/01, 4K words memory; direct upgrade path, same chassis and port
- 1747-L524 — SLC 5/02, 4K words, DH-485; enhanced instruction set, backward-compatible programs
- 1747-L531 — SLC 5/03, 8K words, DH-485 + RS-232; suitable when serial comms are needed
- 1747-L541 — SLC 5/04, 16K words, DH+ network; for larger programs or DH+ infrastructure
- 1747-L551 — SLC 5/05, 16K words, Ethernet/IP; recommended for modern network integration
- MicroLogix 1100 (1763-L16BWA) — Compact alternative with Ethernet/IP; requires program migration
- MicroLogix 1400 (1766-L32BWA) — Higher I/O capacity alternative; suitable for expanded applications
Note: Always verify program memory size, I/O count, and communication protocol before substituting processors. Program re-validation is required after any processor swap.
Why Choose the Original Model
- Proven reliability in legacy SLC 500 installations with decades of field history
- Direct drop-in fit for existing 1746-series chassis — no hardware modification required
- RSLogix 500 compatibility — existing programs load without conversion
- Minimal revalidation — ideal for regulated industries (food & beverage, pharma) where change control is costly
- Cost-effective sparing — lower unit cost compared to higher-tier SLC 5/03–5/05 processors
Typical Applications
- Conveyor and material handling control
- Packaging machine sequencing
- Pump and motor starter control panels
- HVAC and building automation legacy retrofits
- Small batch process control
- OEM machine control with fixed I/O requirements
System Compatibility
- Chassis: 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), 1746-A13 (13-slot)
- Power Supplies: 1746-P1 (120/240 VAC), 1746-P2 (24 VDC), 1746-P4 (120/240 VAC high-capacity)
- I/O Modules: Full 1746-series digital and analog I/O modules
- Programming: RSLogix 500 v8.x+, RSLogix Micro (for MicroLogix cross-reference)
- Communication: DH-485 network (up to 32 nodes, 19.2 Kbps max)
- HMI: PanelView 300, 550, 600 via DH-485; PanelView Plus via DF1 adapter
Selection Guide
Use the criteria below to determine whether the 1747-L511 is the right processor or whether an upgrade is warranted:
- Program ≤ 1K words & DH-485 only needed → 1747-L511 (this unit) ✓
- Program 1K–4K words, same network → Upgrade to 1747-L514
- Need RS-232 / DF1 serial port → Step up to 1747-L531 (SLC 5/03)
- Need DH+ network → 1747-L541 (SLC 5/04)
- Need Ethernet/IP → 1747-L551 (SLC 5/05) or MicroLogix 1100/1400
- Full platform migration → CompactLogix L1/L2/L3 series (requires full program conversion)
Quality Assurance & Sourcing
- All units sourced through verified industrial distribution channels
- Pre-shipment functional test available on request
- Genuine OEM units — no counterfeit or refurbished-as-new misrepresentation
- Refurbished / tested-used units clearly labeled with condition grade
- Traceability documentation available for regulated industries
- 30-day warranty on all stocked units; extended warranty available
How to Order
- Online: Add to cart directly from this page
- Email RFQ: support@konmask.com — include part number, quantity, and required delivery date
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Minimum Order: 1 unit
- Payment: T/T, PayPal, credit card, and trade-term arrangements available
Replacement & Compatibility FAQ
Q: Can I replace a 1747-L511 with a 1747-L514 without reprogramming?
A: Yes, if your program fits within 1K words. The 1747-L514 is a direct hardware replacement with 4K memory capacity. Upload your existing program and verify I/O configuration before going live.
Q: Is the 1747-L511 still in production?
A: No. Rockwell Automation has discontinued the SLC 5/01 line. Availability is limited to new-old-stock (NOS) and tested-used inventory. Plan for migration to MicroLogix or CompactLogix for long-term support.
Q: Can I use RSLogix 5000 / Studio 5000 to program the 1747-L511?
A: No. The 1747-L511 requires RSLogix 500. Studio 5000 / RSLogix 5000 is for Logix5000-based controllers (ControlLogix, CompactLogix) only.
Q: What is the DH-485 node limit?
A: DH-485 supports up to 32 nodes at speeds up to 19.2 Kbps. The 1747-L511 occupies one node address (configurable 1–31).
Q: Can the 1747-L511 communicate with modern Ethernet devices?
A: Not natively. An AIC+ (1761-NET-AIC) or similar gateway is required to bridge DH-485 to Ethernet/IP or DF1.
