Allen-Bradley 1747-L532 SLC 5/03 Control Processor | Replacement, Equivalent & Selection Guide

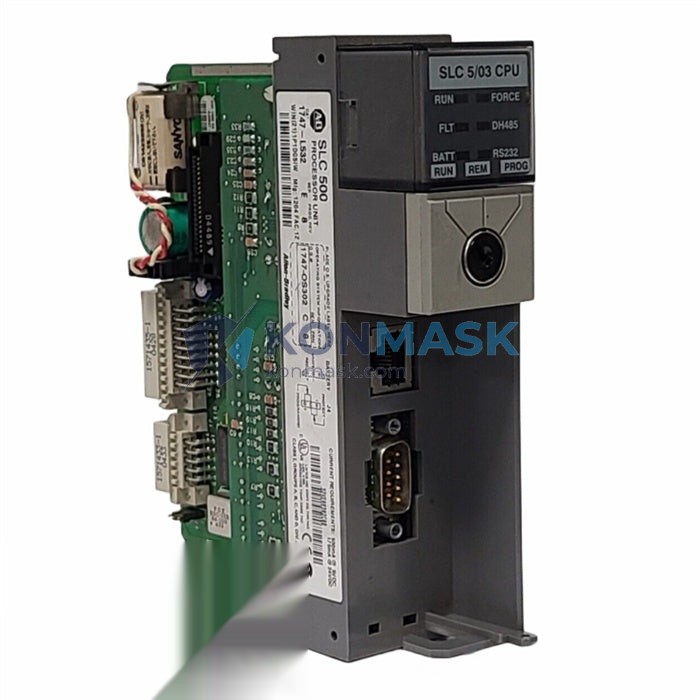

The Allen-Bradley 1747-L532 is a SLC 5/03 series CPU module from Rockwell Automation, designed for mid-range programmable logic controller (PLC) applications. It offers 16K words of user memory, DH-485 and RS-232 communication ports, and is widely deployed in discrete manufacturing, material handling, and process control systems. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Catalog Number: 1747-L532
- Series: SLC 5/03
- Manufacturer: Allen-Bradley / Rockwell Automation
- User Memory: 16K words (16,384 words)
- Communication Ports: Channel 0 – RS-232 (DF1 / ASCII); Channel 1 – DH-485
- Scan Time: ~1 ms/K (typical)
- I/O Capacity: Up to 4,096 I/O points (local + remote)
- Power Supply: Requires SLC 500 chassis power supply (e.g., 1746-P2, 1746-P4)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Backplane Current Draw: 800 mA @ 5 VDC
- Programming Software: RSLogix 500 / Studio 5000 Logix Designer (offline)
- Certifications: UL, CE, CSA
- Form Factor: Single-slot SLC 500 chassis module
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 1747-L532. Always verify firmware compatibility and I/O configuration before substitution.
- 1747-L531 – SLC 5/03, 8K words memory; direct drop-in with reduced memory capacity
- 1747-L533 – SLC 5/03, 32K words memory; upward-compatible upgrade with expanded memory
- 1747-L541 – SLC 5/04, 16K words, adds DH+ communication; suitable when DH+ network is required
- 1747-L542 – SLC 5/04, 32K words + DH+; recommended upgrade path for larger programs
- 1747-L551 – SLC 5/05, 16K words + Ethernet/IP; ideal for modernization with Ethernet connectivity
- 1747-L553 – SLC 5/05, 64K words + Ethernet/IP; maximum capacity SLC 5/05 processor
- 1769-L16ER-BB1B (CompactLogix) – Next-generation platform; requires program migration but offers significant performance gains
Note: SLC 5/03, 5/04, and 5/05 processors are chassis-compatible but differ in communication capabilities. Program migration between SLC series is generally straightforward using RSLogix 500.
Why Choose the Original 1747-L532
- Proven Reliability: Decades of field deployment in demanding industrial environments
- Exact Compatibility: Zero-risk drop-in replacement for existing 1747-L532 installations — no program changes required
- Balanced Specification: 16K words memory covers the majority of SLC 500 application programs without over-specifying
- Dual Communication: RS-232 and DH-485 ports support both point-to-point and multi-drop network topologies
- Wide Ecosystem: Compatible with the full range of 1746 I/O modules and SLC 500 chassis
- Spare Parts Availability: Konmask.com maintains stock of tested, verified units for rapid dispatch
Typical Applications
- Discrete manufacturing: assembly lines, stamping, and packaging machinery
- Material handling: conveyor systems, sortation, and palletizing
- Food & beverage: filling, capping, and labeling equipment
- Water & wastewater: pump control and SCADA integration via DH-485
- HVAC and building automation legacy systems
- OEM machine control where SLC 500 platform is standardized
System Compatibility
- Chassis: 1746-A4, 1746-A7, 1746-A10, 1746-A13 (all SLC 500 chassis)
- Power Supplies: 1746-P1, 1746-P2, 1746-P3, 1746-P4, 1746-P7
- I/O Modules: All 1746 series digital and analog I/O modules
- Communication Adapters: 1747-AIC (DH-485 link coupler), 1747-KE (DH-485 to RS-232 gateway)
- Programming Cable: 1747-CP3 (RS-232 to DIN-8), or USB-to-serial adapter with DF1 driver
- Software: RSLogix 500 v8.x and above; RSLinx Classic for device communication
- SCADA/HMI: Compatible with PanelView, FactoryTalk View, and third-party HMI via DF1 or DH-485
Selection Guide
Use the following criteria to determine whether the 1747-L532 is the right processor for your application, or to select an appropriate alternative:
- Memory requirement ≤ 16K words & DH-485/RS-232 only → 1747-L532 (this model — optimal choice)
- Memory requirement ≤ 8K words → consider 1747-L531 (lower cost)
- Memory requirement 17K–32K words → upgrade to 1747-L533
- DH+ network required → select 1747-L541 / L542 (SLC 5/04)
- Ethernet/IP connectivity required → select 1747-L551 / L553 (SLC 5/05)
- New system design or major retrofit → evaluate CompactLogix 1769 or MicroLogix 1400 for modern architecture
- Exact replacement for installed base → 1747-L532 is the only zero-risk option
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified surplus channels
- Testing: Each unit undergoes power-on functional verification prior to shipment
- Condition: New (factory-sealed) and refurbished (tested, cleaned, re-labeled) options available — please specify at order
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com
- Counterfeit Prevention: Units are inspected against Rockwell Automation authenticity markers; counterfeit units are rejected and not listed
- Documentation: Original datasheet and test report available upon request
How to Order
- Confirm your chassis model and available slot count
- Verify current processor catalog number (label on existing module)
- Select condition: New / Refurbished / Exchange
- Add to cart or contact us for volume pricing and lead time
- Provide your shipping address — we ship worldwide with DHL, FedEx, and UPS
- For urgent requirements, email support@konmask.com with subject line: URGENT – 1747-L532
Replacement & Compatibility FAQ
Q: Can I replace a 1747-L532 with a 1747-L533 without reprogramming?
A: Yes. The 1747-L533 is memory-upward compatible. Your existing program will load and run without modification. Only the memory capacity increases.
Q: Is the 1747-L532 compatible with SLC 5/04 or 5/05 chassis?
A: All SLC 5/03, 5/04, and 5/05 processors use the same SLC 500 chassis and I/O backplane. The processor slots are interchangeable at the hardware level.
Q: Can I use RSLogix 5000 / Studio 5000 to program the 1747-L532?
A: No. The 1747-L532 requires RSLogix 500. Studio 5000 is for ControlLogix and CompactLogix platforms only.
Q: What is the difference between 1747-L532 Series A, B, C?
A: Series revisions reflect minor hardware improvements. Series C is the latest and recommended. All series are functionally equivalent and program-compatible.
Q: Does Konmask.com provide a warranty on refurbished units?
A: Yes — all units carry a 12-month replacement warranty. Defective units are replaced at no charge within the warranty period.
Q: Can I exchange my faulty 1747-L532 for a tested unit?
A: Yes. Contact us at support@konmask.com to arrange an exchange program.
