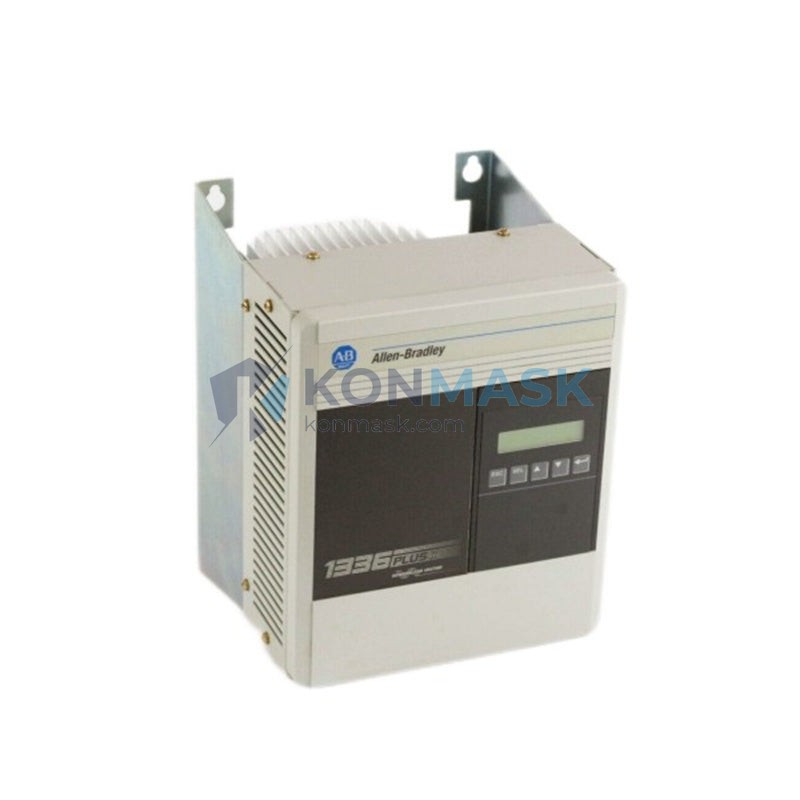

Variable Speed Motor Control Solution — Allen-Bradley 1336F-BRF20-AE-EN-L5E | 1336 PLUS II AC Drive
The Allen-Bradley 1336 PLUS II is a proven, field-hardened AC variable frequency drive engineered for demanding industrial motor control applications. The 1336F-BRF20-AE-EN-L5E is a 2.0 HP (1.5 kW), 480V three-phase unit with Enhanced control firmware and DeviceNet (L5E) communication capability — purpose-built for process-critical environments where precision speed regulation and network integration are non-negotiable.
Where This Product Is Used
The 1336 PLUS II series is deployed across a wide range of industrial sectors wherever reliable, programmable AC motor speed control is required:
- Conveyor & Material Handling Systems — Precise belt speed control in automotive assembly lines, distribution centers, and packaging plants.
- Pump & Fan Control — Energy-efficient flow regulation in HVAC systems, water treatment facilities, and process cooling loops.
- Compressor Drives — Soft-start and variable-speed operation for air compressors in manufacturing and oil & gas facilities.
- Mixing & Agitation Equipment — Controlled torque delivery for chemical processing, food & beverage blending, and pharmaceutical mixing.
- Machine Tool Spindle Drives — Stable speed regulation for CNC machining centers and grinding equipment.
- Textile & Paper Machinery — Synchronized multi-drive control for winding, unwinding, and tension management.
- DeviceNet-Integrated Automation Cells — Networked drive control within Rockwell Automation / Allen-Bradley PLC architectures via the L5E DeviceNet adapter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1336F-BRF20-AE-EN-L5E |
| Series | 1336 PLUS II |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 2.0 HP / 1.5 kW |
| Input Voltage | 380–480V AC, Three-Phase |
| Input Frequency | 47–63 Hz |
| Output Frequency Range | 0–400 Hz |
| Output Current (Continuous) | 4.2 A (480V) |
| Control Method | Sensorless Vector / V/Hz |
| Control Option | Enhanced (EN) — Advanced PID, preset speeds, encoder feedback ready |
| Communication | DeviceNet (L5E adapter) |
| Enclosure | IP20 / NEMA Type 1 (Open) |
| Ambient Temperature | 0°C to +50°C (operating) |
| Humidity | 5–95% non-condensing |
| Altitude | Up to 1000 m without derating |
| Weight | Approx. 10.94 kg |
| Braking | Dynamic braking resistor compatible (external) |
Why Engineers Specify This Model
- Enhanced Control Firmware (EN) — Unlocks advanced features including closed-loop PID regulation, multiple preset speed steps, and encoder feedback interface — critical for process-sensitive applications.
- DeviceNet Integration (L5E) — Native DeviceNet communication enables seamless integration with Allen-Bradley PLCs (ControlLogix, CompactLogix, SLC 500) and RSLogix programming environments without additional gateways.
- Proven Field Reliability — The 1336 PLUS II platform has accumulated decades of installed-base history in heavy industry, making spare parts, documentation, and field expertise widely available.
- Sensorless Vector Control — Delivers high starting torque and stable low-speed performance without the cost and complexity of encoder hardware.
- Flexible I/O — Configurable analog and digital I/O supports diverse control architectures from simple potentiometer speed reference to full PLC-commanded operation.
- Retrofit Compatibility — Drop-in replacement for existing 1336 PLUS II installations; parameter sets are transferable via DriveExplorer or DriveExecutive software.
Complete System Bill of Materials
For a fully operational 1336F-BRF20-AE-EN-L5E drive installation, engineers typically specify the following complementary components:
- Input Line Reactor — 1321-3R2-B (reduces harmonic distortion and protects drive input)
- Output Filter / dV/dt Filter — For long cable runs exceeding 30 m to motor
- Dynamic Braking Resistor — AK-R2-091P300 or equivalent (for applications requiring fast deceleration)
- DeviceNet Cable & Connectors — 1485C-P1A50 trunk cable, 1485T-P2T5-T5 tee connectors
- Human Interface Module (HIM) — 1336-GM6 or 1201-HA2 remote HIM for local parameter access
- Programming Software — DriveExecutive v5.x or Studio 5000 Logix Designer with drive add-on profile
- Fused Disconnect / MCP — Per NEC/IEC motor branch circuit protection requirements
- Grounding Kit — Per Rockwell Automation Wiring and Grounding Guidelines (Publication DRIVES-IN001)
Compliance & Industry Standards
- UL Listed (UL 508C — Power Conversion Equipment)
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS Compliant
- DeviceNet Conformance Tested (ODVA)
- Meets IEEE 519 harmonic limits when used with recommended line reactor
- Suitable for use in NFPA 70 (NEC) compliant installations
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 1336 PLUS II unit is subject to a rigorous incoming inspection protocol before dispatch:
- Authenticity Verification — Label, date code, and firmware version cross-checked against Rockwell Automation factory records.
- Functional Power-On Test — Drive is energized and output waveform verified prior to shipment.
- Cosmetic & Mechanical Inspection — Enclosure, terminal blocks, and communication adapter inspected for transit damage.
- Traceability Documentation — Each unit ships with a Konmask inspection report and, where available, original factory documentation.
- Packaging — Anti-static foam-lined export carton with desiccant for humidity-sensitive electronics.
We source from authorized distribution channels, verified surplus inventories, and factory-refurbished stock. All units are clearly labeled by condition (New Surplus / Refurbished / Used-Tested) at time of quotation.
How to Source This Part
- Add to Cart — Proceed directly if the listed condition and price meet your requirements.
- Request a Quote — For volume orders (3+ units), OEM pricing, or specific condition requirements, contact our technical sales team.
- Lead Time — In-stock units ship within 1–3 business days. Ex-stock or sourced units: 5–15 business days depending on origin.
- Export & Customs — We handle HS code classification, commercial invoices, and export documentation for international shipments.
- Payment — T/T (Bank Transfer), PayPal, and trade credit available for qualified accounts.
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Can the 1336F-BRF20-AE-EN-L5E be used on a 220V single-phase supply?
A: No. This unit requires 380–480V three-phase input. For single-phase or 220V applications, the 1336S (1336 PLUS) or 22B series PowerFlex drives are more appropriate.
Q: Is the DeviceNet adapter (L5E) removable or field-replaceable?
A: Yes. The L5E is a plug-in communication adapter. It can be replaced in the field without returning the drive to the factory, provided the replacement adapter is correctly configured with the same node address and data rate.
Q: What is the difference between the Standard and Enhanced (EN) control option?
A: The Enhanced control board adds closed-loop PID, additional preset speeds (up to 7), encoder feedback input, and expanded fault diagnostics compared to the Standard control option.
Q: Can this drive control a permanent magnet (PM) motor?
A: The 1336 PLUS II is optimized for standard induction motors. For PM motor control, Rockwell Automation recommends the PowerFlex 755 or 527 series with the appropriate motor control mode.
Q: What programming software is compatible?
A: DriveExplorer, DriveExecutive, and the 1336 PLUS II Add-On Profile for Studio 5000 Logix Designer are all compatible. Parameter upload/download via the HIM is also supported.
Q: Is a CE Declaration of Conformity available?
A: Yes. Rockwell Automation’s CE DoC for the 1336 PLUS II series is available upon request. Contact support@konmask.com with your specific catalog number.
