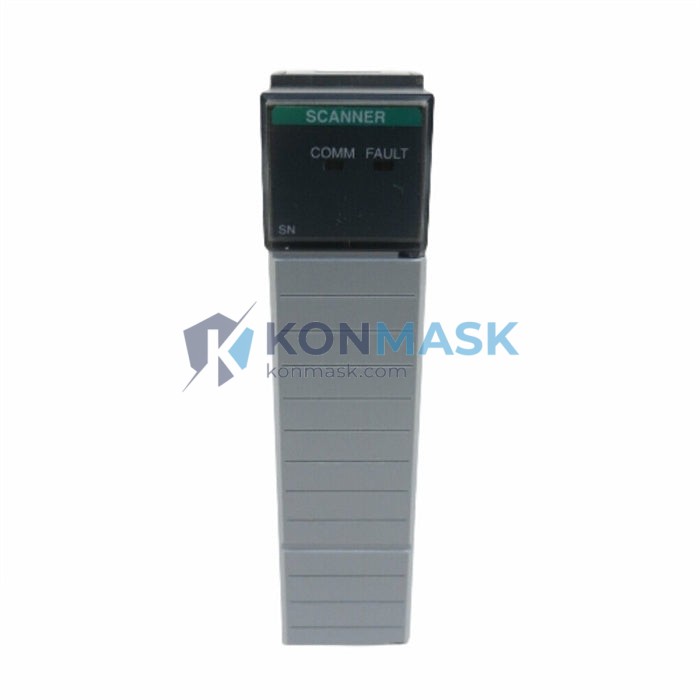

DeviceNet Network Integration Solution – Allen-Bradley 1747-SN | SLC 500 Platform
The Allen-Bradley 1747-SN is the factory-standard DeviceNet Scanner Module for the SLC 500 programmable controller platform. Designed for engineers who need deterministic, high-speed device-level communication across distributed I/O, drives, sensors, and actuators, this module serves as the master node on a DeviceNet network — polling up to 63 slave devices with configurable scan rates and explicit messaging support.
At Konmask.com, we supply the 1747-SN to MRO procurement teams, system integrators, and OEM rebuild programs requiring verified, shelf-ready inventory with full traceability documentation.
Where This Product Is Used
The 1747-SN is specified across a broad range of industrial environments where DeviceNet is the backbone device-level network:
- Automotive Assembly Lines — Coordinating conveyor drives, pneumatic actuators, and safety light curtains via DeviceNet under SLC 500 control
- Food & Beverage Processing — Integrating variable frequency drives (VFDs), flow meters, and solenoid valve banks in hygienic production lines
- Material Handling & Palletizing — Connecting distributed I/O blocks (1794-ADN, 1734-ADN) across long conveyor runs with a single trunk cable
- Water & Wastewater Treatment — Polling pump drives, level sensors, and valve actuators in remote panel configurations
- Packaging Machinery (OEM) — Embedded in standalone machine panels where SLC 500 + DeviceNet is the legacy standard
- Discrete Parts Manufacturing — Coordinating robot end-of-arm tooling, barcode scanners, and vision systems on a shared DeviceNet segment
- MRO Replacement — Direct drop-in replacement for failed 1747-SN units in existing SLC 500 racks without re-engineering
Technical Specifications
| Catalog Number | 1747-SN |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Platform | SLC 500 |
| Module Type | DeviceNet Scanner (Master Node) |
| Network Protocol | DeviceNet (CAN-based, IEC 62026-3) |
| Max Network Nodes | 63 slave devices per scanner |
| Data Rates | 125 Kbps / 250 Kbps / 500 Kbps (auto-detect or configured) |
| I/O Data Table | Up to 248 words input / 248 words output in SLC data file |
| Messaging | Polled, Strobe, Change-of-State (COS), Cyclic, Explicit |
| Backplane Current Draw | 800 mA @ 5 VDC |
| Network Power | External DeviceNet power supply required (11–25 VDC) |
| Slot Occupancy | Single slot, SLC 500 modular chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | Open type — requires installation in rated enclosure |
| Weight | Approx. 1,200 g (packaged) |
| Programming Software | RSNetWorx for DeviceNet; RSLogix 500 |
| EDS File | Available from Rockwell Automation PCDC |
Why Engineers Specify This Model
- Native SLC 500 Integration — Maps DeviceNet I/O directly into SLC M0/M1 data files; no gateway or protocol converter required
- Deterministic Scan Cycle — Polled I/O with configurable Expected Packet Rate (EPR) ensures predictable network latency for motion-critical applications
- Multi-Connection Support — Simultaneous polled + COS + explicit messaging on the same network segment without bandwidth conflicts
- RSNetWorx Configuration — Graphical node commissioning, EDS-based device configuration, and online diagnostics via RSNetWorx for DeviceNet
- Fault Isolation — Per-node fault reporting in SLC data file allows ladder logic to isolate and respond to individual device failures without halting the entire network
- Long Cable Runs — DeviceNet trunk supports up to 500 m at 125 Kbps, suitable for large plant floor layouts
- Proven Longevity — Installed base spanning 25+ years; extensive third-party documentation, trained integrators, and spare parts ecosystem
Complete System Bill of Materials
A complete SLC 500 DeviceNet scanning system typically includes the following components:
- 1747-SN — DeviceNet Scanner Module (this item)
- 1746-A4 / A7 / A10 / A13 — SLC 500 Modular Chassis (4, 7, 10, or 13 slot)
- 1747-L531 / L532 / L541 / L542 / L543 — SLC 5/03, 5/04, or 5/05 CPU
- 1747-CP3 — Programming cable (RS-232 to DH-485)
- 1485C-P1-C150 — DeviceNet thick trunk cable (per meter)
- 1485A-C1 — DeviceNet terminating resistor (120 Ω, required at both trunk ends)
- 1787-DNPS — DeviceNet power supply (24 VDC, 4 A)
- 1794-ADN — FLEX I/O DeviceNet Adapter (for distributed I/O drops)
- 1734-ADN — POINT I/O DeviceNet Adapter (for compact distributed drops)
- 20-COMM-D — PowerFlex Drive DeviceNet Adapter (for VFD integration)
Contact Konmask.com for bundle pricing on multi-component orders.
Compliance & Industry Standards
- DeviceNet — IEC 62026-3 compliant; ODVA conformance tested
- CAN Physical Layer — ISO 11898 compliant
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive
- UL Listed — UL 508 (Industrial Control Equipment)
- RoHS — Compliant (Restriction of Hazardous Substances)
- ODVA Conformance — Certified DeviceNet product; interoperable with all ODVA-conformant slave devices
Quality Assurance & Sourcing
Konmask.com applies a multi-stage verification protocol to every 1747-SN unit before shipment:
- Visual Inspection — PCB, connector pins, housing, and label integrity checked against OEM reference standards
- Firmware Version Verification — Module firmware series confirmed and documented
- Functional Bench Test — DeviceNet communication verified at all three baud rates (125 / 250 / 500 Kbps) using calibrated test equipment
- Counterfeit Screening — Component markings, PCB silkscreen, and date codes cross-referenced against known-genuine samples
- Traceability Documentation — Each unit ships with inspection record, source documentation, and Konmask quality certificate
- Packaging — ESD-safe anti-static bag, foam-lined carton, and moisture barrier for international transit
How to Source This Part
- Submit RFQ — Email support@konmask.com with quantity, required delivery date, and destination country
- Receive Quote — Price, lead time, and availability confirmed within 1 business day
- Order Confirmation — Purchase order accepted; payment terms discussed (T/T, PayPal, trade credit for qualified accounts)
- Quality Inspection — Unit undergoes full QA protocol before dispatch
- Shipment & Tracking — Shipped via DHL / FedEx / UPS with full tracking; export documentation provided for international orders
- After-Sales Support — Technical assistance available post-delivery for installation and commissioning questions
Application-Specific FAQ
Q: Can the 1747-SN operate as a DeviceNet slave instead of a master?
A: No. The 1747-SN is a scanner (master) only. For slave functionality in an SLC 500 rack, use the 1747-SDN (DeviceNet Interface Module).
Q: How many 1747-SN modules can I install in one SLC 500 chassis?
A: Multiple scanners can be installed in the same chassis (subject to backplane current budget), each managing an independent DeviceNet network segment — useful for large systems requiring network segmentation.
Q: Is the 1747-SN compatible with SLC 5/01 and 5/02 processors?
A: The 1747-SN requires an SLC 5/03 (Series C or later), 5/04, or 5/05 processor. It is not compatible with SLC 5/01 or 5/02 due to M0/M1 file requirements.
Q: What RSNetWorx version is required for configuration?
A: RSNetWorx for DeviceNet version 4.x or later is recommended. EDS files for all connected slave devices must be installed in the RSNetWorx EDS library prior to configuration.
Q: Can I replace a failed 1747-SN without re-configuring the network?
A: Yes, if the replacement module is loaded with the same configuration file (saved from RSNetWorx). The SLC processor will resume normal scanning after the module is seated and powered.
Q: Do you supply the 1747-SN with a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available — contact us for details.
Q: Can you supply multiple units for a plant-wide MRO stocking program?
A: Yes. We support blanket orders, scheduled releases, and consignment stocking arrangements for high-volume MRO customers. Contact our procurement team to discuss terms.
