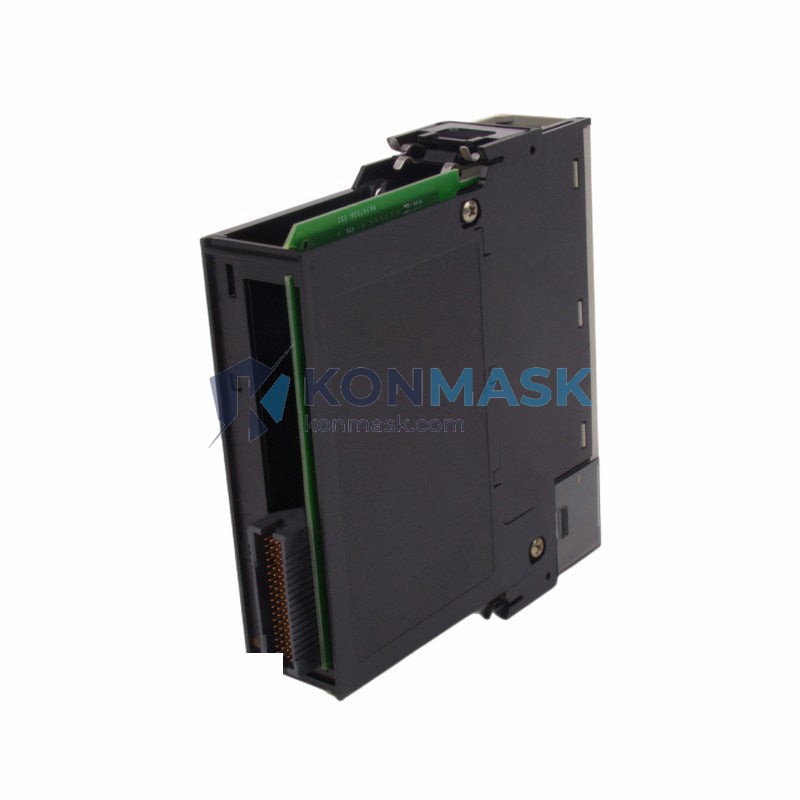

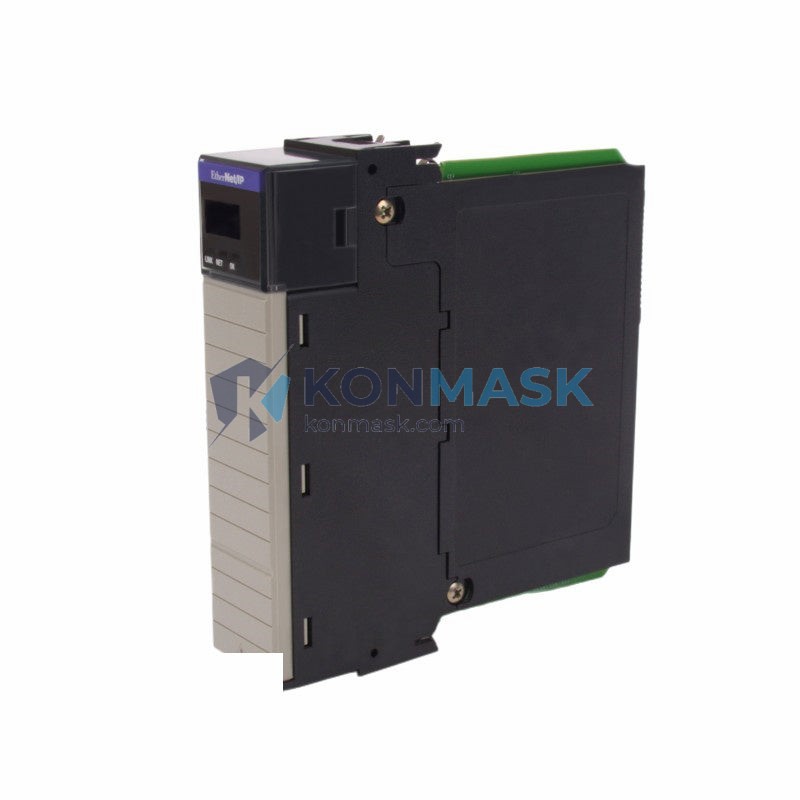

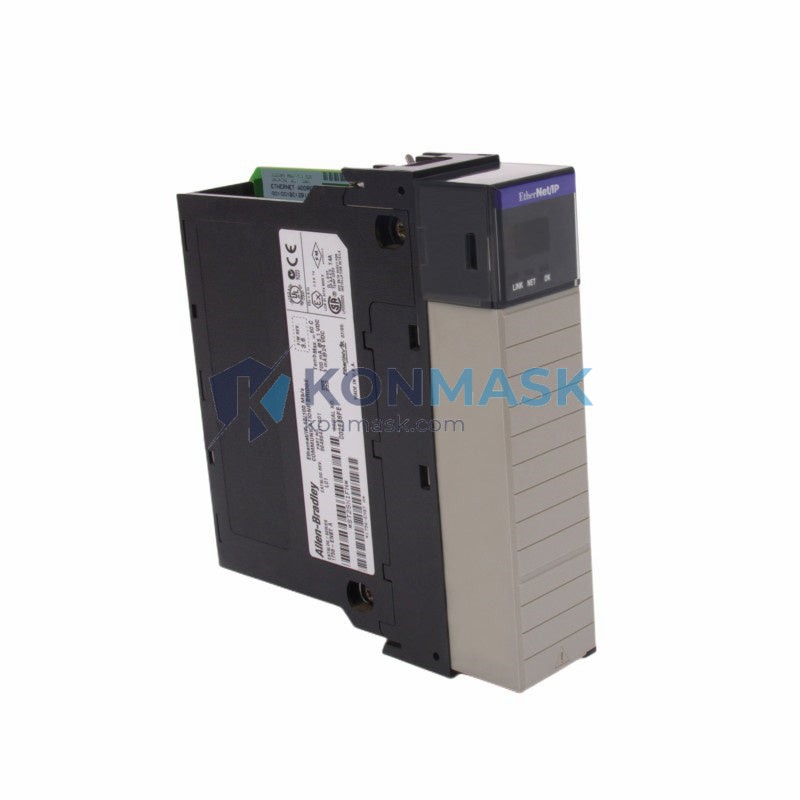

Genuine Allen-Bradley 1756-ENBT/A EtherNet/IP Communications Module | ControlLogix Series – Verified Source
The Allen-Bradley 1756-ENBT/A is a high-performance EtherNet/IP bridge module for the ControlLogix platform, enabling seamless integration of Rockwell Automation control systems into standard Ethernet networks. Sourced directly through verified industrial distribution channels, every unit sold by Konmask.com undergoes rigorous authenticity and functional verification before dispatch.
Technical Specifications
- Part Number: 1756-ENBT/A
- Series: ControlLogix (1756 Chassis)
- Communication Protocol: EtherNet/IP (CIP over Ethernet)
- Network Speed: 10/100 Mbps, auto-negotiating
- Connector Type: RJ-45 (standard Ethernet)
- Backplane Current Draw: 1A @ 5V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H × W × D): 94.0 × 94.0 × 87.4 mm
- Weight: Approx. 200 g
- Certifications: UL, CE, C-Tick, ATEX (Zone 2)
- Firmware: Field-upgradeable via RSLogix 5000 / Studio 5000
Our 4-Step Quality Verification Process
Every 1756-ENBT/A unit shipped from Konmask.com passes through our standardized verification protocol before it reaches you:
- Step 1 — Source Authentication: We verify the supply chain origin and cross-reference manufacturer lot codes and date codes against Rockwell Automation’s published records.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, connector condition, PCB markings, and housing authenticity. Counterfeit indicators are checked against known reference units.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and tested for backplane communication, Ethernet link establishment, and firmware version confirmation.
- Step 4 — Packaging & Documentation Audit: Units are repackaged with anti-static protection, and all accompanying documentation (datasheet, test report, certificate of conformance) is included in the shipment.
Key Features & Benefits
- ✅ Genuine Rockwell Automation hardware — not refurbished grey-market stock
- ✅ EtherNet/IP bridge — connects ControlLogix backplane to plant-floor Ethernet networks
- ✅ Dual-port topology support — linear, ring (DLR), and star network configurations
- ✅ Implicit & explicit messaging — supports both I/O and information-level communications
- ✅ Web server built-in — module diagnostics accessible via standard browser
- ✅ Hot-swap capable — replace without powering down the chassis (with appropriate firmware)
- ✅ RSLinx / Studio 5000 compatible — plug-and-play with Rockwell software ecosystem
Typical Applications
- Automotive assembly line PLC-to-SCADA integration
- Oil & gas distributed control system (DCS) Ethernet bridging
- Food & beverage plant-floor network connectivity
- Water treatment facility remote I/O communication
- Pharmaceutical batch process control via EtherNet/IP
- Mining and metals conveyor system automation
- Power generation and utilities substation automation
Compatible System Components
- Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L61, 1756-L62, 1756-L63, 1756-L64, 1756-L65 (Logix5561–5565)
- Software: RSLogix 5000 v16+, Studio 5000 Logix Designer v21+, RSLinx Classic / Enterprise
- Managed Switches: Stratix 5700, Stratix 8000 (recommended for DLR topology)
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China (primary); Hong Kong bonded warehouse (export)
- Lead Time: In-stock orders ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, SF Express (domestic CN)
- Export Documentation: Commercial invoice, packing list, certificate of origin, and EAR99 classification confirmation available on request
- Customs Support: HS Code 8537.10 — we assist with import documentation for EU, US, AU, and Southeast Asian markets
- Minimum Order: 1 unit (bulk pricing available for orders of 5+ units — contact us)
Certifications & Compliance Statement
- UL Listed: UL 508 (Industrial Control Equipment)
- CE Marked: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- RoHS Compliant: Directive 2011/65/EU
- ATEX: Zone 2 rated (II 3 G Ex nA IIC T4 Gc)
- C-Tick / RCM: Australian Communications and Media Authority compliant
- EAR99: No US export license required for most destinations
Konmask.com does not alter, re-label, or modify any hardware. All compliance markings are original manufacturer-applied.
How to Order
- Add to Cart — select quantity and proceed to checkout, or
- Request a Quote — email support@konmask.com with your required quantity, delivery timeline, and destination country for a formal quotation within 4 business hours.
- Bulk / OEM Orders — for orders of 10+ units or recurring procurement contracts, contact us directly for volume pricing and consignment options.
- Payment Terms: T/T (wire transfer), PayPal, credit card via Shopify Payments. Net-30 terms available for verified corporate accounts.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Allen-Bradley module?
A: Every unit is sourced from authorized industrial distributors or verified secondary-market channels. We provide lot code documentation and, upon request, a certificate of conformance. We welcome third-party inspection before shipment.
Q: Is this new, refurbished, or used?
A: Unless explicitly stated otherwise in the listing title, all units are new-in-box (NIB) or new-surplus (factory-sealed, never installed). Refurbished units are always clearly labeled as such.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. The official Rockwell Automation publication 1756-UM004 (EtherNet/IP Modules in Logix5000 Control Systems) is available on request. Contact support@konmask.com.
Q: What is your return policy?
A: We offer a 30-day return window for DOA (dead-on-arrival) units with full replacement or refund. Modules must be returned in original packaging with all documentation.
Q: Do you offer warranty?
A: All new units carry a 12-month Konmask seller warranty covering manufacturing defects. This is in addition to any applicable Rockwell Automation OEM warranty.
