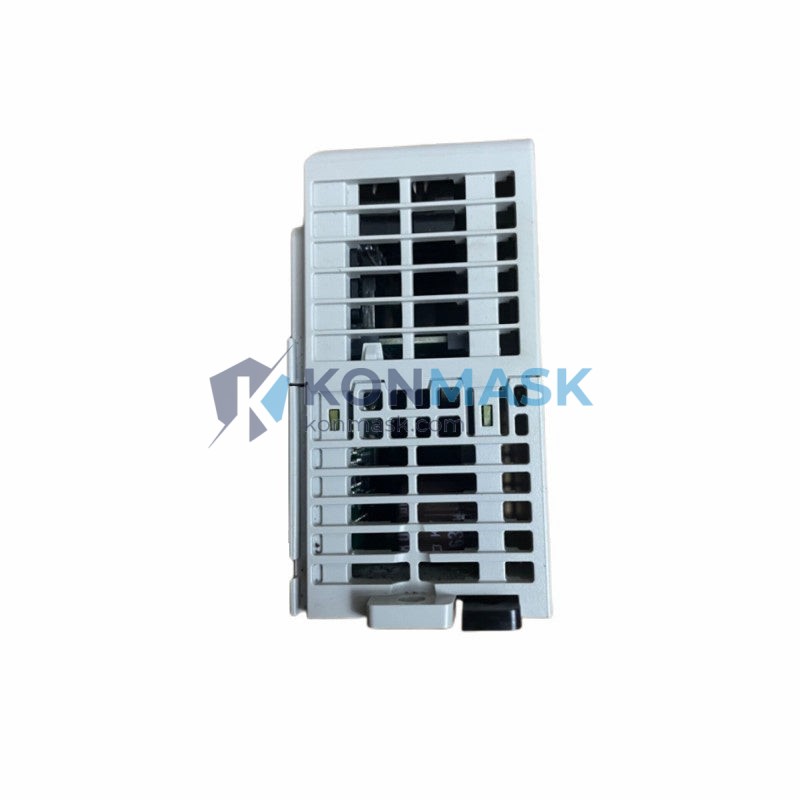

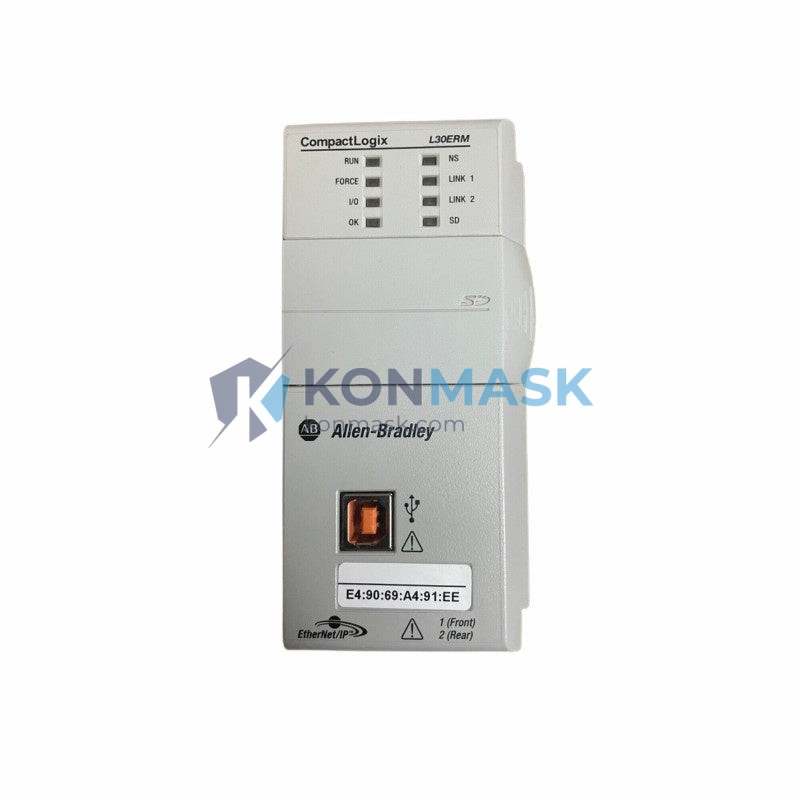

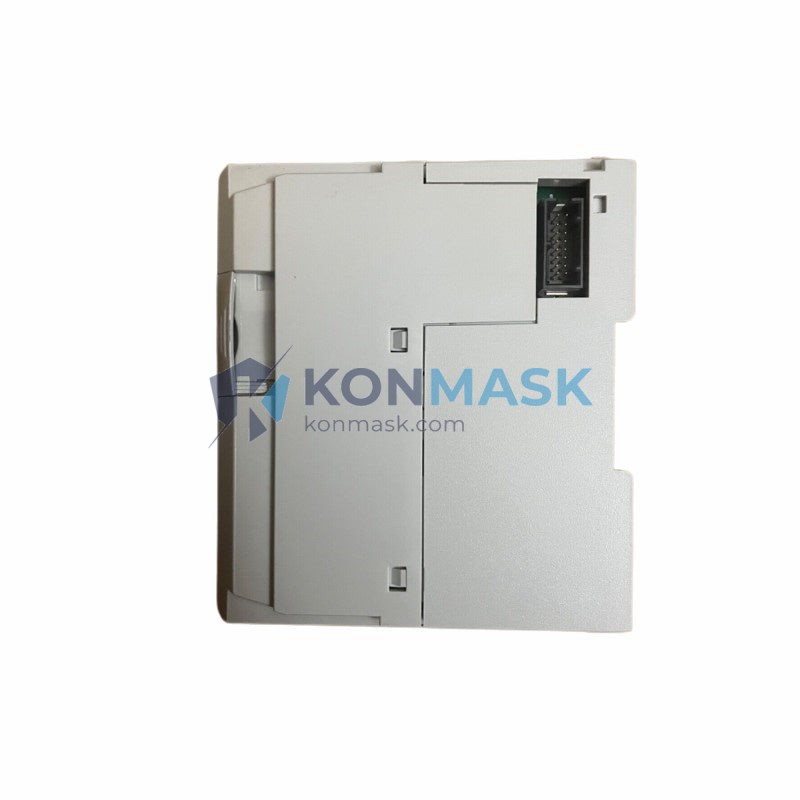

Allen-Bradley 1769-L30ERM CompactLogix 1MB Motion Controller | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1769-L30ERM is a high-performance CompactLogix motion controller from Rockwell Automation, designed for demanding motion and discrete control applications. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Part Number: 1769-L30ERM
- Brand: Allen-Bradley / Rockwell Automation
- Series: CompactLogix 5370
- Memory: 1 MB User Memory
- Motion Axes: Up to 16 axes (EtherNet/IP)
- Communication: EtherNet/IP (dual-port), USB (programming)
- I/O Capacity: Up to 16 local I/O modules
- Programming Software: Studio 5000 Logix Designer
- Power Supply: 1769-PA2 / 1769-PB2 (external)
- Operating Temperature: 0 °C to 60 °C
- Certifications: UL, CE, cUL
- Firmware: Compatible with v20 and above
- Dimensions (W×H×D): Approx. 35 × 148 × 118 mm
- Weight: Approx. 0.5 kg
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 1769-L30ERM. Always verify firmware, I/O compatibility, and motion axis requirements before substitution.
- 1769-L30ER — CompactLogix 1MB, EtherNet/IP, no motion (discrete only); suitable if motion axes are not required
- 1769-L30ERMS — Safety variant with integrated SIL 2 / PLd safety functions; drop-in for safety-critical applications
- 1769-L33ERM — 2MB memory upgrade; recommended when program size exceeds 1MB
- 1769-L36ERM — 3MB memory, higher I/O density; for larger system expansions
- 1769-L19ERM — Compact form factor, 512KB; suitable for smaller motion applications
- 5069-L306ERM (CompactLogix 5380) — Next-generation platform; higher throughput, dual Gigabit EtherNet/IP; recommended for new designs
- 5069-L310ERM (CompactLogix 5380) — 10MB, up to 31 axes; for complex multi-axis motion systems
Note: Cross-platform migration (5370 → 5380) requires project conversion in Studio 5000 and hardware re-wiring. Consult Rockwell’s migration guide or contact Konmask for assistance.
Why Choose the Original Model
- Proven field reliability — Widely deployed in automotive, food & beverage, and material handling industries
- Native EtherNet/IP motion — Integrated CIP Motion over EtherNet/IP eliminates dedicated motion networks
- Seamless Rockwell ecosystem — Full compatibility with Studio 5000, FactoryTalk, and Kinetix servo drives
- Dual-port EtherNet/IP — Supports Device Level Ring (DLR) topology for network redundancy
- Long-term support — Active product with available firmware updates and Rockwell TechConnect support
Typical Applications
- Multi-axis servo motion control (conveyor, pick-and-place, packaging lines)
- Discrete manufacturing automation
- Automotive assembly and welding lines
- Food & beverage processing and filling machines
- Material handling and palletizing systems
- OEM machine builders requiring compact, scalable control
System Compatibility
- Programming Software: Studio 5000 Logix Designer v20+
- HMI: PanelView Plus 6 / 7, FactoryTalk View SE/ME
- Servo Drives: Kinetix 350, 5500, 5700 (via EtherNet/IP CIP Motion)
- I/O Modules: 1769 Compact I/O series (digital, analog, specialty)
- Network: EtherNet/IP (DLR, linear, star topologies)
- Power Supply: 1769-PA2 (120/240 VAC), 1769-PB2 (24 VDC)
- Chassis: No dedicated chassis required — modular rail-mount design
Selection Guide
Use the following criteria to select the correct CompactLogix controller for your application:
- Motion axes needed ≤ 16, memory ≤ 1MB: → 1769-L30ERM ✓ (this model)
- Motion axes needed ≤ 16, memory 1–2MB: → 1769-L33ERM
- Motion axes needed ≤ 16, memory 2–3MB: → 1769-L36ERM
- No motion required, 1MB: → 1769-L30ER
- Safety (SIL 2 / PLd) required: → 1769-L30ERMS
- New design, higher performance: → 5069-L306ERM or 5069-L310ERM (CompactLogix 5380)
- Compact / low-axis application: → 1769-L19ERM
If you are unsure which model fits your system, contact Konmask’s technical team with your axis count, I/O requirements, and existing network topology.
Quality Assurance & Sourcing
- Authenticity: All units sourced through verified industrial distribution channels
- Inspection: Each unit undergoes visual, label, and functional pre-shipment inspection
- Condition: New (factory-sealed) and refurbished (tested, warranted) options available
- Warranty: 12-month replacement warranty on all stocked units
- Traceability: Batch records and country-of-origin documentation available on request
- Anti-counterfeit: Holographic labels and serial number verification provided
How to Order
- Confirm part number: 1769-L30ERM (or specify required firmware revision)
- Specify quantity and required condition (new / refurbished)
- Add to cart or contact us directly for bulk pricing and lead time
- Provide shipping destination for freight quote (DDP/DAP available)
- Payment: T/T, PayPal, or trade credit (approved accounts)
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 1769-L30ERM with a 1769-L30ER?
A: Only if your application does not use CIP Motion. The L30ER lacks motion control capability.
Q: Is the 1769-L30ERM compatible with CompactLogix 5380 (5069) I/O?
A: No. The 5370 series uses 1769 Compact I/O; the 5380 series uses 5069 Compact I/O. They are not interchangeable.
Q: What firmware version does the 1769-L30ERM require?
A: Minimum v20; latest recommended firmware is available via Rockwell’s Product Compatibility and Download Center (PCDC).
Q: Can Konmask assist with migration from 1769-L30ERM to CompactLogix 5380?
A: Yes. Contact our technical team for a migration assessment and Studio 5000 project conversion support.
Q: Do you offer exchange / core return programs?
A: Yes, for refurbished units. Contact us for details on core return credit.
