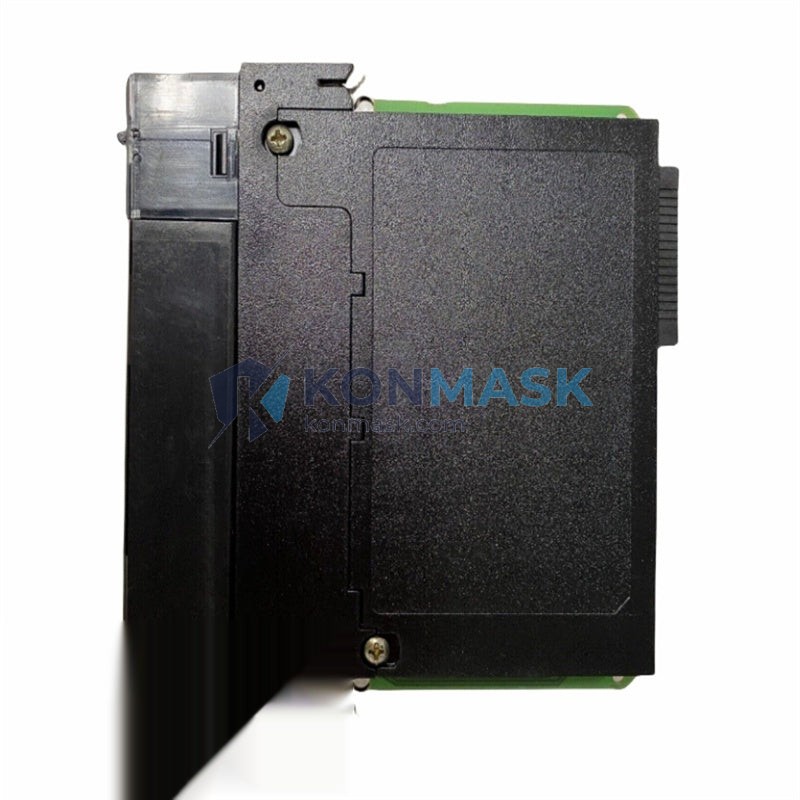

Genuine Allen-Bradley 1756-IF16IH Analog Input Module | ControlLogix Series – Verified Source
The Allen-Bradley 1756-IF16IH is a 16-channel, high-resolution analog input module designed for the ControlLogix platform. Sourced directly through verified industrial distribution channels, every unit sold by Konmask.com undergoes multi-point authenticity and functional verification before dispatch. We serve OEMs, system integrators, MRO buyers, and plant engineers who demand genuine parts with traceable provenance.
Technical Specifications
- Part Number: 1756-IF16IH
- Brand / Manufacturer: Allen-Bradley (Rockwell Automation)
- Series: ControlLogix 1756
- Module Type: Analog Input
- Number of Channels: 16 (single-ended)
- Input Signal Type: Current (4–20 mA HART-compatible)
- Resolution: 16-bit
- Backplane Current Draw: 250 mA @ 5 VDC; 3 mA @ 24 VDC
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5–95% non-condensing
- Weight: 2,230 g (module + chassis, approximate)
- Certifications: CE, UL, cUL, C-Tick
- Firmware Compatibility: RSLogix 5000 / Studio 5000 Logix Designer
Our 4-Step Quality Verification Process
Every 1756-IF16IH unit shipped from Konmask.com passes through our standardized verification workflow:
- Step 1 — Visual Inspection: Housing, label, firmware revision sticker, and connector pins are examined against OEM reference standards. Counterfeit indicators (misaligned labels, incorrect font, non-standard plastics) trigger immediate rejection.
- Step 2 — Serial Number Traceability: Serial numbers are cross-referenced against supplier documentation and, where available, Rockwell Automation’s authorized distribution records.
- Step 3 — Functional Bench Test: Modules are powered in a live ControlLogix chassis. Channel-by-channel analog input response, HART pass-through, and backplane communication are verified.
- Step 4 — Packaging & Documentation Audit: Original OEM packaging, datasheet, and any included accessories are confirmed present and undamaged before final dispatch.
Key Features & Benefits
- 16 individually isolated HART-enabled current input channels — ideal for dense process instrumentation loops
- High 16-bit resolution delivers precise analog measurement for critical process control
- Seamless integration with ControlLogix, GuardLogix, and CompactLogix (via adapter) platforms
- HART pass-through enables simultaneous digital communication with field instruments without additional wiring
- Hot-swap capable — replace modules without shutting down the chassis or disrupting other I/O
- Producer/Consumer communication model reduces scan time and network load
- Diagnostic data (over-range, under-range, open-wire) reported directly to the controller tag database
Typical Applications
- Oil & gas upstream/downstream process monitoring (flow, pressure, temperature transmitters)
- Chemical and petrochemical plant DCS migration and hybrid architectures
- Water and wastewater treatment SCADA integration
- Power generation and utilities instrumentation
- Pharmaceutical batch process control (FDA 21 CFR Part 11 environments)
- Food & beverage continuous process lines
- Mining and minerals processing automation
Compatible System Components
- Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L61, 1756-L62, 1756-L63, 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
- Communication Modules: 1756-EN2T, 1756-EN2TR, 1756-CN2, 1756-DNB
- Programming Software: Studio 5000 Logix Designer v21.00 or later (RSLogix 5000 v16+)
- Field Wiring: 1756-TBCH or 1756-TBS6H removable terminal blocks (sold separately)
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China — with partner warehouses in Hong Kong and Singapore
- Lead Time: In-stock units typically ship within 1–3 business days of order confirmation
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, SF International, sea freight (LCL/FCL) for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and ECCN classification provided on request
- Customs & Duties: DAP (Delivered At Place) and DDP (Delivered Duty Paid) terms available — contact us for a landed-cost quote
- Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units)
- Regions Served: Asia-Pacific, Middle East, Europe, North America, South America, Africa
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed: Recognized under UL 508 (Industrial Control Equipment)
- RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances)
- ATEX / IECEx: Not rated for Zone 0/1 hazardous areas in base configuration — consult Rockwell for certified variants
- Konmask Authenticity Pledge: We do not knowingly source, stock, or sell counterfeit or unauthorized reproduction parts. Any unit found non-genuine after delivery is eligible for full replacement or refund under our Authenticity Guarantee Policy.
How to Order
- Online: Add to cart and complete checkout at Konmask.com — secure payment via T/T bank transfer, PayPal, or credit card
- RFQ / Bulk Inquiry: Email support@konmask.com with quantity, required delivery date, and destination port for a formal quotation within 24 hours
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Lead Time Confirmation: Stock availability is confirmed at time of order — contact us before purchasing if your project has a hard deadline
- Payment Terms: 100% T/T in advance for standard orders; Net 30 available for approved corporate accounts
Authenticity & Trust FAQ
Q: Is this a genuine Allen-Bradley / Rockwell Automation product?
A: Yes. All units are sourced through verified industrial supply channels and pass our 4-step verification process before shipment. We provide supplier documentation upon request for qualified buyers.
Q: Is Konmask.com an authorized Rockwell Automation distributor?
A: Konmask.com is an independent industrial parts supplier. We are not an authorized Rockwell distributor, but we source from authorized channels and stand behind every unit with our Authenticity Guarantee. For warranty-critical applications, we recommend confirming your procurement policy with your engineering team.
Q: What if the module is DOA or fails within the warranty period?
A: We offer a 90-day functional warranty on all modules. DOA units are replaced or refunded within 5 business days of confirmed failure report. Contact support@konmask.com with photos and a fault description to initiate a claim.
Q: Can you provide a datasheet or wiring diagram?
A: Yes — the official Rockwell Automation publication 1756-UM009 (ControlLogix Analog I/O Modules User Manual) covers the 1756-IF16IH in full. Contact us and we will send the PDF directly.
Q: Do you accept returns?
A: Unused, unopened modules in original packaging may be returned within 14 days of receipt. Return shipping is the buyer’s responsibility unless the unit is confirmed non-genuine or DOA.
