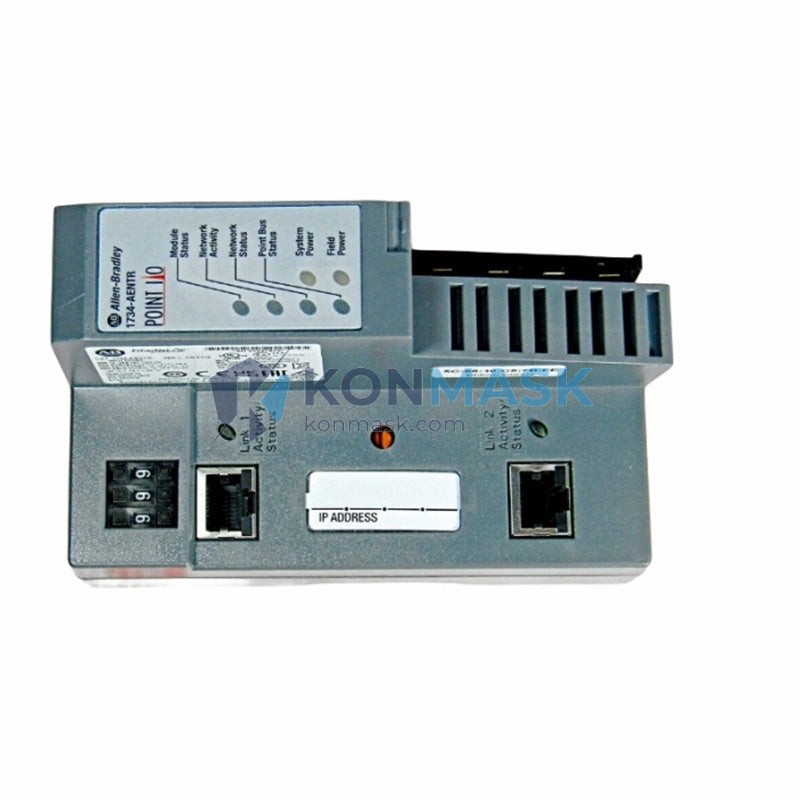

Allen-Bradley 1734-AENTR EtherNet/IP Dual-Port Adapter – POINT I/O Series
Imagine a high-speed automotive assembly line grinding to a halt — not because of a mechanical failure, but because a single network adapter can no longer bridge the I/O subsystem to the control network. Without a reliable EtherNet/IP adapter at the heart of your POINT I/O rack, distributed I/O nodes go silent, PLCs lose real-time data, and production stops. The Allen-Bradley 1734-AENTR is engineered precisely to prevent this scenario, delivering deterministic, high-availability communication between your Logix controller and every I/O module on the rack.
Within the POINT I/O 1734 series — Rockwell Automation’s most widely deployed modular I/O platform — the 1734-AENTR occupies the premium tier. Its dual EtherNet/IP ports with integrated Device Level Ring (DLR) topology support set it apart from the single-port 1734-AENT, enabling sub-3 ms network recovery without a separate switch. Globally, the 1734 POINT I/O family is installed in tens of thousands of facilities across automotive, food & beverage, oil & gas, and semiconductor manufacturing, making the 1734-AENTR one of the most specified adapter modules in industrial automation procurement.
Technical Specifications
- Catalog Number: 1734-AENTR
- Series: POINT I/O (1734)
- Communication Protocol: EtherNet/IP
- Network Ports: 2 × RJ-45 (dual-port, integrated DLR switch)
- Topology Support: Linear, Star, Device Level Ring (DLR)
- Requested Packet Interval (RPI): 500 μs minimum
- I/O Module Capacity: Up to 63 POINT I/O modules per adapter
- Supply Voltage: 24V DC (via POINT I/O power supply)
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Enclosure Rating: IP20 (panel-mount, DIN rail)
- Certifications: UL, CE, cUL, ATEX (Zone 2), C-Tick
- Dimensions (H × W × D): 94 mm × 12 mm × 60 mm
- Weight: Approx. 0.1 kg
Key Features & Benefits
- Dual-Port DLR Architecture: Eliminates the need for an external managed switch in ring topologies, reducing BOM cost and cabinet footprint while achieving <3 ms ring recovery time.
- High-Speed RPI (500 μs): Supports time-critical motion and process control applications where deterministic I/O response is non-negotiable.
- Up to 63 I/O Modules per Node: Maximizes I/O density per network node, reducing the number of adapters required in large installations.
- Seamless Studio 5000 Integration: Full Add-On Profile (AOP) support enables drag-and-drop configuration in Logix Designer, cutting commissioning time significantly.
- Embedded Web Server: Built-in diagnostics page accessible via standard browser — no additional software required for field troubleshooting.
- Hot-Swap Module Support: Individual I/O modules can be replaced under power without disrupting the rest of the rack, maximizing uptime.
- Wide Certification Coverage: UL, CE, ATEX Zone 2 approval makes it suitable for hazardous-area panel installations.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and end-of-line test stations requiring high-speed, fault-tolerant I/O.
- Food & Beverage: Hygienic packaging lines and CIP (Clean-in-Place) systems where wash-down environments demand robust, sealed panel designs.
- Oil & Gas / Petrochemical: ATEX Zone 2 certified installations in hazardous areas, including wellhead control panels and compressor skids.
- Semiconductor & Electronics: Precision process equipment requiring sub-millisecond I/O determinism and minimal network jitter.
- Water & Wastewater Treatment: Distributed pump station control with DLR ring topology for resilient remote I/O communication.
- Material Handling & Logistics: Sortation systems and automated storage/retrieval systems (AS/RS) with high I/O point counts.
System Integration & Compatible Parts
The 1734-AENTR is designed to work within the broader Allen-Bradley / Rockwell Automation ecosystem. Commonly paired components include:
- Controllers: ControlLogix (1756), CompactLogix (1769), GuardLogix — any Logix5000 platform with EtherNet/IP scanner capability.
- Power Supplies: 1734-EP24DC (24V DC POINT I/O power supply), 1734-EPAC (120/240V AC power supply).
- I/O Modules: Full 1734 POINT I/O range — digital input/output (1734-IB8, 1734-OB8), analog (1734-IE4C, 1734-OE4C), and safety (1734-IB8S, 1734-OBV2S).
- Network Infrastructure: Stratix 5700 / 5400 managed switches for star topology; no switch required for DLR ring.
- Mounting: 1734-TOP terminal base (required for each I/O module), standard 35 mm DIN rail.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 1734-AENTR unit we supply undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified OEM channels with full traceability documentation.
- Visual & Physical Inspection: Each module is inspected for label integrity, connector condition, housing damage, and counterfeit indicators per industry anti-counterfeiting guidelines.
- Functional Pre-Check: Where applicable, modules are bench-tested for power-on self-test (POST) pass and firmware version confirmation.
- Packaging & ESD Protection: All units are shipped in anti-static packaging with desiccant, inside double-wall cartons rated for international freight.
- Documentation Package: Every order includes a certificate of conformance, packing list, and optional third-party inspection report upon request.
How to Order
- Submit your inquiry via the “Request a Quote” button on this page, or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice; payment terms are confirmed at this stage.
- Units are dispatched with full shipping documentation (commercial invoice, packing list, COC) suitable for customs clearance.
For urgent requirements or large-volume orders, please call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and industrial control components — not a generalist marketplace.
- Global Sourcing Network: Access to both new OEM stock and certified refurbished units, giving you flexibility on lead time and budget.
- Technical Pre-Sales Support: Our engineers can assist with compatibility checks, firmware version selection, and system integration questions before you commit to an order.
- Competitive Pricing for B2B: Volume pricing available for MRO procurement teams, system integrators, and OEM manufacturers.
- Reliable International Shipping: Experienced in export documentation, ECCN classification, and customs compliance for shipments to 50+ countries.
- After-Sales Accountability: Clear warranty terms, return policy, and a dedicated account manager for repeat customers.
Frequently Asked Questions
Q: What is the difference between the 1734-AENT and 1734-AENTR?
A: The 1734-AENTR features dual RJ-45 EtherNet/IP ports with an integrated DLR (Device Level Ring) switch, enabling ring topology without an external switch. The 1734-AENT has a single port and does not support DLR. For new installations requiring network redundancy, the 1734-AENTR is the recommended choice.
Q: How many I/O modules can one 1734-AENTR support?
A: A single 1734-AENTR adapter can support up to 63 POINT I/O modules on one rack/node, subject to the total power budget of the installed power supply.
Q: Is the 1734-AENTR compatible with ControlLogix and CompactLogix controllers?
A: Yes. The 1734-AENTR is compatible with any Logix5000-based controller (ControlLogix 1756, CompactLogix 1769, GuardLogix) that has an EtherNet/IP scanner port or EtherNet/IP communication module.
Q: What firmware version should I use?
A: Rockwell Automation periodically releases firmware updates for the 1734-AENTR. We recommend consulting the Rockwell Automation Product Compatibility and Download Center (PCDC) for the latest compatible firmware version relative to your controller’s Logix firmware revision.
Q: Do you supply new or refurbished units?
A: We supply both new OEM units and certified refurbished units. Please specify your preference when submitting your inquiry, and we will confirm availability and pricing for each option.
Q: Can you provide an export-compliant commercial invoice for customs?
A: Yes. All international shipments include a commercial invoice, packing list, and certificate of conformance. Additional documentation (e.g., third-party inspection report, ECCN statement) is available upon request.
