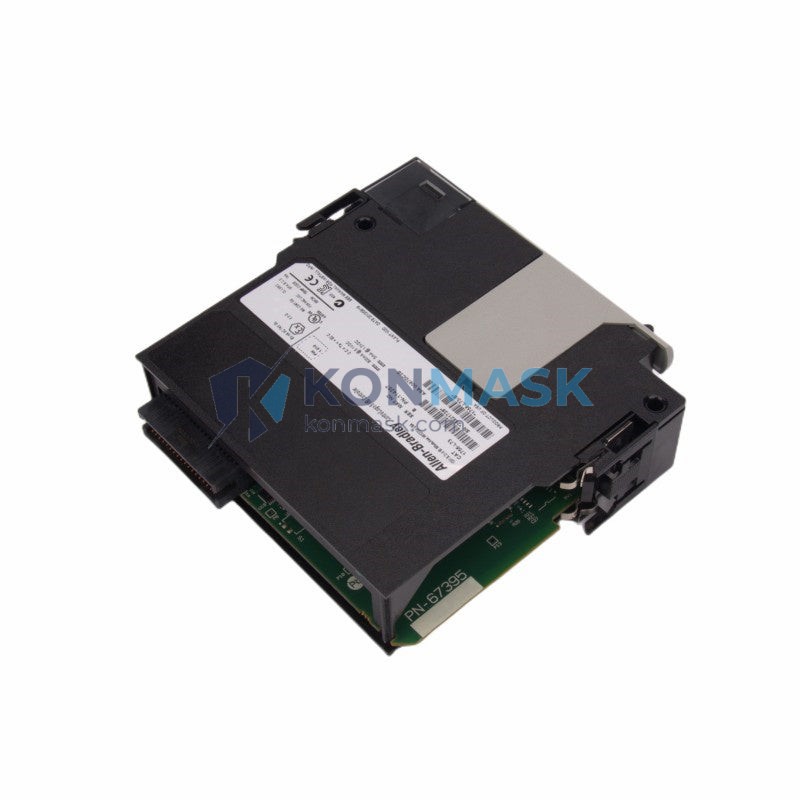

Allen-Bradley 1756-L7SP – Dual-Chassis SIL 3 / PLe Safety Partner Controller | ControlLogix Platform
Engineering Background
The 1756-L7SP is the dedicated Safety Partner controller within Rockwell Automation’s ControlLogix L7 generation, designed to operate in a 1oo2D (one-out-of-two with diagnostics) dual-chassis architecture alongside a standard ControlLogix L7x controller. It executes IEC 61511 / IEC 62061 safety-instrumented functions at SIL 3 and ISO 13849-1 PLe — the highest integrity levels achievable in a programmable safety system — making it the reference platform for process and discrete safety applications in oil & gas, chemical, power generation, and heavy manufacturing.
Product Positioning
Unlike standalone safety PLCs, the L7SP shares the same 1756 chassis backplane, Studio 5000 Logix Designer environment, and Integrated Architecture ecosystem as the standard ControlLogix family. This eliminates the engineering overhead of a separate safety engineering tool, separate network infrastructure, and separate HMI integration — reducing total project cost while maintaining full functional-safety compliance.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1756-L7SP |
| Series | ControlLogix L7 Safety Partner |
| Safety Integrity Level | SIL 3 (IEC 61511 / IEC 62061) |
| Performance Level | PLe (ISO 13849-1) |
| Safety Architecture | 1oo2D dual-chassis (paired with 1756-L7x standard controller) |
| User Memory | 2 MB safety program / data memory |
| I/O Capacity | Up to 128 local safety I/O modules via 1756 chassis |
| Communication | EtherNet/IP (CIP Safety), ControlNet, DeviceNet via 1756 bridge modules |
| Programming Software | Studio 5000 Logix Designer v21+ |
| Safety Languages | Ladder Diagram (LD), Function Block Diagram (FBD) — IEC 61131-3 |
| Backplane Compatibility | 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot) |
| Power Supply | 1756-PA72 / 1756-PB72 or equivalent ControlLogix PSU |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Vibration | IEC 60068-2-6: 2 g, 10–500 Hz |
| Shock | IEC 60068-2-27: 15 g, 11 ms |
| Enclosure Rating | IP20 (panel-mount, open-type) |
| Weight | Approx. 250 g |
| Certifications | TÜV Rheinland, CE, UL, cUL, ATEX (Zone 2 / Div. 2 with appropriate enclosure) |
| Firmware | Upgradeable via ControlFLASH |
| Replacement / Successor | 1756-L8SP (ControlLogix L8 generation) |
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), High-Integrity Pressure Protection Systems (HIPPS), burner management
- Chemical & Petrochemical: Reactor safety interlocks, toxic-gas detection shutdown, SIS layer-of-protection implementation
- Power Generation: Turbine overspeed protection, boiler safety systems, generator protection relays replacement
- Automotive & Heavy Manufacturing: Press safety, robotic cell guarding, conveyor E-stop circuits at PLe
- Water & Wastewater: Pump station overpressure protection, chlorine dosing safety interlocks
- Mining: Conveyor belt fire detection shutdown, hoist overspeed, ventilation safety
Engineering Advantages
- Single Engineering Environment: Safety and standard logic programmed in Studio 5000 — no separate safety tool license required.
- Seamless Data Exchange: Safety tags are natively accessible by the paired L7x standard controller for HMI display and historian logging without gateway hardware.
- Scalable Safety I/O: Mix 1756 safety I/O modules (1756-IB16S, 1756-OB16S, etc.) with standard I/O in the same chassis.
- CIP Safety Protocol: Deterministic, certified-safe communication over standard EtherNet/IP infrastructure — no proprietary safety bus.
- Proven TÜV Certification: Third-party SIL 3 certification by TÜV Rheinland eliminates the need for end-user SIL verification testing.
- Hot-Swap Chassis: 1756 chassis supports online module replacement, minimizing planned downtime during maintenance windows.
System Architecture & Signal Flow
The 1756-L7SP operates as the safety partner in a dual-controller chassis pair:
- Standard Controller (1756-L7x): Executes process control logic, communicates with SCADA/DCS, manages HMI data.
- Safety Partner (1756-L7SP): Executes safety-instrumented functions independently; monitors standard controller health via backplane cross-communication.
- Safety I/O Modules: 1756-series safety I/O modules connect field sensors (SIL-rated transmitters, safety switches) and final elements (solenoid valves, motor starters).
- CIP Safety Network: Distributed safety I/O can be extended via 1756-EN2T bridge modules over EtherNet/IP to remote 1756 chassis.
- Diagnostics: The 1oo2D architecture continuously cross-checks both controllers; any discrepancy triggers a safe-state output within the configured reaction time.
Sourcing & Quality Verification
- All units sourced from authorized distributors, certified surplus channels, or factory-refurbished stock.
- Each module undergoes incoming inspection: visual check, firmware version verification, and functional power-on test.
- Serialized traceability records maintained for every unit shipped.
- Anti-counterfeit verification: holographic label inspection, Rockwell Automation part-number cross-reference, and date-code validation.
- Units shipped in ESD-safe packaging with desiccant; original Rockwell documentation included where available.
Procurement Process
- Confirm Compatibility: Verify your existing 1756 chassis slot count, power supply capacity, and Studio 5000 firmware version (v21 minimum).
- Request a Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and export documentation.
- Order & Payment: Secure checkout via Konmask.com; T/T bank transfer and major credit cards accepted.
- Shipping: DHL / FedEx Express worldwide; export-controlled items shipped with full EAR/ECCN documentation.
- After-Sales Support: 12-month warranty on verified units; technical integration support available via email.
Technical FAQ
Q: Can the 1756-L7SP operate without a paired standard controller?
A: No. The L7SP is a safety partner and requires a paired 1756-L7x standard controller in the same or adjacent chassis to form the 1oo2D architecture.
Q: Is the L7SP backward-compatible with L6 chassis?
A: No. The L7SP requires a 1756 ControlLogix chassis with L7-generation backplane firmware. It is not compatible with L6x or earlier controllers.
Q: What Studio 5000 version is required?
A: Studio 5000 Logix Designer v21.00 or later is required for L7SP programming and configuration.
Q: Can safety tags be read by a standard (non-safety) controller?
A: Yes. The paired L7x standard controller can read (but not write) safety tags via the backplane, enabling HMI display and data logging without compromising safety integrity.
Q: What is the difference between 1756-L7SP and 1756-L8SP?
A: The 1756-L8SP is the next-generation successor with increased memory, faster scan times, and enhanced cybersecurity features. The L7SP remains fully supported for existing installations.
