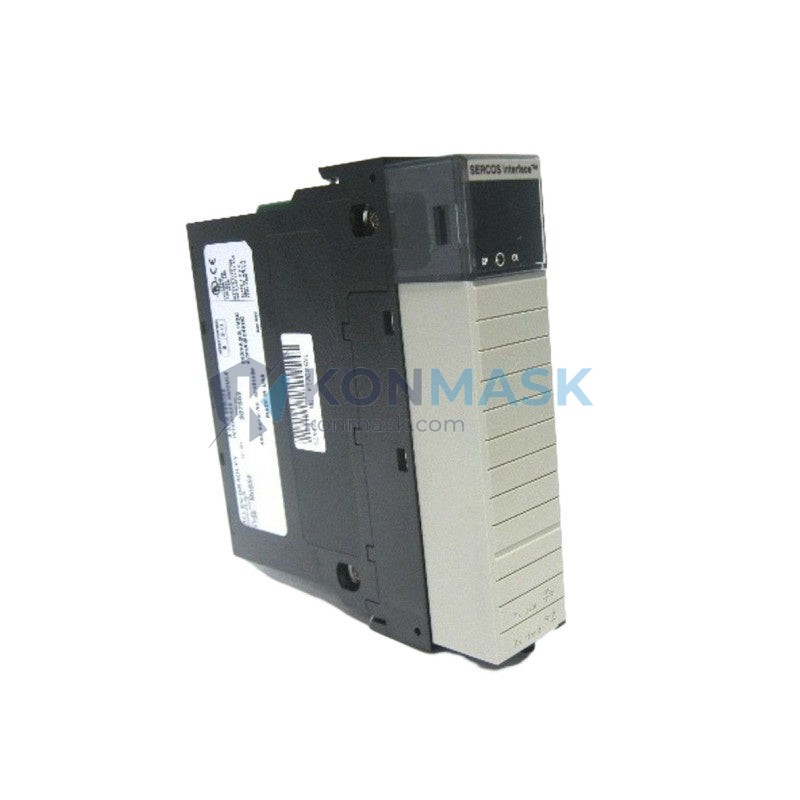

Allen-Bradley 1756-M08SE – 8-Axis SERCOS Servo Motion Module | ControlLogix Platform
Engineering Background: The Rockwell Automation ControlLogix platform (1756 series) is the backbone of high-availability process and discrete manufacturing automation across petrochemical refining, power generation, and water/wastewater treatment. Within this architecture, the motion control layer is responsible for coordinating servo drives, spindles, and actuators with microsecond-level determinism. The 1756-M08SE occupies a critical position in this layer: it is the dedicated SERCOS (Serial Real-time Communication System) interface module that bridges the ControlLogix backplane to up to 8 SERCOS-compliant servo drives simultaneously, enabling synchronized multi-axis motion without burdening the main CPU.
Product Positioning: The 1756-M08SE is distinguished from the 1756-M02AE (2-axis analog) and 1756-M16SE (16-axis SERCOS) by its mid-range axis count, making it the optimal choice for applications requiring 3–8 coordinated axes where a 16-axis module would over-provision backplane slots and licensing costs. It is not a general-purpose I/O module — its application boundary is strictly servo drive coordination via SERCOS fiber-optic ring topology. It is not suitable for stepper motor control or analog velocity command architectures.
Complete Technical Specifications
Electrical
- Backplane Current Draw: 1.0 A @ 5 VDC; 3.0 mA @ 24 VDC
- Power Dissipation: 5.0 W (maximum)
- SERCOS Interface: Fiber-optic ring, 2 Mbps / 4 Mbps / 8 Mbps / 16 Mbps selectable
- Axes Supported: Up to 8 SERCOS servo axes per module
- Update Rate: 0.5 ms minimum servo loop update rate
- Backplane Interface: ControlLogix 1756 backplane (standard)
Mechanical
- Form Factor: Single-slot ControlLogix 1756 module
- Dimensions: 94.0 mm H × 54.9 mm W × 87.6 mm D (standard 1756 housing)
- Weight: Approximately 200 g
- Connector: ST-type fiber-optic connectors (IN / OUT) for SERCOS ring
- Keying: Electronic keying supported via RSLogix 5000 / Studio 5000
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 68-2-6 compliant
- Shock: IEC 68-2-27 compliant
- Pollution Degree: 2 (IEC 61010-1)
Certifications
- UL Listed: UL 508 (Industrial Control Equipment)
- CE Marked: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- C-Tick (Australia/New Zealand)
- SERCOS International Conformance Certified
Data source: Rockwell Automation Publication 1756-UM006, ControlLogix Motion Module User Manual; Rockwell Automation Product Certification Database (rok.auto/certifications). Specifications subject to revision — verify against current Rockwell documentation for safety-critical applications.
Proven Application Environments
- Petrochemical Refining: Compressor train control systems | Multi-axis valve actuator coordination | Continuous duty cycle at elevated ambient temperatures up to 55 °C
- Power Generation: Turbine governor auxiliary control panels | Servo-driven fuel metering systems | High-vibration environments with IEC 68-2-6 shock/vibration compliance required
- Water & Wastewater Treatment: Variable-speed pump station automation | Multi-pump coordinated pressure control | Corrosive-atmosphere enclosures with sealed cabinet installations
- Automotive Manufacturing: Robotic welding cell motion controllers | 6–8 axis coordinated servo systems | High-cycle, sub-millisecond update rate requirements
- Pulp & Paper: Web tension control systems | Multi-roll coordinated drive sections | Continuous 24/7 operation with hot-swap chassis redundancy
- Pharmaceutical / Life Sciences: Filling and capping machine motion control | FDA 21 CFR Part 11 compliant control architectures | Cleanroom-compatible sealed enclosure installations
Engineering Advantages
- For multi-axis synchronized motion applications, this servo module delivers deterministic SERCOS ring communication at update rates as fast as 0.5 ms, because the fiber-optic ring topology eliminates electrical noise interference and guarantees isochronous data delivery independent of axis count.
- For installations in high-EMI environments such as variable frequency drive panels, this servo module maintains signal integrity without shielded copper cabling, because SERCOS fiber-optic transmission is inherently immune to electromagnetic interference.
- For system architects managing backplane slot budgets, this servo module provides 8-axis capacity in a single 1756 slot, because the SERCOS protocol offloads drive communication processing from the CPU module, preserving controller scan time for process logic.
- For maintenance engineers requiring minimal downtime, this servo module supports electronic keying and hot-swap chassis replacement, because ControlLogix 1756 architecture allows module replacement without full system shutdown when configured correctly.
- For applications requiring long cable runs between controller and drive cabinet, this servo module supports SERCOS fiber runs up to 40 meters per node, because ST-type fiber connectors and the ring topology allow flexible physical layout without signal degradation.
- For commissioning engineers using Studio 5000 Logix Designer, this servo module integrates natively with Rockwell’s Motion Analyzer and drive configuration tools, because the 1756-M08SE is a first-party Rockwell module with full Add-On Profile (AOP) support.
System Architecture & Signal Flow
Signal Flow: ControlLogix CPU (1756-L series) → 1756 Backplane → 1756-M08SE SERCOS Module → ST Fiber-Optic Ring (OUT port) → Drive Node 1 → Drive Node 2 → … → Drive Node 8 → ST Fiber-Optic Ring (IN port, ring closure back to module). The module acts as the SERCOS master; each connected drive operates as a SERCOS slave. Motion commands are issued from the Logix controller via the backplane; the module translates these into SERCOS telegrams and distributes them isochronously to all axes within each servo update cycle.
Compatible Drives (SERCOS-compliant):
- Allen-Bradley Kinetix 6000 (2094-series) — native SERCOS, recommended pairing
- Allen-Bradley Kinetix 6200 / 6500 — SERCOS interface card required
- Allen-Bradley Ultra 3000 (2098-series) — SERCOS version required (2098-DSD-xxxSE)
- Third-party SERCOS II / SERCOS III drives — compatibility requires SERCOS conformance certification and Logix AOP configuration
Substitution Conditions: The 1756-M08SE may be substituted by the 1756-M16SE when axis count exceeds 8 and a single backplane slot is preferred over dual-module installations. Downward substitution to 1756-M02AE is not applicable due to protocol incompatibility (analog vs. SERCOS). Firmware version must match the Logix controller major revision — cross-revision operation is not supported by Rockwell.
Sourcing & Quality Verification
All 1756-M08SE units available through Konmask.com are sourced from authorized industrial surplus channels, OEM decommissioning programs, and verified distributor networks. Each unit undergoes a structured pre-shipment inspection process:
- Visual Inspection: Housing integrity check, connector pin condition, label legibility, and absence of physical damage or repair evidence.
- Firmware & Serial Verification: Module serial number logged and cross-referenced against Rockwell’s product database where accessible; firmware revision recorded.
- Functional Bench Test: Module seated in a 1756 chassis with a compatible Logix controller; SERCOS ring initialization confirmed; axis configuration loaded and drive communication verified.
- Packaging & ESD Protection: Anti-static bag, foam-lined carton, and humidity indicator card included for all shipments.
Documentation available upon request: Test report, product photos (all six faces), firmware revision record, and certificate of conformance (CoC).
Procurement Process
- Inquiry Submission: Submit part number, required quantity, target delivery date, and any firmware revision requirements via the product page inquiry form or directly to support@konmask.com.
- Quotation & Stock Confirmation: A response with confirmed stock status, unit price, lead time, and available documentation will be provided within 24 hours on business days.
- Order Fulfillment: Upon purchase order confirmation, units are prepared, inspected, and dispatched with full tracking. Express international shipping (DHL/FedEx) available for urgent requirements.
Technical Support: Pre-sales engineering consultation is available for compatibility verification, firmware matching, and system architecture review. Post-sales support includes commissioning guidance and troubleshooting assistance via email and phone.
Technical FAQ
Q: Is the 1756-M08SE compatible with Kinetix 5500 and Kinetix 5700 drives?
A: No. The Kinetix 5500 and 5700 series use EtherNet/IP (CIP Motion) as their native communication protocol, not SERCOS. The 1756-M08SE is a SERCOS-only module and cannot communicate with EtherNet/IP-native drives. For Kinetix 5500/5700 systems, the appropriate motion module is the 1756-M1 or the integrated motion over EtherNet/IP architecture using a standard 1756-EN2T/EN3T Ethernet module.
Q: Can the 1756-M08SE replace a 1756-M16SE if only 8 axes are in use?
A: Yes, with conditions. If the existing system uses a 1756-M16SE with 8 or fewer axes configured, the 1756-M08SE can serve as a functional replacement provided: (1) the Logix project is reconfigured to reference the M08SE module profile, (2) firmware revisions are compatible with the controller, and (3) the SERCOS ring wiring is verified. A full axis re-commissioning is recommended after module substitution.
Q: Does the 1756-M08SE carry SIL or IEC 61511 certification for use in safety instrumented systems?
A: No. The 1756-M08SE is a standard motion control module and is not rated for use in Safety Instrumented Systems (SIS) under IEC 61511 or IEC 62061. For safety-rated motion control within ControlLogix architecture, Rockwell Automation’s GuardLogix platform and the 1756-L7xS safety controllers with appropriate safe motion drives (e.g., Kinetix 5700 Safe Speed Monitor) must be used. The 1756-M08SE may coexist in the same chassis as a GuardLogix controller but does not itself contribute to the safety function.
