Allen-Bradley 1756-OB16D ControlLogix 24V DC Digital Output Module | Replacement, Equivalent & Selection Guide

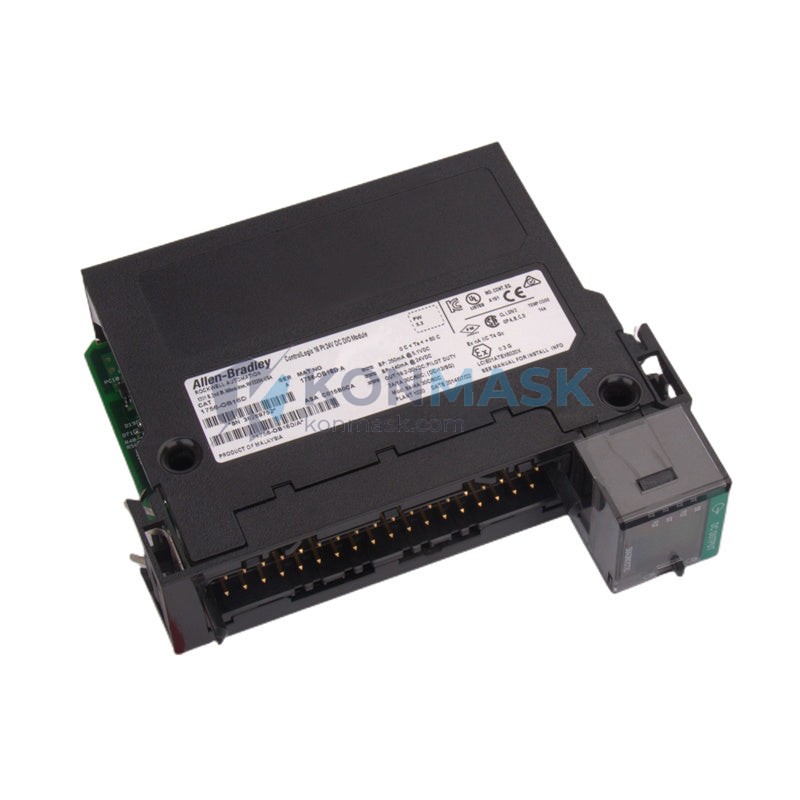

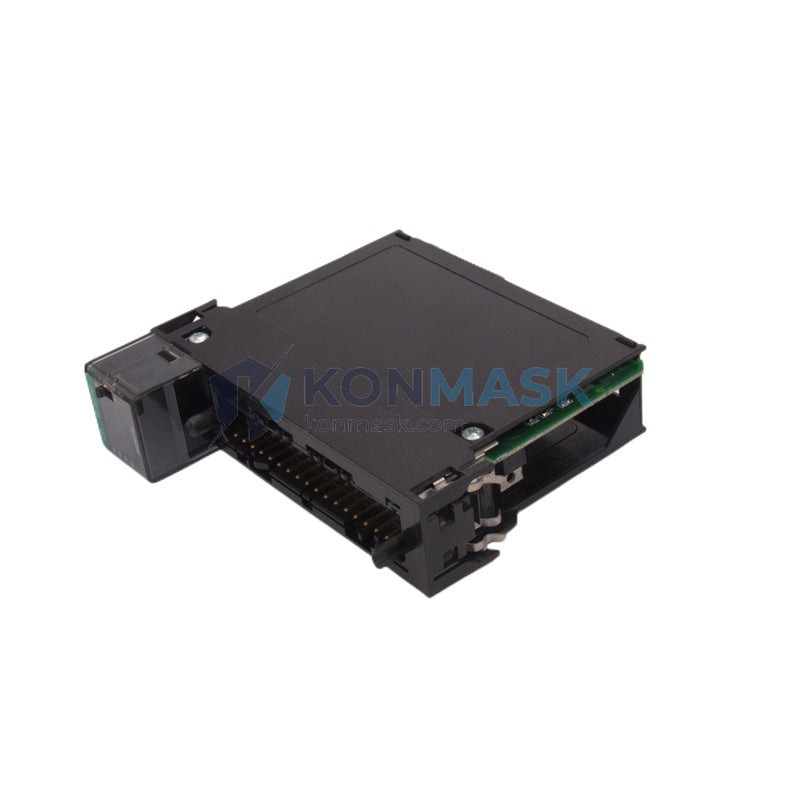

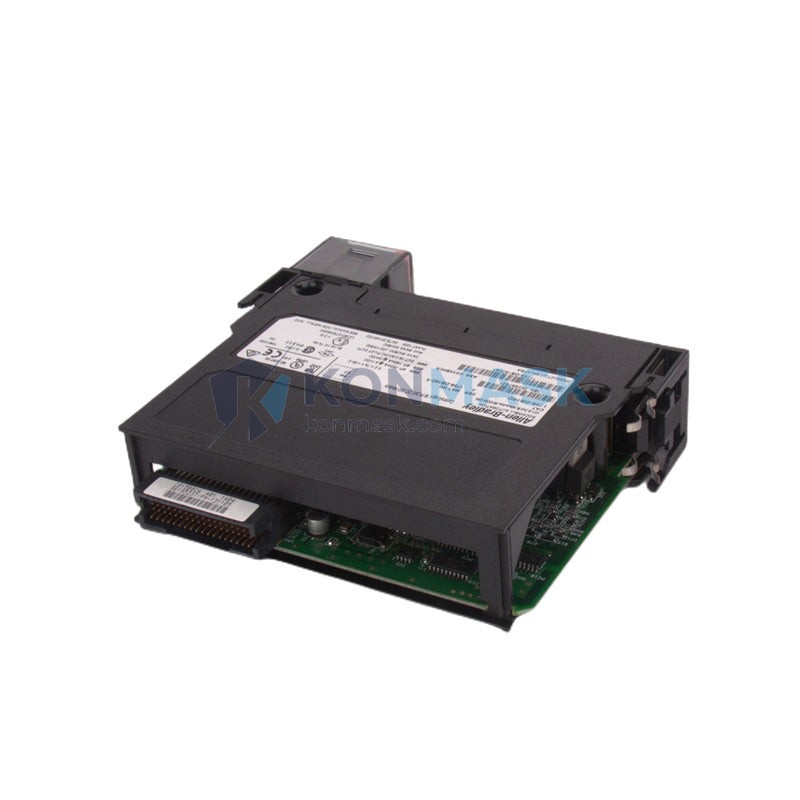

The Allen-Bradley 1756-OB16D is a 16-point, 24V DC sourcing digital output module designed for the Rockwell Automation ControlLogix platform (1756 chassis). It provides high-density discrete output control for industrial automation systems requiring fast, reliable switching of field devices such as solenoids, relays, and indicator lights.
As a core component of the ControlLogix I/O family, the 1756-OB16D is widely deployed across manufacturing, oil & gas, automotive, and process industries. Konmask.com specializes in sourcing genuine, tested, and certified units — including hard-to-find and discontinued stock.
Selection Background: Why Replacement & Equivalent Models Matter
Buyers searching for the 1756-OB16D often need to evaluate replacement or equivalent options due to lead-time constraints, end-of-life notices, budget considerations, or cross-brand migration projects. Understanding which models are direct drop-in replacements versus functional equivalents — and which require engineering review — is critical to avoiding costly downtime or system incompatibilities.
This guide consolidates the key technical parameters, compatible substitute models, and selection criteria to help procurement engineers and maintenance teams make confident decisions. If you need a verified equivalent or replacement for the 1756-OB16D, Konmask’s technical team can assist with cross-referencing and sourcing.
Technical Specifications
| Parameter | Specification | Replacement Impact |
|---|---|---|
| Catalog Number | 1756-OB16D | — |
| Platform | ControlLogix (1756 Series) | ⚠ Critical — chassis-specific |
| Output Points | 16 points | ⚠ Must match for direct replacement |
| Output Type | Sourcing (PNP) | ⚠ Critical — wiring polarity |
| Output Voltage | 10–30V DC (nominal 24V DC) | ⚠ Must be within field device range |
| Output Current per Point | 1.0 A max | ⚠ Check load requirements |
| Total Module Current | 8.0 A max (all points on) | ⚠ Verify backplane power budget |
| Backplane Current (5V) | 125 mA | ✓ Standard ControlLogix |
| Backplane Current (24V) | 2 mA | ✓ Standard ControlLogix |
| Isolation | Group isolated (2 groups of 8) | ⚠ Check wiring group requirements |
| Diagnostic Features | Point-level fault detection, output verify | ✓ Advantage over basic equivalents |
| Communication | ControlNet / EtherNet/IP via backplane | ✓ Native ControlLogix |
| Operating Temperature | 0–60°C | ✓ Standard industrial |
| Certifications | UL, CE, C-Tick, ATEX (Class I Div 2) | ✓ Verify for hazardous area use |
| Dimensions (H×W×D) | 94 × 94 × 58 mm (approx.) | ✓ Standard 1756 form factor |
| Weight | ~350 g | — |
Compatible Replacement & Equivalent Models
The following models have been evaluated as potential replacements, equivalents, or substitutes for the 1756-OB16D. Always verify against your specific system configuration before installation.
Category 1 — Direct Drop-In Replacements (Same Platform, Same Form Factor)
- 1756-OB16D (Ser. B / Ser. C) — Different series revisions of the same catalog number. Fully interchangeable in most applications; verify firmware compatibility with your Logix controller.
- 1756-OB16E — Enhanced diagnostic version with additional point-level diagnostics. Direct physical replacement; may require RSLogix 5000 / Studio 5000 tag updates for new diagnostic tags.
Category 2 — Functional Equivalents (Same Platform, Different Point Count or Grouping)
- 1756-OB8 — 8-point sourcing 24V DC output. Use two modules to replace one 1756-OB16D where chassis slots allow. Suitable when partial replacement is acceptable.
- 1756-OB32 — 32-point sourcing 24V DC output. Functional superset; requires wiring consolidation and I/O tag remapping in the controller program.
- 1756-OB16I — 16-point individually isolated 24V DC sourcing output. Higher isolation level; direct slot replacement but wiring and power supply configuration differ.
Category 3 — Cross-Brand Alternatives (Requires Engineering Review)
- Siemens ET 200SP DQ 16×24VDC/0.5A HF (6ES7132-6BH01-0BA0) — Functional equivalent for Siemens S7-1500 migrations. Not a drop-in; requires gateway or full platform migration.
- Mitsubishi QY10 / QY50 — Comparable 16-point DC output modules for Q-series PLC. Cross-brand substitute requiring full rewiring and program conversion.
- Schneider Electric BMXDDO1602 — Modicon M340 16-point 24V DC output. Functional substitute in cross-brand projects; not compatible with ControlLogix chassis.
⚠ Note: Cross-brand alternatives are not plug-and-play replacements. Konmask recommends consulting your system integrator or our technical team before proceeding with cross-brand substitution.
Why Choose the Original 1756-OB16D
- Precision & Diagnostics: Point-level output verification and fault detection minimize unplanned downtime and simplify troubleshooting in complex systems.
- Certified Compliance: UL, CE, and ATEX Class I Division 2 certifications ensure regulatory compliance for hazardous and safety-critical environments.
- Native ControlLogix Compatibility: Seamless integration with all 1756-series controllers, chassis, and communication adapters — no gateway or protocol conversion required.
- Rockwell Ecosystem Support: Full support in Studio 5000 / RSLogix 5000, including Add-On Instructions (AOIs), electronic keying, and online firmware updates.
- Proven Field Reliability: Widely deployed across thousands of installations globally with a documented MTBF and Rockwell’s global service network.
- Warranty & Traceability: Genuine units sourced through authorized channels include full manufacturer warranty and traceable documentation — critical for regulated industries.
Typical Applications
- Automotive Manufacturing: Controlling solenoid valves and pneumatic actuators on assembly line robots and transfer systems.
- Oil & Gas Processing: Switching field devices in ATEX-rated zones, including valve actuators and safety shutdown systems.
- Food & Beverage: Driving conveyor motor starters, filling machine solenoids, and packaging line indicators in washdown environments.
- Water & Wastewater Treatment: Controlling pump motor starters, valve actuators, and alarm indicators in remote pump stations.
- Power Generation: Output control for turbine auxiliary systems, switchgear control panels, and generator protection relays.
- Pharmaceutical Manufacturing: Precise discrete output control for batch process equipment in GMP-compliant facilities requiring full audit trails.
System Compatibility
The 1756-OB16D is compatible with the following ControlLogix system components:
- 1756-A4 / A7 / A10 / A13 / A17 — ControlLogix chassis (4, 7, 10, 13, 17 slots)
- 1756-PA72 / PB72 / PA75 / PB75 — ControlLogix power supplies (AC and DC variants)
- 1756-L61 / L62 / L63 / L71 / L72 / L73 / L83E — ControlLogix controllers (all series)
- 1756-EN2T / EN2TR / EN3TR — EtherNet/IP communication modules
- 1756-CN2 / CN2R — ControlNet communication modules
- 1756-TBCH / TBS6H / TBNH / TBSH — Removable terminal blocks (RTBs) for field wiring
- 1492-CABLE016X — Pre-wired cable assemblies for rapid I/O wiring
Selection Guide
Answer these three questions to confirm the 1756-OB16D — or an appropriate equivalent — is the right choice for your application:
-
Is your system a Rockwell ControlLogix 1756-series platform?
If yes, the 1756-OB16D is a native fit. If you are on CompactLogix (1769) or SoftLogix, you need a different module family. Contact Konmask for cross-platform guidance. -
Do your field devices require 24V DC sourcing (PNP) output at ≤1.0 A per point?
If your devices require sinking (NPN) output, consider the 1756-IB16 (input) or consult Konmask for the correct output type. If current exceeds 1.0 A per point, a relay output module may be required. -
Do you require point-level diagnostics or ATEX Class I Div 2 certification?
If diagnostics are critical, confirm you need the 1756-OB16D (with diagnostics) rather than the standard 1756-OB16. If ATEX certification is required, verify the specific series revision with Konmask before ordering.
📩 Not sure which model fits your system? Send your existing module catalog number, chassis model, and controller firmware version to [email protected] and our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
Konmask.com sources the 1756-OB16D through verified supply channels including authorized distributors, OEM surplus, and certified refurbishers. Every unit undergoes a structured inspection process before shipment:
- Visual Inspection: Check for physical damage, corrosion, counterfeit indicators, and label authenticity.
- Functional Test: Power-on test with ControlLogix chassis to verify all 16 output points, backplane communication, and diagnostic reporting.
- Firmware Verification: Confirm firmware revision and compatibility with current Studio 5000 / RSLogix 5000 versions.
- Documentation Review: Verify serial number traceability, country of origin, and certification markings.
Available documentation upon request: Test report, certificate of conformance (CoC), country of origin declaration, and ATEX certification copy.
How to Order
- Submit Your Inquiry: Email [email protected] or call +0086 19859288691 with your required catalog number, quantity, and any specific firmware or certification requirements.
- Receive Quote & Availability Confirmation: Our team will respond within 24 hours with pricing, lead time, and available documentation. Expedited sourcing available for urgent requirements.
- Confirm & Ship: Upon order confirmation, units are inspected, packed to IPC/JEDEC standards, and dispatched with full tracking. Global shipping available with DDP/DAP Incoterms on request.
Replacement & Compatibility FAQ
Q: Can the 1756-OB16E directly replace the 1756-OB16D without program changes?
A: In most cases, yes — the 1756-OB16E is a physical drop-in replacement for the 1756-OB16D in the same chassis slot. However, the enhanced diagnostic module exposes additional I/O tags in Studio 5000. If your program uses electronic keying set to “Exact Match,” you must update the keying configuration. Konmask recommends testing in a non-production environment first.
Q: Is the 1756-OB16D compatible with both older (L6x) and newer (L8x) ControlLogix controllers?
A: Yes. The 1756-OB16D is compatible with all ControlLogix controller generations from the L55 through the current L8xE series, provided the Studio 5000 / RSLogix 5000 version supports the module’s firmware revision. Konmask can confirm specific firmware compatibility for your controller version.
Q: What is the best cross-brand substitute for the 1756-OB16D in a Siemens S7-1500 migration project?
A: The closest functional equivalent in the Siemens ecosystem is the ET 200SP DQ 16×24VDC/0.5A HF module. However, this is not a substitute that can be used in a ControlLogix chassis — it requires a full platform migration including hardware, wiring, and program conversion. Konmask can assist with sourcing both platforms and connecting you with qualified system integrators for migration projects.
