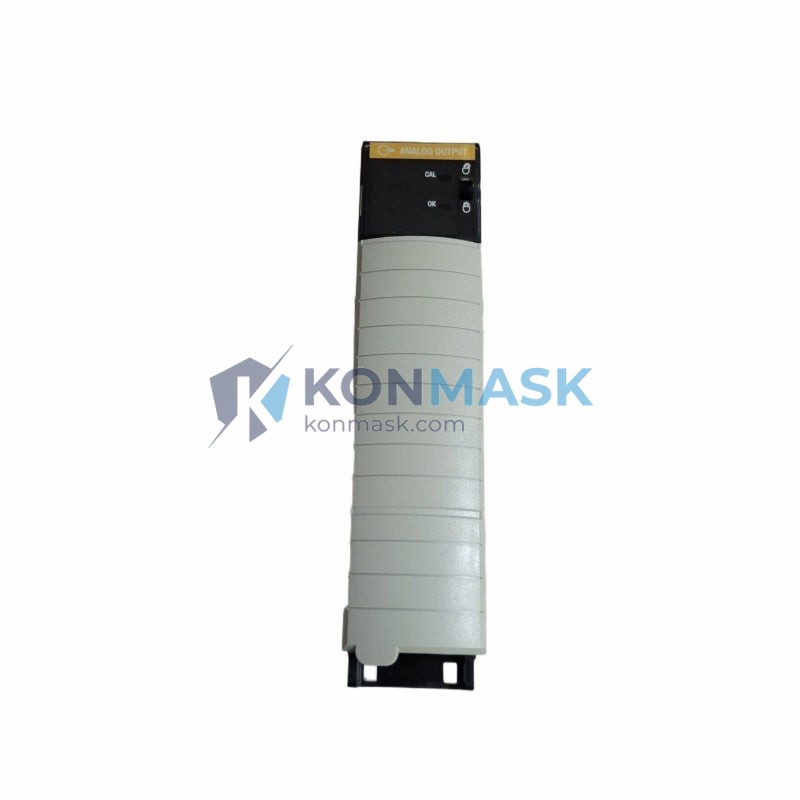

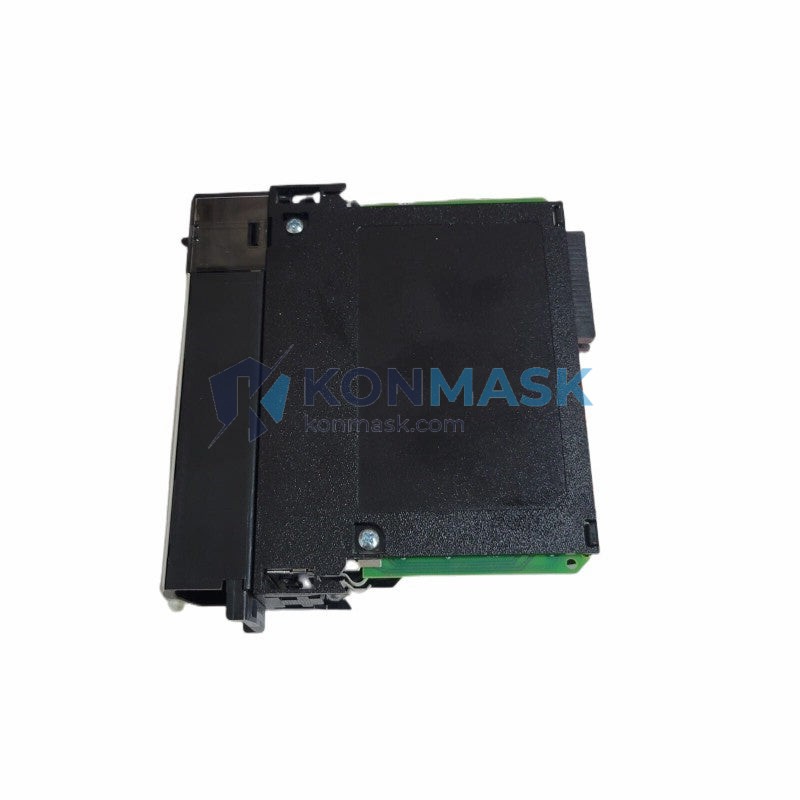

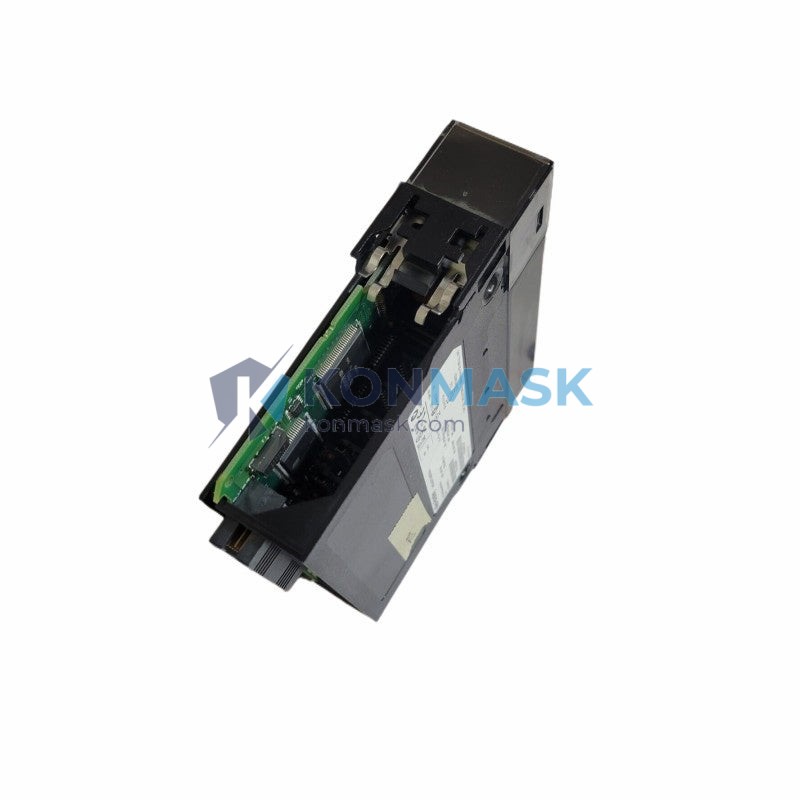

Genuine Allen-Bradley 1756-OF6CI Isolated Analog Output Module | ControlLogix Series — Verified Source
Sourced directly through authorized industrial distribution channels, the Allen-Bradley 1756-OF6CI is a 6-channel isolated current analog output module designed for the ControlLogix platform. Konmask.com supplies only traceable, spec-compliant units backed by our 4-step verification process — giving procurement engineers and system integrators the confidence to order with certainty.
Technical Specifications
| Part Number | 1756-OF6CI |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | ControlLogix |
| Module Type | Isolated Analog Output |
| Output Channels | 6 (individually isolated) |
| Output Signal | 4–20 mA current |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-backplane |
| Backplane Current (5 VDC) | 250 mA |
| Backplane Current (24 VDC) | 2 mA |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Weight | Approx. 200 g |
| Enclosure Type | Open (for use in suitable enclosure) |
| Standards | UL, CE, C-Tick |
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through a documented verification workflow before dispatch:
- Source Traceability Check — We verify the supply chain origin and cross-reference distributor documentation to confirm the unit is not grey-market or counterfeit.
- Physical Inspection — Label integrity, firmware revision markings, connector condition, and housing are inspected against OEM reference standards.
- Functional Bench Test — Where applicable, modules are powered and output signals are verified against published datasheet tolerances.
- Documentation Package — Each order ships with a packing list, traceability record, and optional test report upon request.
Key Features & Benefits
- Full Channel Isolation — Eliminates ground loops and cross-channel interference in sensitive process control loops.
- High Resolution Output — 16-bit DAC ensures precise current delivery for demanding PID and valve-positioning applications.
- Hot-Swap Compatible — Supports removal and insertion under power (RIUP) within the ControlLogix chassis.
- Producer/Consumer Architecture — Enables direct data sharing across the backplane without controller intervention.
- Compact Footprint — Single-slot module maximizes chassis density in space-constrained panels.
- Diagnostic Reporting — Built-in open-wire and over-range detection with fault reporting to the controller.
Typical Applications
- Flow control valve positioning in oil & gas and chemical processing
- Boiler and furnace temperature setpoint transmission
- Variable speed drive (VFD) speed reference signals
- Pressure and level control loops in water/wastewater treatment
- Pharmaceutical batch process control
- Power generation turbine control systems
Compatible System Components
- Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L61, 1756-L62, 1756-L63, 1756-L71, 1756-L72, 1756-L73, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
- Wiring Arms: 1756-TBCH, 1756-TBS6H (sold separately)
- Programming Software: Studio 5000 Logix Designer v21.00 or later
Global Sourcing & Shipping Capabilities
Konmask.com operates from China with established logistics partnerships for rapid international fulfillment:
- Domestic (China): SF Express next-day delivery to major industrial hubs
- Asia-Pacific: 3–7 business days via DHL / FedEx International Priority
- Europe & Americas: 5–10 business days; DDP (Delivered Duty Paid) terms available on request
- Customs Documentation: Commercial invoice, packing list, and HS code declaration provided for all international shipments
- Urgent Orders: Contact us for same-day quotation on expedited air freight
Certifications & Compliance Statement
The 1756-OF6CI carries the following certifications as issued by Rockwell Automation:
- UL Listed (UL 508)
- CE Marked (EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU)
- C-Tick (Australian Communications and Media Authority)
- RoHS Compliant
Konmask.com does not manufacture this product. All certifications are held by Rockwell Automation / Allen-Bradley. We supply genuine OEM units only.
How to Order
- Add to Cart — Select quantity and proceed to checkout for standard stock units.
- Request a Quote — For orders of 5+ units, OEM pricing tiers, or mixed-SKU procurement packages, email [email protected] with your BOM or part list.
- Lead Time Confirmation — In-stock units ship within 1–2 business days. Out-of-stock units: we will confirm lead time within 24 hours of order placement.
- Payment Terms — T/T (bank transfer), PayPal, and trade assurance options available. Net-30 terms available for qualified accounts.
Authenticity & Trust FAQ
Q: How do I know the unit is genuine and not counterfeit?
A: Every unit is sourced through traceable distribution channels. We provide documentation upon request and welcome third-party inspection before shipment.
Q: Can I return the module if it does not match the datasheet specifications?
A: Yes. We offer a 30-day return policy for units that fail to meet published OEM specifications, subject to inspection.
Q: Do you provide a warranty?
A: We offer a 12-month functional warranty on all modules. Warranty claims are handled directly by Konmask.com — no need to contact Rockwell Automation.
Q: Can you supply other 1756-series modules?
A: Yes. Contact us with your full part list. We maintain broad inventory across the ControlLogix, CompactLogix, and MicroLogix families.
Q: Is bulk/OEM pricing available?
A: Yes. Volume discounts apply at 5, 10, and 25+ unit thresholds. Request a formal quotation via email.
