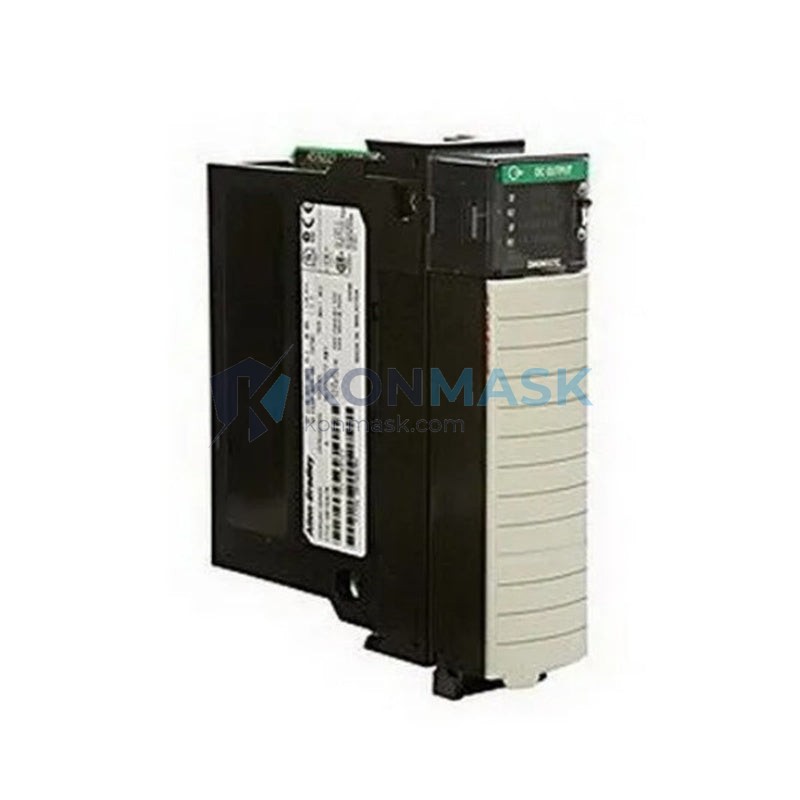

Genuine Allen-Bradley 1756-OG16 TTL Output Module | ControlLogix Series A — Verified Source
Konmask.com supplies authentic Allen-Bradley 1756-OG16 ControlLogix TTL Output Modules sourced directly through verified industrial distribution channels. Every unit we ship is traceable, tested, and backed by our documented quality process — giving B2B buyers the confidence they need when specifying critical automation components.
Technical Specifications
- Part Number: 1756-OG16
- Series: A
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Digital Output — TTL (Transistor-Transistor Logic)
- Number of Output Points: 16
- Output Voltage Range: 0–5 VDC (TTL compatible)
- Output Current (per point): 8 mA sink / 4 mA source (typical TTL)
- Backplane Current Draw: Refer to Rockwell publication 1756-TD001
- Isolation: None (TTL direct logic level)
- Compatibility: ControlLogix 1756 chassis and power supplies
- Weight: Approx. 200 g
- Form Factor: Single-slot ControlLogix module
Our 4-Step Quality Verification Process
Every 1756-OG16 unit shipped from Konmask.com passes through our documented four-stage inspection before dispatch:
- Step 1 — Source Verification: We confirm the supply chain origin and cross-reference supplier documentation against Rockwell Automation’s authorized distributor records.
- Step 2 — Physical Inspection: Trained technicians inspect housing, label integrity, firmware revision markings, and connector condition against OEM reference samples.
- Step 3 — Functional Bench Test: Where applicable, modules are powered and output channel continuity is verified using calibrated test equipment.
- Step 4 — Documentation Package: Each shipment includes a traceable inspection record, packing list, and optional Certificate of Conformance upon request.
Key Features & Benefits
- ✅ Genuine OEM Part — not refurbished, not counterfeit; sourced through verified channels
- ✅ 16-Point TTL Output — ideal for interfacing with high-speed logic-level devices and encoders
- ✅ ControlLogix Platform Native — plug-and-play compatibility with 1756 chassis; no additional configuration hardware required
- ✅ Compact Single-Slot Design — maximizes chassis density in space-constrained control panels
- ✅ Rockwell Studio 5000 / RSLogix 5000 Compatible — full EDS and Add-On Profile support
- ✅ Traceable Lot Documentation — full paper trail available for regulated industries
Typical Applications
- High-speed encoder and pulse output interfacing in motion control systems
- TTL-level signal distribution to vision systems, barcode readers, and RFID controllers
- Semiconductor and electronics manufacturing automation lines
- Pharmaceutical and food & beverage production with high-cycle-rate I/O demands
- OEM machine builders requiring compact, logic-level digital output in ControlLogix platforms
- System integrators upgrading or expanding existing 1756 chassis installations
Compatible System Components
- Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 (all ControlLogix chassis)
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L6x, 1756-L7x, 1756-L8x series (ControlLogix CPUs)
- Communication Modules: 1756-EN2T, 1756-EN3TR, 1756-ENBT (EtherNet/IP)
- Programming Software: Studio 5000 Logix Designer v21+, RSLogix 5000
- Related Output Modules: 1756-OB16, 1756-OB32, 1756-OA16 (for AC/DC alternatives)
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China warehouse with consolidated export capability
- Lead Time: In-stock units typically ship within 1–3 business days of order confirmation
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, Certificate of Origin available; EX1/EX3 export declarations handled
- Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units — contact us)
- Customs & HS Code: Classified under HS 8537.10 (programmable logic controllers / industrial control panels)
- Regions Served: Southeast Asia, Middle East, Europe, North America, South America, Africa
Certifications & Compliance Statement
- CE Marking: Compliant per Rockwell Automation OEM certification (EU Low Voltage & EMC Directives)
- UL Listed: Per Rockwell Automation UL file (reference product datasheet)
- RoHS: Compliant per Rockwell Automation declaration
- ISO 9001: Konmask.com operates quality management procedures aligned with ISO 9001 principles for sourcing and inspection
- Export Control: This product may be subject to export licensing requirements. Buyers are responsible for compliance with applicable export regulations in their jurisdiction.
How to Order
- Add to Cart — select quantity and proceed to checkout for standard orders.
- Request a Quote — for orders of 5+ units, OEM/integrator pricing, or project-based procurement, email [email protected] with your project details.
- Confirm Lead Time — our team will confirm stock availability and estimated ship date within 1 business day.
- Payment Terms — T/T (bank transfer), PayPal, and trade assurance options available. Net-30 terms available for qualified accounts.
- Receive & Verify — inspect your shipment upon arrival. Our inspection report is included; contact us within 7 days for any discrepancy claims.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Allen-Bradley part?
A: Every unit is sourced through documented supply chains and undergoes our 4-step physical and functional inspection. We provide a traceable inspection record with each shipment and can supply a Certificate of Conformance upon request.
Q: Is this a new, used, or refurbished unit?
A: We clearly state the condition of each unit in the product listing. Unless explicitly noted as “surplus” or “tested used,” all units are new original stock.
Q: Can you provide a datasheet or technical documentation?
A: Yes. Contact us at [email protected] and we will provide the official Rockwell Automation publication for the 1756-OG16.
Q: What is your return policy if the module is DOA?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Contact us within 30 days of receipt with your inspection findings and we will arrange a replacement or refund.
Q: Do you offer warranty?
A: Yes — 12-month limited warranty against manufacturing defects on all new units. Warranty claims are handled directly by Konmask.com.
Q: Can you source other 1756-series or ControlLogix modules?
A: Absolutely. We maintain an extensive sourcing network for the full Allen-Bradley 1756, 1769, 1771, and 1785 product families. Send us your BOM and we will respond with availability and pricing.
