PLC Training & FAT Testing Solution — Allen-Bradley 1756-SIM | ControlLogix Series
Where This Product Is Used

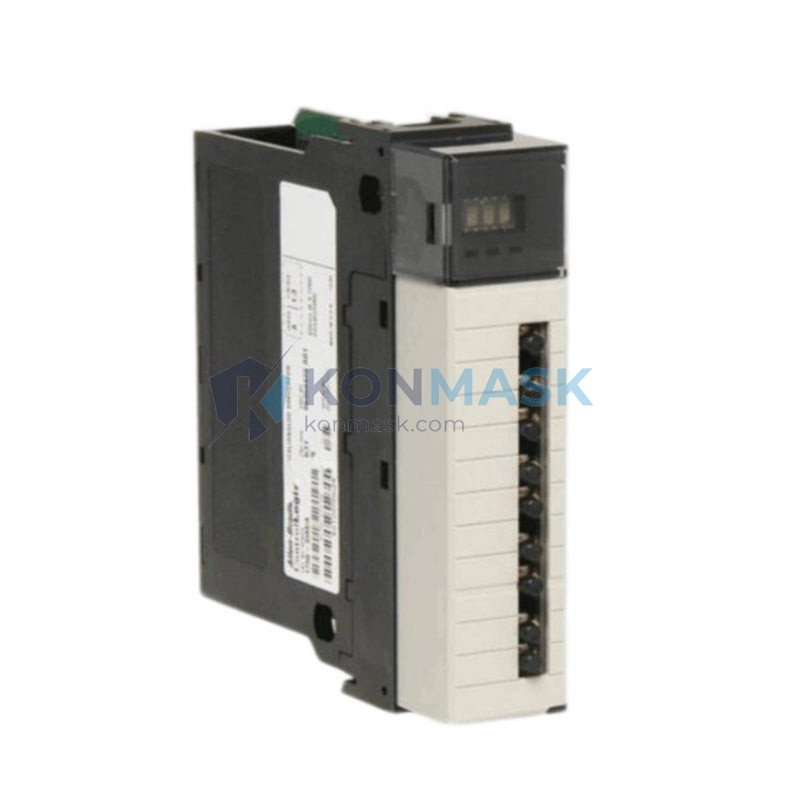

The Allen-Bradley 1756-SIM I/O Simulator Module is purpose-built for environments where engineers need to validate PLC logic without connecting live field devices. Typical deployment scenarios include:
- Factory Acceptance Testing (FAT): Simulate discrete I/O signals to verify ladder logic, function block diagrams, and HMI interactions before equipment ships to site.
- PLC Programming Training Labs: Universities, vocational institutes, and in-house training centers use the 1756-SIM to give technicians hands-on ControlLogix experience safely.
- Control Panel Pre-commissioning: Panel builders toggle simulated inputs to confirm wiring, addressing, and program response prior to field installation.
- Software Development & Debug: Automation engineers iterate on Studio 5000 projects offline, using the simulator to force I/O states and trace program execution.
- Spare Parts Bench Testing: Maintenance teams validate replacement modules and backup programs without interrupting production lines.
Technical Specifications
| Attribute | Value |
|---|---|
| Catalog Number | 1756-SIM |
| Series / Platform | ControlLogix 1756 |
| Module Type | Discrete I/O Simulator |
| I/O Points | 32 simulated discrete I/O points (16 IN / 16 OUT, toggle-switch controlled) |
| Backplane Interface | ControlLogix 1756 chassis backplane |
| Power Consumption | Backplane powered — no external field wiring required |
| Toggle Switches | 16 on-board manual toggle switches for input simulation |
| LED Indicators | Per-point status LEDs for both input and output states |
| Compatible Chassis | All 1756 ControlLogix chassis (4-, 7-, 10-, 13-, 17-slot) |
| Compatible Software | RSLogix 5000 / Studio 5000 Logix Designer (all versions) |
| Operating Temperature | 0 °C to 60 °C |
| Weight | Approx. 200 g |
| Certifications | UL Listed, CE Marked, RoHS Compliant |
Why Engineers Specify This Model
- Zero field wiring required: All 16 inputs are driven by on-board toggle switches — no signal generators, no terminal blocks, no risk of miswiring.
- Instant visual feedback: Per-point LEDs mirror real module behavior, making it easy to trace logic faults during training or FAT sessions.
- Full backplane compatibility: Slots into any 1756 chassis alongside production modules — no dedicated test chassis needed.
- Reduces FAT cycle time: Teams report 30–50% shorter acceptance test durations when using simulators to pre-validate I/O maps before live device connection.
- Protects production assets: Eliminates the risk of accidental output activation on live machinery during program development.
- Long-term platform investment: The 1756 ControlLogix platform has a published lifecycle extending beyond 2030, ensuring continued software and firmware support.
Complete System Bill of Materials
For a complete ControlLogix training or FAT bench, engineers typically pair the 1756-SIM with the following components:
- 1756-L8x / 1756-L7x — ControlLogix L8 or L7 Series Controller (CPU)
- 1756-PA75 / 1756-PB75 — ControlLogix Power Supply (AC or DC)
- 1756-A7 / 1756-A10 — ControlLogix 7-Slot or 10-Slot Chassis
- 1756-EN2T / 1756-EN3TR — EtherNet/IP Communication Module
- 1756-SIM — This module (I/O Simulator)
- 2711P-T10C21D8S — PanelView Plus 7 HMI (optional, for HMI integration testing)
Contact support@konmask.com for bundle pricing on complete training bench configurations.
Compliance & Industry Standards
- UL 508A — Industrial Control Panels
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS 2011/65/EU — Restriction of Hazardous Substances
- ODVA EtherNet/IP — Backplane protocol conformance (when used with 1756 communication modules)
- IEC 61131-3 — Compatible programming environments (Ladder, FBD, ST, SFC)
Quality Assurance & Sourcing
Konmask.com sources the 1756-SIM exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and firmware revision marking
- Functional power-on test confirming backplane communication and LED operation
- Serialization check against known counterfeit catalog numbers
- Anti-static packaging with humidity indicator card for long-haul shipping
We maintain traceability records for all units. Certificate of conformance available upon request.
How to Source This Part
- Add to Cart — Place your order directly on this page for in-stock units.
- Request a Quote — Email support@konmask.com with your required quantity, delivery timeline, and destination for a formal quotation within 24 hours.
- Bulk / Project Orders — For system integrators and OEMs requiring 5+ units or complete BOM fulfillment, contact us for project pricing and lead-time commitment.
- Expedited Shipping — DHL Express, FedEx International Priority, and UPS Worldwide available. Call +0086 19859288691 for same-day dispatch cut-off times.
Application-Specific FAQ
Q: Can the 1756-SIM simulate analog I/O signals?
A: No. The 1756-SIM is a discrete (digital) I/O simulator only. For analog simulation, consider the 1756-IF16 with an external signal generator, or use Studio 5000’s software-based tag forcing feature.
Q: Does the 1756-SIM work with CompactLogix (1769) chassis?
A: No. The 1756-SIM is designed exclusively for the 1756 ControlLogix backplane. It is not compatible with 1769 CompactLogix, 1789 SoftLogix, or GuardLogix chassis.
Q: Can output states be read back by the controller?
A: Yes. The controller can read the commanded output state via the module’s output data table, enabling output verification logic in your program.
Q: Is the 1756-SIM suitable for SIL-rated safety system testing?
A: No. The 1756-SIM is not a safety-rated module and must not be used as a substitute for certified safety I/O in GuardLogix SIL 2/3 applications. Use it for standard ControlLogix logic validation only.
Q: What is the typical lead time for orders from China?
A: In-stock units ship within 1–2 business days. International delivery via DHL Express typically takes 3–5 business days to most destinations. Contact us for project-specific lead-time guarantees.
