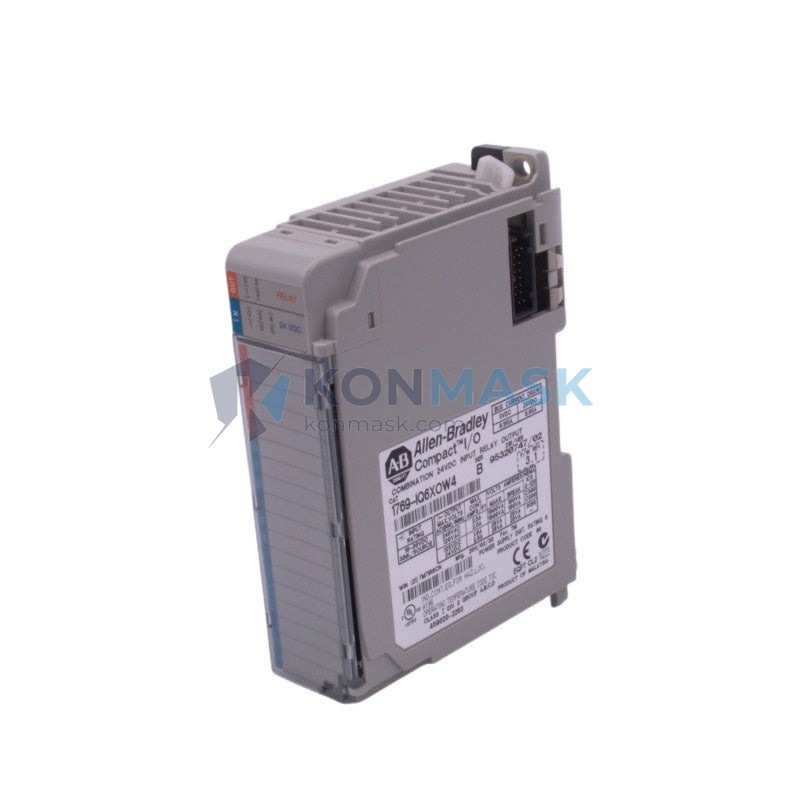

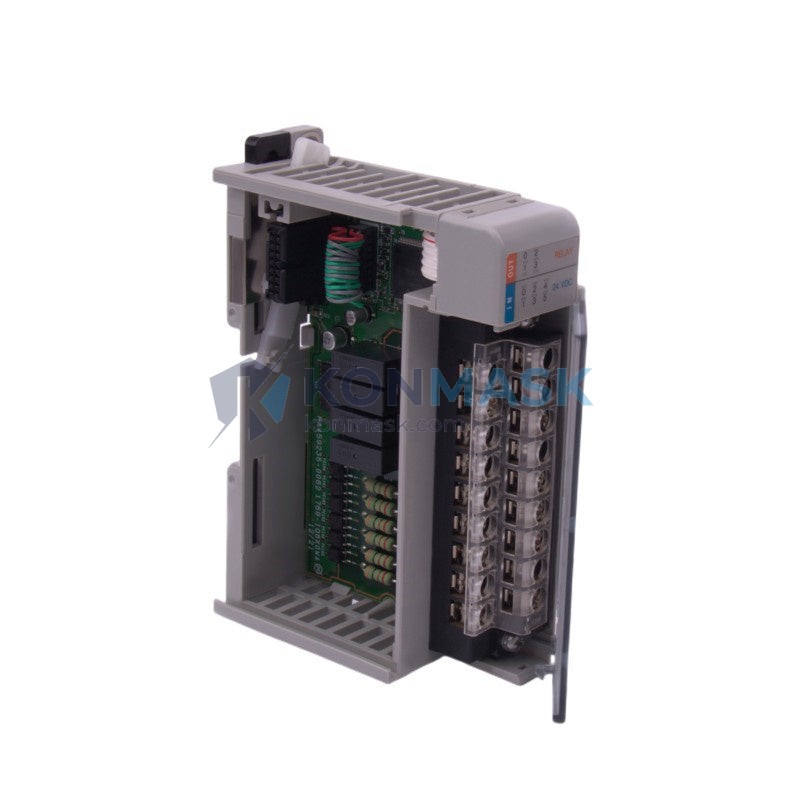

Discrete I/O Control Solution — Allen-Bradley 1769-IQ6XOW4 | Compact I/O Series A
Where This Product Is Used
The Allen-Bradley 1769-IQ6XOW4 is a combination digital input/output module engineered for machine-level discrete control in space-constrained panel environments. It is widely deployed across the following industrial sectors:
- Automotive Assembly Lines — Controlling conveyor interlocks, end-of-line testers, and robotic cell safety gates where mixed I/O density is required in a single slot.
- Food & Beverage Packaging — Managing solenoid valves, proximity sensors, and actuator feedback on filling, capping, and labeling machines.
- Material Handling & Intralogistics — Interfacing with photoelectric sensors, limit switches, and relay-driven diverters on sortation and palletizing systems.
- HVAC & Building Automation — Monitoring digital status inputs (damper open/closed, fan run/fault) and switching relay outputs for zone control.
- Water & Wastewater Treatment — Reading float switches and flow-switch contacts while driving pump starter relays in compact remote I/O panels.
- OEM Machine Builders — Reducing panel footprint by combining 6 DC inputs and 4 relay outputs in a single 1769 Compact I/O slot.

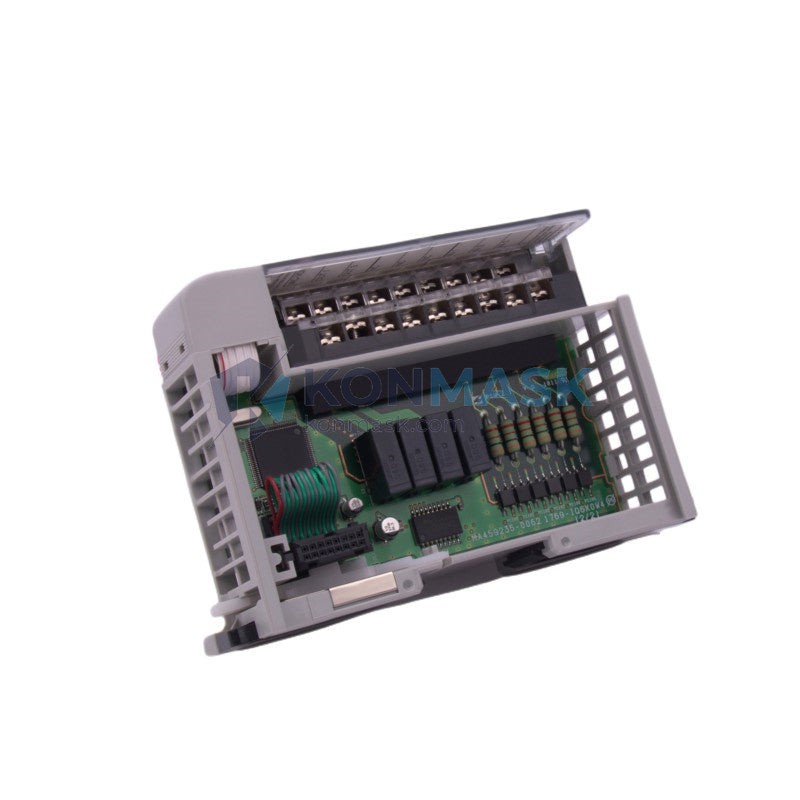

Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1769-IQ6XOW4 |
| Series | A |
| Module Type | Combination Digital Input / Relay Output |
| Input Points | 6 × DC Sink/Source (24V DC) |
| Output Points | 4 × Relay (Form A, N.O.) |
| Input Voltage Range | 10–30V DC |
| Input Current (ON) | 6 mA @ 24V DC |
| Output Voltage Range | 5–265V AC / 5–125V DC |
| Output Current (max) | 2.0 A per point, 4.0 A per common |
| Backplane Current Draw (5V) | 75 mA |
| Backplane Current Draw (24V) | 0 mA |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm (approx.) |
| Weight | ~200 g |
| Enclosure Rating | Open-type (IP20 equivalent) |
| Compatible Controllers | MicroLogix 1500, CompactLogix (1769 bus) |
Why Engineers Specify This Model
- Mixed I/O in One Slot — Eliminates the need for a separate input module and output module, saving one 1769 slot and reducing wiring complexity.
- Relay Outputs for Load Flexibility — Relay contacts switch both AC and DC loads without external interposing relays, simplifying BOM and panel layout.
- Sink/Source Input Flexibility — Accepts both NPN and PNP field devices without rewiring, critical for multi-vendor sensor environments.
- Compact I/O Bus Compatibility — Plug-and-play integration with MicroLogix 1500 and CompactLogix platforms; no additional adapter required.
- Proven Field Reliability — Series A hardware with established firmware support across RSLogix 500 and Studio 5000 Logix Designer environments.
- Low Backplane Power Draw — 75 mA at 5V DC minimises thermal load in dense I/O banks, extending system MTBF.
Complete System Bill of Materials
A typical 1769-IQ6XOW4 installation requires the following complementary components:
- Controller — 1769-L24ER-QB1B CompactLogix or 1764-LRP MicroLogix 1500 processor
- Power Supply — 1769-PA2 (120/240V AC input, 2A @ 5V DC) or 1769-PB2 (24V DC input)
- End Cap — 1769-ECR (right-end cap) to terminate the Compact I/O bus
- Bus Expansion Cable — 1769-CRR1 or 1769-CRR3 for multi-bank configurations
- Field Wiring Terminal Block — Included with module (removable RTB)
- 24V DC Field Power Supply — 1606-XLP30E or equivalent for sensor loop power
- Programming Software — Studio 5000 Logix Designer v21+ or RSLogix 500 v12+
- Communication Module (optional) — 1769-L19ER for EtherNet/IP connectivity
Compliance & Industry Standards
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EN 61131-2 (Programmable Controllers, Equipment Requirements)
- RoHS Compliant — Directive 2011/65/EU
- cUL Listed — CSA C22.2 No. 142
- ATEX / IECEx — Not rated for hazardous locations; install in suitable enclosure per NEC Article 500 if required
- IEC 61000-4 Series — EMC immunity tested for industrial environments
Quality Assurance & Sourcing
Konmask.com sources the 1769-IQ6XOW4 through verified industrial distribution channels with full traceability. Every unit offered on this platform undergoes the following quality checks before dispatch:
- Visual inspection for label authenticity, date codes, and housing integrity
- Verification of catalog number, series letter, and firmware revision against Rockwell Automation documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card for transit protection
- Certificate of conformance available upon request for regulated procurement processes
We do not list modules with missing labels, damaged RTBs, or unverifiable provenance.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly through Konmask.com.
- Request a Quote — For quantities ≥ 5 units or project-based procurement, contact support@konmask.com for volume pricing and lead-time confirmation.
- Verify Compatibility — Share your existing 1769 system configuration and we will confirm slot compatibility and power budget before shipment.
- Expedited Shipping — DHL Express and SF International available for urgent project requirements. Declare your deadline at checkout notes.
- Export Documentation — Commercial invoice, packing list, and ECCN classification (EAR99) provided for cross-border shipments.
Application-Specific FAQ
Q: Can the 1769-IQ6XOW4 be used with a CompactLogix 5370 controller?
A: Yes. The module is fully compatible with the 1769 Compact I/O bus used by CompactLogix 5370 (L1, L2, L3) controllers. Ensure your power supply budget accommodates the 75 mA backplane draw.
Q: What is the maximum inrush current the relay outputs can handle?
A: The relay contacts are rated for 2.0 A continuous per point. For inductive loads (contactors, solenoids), derate to 80% and add a snubber circuit or flyback diode to protect contact life.
Q: Are the inputs compatible with 12V DC sensors?
A: Yes. The input voltage range is 10–30V DC, so 12V DC NPN or PNP sensors will assert a valid ON state (threshold typically 10V DC minimum).
Q: Can I mix AC and DC loads on the relay outputs?
A: Yes. Each relay output is an isolated Form A contact, allowing different load types per point. Ensure each common group does not exceed 4.0 A total.
Q: Is a Series B version available and is it backward compatible?
A: Rockwell Automation has released updated series revisions over time. Series A and later series are functionally equivalent for most applications; confirm with your system integrator if firmware-specific features are required.
Q: What is the typical lead time from Konmask.com?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, contact us for sourcing timeline. Expedited procurement from our supplier network typically resolves within 5–10 business days.
