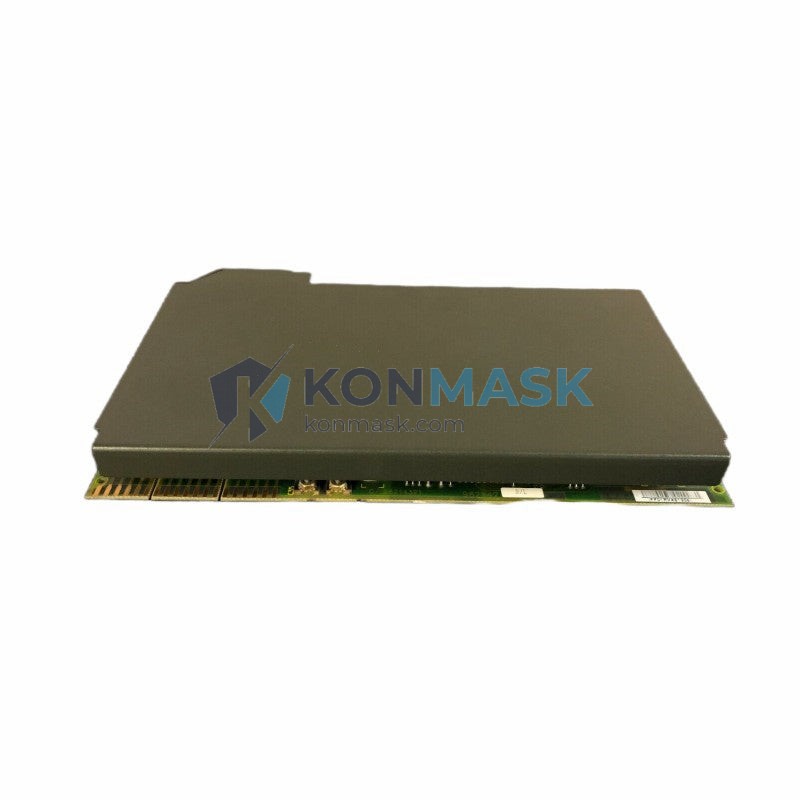

Allen-Bradley 1771-IFF/A – High-Resolution Analog Input Module | PLC-5 Platform
Engineering Background
The Allen-Bradley 1771-IFF/A is a precision analog input module engineered for the PLC-5 I/O chassis family. Designed by Rockwell Automation for demanding process-control environments, it delivers 12-bit resolution across eight differential input channels, making it the preferred choice for continuous-process monitoring in petrochemical, power generation, and advanced manufacturing facilities.
Product Positioning
As a direct-fit module for the 1771 I/O backplane, the 1771-IFF/A eliminates signal-conditioning intermediaries by accepting industry-standard ±10 V voltage and 4–20 mA current signals natively. Procurement engineers specifying legacy PLC-5 expansions or spare-parts programs will find this module a drop-in replacement with no firmware changes required.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1771-IFF/A |
| Platform | Allen-Bradley PLC-5 / 1771 I/O |
| Number of Input Channels | 8 differential analog inputs |
| Input Signal Range (Voltage) | ±10 V DC |
| Input Signal Range (Current) | 4–20 mA (with external 250 Ω shunt) |
| Resolution | 12-bit (1 in 4,096) |
| Conversion Method | Successive approximation ADC |
| Scan Time (all 8 channels) | ≤ 8 ms typical |
| Input Impedance (Voltage) | > 1 MΩ |
| Common-Mode Rejection | ≥ 90 dB @ 60 Hz |
| Isolation | 1,500 V AC (field-to-backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Backplane Current Draw | 800 mA @ 5 V DC |
| Module Slot Width | Single-slot 1771 I/O chassis |
| Weight | 600 g (approx.) |
| Certifications | UL Listed, CE Marked, CSA |
Proven Application Environments
- Oil & Gas: Pressure transmitter and flow-meter signal acquisition in SCADA-linked PLC-5 systems
- Power Generation: Turbine temperature and vibration monitoring via 4–20 mA transducers
- Chemical Processing: Multi-point pH, conductivity, and level measurement in continuous-batch reactors
- Automotive Manufacturing: Torque and force feedback loops in robotic assembly lines
- Water & Wastewater: Flow, pressure, and dissolved-oxygen monitoring in treatment plants
- Pulp & Paper: Tension and speed control in web-handling systems
Engineering Advantages
- True Differential Inputs: Rejects common-mode noise on long cable runs without external signal conditioners
- 12-Bit Resolution: 0.024% full-scale accuracy supports tight PID loop tuning
- Galvanic Isolation: 1,500 V AC field-to-backplane isolation protects the PLC-5 processor from field-side transients
- Single-Slot Form Factor: Maximises chassis density in space-constrained panels
- Direct Backplane Communication: No gateway or adapter required; data maps directly into the PLC-5 input image table
- Wide Temperature Range: Qualified for 0–60 °C ambient, suitable for non-air-conditioned MCC rooms
System Architecture & Signal Flow
Field transmitters connect to the 1771-IFF/A via the 1771-WN wiring arm (sold separately). Each channel’s differential signal passes through an anti-aliasing filter before entering the 12-bit successive-approximation ADC. Converted values are stored in the module’s dual-port RAM and transferred to the PLC-5 processor’s input image table on each I/O scan. The processor reads channel data using standard ladder or structured-text instructions referencing the module’s slot address — no special function blocks required.
Recommended wiring practice: Use shielded twisted-pair cable (Belden 8761 or equivalent), ground shield at one end only, and maintain ≥ 150 mm separation from power conductors to minimise induced noise.
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels and authorised distributors
- Each module undergoes visual inspection, label verification, and functional power-on test prior to dispatch
- Original Rockwell Automation firmware — no third-party modifications
- Serialised traceability records retained for 24 months
- Packaging: anti-static bag + foam-lined carton; conforms to ANSI/ESD S20.20
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the contact form or email support@konmask.com
- Step 2 – Quote: Receive a formal quotation with lead time and freight options within 1 business day
- Step 3 – Order Confirmation: Purchase order accepted; payment via T/T, PayPal, or credit card
- Step 4 – Dispatch: Ships within 1–3 business days via DHL / FedEx / SF Express with full tracking
- Step 5 – After-Sales: 12-month warranty; DOA replacement within 7 days of receipt
Technical FAQ
Q: Is the 1771-IFF/A compatible with the PLC-5/11, 5/20, 5/30, 5/40, and 5/80 processors?
A: Yes. The module is compatible with all PLC-5 processors that support the 1771 I/O chassis.
Q: Can I use 4–20 mA transmitters without an external shunt resistor?
A: No. The module accepts voltage inputs natively. For 4–20 mA, install a 250 Ω precision resistor across each channel’s input terminals to convert current to a 1–5 V signal.
Q: What is the maximum cable length from transmitter to module?
A: Rockwell recommends ≤ 300 m for shielded twisted-pair at 4–20 mA; voltage-mode runs should be kept ≤ 30 m to limit resistive drop errors.
Q: Does the module support HART pass-through?
A: No. The 1771-IFF/A is a conventional analog module; HART communication requires a dedicated HART multiplexer or a ControlLogix HART-capable module.
Q: Can Konmask provide a certificate of conformance or test report?
A: Yes. A functional test report and certificate of conformance are available upon request at time of order.
