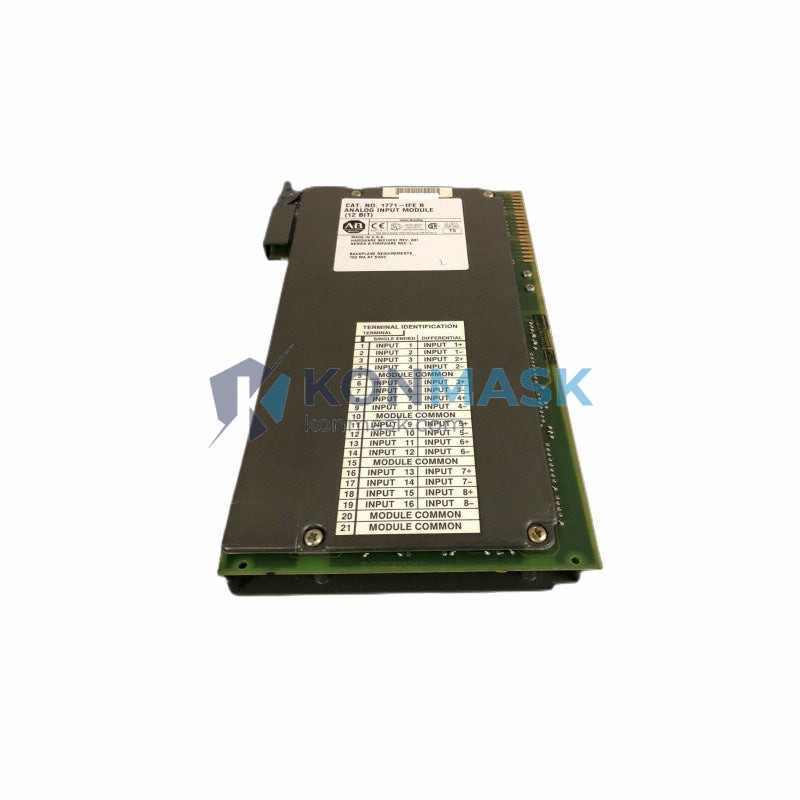

Allen-Bradley 1771-IFE/C – 8-Channel Analog Input Module | PLC-5 Platform
Engineering Background
The Allen-Bradley 1771-IFE/C is a high-precision analog input module engineered for the PLC-5 family of programmable logic controllers. Designed to interface real-world process signals with Rockwell Automation’s 1771 I/O chassis, this module has been a cornerstone of industrial process control for decades — deployed in continuous manufacturing, chemical processing, and utility infrastructure worldwide.
Product Positioning
For procurement engineers sourcing legacy PLC-5 spare parts or executing planned maintenance on existing 1771-series installations, the 1771-IFE/C delivers proven signal fidelity and chassis compatibility without requiring system redesign. Konmask.com maintains verified stock of this module to support MRO (Maintenance, Repair & Operations) and capital project requirements.
Complete Technical Specifications
| Catalog Number | 1771-IFE/C |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Platform | PLC-5 / 1771 I/O Chassis |
| Module Type | Analog Input |
| Number of Channels | 8 single-ended / 4 differential |
| Input Signal Ranges | 0–5V, 0–10V, ±5V, ±10V, 4–20mA, 0–20mA |
| Resolution | 12-bit (1 in 4,096) |
| Conversion Method | Successive Approximation |
| Throughput Rate | 4 ms per channel (typical) |
| Input Impedance (Voltage) | ≥ 10 MΩ |
| Input Impedance (Current) | 250 Ω (internal shunt) |
| Accuracy | ±0.1% of full scale at 25°C |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Backplane Current Draw | 800 mA @ 5V DC |
| Power Dissipation | 4.0 W (typical) |
| Isolation | 500V AC channel-to-backplane |
| Chassis Compatibility | 1771-A1B, A2B, A3B, A4B series |
| Slot Width | Single-slot |
| Weight | Approx. 600 g |
| Certifications | UL Listed, CE Marked |
Proven Application Environments
- Oil & Gas: Pressure transmitter and flow meter signal acquisition in upstream/downstream SCADA systems
- Chemical Processing: Temperature and level monitoring via 4–20mA loop-powered transmitters
- Water & Wastewater: Multi-point analog monitoring in treatment plant PLC-5 control panels
- Automotive Manufacturing: Tension, force, and position feedback in legacy press and assembly lines
- Power Generation: Turbine and boiler analog signal conditioning in DCS-adjacent PLC architectures
- Food & Beverage: Process variable monitoring in CIP (Clean-In-Place) and batch control systems
Engineering Advantages
- Universal Signal Compatibility: Accepts both voltage (0–10V, ±10V) and current (4–20mA, 0–20mA) inputs — no external signal conditioner required for most transmitter types
- 12-Bit Resolution: Provides 4,096 discrete counts across the full input range, sufficient for precise PID loop feedback and alarm setpoint discrimination
- Differential Input Option: 4-channel differential mode rejects common-mode noise in electrically noisy industrial environments
- Direct Chassis Integration: Plug-and-play compatibility with all 1771 I/O chassis — no adapter or interposing relay required
- Proven Field Reliability: Decades of documented deployment in mission-critical process industries with established spare-parts ecosystems
- Software Transparency: Fully supported by RSLogix 5 and legacy 6200 Series programming software with standard block transfer instructions (BTR/BTW)
System Architecture & Signal Flow
The 1771-IFE/C occupies a single slot in any 1771-series I/O chassis. Field wiring connects to the module’s removable terminal block (RTB). Analog signals are multiplexed through an internal MUX, converted by a 12-bit successive approximation ADC, and transferred to the PLC-5 processor via Block Transfer Read (BTR) instructions over the 1771 backplane. Each channel’s scaled integer value is mapped to a user-defined data table (typically an integer file N7:xx or floating-point file F8:xx) for use in ladder logic, PID function blocks, or HMI display.
Wiring Note: Current-input channels require the internal 250Ω shunt jumper to be installed (factory default for /C revision). Verify jumper configuration before installation when sourcing from secondary market.
Sourcing & Quality Verification
- All units are inspected upon receipt — label integrity, revision marking (/C), and physical condition verified
- Functional bench-test available on request prior to shipment for critical MRO orders
- Original Rockwell Automation firmware revision confirmed — no counterfeit or re-marked units
- Traceability documentation (original packaging, date codes where available) provided on request
- 30-day return window for DOA (Dead on Arrival) units with full replacement or refund
Procurement Process
- Confirm Revision: Verify your existing installation requires the /C revision (check existing module label or RSLogix 5 I/O configuration)
- Submit Inquiry: Contact support@konmask.com with quantity, required lead time, and any documentation requirements
- Receive Quotation: Formal quotation issued within 1 business day including unit price, shipping options, and estimated delivery
- Place Order: Purchase via this listing or via PO — net payment terms available for qualified accounts
- Shipment & Tracking: Ships within 1–3 business days; tracking number provided via email
Technical FAQ
Q: Is the 1771-IFE/C compatible with the PLC-5/11, 5/20, 5/30, 5/40, and 5/80?
A: Yes. The module is compatible with all PLC-5 processors that support the 1771 I/O chassis platform via standard BTR/BTW block transfer instructions.
Q: What is the difference between 1771-IFE and 1771-IFE/C?
A: The /C revision incorporates hardware improvements to the ADC reference circuit, improving accuracy and long-term stability. The /C is the preferred revision for new installations and replacements.
Q: Can this module accept thermocouple or RTD inputs directly?
A: No. The 1771-IFE/C accepts standard voltage and current signals only. For thermocouple inputs, use the 1771-IXE; for RTD inputs, use the 1771-IR.
Q: Is RSLogix 5 required for configuration?
A: Configuration is performed via BTR/BTW block transfer data in ladder logic — no separate configuration software is required beyond RSLogix 5 or the legacy 6200 Series software.
Q: Do you provide a certificate of conformance?
A: Yes, available on request for orders requiring QA documentation.
