Industrial Ethernet Networking Solution – Allen-Bradley 1783-BMS20CGP | Stratix 5700 Series
Where This Product Is Used
The Allen-Bradley 1783-BMS20CGP Stratix 5700 20-Port Managed Switch is purpose-built for demanding industrial Ethernet environments where network reliability, determinism, and security are non-negotiable. Typical deployment sites include:
- Automotive Assembly Lines – Real-time communication between PLCs, robots, and HMIs on high-speed production cells.
- Oil & Gas Processing Plants – Backbone switching for SCADA and DCS networks in hazardous-area control rooms.
- Water & Wastewater Treatment Facilities – Reliable ring-topology networks connecting remote RTUs and pump-station controllers.
- Pharmaceutical Manufacturing – Validated network infrastructure supporting 21 CFR Part 11 compliant control systems.
- Power Generation & Utilities – Substation automation and IEC 61850 GOOSE messaging over hardened Ethernet backbones.
- Food & Beverage Processing – Washdown-tolerant network nodes linking packaging PLCs, vision systems, and MES platforms.
- Discrete Manufacturing / Machine Builders – OEM panel integration for multi-axis motion control and safety I/O networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1783-BMS20CGP |
| Series | Stratix 5700 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Total Ports | 20 |
| Copper Ports (10/100/1000 Mbps) | 16 × RJ45 (PoE-capable) |
| SFP Combo / Uplink Ports | 4 × SFP (100/1000 Mbps) |
| Switch Type | Managed Layer 2 / Layer 3 |
| Switching Fabric | Non-blocking |
| VLAN Support | IEEE 802.1Q, up to 255 VLANs |
| QoS | IEEE 802.1p, DSCP |
| Redundancy Protocols | DLR (Device Level Ring), RSTP, REP |
| EtherNet/IP Support | Yes – CIP-native integration |
| Power Supply Input | 24 VDC (18–32 VDC range) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP30 / DIN-rail mount |
| Weight | ~2.5 kg |
| Certifications | UL, CE, cUL, ATEX Zone 2 (with appropriate enclosure) |
Why Engineers Specify This Model
- Native EtherNet/IP & CIP Integration – Seamlessly integrates with Logix controllers (ControlLogix, CompactLogix) via Studio 5000 and RSLinx, enabling topology discovery and port-level diagnostics from within the PLC environment.
- Device Level Ring (DLR) Support – Achieves sub-3 ms ring recovery, eliminating single points of failure on the plant floor without complex spanning-tree tuning.
- Stratix SmartPort Technology – Auto-configures port settings (speed, duplex, VLAN, QoS) based on connected device type (controller, drive, HMI, camera), reducing commissioning time.
- 20-Port Density in a Single Unit – Consolidates wiring for large machine cells or panel networks, reducing cabinet footprint and BOM cost versus cascading smaller switches.
- Cisco IOS-Based Firmware – Familiar CLI and web GUI for IT/OT convergence teams; supports SNMP v1/v2c/v3, RSPAN, port mirroring, and 802.1X authentication.
- Dual-Input 24 VDC Power – Redundant power inputs prevent network downtime from a single PSU failure.
Complete System Bill of Materials
For a complete Stratix 5700-based network node, consider the following companion components:
| Item | Catalog Number | Description |
|---|---|---|
| Managed Switch (this unit) | 1783-BMS20CGP | 20-Port Stratix 5700 |
| DIN-Rail Power Supply (24 VDC) | 1606-XLP95E | 95 W, 24 VDC panel PSU |
| Redundant PSU Module | 1783-PSDC | Redundant 24 VDC input module |
| SFP Fiber Module (Multi-mode) | 1783-SFP1GSX | 1 Gbps 850 nm MM SFP |
| SFP Fiber Module (Single-mode) | 1783-SFP1GLX | 1 Gbps 1310 nm SM SFP |
| Industrial Ethernet Cable | 1585J-M8CBJM-x | Cat 5e shielded, M12 to RJ45 |
| Network Address Translation Module | 1783-NATR | NAT router for cell isolation |
| ControlLogix Controller | 1756-L85E | Logix 5585E EtherNet/IP controller |
Compliance & Industry Standards
- IEC 61158 / IEC 61784 – EtherNet/IP fieldbus standard compliance
- IEEE 802.3 – Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X)
- IEEE 802.1Q – VLAN tagging
- IEEE 802.1p – QoS traffic prioritization
- IEEE 802.1D / 802.1w – STP / RSTP
- IEEE 802.1X – Port-based network access control
- UL 508 – Industrial control equipment
- CE / cUL / RCM – Regional market certifications
- ODVA Conformance Tested – EtherNet/IP conformance certification
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
All units listed on Konmask.com are sourced through verified industrial distribution channels. Our quality process includes:
- Visual inspection and label authentication against Rockwell Automation genuine-product markings
- Functional power-on verification prior to shipment

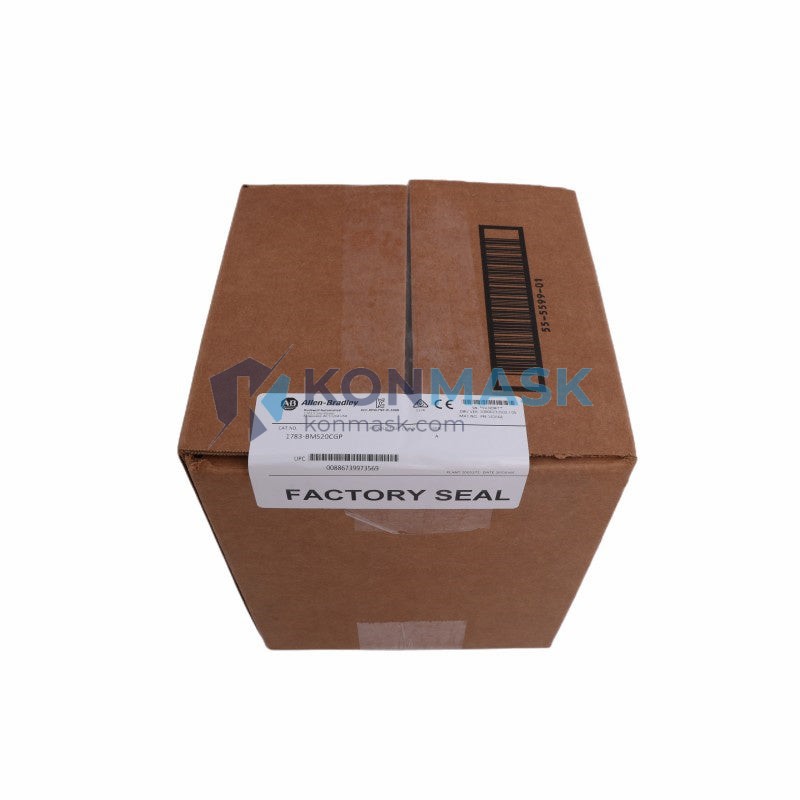

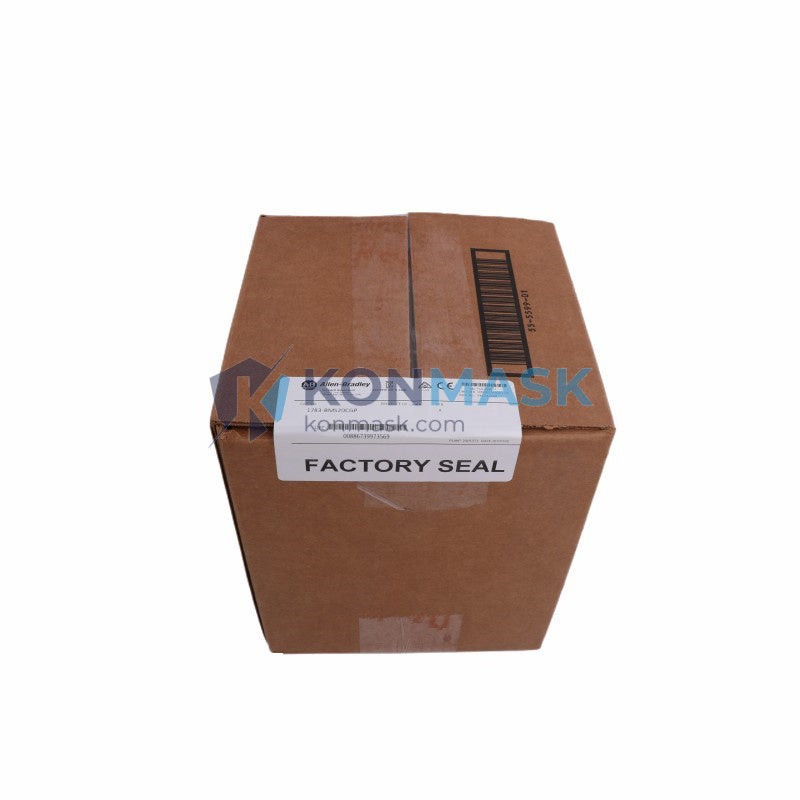

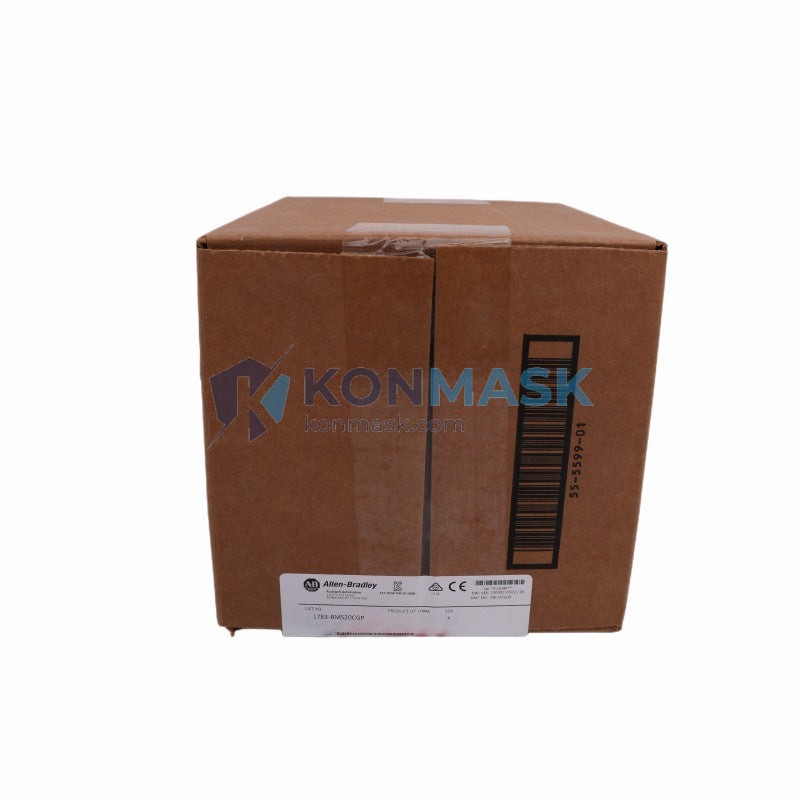

- Original factory packaging preserved where available; protective anti-static packaging applied to all units
- Traceability documentation (lot code, date code, country of origin) available on request
- Warranty: 12-month replacement warranty against defects in materials and workmanship
How to Source This Part
- Add to Cart – Click Add to Cart on this page for immediate checkout.
- Request a Quote – For volume orders (5+ units), contact support@konmask.com for tiered pricing.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock orders confirmed by email.
- Export & Cross-Border Orders – We support international shipping with commercial invoice, packing list, and HS code documentation (HS: 8517.62).
- Payment – T/T bank transfer, PayPal, and major credit cards accepted. Net-30 terms available for approved accounts.
Application-Specific FAQ
- Q: Can the 1783-BMS20CGP be managed directly from Studio 5000 Logix Designer?
- A: Yes. When connected to a ControlLogix or CompactLogix system, the switch appears as an EtherNet/IP device in the I/O tree, enabling topology view, port diagnostics, and alarm integration without leaving the PLC programming environment.
- Q: Does this switch support Device Level Ring (DLR) as a ring supervisor?
- A: Yes. The 1783-BMS20CGP can operate as a DLR ring supervisor or ring node, providing sub-3 ms fault recovery for connected EtherNet/IP devices.
- Q: What SFP modules are compatible with the 1783-BMS20CGP?
- A: Rockwell-qualified SFPs include 1783-SFP1GSX (multimode), 1783-SFP1GLX (single-mode), and 1783-SFP100FX (100 Mbps multimode). Third-party SFPs are not officially supported and may cause firmware warnings.
- Q: Is this switch suitable for use in a PROFINET network?
- A: The Stratix 5700 is optimized for EtherNet/IP / CIP architectures. While it will pass standard Ethernet frames (including PROFINET), it does not natively support PROFINET MRP ring redundancy or PROFINET-specific diagnostics.
- Q: Can I use this switch in a panel rated for Class I Division 2 / Zone 2 hazardous locations?
- A: The 1783-BMS20CGP itself is rated IP30 and must be installed inside a suitable purged or pressurized enclosure to meet Class I Div 2 / ATEX Zone 2 requirements. Consult your local safety authority for enclosure selection.
- Q: What is the difference between the BMS20CGP and BMS20CG variants?
- A: The “P” suffix denotes PoE (Power over Ethernet) capability on the copper ports, allowing the switch to power PoE-compatible devices (IP cameras, wireless APs, PoE-enabled I/O) without separate power injectors.
