Motor Control & Power Distribution Solution — Allen-Bradley 194R-J400-1753 | 194R Series (TSC)

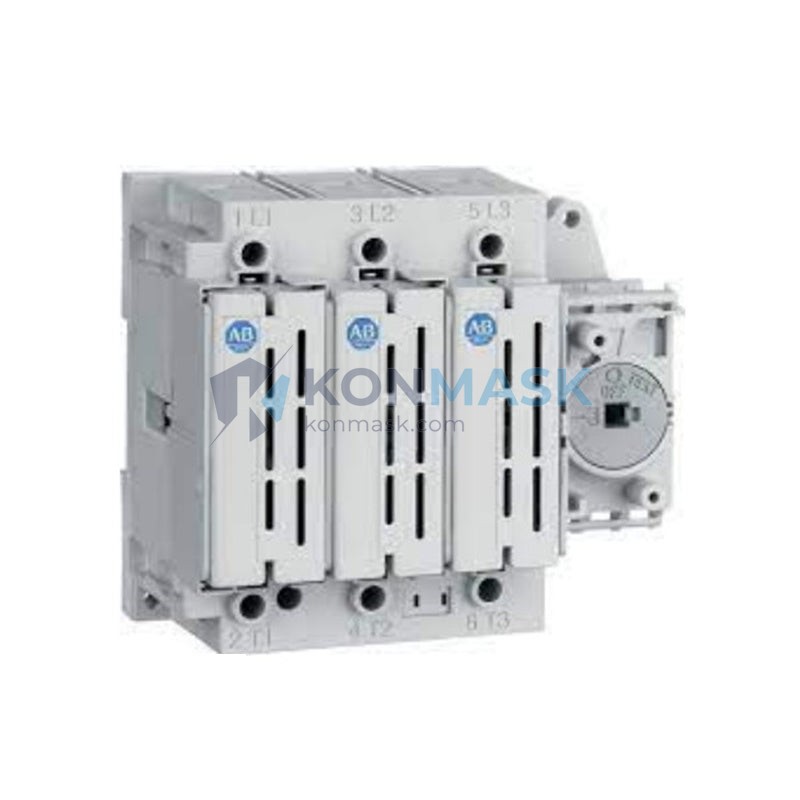

The Allen-Bradley 194R-J400-1753 is a 30 Amp, 600V fusible disconnect switch from the 194R TSC (Totally Self-Contained) series — engineered for reliable branch circuit isolation and motor protection in demanding industrial environments. Sourced through verified channels and available for immediate global dispatch from Konmask.com.
Where This Product Is Used
This disconnect switch is specified across a wide range of industrial power and motor control applications:
- Motor Branch Circuit Protection — Provides NEC/IEC-compliant isolation and overcurrent protection for motors up to 30A at 600VAC.
- Machine Tool & OEM Equipment — Integrated into control panels for CNC machines, conveyors, compressors, and pumps requiring lockable disconnect capability.
- HVAC & Building Automation — Used as a service disconnect for fan coil units, air handling units, and chiller systems.
- Food & Beverage Processing — Installed in washdown-rated enclosures for hygienic production lines requiring frequent maintenance isolation.
- Water & Wastewater Treatment — Deployed in pump station panels for reliable isolation of submersible and surface pumps.
- Oil & Gas Auxiliary Systems — Used in wellhead and pipeline auxiliary motor control centers (MCCs).
- Automotive Assembly Lines — Specified for robot cell power distribution panels requiring safe energy isolation (LOTO compliance).
Technical Specifications
| Part Number | 194R-J400-1753 |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | 194R TSC (Totally Self-Contained) |
| Rated Current | 30 A |
| Rated Voltage | 600 V AC |
| Switch Type | Fusible Disconnect Switch |
| Poles | 3-Pole |
| Fuse Type | Class J (per suffix -1753 configuration) |
| Mounting | DIN Rail / Panel Mount |
| Enclosure Rating | IP20 (internal); suitable for enclosed panel installation |
| Lockout/Tagout | Padlockable handle (LOTO compliant) |
| Standards | UL 98, CSA C22.2, IEC 60947-3 |
| Weight | Approx. 100 g (module only) |
Why Engineers Specify This Model
- TSC Design — The Totally Self-Contained architecture integrates fuse holder and switch in a single compact body, reducing panel footprint and wiring complexity.
- Class J Fuse Compatibility — Provides high-interrupting-capacity (HIC) protection, enabling use in systems with high available fault current (HAFC).
- Padlockable Handle — Meets OSHA 29 CFR 1910.147 lockout/tagout requirements, critical for maintenance safety compliance.
- 600V Rating — Suitable for both 480VAC (North American) and 600VAC (Canadian) distribution systems without derating.
- Rockwell Ecosystem Integration — Designed to coordinate with Allen-Bradley MCCs, PowerFlex drives, and Bulletin 100 contactors for seamless system design.
- UL & CSA Listed — Dual-listed for North American compliance, accepted by AHJs across the US and Canada.
Complete System Bill of Materials
For a complete motor branch circuit using the 194R-J400-1753, engineers typically specify the following complementary components — all available at Konmask.com:
- Motor Starter / Contactor — Allen-Bradley Bulletin 100-C or 100-D IEC contactors (size matched to 30A load)
- Overload Relay — Allen-Bradley 193-EC or 193-EECB electronic overload relay
- Control Transformer — Allen-Bradley 1497 series control transformer (120VAC control voltage)
- Class J Fuses — Bussmann LPJ-30SP or equivalent 30A Class J time-delay fuses
- Enclosure — Hoffman A-series or Rittal AX series steel enclosure (NEMA 12 / IP54)
- DIN Rail — TS 35 × 7.5 mm steel DIN rail (IEC 60715)
- Terminal Blocks — Allen-Bradley 1492-W series feed-through terminal blocks
- PLC I/O Module — Allen-Bradley 1756 or 1769 series for automated motor control integration
Compliance & Industry Standards
- UL 98 — Enclosed and Dead-Front Switches (UL Listed)
- CSA C22.2 No. 4 — Enclosed and Dead-Front Switches (CSA Certified)
- IEC 60947-3 — Switches, Disconnectors, Switch-Disconnectors and Fuse-Combination Units
- OSHA 29 CFR 1910.147 — Control of Hazardous Energy (Lockout/Tagout) compatible
- NEC Article 430 — Motor branch circuit protection compliance
- RoHS Compliant — Restriction of Hazardous Substances Directive
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley component undergoes a structured verification process before dispatch:
- Step 1 — Origin Verification: Part number, date code, and country of manufacture cross-referenced against Rockwell Automation factory records.
- Step 2 — Physical Inspection: Label integrity, housing condition, terminal quality, and handle mechanism function checked against OEM specifications.
- Step 3 — Documentation Review: Certificate of conformance (CoC) and traceability documentation verified and archived per order.
- Step 4 — Packaging Audit: Original or equivalent anti-static, moisture-barrier packaging confirmed prior to shipment.
We source exclusively from authorized distributors, factory-direct channels, and vetted industrial surplus with full traceability. Counterfeit-free guarantee backed by our return policy.
How to Source This Part
- Add to Cart — Click “Add to Cart” and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Request a Quote — For orders of 5+ units or urgent project requirements, email support@konmask.com for volume pricing and lead time confirmation.
- Provide Your PO — B2B customers may submit a purchase order directly. Net-30 terms available for qualified accounts.
- Shipping Confirmation — Orders confirmed before 14:00 CST ship same business day. Tracking number provided within 24 hours.
- Technical Support — Our engineering team is available to confirm compatibility, cross-reference alternatives, or assist with system design. Call or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Can the 194R-J400-1753 be used as a motor disconnect for a 25HP, 480VAC motor?
A: Yes. A 25HP / 480VAC motor draws approximately 34A FLA, but with appropriate Class J fuses sized to 175% FLA (~60A), the 30A switch body is used for isolation only — not overcurrent protection. Confirm with your local AHJ and NEC Article 430 for branch circuit sizing.
Q: Is this switch suitable for outdoor installations?
A: The 194R-J400-1753 itself is rated IP20 and must be installed inside a suitable NEMA 3R, 4, or 4X enclosure for outdoor or wet location use.
Q: What fuse size and type does this switch accept?
A: The -1753 suffix designates Class J fuse compatibility. Maximum fuse size is 30A. Use time-delay (dual-element) Class J fuses for motor branch circuit applications per NEC 430.52.
Q: Can I get a Certificate of Conformance (CoC) with my order?
A: Yes. A CoC is available upon request for all orders. Please note this in your order comments or email us at support@konmask.com.
Q: Do you ship to the EU, Middle East, or Southeast Asia?
A: Yes. We ship globally via DHL Express, FedEx International, and UPS Worldwide. Export documentation including commercial invoice and packing list provided for all international shipments.
