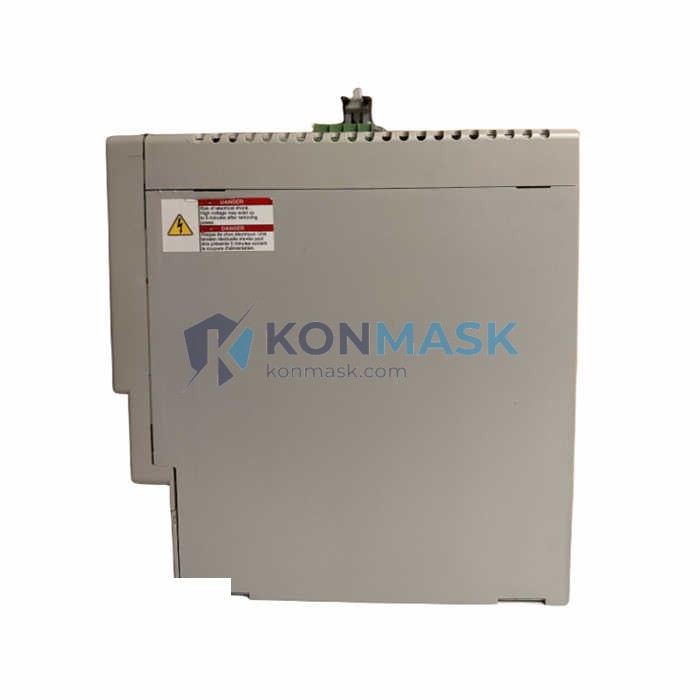

Allen-Bradley 2094-BM02-S – Dual-Axis Servo Drive Module | Kinetix 6000 Platform
Engineering Background: The Kinetix 6000 multi-axis servo drive system is Rockwell Automation’s flagship integrated motion control platform, designed for high-throughput manufacturing environments where synchronization, dynamic response, and cabinet-space efficiency are critical. The 2094-BM02-S is a dual-axis inverter module that operates within the Kinetix 6000 shared-bus architecture, drawing DC bus power from a dedicated IAM (Integrated Axis Module) and delivering precise torque and velocity control to two independent servo axes simultaneously.
Product Positioning: Targeted at OEM machine builders and end-user maintenance teams operating Kinetix 6000 systems in automotive, packaging, semiconductor, and material handling applications. The 2094-BM02-S is the preferred replacement module for legacy installations and new multi-axis builds requiring compact, high-performance axis expansion without additional power supply infrastructure.
Complete Technical Specifications
- Catalog Number: 2094-BM02-S
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: Kinetix 6000 Multi-Axis Servo Drive
- Module Type: Dual-Axis Inverter Module (AM)
- Bus Architecture: Shared DC bus (requires 2094-BC04-M05-S or equivalent IAM)
- Axes Supported: 2 independent servo axes
- Feedback Interface: Compatible with high-resolution encoders, resolver, and Hiperface/EnDat via feedback cable
- Communication: Integrated via SERCOS II backplane (IAM-coordinated)
- Mounting: Kinetix 6000 power rail (2094-PRxx series)
- Enclosure Rating: IP20 (panel-mount, open-type)
- Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F)
- Storage Temperature: –40 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Certifications: UL, CE, cUL
- Weight: Approx. 500 g
- Compatible Controllers: ControlLogix, CompactLogix with 1756-M08SE / 1756-M16SE SERCOS interface
Proven Application Environments
- Automotive Assembly Lines: Synchronized multi-axis welding and transfer systems requiring sub-millisecond torque response
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and cartoning lines with coordinated axis motion
- Semiconductor Fabrication: Precision wafer handling and gantry positioning with micron-level repeatability
- Material Handling: Multi-axis conveyor indexing, palletizing robots, and overhead crane systems
- Printing & Converting: Web tension control and register synchronization across multiple driven rolls
- Machine Tool: CNC retrofit and spindle/feed axis coordination on legacy machining centers
Engineering Advantages
- Shared DC Bus Efficiency: Regenerative energy from decelerating axes is redistributed across the bus, reducing net energy consumption by up to 30% versus standalone drives
- Compact Footprint: Dual-axis capability in a single module slot reduces panel width and wiring complexity compared to two independent drives
- Seamless Logix Integration: Native SERCOS II communication with ControlLogix eliminates gateway hardware; motion instructions (MAM, MAS, MAJ) execute directly from the controller
- Hot-Swap Ready: Module replacement on the power rail does not require full system shutdown when bus pre-charge is managed correctly
- Scalable Architecture: Up to 8 axis modules can share a single IAM bus, supporting systems from 2 to 16 axes on one power rail
- Rockwell Integrated Motion: Full support for Logix Designer Axis Configuration Wizard, auto-tuning, and Scope diagnostics
System Architecture & Signal Flow
The 2094-BM02-S operates as a downstream inverter within the Kinetix 6000 shared-bus topology:
- AC Input → IAM rectifier stage → Shared DC bus rail
- DC Bus → 2094-BM02-S internal IGBT inverter → Motor output (Axis 1 & Axis 2)
- Feedback Loop: Encoder/resolver signals return via 2090-XXNFMF-Sxx feedback cables to the AM’s feedback ports
- Control Path: SERCOS II fiber-optic ring (IAM → AM1 → AM2 → … → controller) at 4 or 8 Mbps
- Safety: Safe Torque Off (STO) signal routed through the power rail safety circuit; compliant with IEC 62061 SIL 2 / PLd when used with compatible safety controller
Sourcing & Quality Verification
- Stock Origin: Verified surplus from decommissioned OEM production lines and authorized distributor overstock
- Inspection Protocol: Each unit undergoes visual inspection (PCB, connectors, label integrity), functional power-on test, and firmware version verification before shipment
- Authenticity: Rockwell Automation holographic labels and date codes verified; counterfeit screening performed on all incoming stock
- Packaging: ESD-safe anti-static bag, foam-lined carton, with humidity indicator card
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and verified functional failure
- Documentation: Original Rockwell Automation datasheet and installation instructions available upon request
Procurement Process
- Step 1 – Inquiry: Submit your catalog number, required quantity, and target delivery date via email or the product page inquiry form
- Step 2 – Quote: Konmask issues a formal quotation within 1 business day, including unit price, lead time, and shipping options (DHL Express, FedEx International Priority, sea freight for bulk)
- Step 3 – Order Confirmation: Purchase order or proforma invoice accepted; T/T bank transfer, PayPal, and trade assurance payment supported
- Step 4 – Inspection & Dispatch: Pre-shipment inspection report issued; tracking number provided within 24 hours of dispatch
- Step 5 – After-Sales: Technical support available post-delivery for installation commissioning questions; warranty claims processed within 5 business days
Technical FAQ
Q: Can the 2094-BM02-S operate without a Kinetix 6000 IAM?
A: No. The AM module requires a shared DC bus supplied by a 2094-BCxx-Mxx-S IAM. It has no internal rectifier and cannot be powered from AC directly.
Q: Is the 2094-BM02-S compatible with Kinetix 6200 or 6500 systems?
A: No. The 2094-BM02-S is specific to the Kinetix 6000 power rail (2094-PRxx). Kinetix 6200/6500 use a different bus architecture and are not cross-compatible.
Q: What servo motors are compatible with this module?
A: Rockwell MPL, MPM, MPS, and MPF series servo motors with compatible feedback devices (incremental encoder, absolute encoder, or resolver) are fully supported. Third-party motors may be used with appropriate feedback adapter cables.
Q: What firmware version does this unit ship with?
A: Firmware version is verified and documented during inspection. Customers requiring a specific firmware revision should specify at time of order. Field firmware updates are performed via Logix Designer / DriveExplorer.
Q: Can I get a test report before purchase?
A: Yes. A pre-shipment functional test report is available for orders of 2+ units. Single-unit test reports are available upon request with a 1–2 business day lead time.
Q: Do you offer volume pricing for MRO or OEM orders?
A: Yes. Tiered pricing is available for orders of 3+ units. Contact our procurement team for a volume quotation.
