Precision Motion Control Solution — Allen-Bradley 2198-D032-ERS4 | Kinetix 5500 Series
Where This Product Is Used

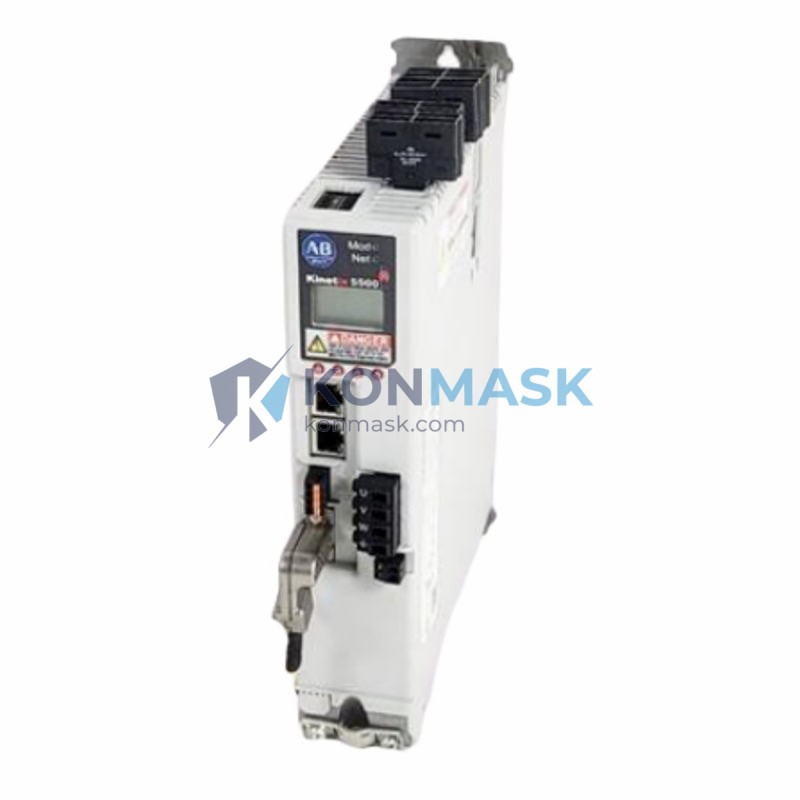

The Allen-Bradley 2198-D032-ERS4 is a Kinetix 5500 servo drive engineered for demanding industrial motion control environments. Engineers and system integrators specify this drive across a wide range of high-performance applications:
- Automotive Assembly Lines — Precise torque and velocity control for robotic welding arms, transfer systems, and press-feed mechanisms.
- Packaging Machinery — High-speed indexing, registration control, and multi-axis synchronization on form-fill-seal and cartoning lines.
- CNC Machining Centers — Coordinated axis control for milling, turning, and grinding operations requiring sub-millimeter repeatability.
- Material Handling & Conveyors — Smooth acceleration/deceleration profiles for sortation systems, palletizers, and AGV drive units.
- Semiconductor & Electronics Manufacturing — Ultra-low vibration servo loops for pick-and-place, wafer handling, and PCB assembly equipment.
- Printing & Converting — Web tension control and register correction on wide-format and narrow-web presses.
- Food & Beverage Processing — Hygienic-area motion control where consistent throughput and rapid changeover are critical.
Technical Specifications
| Catalog Number | 2198-D032-ERS4 |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | Kinetix 5500 |
| Drive Type | Servo Drive (EtherNet/IP) |
| Continuous Output Current | 32 A |
| Communication Protocol | EtherNet/IP (integrated dual-port switch) |
| Feedback Support | Single-cable (HIPERFACE DSL), multi-turn absolute encoder |
| Safe Torque Off (STO) | SIL 2 / PLd Cat. 3 — IEC 62061 / ISO 13849-1 |
| DC Bus Voltage | Shared DC bus compatible |
| Mounting | Panel mount, DIN rail compatible |
| Operating Temperature | 0 °C to +50 °C (ambient) |
| Protection Rating | IP20 |
| Weight | Approx. 200 g (module only) |
| Firmware Compatibility | Studio 5000 Logix Designer v21+ |
Why Engineers Specify This Model
- Single-Cable Technology — The ERS4 feedback interface combines power and feedback in one cable, reducing wiring complexity and panel footprint by up to 40%.
- Integrated Safety (STO) — On-board SIL 2 Safe Torque Off eliminates external safety relays, simplifying machine safety architecture and reducing BOM cost.
- Seamless Studio 5000 Integration — Native Add-On Profiles (AOPs) enable drag-and-drop axis configuration within the Logix environment — no third-party configuration tools required.
- Shared DC Bus Architecture — Multiple drives share a common DC bus, enabling regenerative energy exchange between axes and reducing overall power consumption.
- Dual-Port EtherNet/IP Switch — Supports linear and ring topologies without external switches, lowering infrastructure cost and improving network resilience.
- High Bandwidth Servo Loop — Delivers fast current loop response for tight velocity and position regulation on high-inertia loads.
Complete System Bill of Materials
The 2198-D032-ERS4 is typically deployed as part of a complete Kinetix 5500 motion system. A representative BOM includes:
- 2198-D032-ERS4 — Servo Drive (this item)
- 2198-CAPMOD-1300 — Capacitor Module (shared DC bus energy storage)
- 2198-DBXX-F — Dynamic Brake Module (axis-specific braking)
- 2090-XXNPMF-16SXX — Single-cable motor power/feedback cable
- MPL / VPL / VPC Series — Compatible Allen-Bradley servo motors
- 1756-L8x ControlLogix / 5069-L3x CompactLogix — Host PLC
- 1783-ETAP — EtherNet/IP Tap (optional, for ring topology)
- 2198-H040-ERS4 — Shared DC Bus Power Supply (if not using individual AC input)
Contact Konmask for complete system design support and compatible component sourcing.
Compliance & Industry Standards
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed — UL 508C (Power Conversion Equipment)
- RoHS Compliant — Directive 2011/65/EU
- Functional Safety — IEC 62061 (SIL 2), ISO 13849-1 (PLd, Cat. 3)
- EtherNet/IP Conformance Tested — ODVA
- REACH Compliant
Quality Assurance & Sourcing
Konmask.com sources Allen-Bradley components exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Authenticity Verification — Holographic label inspection and serial number cross-reference against Rockwell Automation records.
- Visual & Mechanical Inspection — Connector integrity, housing condition, and firmware label check.
- Functional Power-On Test — Where applicable, units are bench-tested for basic drive initialization and fault-free power-up.
- Anti-Static Packaging — Shipped in ESD-safe bags with foam cushioning and moisture barrier.
- Documentation Package — Includes datasheet, declaration of conformity, and test record upon request.
How to Source This Part
- In Stock: Add to cart and check out directly — most orders ship within 1–2 business days.
- Bulk / Project Quantity: Contact support@konmask.com for volume pricing and lead-time commitment.
- Urgent / Emergency: Call or WhatsApp +0086 19859288691 for same-day quotation on critical downtime situations.
- System Integration Support: Our technical team can assist with drive sizing, cable selection, and PLC program templates.
- Export & Cross-Border: We ship globally with full commercial invoice, packing list, and HS code documentation for customs clearance.
Application-Specific FAQ
Q: Is the 2198-D032-ERS4 compatible with standard MPL servo motors?
A: Yes. The ERS4 feedback interface supports Allen-Bradley MPL, VPL, and VPC series motors with single-cable connectivity. Verify motor catalog suffix ends in -ERS4 or -MJ for full compatibility.
Q: Can this drive operate as a standalone axis without a shared DC bus?
A: Yes. The 2198-D032-ERS4 can be configured with its own AC input module (2198-H040-ERS4 or similar) for standalone operation, or integrated into a shared DC bus system for multi-axis applications.
Q: What Studio 5000 firmware version is required?
A: Minimum v21.0. Rockwell recommends using the latest available firmware for full feature support and security patches. Contact us if you need a specific firmware-matched unit.
Q: Does this drive support Safe Speed Monitoring (SSM) or Safe Stop 1 (SS1)?
A: The base 2198-D032-ERS4 includes STO (Safe Torque Off). For extended safety functions (SS1, SSM, SLS), the 2198-D032-ERS4-S1 safety option module is required.
Q: What is the typical lead time for out-of-stock units?
A: Standard lead time from Rockwell distribution is 4–12 weeks depending on global demand. Konmask maintains buffer stock for common Kinetix 5500 models — contact us for real-time availability.
Q: Can Konmask provide a test report or certificate of conformity?
A: Yes. Documentation packages including inspection records and CoC are available upon request for all units sourced through Konmask.
