Allen-Bradley 2711P-B15C22D9P PanelView Plus 7 HMI Terminal | Replacement, Equivalent & Selection Guide

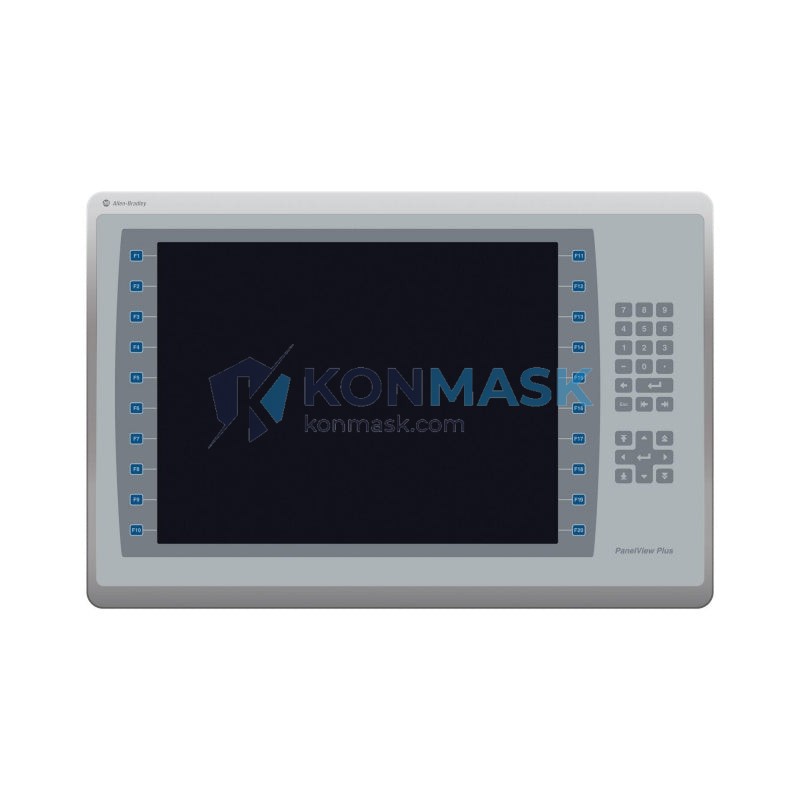

The Allen-Bradley 2711P-B15C22D9P is a 15-inch color touch-screen HMI terminal from Rockwell Automation’s PanelView Plus 7 Standard series. Designed for demanding industrial environments, it delivers high-resolution visualization, seamless EtherNet/IP connectivity, and deep integration with Allen-Bradley PLCs and Logix controllers. Whether you are sourcing an original unit, evaluating a compatible replacement, or selecting the right HMI for a new project, this guide covers everything you need.
Technical Specifications
| Part Number | 2711P-B15C22D9P |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | PanelView Plus 7 Standard |
| Display Size | 15 inch (diagonal) |
| Display Type | Color TFT LCD, Touch Screen |
| Resolution | 1024 × 768 (XGA) |
| Input Type | Touch (Resistive) |
| Communication | EtherNet/IP (dual-port), USB Host & Device |
| Operating System | Windows Embedded Standard 7 |
| Memory | 1 GB RAM / 4 GB Flash |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to 55 °C |
| Protection Rating | NEMA 4/4X, IP65 (front panel) |
| Certifications | UL, CE, cUL |
| Weight | Approx. 4.5 kg |
Compatible Replacement & Equivalent Models
If the 2711P-B15C22D9P is unavailable or over budget, the following models are commonly evaluated as replacements or equivalents. Always verify firmware, communication protocol, and mounting dimensions before substitution.
- 2711P-T15C22D9P — PanelView Plus 7 Standard, 15″, touch-only variant (same series, different keypad configuration)
- 2711P-B15C4D8 — Previous-generation PanelView Plus 6, 15″, compatible with FactoryTalk View ME
- 2711P-T15C4D8 — PanelView Plus 6, 15″, touch-only, widely available as a cost-effective alternative
- 2711R-T15T — PanelView 5510, 15″, newer platform with enhanced graphics (requires FactoryTalk View ME v10+)
- Siemens SIMATIC TP1500 Comfort — Third-party equivalent for multi-vendor environments; requires protocol gateway for EtherNet/IP
- Weintek MT8150XE — Cost-effective third-party HMI, 15″, supports EtherNet/IP driver for AB PLC connectivity
Note: Third-party replacements may require additional configuration. Contact our technical team for compatibility verification.
Why Choose the Original Model
- Native FactoryTalk View ME integration — zero-configuration tag browsing with Logix controllers
- Dual EtherNet/IP ports — supports Device Level Ring (DLR) topology for high-availability networks
- Rockwell Automation ecosystem — unified support, firmware updates, and lifecycle management via FactoryTalk AssetCentre
- NEMA 4X rated — suitable for washdown and corrosive environments
- Long product lifecycle — Rockwell Automation provides extended support and spare parts availability
Typical Applications
- Automotive assembly line HMI stations
- Food & beverage processing and packaging lines
- Water/wastewater treatment plant operator panels
- Oil & gas upstream and midstream control rooms
- Pharmaceutical batch process visualization
- Material handling and conveyor system control
- Building automation and HVAC management
System Compatibility
- Software: FactoryTalk View Studio ME (v8.0 and above recommended)
- Controllers: ControlLogix, CompactLogix, MicroLogix, SLC 500, PLC-5 (via EtherNet/IP or legacy drivers)
- Networks: EtherNet/IP, DeviceNet (via gateway), ControlNet (via gateway)
- SCADA: FactoryTalk View SE, FactoryTalk Historian, FactoryTalk AssetCentre
Selection Guide
Use the following criteria to confirm the 2711P-B15C22D9P is the right choice — or to identify a better-fit alternative:
- Screen size needed: 15″ is ideal for operator panels requiring detailed process graphics. Consider 10″ (2711P-B10) or 12″ (2711P-B12) for space-constrained enclosures.
- Input method: This model is touch + keypad (B-series). For touch-only, select the T-series (2711P-T15C22D9P).
- Communication: Dual EtherNet/IP is standard. If legacy DH+ or ControlNet is required, add a 1761-NET-AIC or 1784-PKTX gateway.
- Environment: NEMA 4X covers most industrial environments. For Class I Div 2 hazardous areas, consult Rockwell Automation for certified variants.
- Budget: For cost-sensitive projects, the PanelView Plus 6 (2711P-B15C4D8) offers similar functionality at a lower price point.
- New vs. replacement: For greenfield projects, consider the PanelView 5510 (2711R series) for a more modern platform.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit undergoes functional power-on testing and visual inspection before shipment
- Original packaging, manuals, and accessories included where available
- Traceability documentation available upon request (COC, test reports)
- Warranty: 90-day replacement warranty on all stocked units
How to Order
- Add the 2711P-B15C22D9P to your cart and proceed to checkout
- For bulk orders (5+ units), contact us for volume pricing: support@konmask.com
- Provide your project details (PLC model, FactoryTalk version, network topology) for pre-sales compatibility confirmation
- Lead time: In-stock units ship within 1–3 business days; special-order units 7–15 business days
- International shipping available — DDP (Delivered Duty Paid) terms available for select regions
Replacement & Compatibility FAQ
Q: Can I replace a 2711P-B15C22D9P with a PanelView Plus 6 (2711P-B15C4D8)?
A: Yes, in most cases. The application file (.MER) may need to be re-compiled in FactoryTalk View Studio ME targeting the PV+ 6 runtime. Tag databases are generally compatible.
Q: Is the 2711P-B15C22D9P compatible with CompactLogix 5380?
A: Yes. Use EtherNet/IP with FactoryTalk View ME v9.0 or later for full tag browsing support.
Q: Can a Siemens or Weintek HMI replace this unit?
A: Functionally possible with an EtherNet/IP driver, but the application must be rebuilt from scratch in the respective HMI software. Not recommended for direct drop-in replacement.
Q: What is the difference between the B-series and T-series PanelView Plus 7?
A: B-series (this model) includes both touch screen and function keys. T-series is touch-only. Both share the same display, processor, and communication hardware.
Q: Do you offer repair or refurbishment services?
A: Yes. Contact us with your unit’s serial number and fault description for a repair quote.
