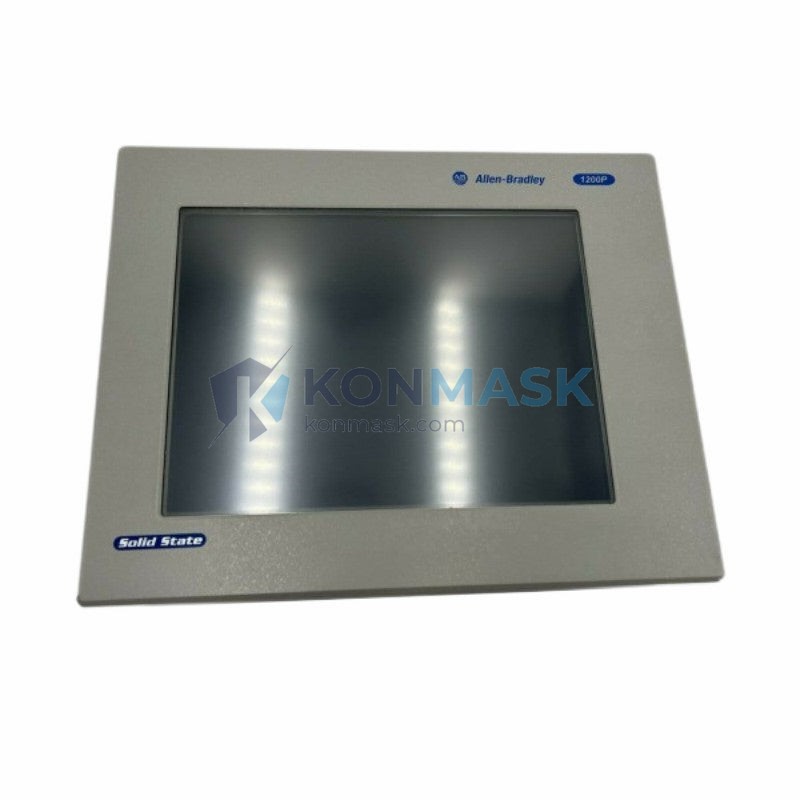

Allen-Bradley 6181F-15TSXP – 15″ XGA Integrated Display Computer | 1500P Platform
Engineering Background: The Allen-Bradley 6181F series represents Rockwell Automation’s purpose-built industrial panel PC platform, engineered to consolidate HMI visualization, supervisory control, and data acquisition into a single ruggedized enclosure. Designed for continuous 24/7 operation in demanding manufacturing and process environments, the 6181F eliminates the integration complexity of separate PC and display assemblies.
Product Positioning: The 6181F-15TSXP targets applications requiring a high-resolution 15″ XGA touchscreen interface with full Windows-based SCADA/HMI software compatibility. It is the preferred choice for engineers specifying integrated operator workstations in automotive, food & beverage, oil & gas, and discrete manufacturing lines where panel space, thermal management, and long-term parts availability are critical procurement criteria.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 6181F-15TSXP |
| Series / Platform | 1500P Integrated Display Computer |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 15″ XGA (1024 × 768) TFT LCD |
| Touchscreen | Resistive analog touchscreen |
| Processor | Intel Celeron M (ULV), 1.0 GHz |
| RAM | 512 MB DDR2 SDRAM |
| Storage | CompactFlash (CF) solid-state drive |
| Operating System | Windows XP Professional Embedded / Windows XP Pro |
| Communication Ports | 2× USB 2.0, 2× RS-232 Serial, 1× Parallel, 1× PS/2 Keyboard, 1× PS/2 Mouse |
| Ethernet | 2× 10/100 Base-T RJ-45 (isolated) |
| Power Supply Input | 24 VDC (18–32 VDC range) |
| Power Consumption | Approx. 65 W typical |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Rating | IEC 68-2-6: 2G, 10–500 Hz |
| Shock Rating | IEC 68-2-27: 15G, 11 ms |
| Enclosure Rating | NEMA 4/4X, IP65 (front panel) |
| Agency Certifications | UL, CE, cUL |
| Panel Cutout | Refer to Rockwell Pub. 6181F-IN001 |
| Unit Weight | Approx. 7.4 kg (16.3 lb) |
| Country of Origin | USA / Mexico (Rockwell Automation) |
Proven Application Environments
- Automotive Assembly Lines – Operator interface for robotic welding cells and conveyor PLC systems; NEMA 4 rating withstands wash-down and coolant splash.
- Food & Beverage Processing – IP65 front panel supports hygienic cleaning protocols; stainless-compatible panel mounting.
- Oil & Gas Upstream/Midstream – Wide operating temperature range and vibration tolerance suit compressor station and wellhead SCADA panels.
- Pharmaceutical Manufacturing – Supports 21 CFR Part 11-compliant HMI software (FactoryTalk View SE) for batch record integrity.
- Water & Wastewater Treatment – Dual isolated Ethernet enables simultaneous connection to plant LAN and process control network without cross-contamination.
- Discrete Manufacturing / MES Integration – USB and serial ports support barcode scanners, label printers, and legacy field devices alongside EtherNet/IP supervisory traffic.
Engineering Advantages
- Fanless Thermal Design – Passive cooling via aluminum heat-spreader chassis eliminates rotating parts, extending MTBF and reducing maintenance intervals in sealed enclosures.
- Solid-State CompactFlash Storage – No spinning disk; immune to vibration-induced read/write errors common in traditional HDD-based panel PCs.
- Dual Isolated Ethernet – Enables network segmentation between plant floor EtherNet/IP and corporate IT networks from a single device, reducing switch infrastructure cost.
- 24 VDC Wide-Range Input – Compatible with standard 24 VDC panel power supplies; eliminates AC-DC conversion stage and associated failure points.
- NEMA 4/4X & IP65 Front Panel – Gasket-sealed bezel rated for direct liquid wash-down; suitable for food-grade and chemical environments without additional enclosure.
- Rockwell Software Ecosystem Compatibility – Pre-validated for FactoryTalk View ME/SE, RSLinx Classic, and Studio 5000 remote I/O visualization without driver conflicts.
- Long-Term Parts Availability – As a catalog-numbered Rockwell product, replacement units and spare parts remain available through authorized distribution channels for extended service life.
System Architecture & Signal Flow
The 6181F-15TSXP operates as a standalone supervisory node within a Rockwell Automation control architecture:
- EtherNet/IP Layer: Dual RJ-45 ports connect to ControlLogix / CompactLogix PLCs via RSLinx Classic OPC-DA or direct FactoryTalk Live Data tags. One port is typically assigned to the process control VLAN; the second to plant IT or historian (e.g., FactoryTalk Historian SE).
- Serial / Legacy Layer: RS-232 COM ports support DH-485, DF1, or Modbus RTU bridging via 1761-NET-AIC or equivalent for legacy SLC 500 / MicroLogix integration.
- HMI Software Layer: FactoryTalk View ME (machine-level) or SE (site-level) runs natively on the embedded Windows OS. Tag databases are synchronized with the PLC program via RSLinx gateway services.
- Operator Interaction Layer: Resistive touchscreen input is processed by the onboard touch controller; USB ports support external keyboard/mouse for engineering workstation mode during commissioning.
- Power Architecture: Single 24 VDC feed; internal DC-DC converter generates regulated 5 V, 12 V rails for display backlight, processor, and I/O subsystems.
Sourcing & Quality Verification
- Source Traceability: Units offered by Konmask.com are sourced from authorized industrial distributors, decommissioned OEM production lines, and verified surplus channels with documented chain of custody.
- Pre-Shipment Inspection: Each unit undergoes visual inspection (connector integrity, bezel condition, label legibility), power-on functional test (POST completion, display backlight, touchscreen calibration), and firmware/OS version verification.
- Authenticity Markers: Genuine Allen-Bradley units carry Rockwell Automation holographic labels, catalog number laser-etched on the rear chassis, and CE/UL agency marks on the rating plate. Konmask verifies all three prior to listing.
- Condition Grading: Units are graded as New (factory-sealed), Refurbished (tested, cleaned, recertified), or Surplus (tested, cosmetic wear acceptable). Grade is stated explicitly in the product listing and order confirmation.
- Warranty: 12-month functional warranty against defects in materials and workmanship. Warranty claims processed within 5 business days of receipt.
Procurement Process
- Step 1 – Confirm Compatibility: Verify catalog number suffix (15TSXP = 15″, Touch, XP OS). Cross-reference with your existing 6181F series installation or Rockwell Pub. 6181F-UM001 user manual.
- Step 2 – Request Quote: Contact Konmask via support@konmask.com or +0086 19859288691 for volume pricing, lead time confirmation, and export documentation (CO, packing list, commercial invoice).
- Step 3 – Place Order: Orders accepted via website checkout, bank wire (T/T), or corporate PO for qualified accounts. Minimum order: 1 unit.
- Step 4 – Shipping & Export: Ships from China warehouse via DHL Express, FedEx International Priority, or sea freight for pallet quantities. Export-controlled items (EAR99 classification verified) — buyer responsible for import compliance.
- Step 5 – Incoming Inspection: Konmask recommends buyer perform incoming inspection within 5 business days of receipt and report any discrepancies before installation.
Technical FAQ
Q: Is the 6181F-15TSXP compatible with Windows 10 or Windows 11?
A: No. The 6181F-15TSXP ships with Windows XP Professional Embedded. Rockwell Automation does not officially support Windows 10/11 on this hardware generation. For Windows 10 compatibility, consider the 6181F-15TSXPH (Windows 7) or the newer 6181X series.
Q: Can this unit run FactoryTalk View SE v10 or later?
A: FactoryTalk View SE v8.x is the last version certified for Windows XP. For SE v10+, upgrade to a 6181X or VersaView 5400 platform running Windows 10 IoT.
Q: What is the CompactFlash card capacity and can it be upgraded?
A: Standard CF capacity varies by production date (typically 4 GB or 8 GB). CF cards are field-replaceable; Konmask can supply pre-imaged replacement CF cards with OS and FactoryTalk runtime upon request.
Q: Is the touchscreen resistive or capacitive?
A: Resistive analog. Operable with gloved hands, stylus, or bare finger. Not multi-touch capable.
Q: What is the display backlight lifetime?
A: Rated at approximately 50,000 hours (CCFL backlight). Backlight replacement kits are available as a service item.
Q: Does Konmask provide a test report or FAT documentation?
A: Yes. Factory Acceptance Test (FAT) reports and power-on test logs are available upon request for orders of 3+ units. Contact support@konmask.com.
