AB 80190-480-01-R Drive Control Board | Replacement, Equivalent & Selection Guide

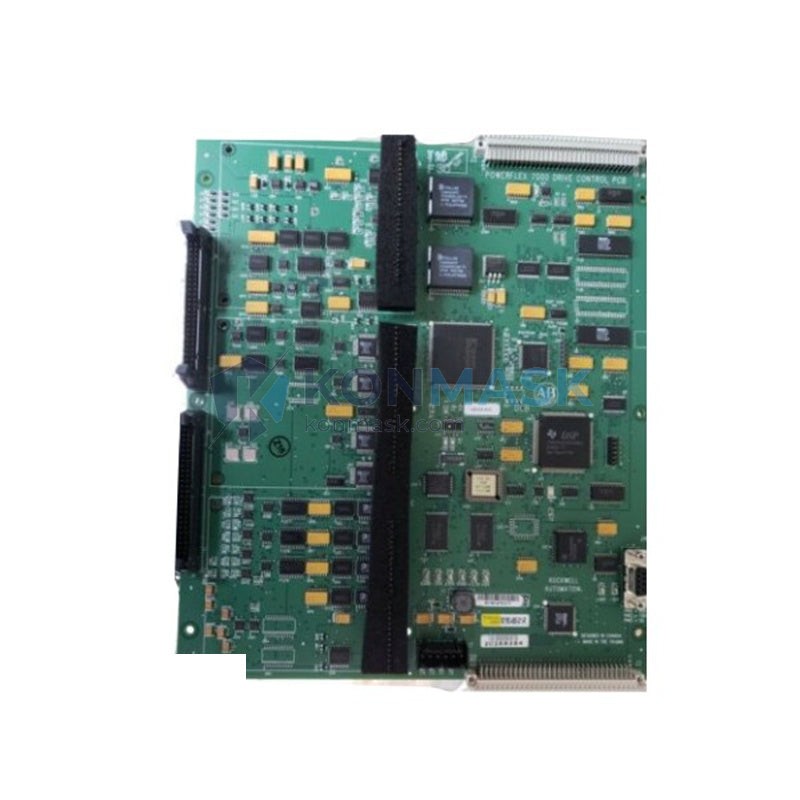

The Allen-Bradley (AB) 80190-480-01-R is an OEM Drive Control Board designed for use in AB variable frequency drive (VFD) systems. This page provides a comprehensive selection guide, compatible replacement options, equivalent models, and sourcing information to help engineers and procurement teams make informed decisions.
Technical Specifications
- Part Number: 80190-480-01-R
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Component Type: Drive Control Board (PCB Assembly)
- Function: Main control logic board for AB drive units; manages signal processing, feedback loops, and drive output regulation
- Compatible Drive Series: Refer to OEM documentation for exact drive frame compatibility
- Form Factor: PCB board assembly
- Weight: Approx. 100 g
- Condition Available: New OEM, Refurbished, Tested Surplus
Compatible Replacement & Equivalent Models
When the original 80190-480-01-R is unavailable or discontinued, the following replacement strategies apply. Always verify compatibility with your specific drive frame and firmware revision before installation.
- Direct OEM Replacement: 80190-480-01-R (same part, new or refurbished stock)
- Revised OEM Successor: Check Rockwell Automation’s product lifecycle page for any superseding part numbers (e.g., -02-R or -03-R revision suffixes)
- Cross-Brand Equivalent: Third-party aftermarket control boards rated for the same drive frame — confirm voltage class, communication protocol, and connector pinout before substitution
- Refurbished / Tested Surplus: Factory-tested boards from certified repair centers; cost-effective for legacy system maintenance
Note: Konmask.com sources both OEM and quality-verified surplus units. Contact us for current stock and revision availability.
Why Choose the Original Model
- OEM Firmware Compatibility: Guaranteed compatibility with AB drive firmware and parameter sets
- Plug-and-Play Replacement: No re-engineering required; direct board swap in supported drive frames
- Rockwell Ecosystem Integration: Seamless integration with Studio 5000, RSLogix, and DriveExecutive software
- Warranty & Support: Eligible for Rockwell Automation service contracts and technical support
- Long-Term Reliability: Designed and validated to OEM thermal, vibration, and EMC standards
Typical Applications
- Industrial motor speed and torque control in manufacturing lines
- Conveyor, pump, fan, and compressor drive systems
- Replacement maintenance for existing AB VFD installations
- Spare parts inventory for critical production equipment
- OEM machine builders using Allen-Bradley drive platforms
System Compatibility
- Drive Platform: Allen-Bradley / Rockwell Automation VFD series (confirm exact frame with OEM documentation)
- Communication: Compatible with drive-native communication interfaces (DeviceNet, EtherNet/IP, or analog I/O depending on drive model)
- Software Tools: RSLogix 5000 / Studio 5000, DriveExecutive, Connected Components Workbench
- Power Class: Verify input voltage class (240V / 480V / 600V) matches your drive specification
Selection Guide
Use the following checklist to confirm the correct control board for your application:
- ✅ Confirm drive model number and frame size from the drive nameplate
- ✅ Identify firmware revision currently installed in the drive
- ✅ Verify connector type and pinout match the 80190-480-01-R board
- ✅ Check voltage class compatibility (480V class for this part number)
- ✅ Determine whether OEM new, refurbished, or aftermarket equivalent is acceptable for your application criticality
- ✅ Confirm lead time requirements — contact Konmask.com for in-stock availability
Quality Assurance & Sourcing
- Source: Authorized distributors, certified surplus dealers, and OEM repair centers
- Testing: All surplus units offered by Konmask.com are functionally tested prior to shipment
- Packaging: Anti-static ESD packaging; shipped with protective foam inserts
- Traceability: Serial number and revision documentation provided upon request
- Warranty: 90-day warranty on tested surplus units; OEM warranty on new stock
How to Order
- Confirm your part number: 80190-480-01-R
- Specify required condition: New OEM / Refurbished / Tested Surplus
- Contact Konmask.com via email or phone with your quantity and delivery requirements
- Receive quotation with lead time and shipping options
- Place order — secure payment and tracked international shipping available
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Is the 80190-480-01-R still in production?
A: This part may be in limited production or available as surplus. Contact us to confirm current OEM availability and lead times.
Q: Can I use a revised suffix (e.g., -02-R) as a direct replacement?
A: Revision changes may involve hardware or firmware updates. Always verify with Rockwell Automation’s compatibility matrix or contact our technical team before substituting.
Q: Do you offer repair services for the 80190-480-01-R?
A: Yes. We can facilitate board-level repair through certified repair partners. Contact us for a repair quote.
Q: What is the lead time for a new OEM unit?
A: Lead times vary. Surplus stock ships within 1–3 business days. New OEM orders may require 4–12 weeks depending on Rockwell Automation’s production schedule.
Q: Is international shipping available?
A: Yes. Konmask.com ships worldwide with full export documentation support.
