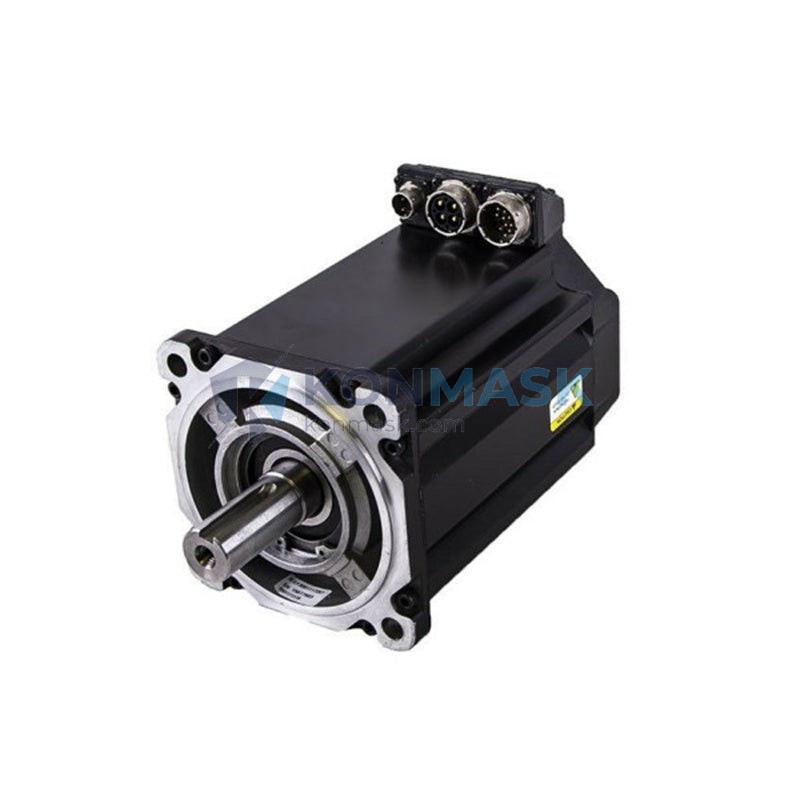

Allen-Bradley MPL-B230P-EJ44AA – Low-Inertia Rotary Servo Motor | Kinetix Motion Platform
Engineering Background
The MPL-B230P-EJ44AA is part of Rockwell Automation’s Allen-Bradley MPL (Medium Power Low-inertia) servo motor series, engineered specifically for integration with the Kinetix servo drive platform. Designed to meet the demanding cycle requirements of high-throughput industrial automation, this motor delivers precise torque and velocity control across a wide dynamic range — making it the preferred choice for OEM machine builders and system integrators operating in packaging, material handling, and assembly applications.
Product Positioning
As a direct-mount, feedback-ready rotary servo motor, the MPL-B230P-EJ44AA eliminates the need for external encoder mounting hardware and simplifies commissioning within Studio 5000 / Logix Designer environments. Its compact frame and high power density make it suitable for space-constrained machine designs without sacrificing dynamic performance.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | MPL — Medium Power Low-Inertia |
| Part Number | MPL-B230P-EJ44AA |
| Voltage Class | 230V AC |
| Continuous Stall Torque | ~0.48 N·m (frame-dependent; verify datasheet) |
| Peak Torque | ~1.44 N·m |
| Rated Speed | 5,000 RPM |
| Feedback Device | High-resolution encoder (multi-turn capable) |
| Connector Style | EJ — SpeedTec DIN (power + feedback integrated) |
| Brake Option | No brake (P = no brake) |
| Shaft Type | Keyed shaft |
| IP Rating | IP65 (shaft seal standard) |
| Insulation Class | Class F |
| Weight | 2.54 kg |
| Compatible Drive Families | Kinetix 5500, Kinetix 5700, Kinetix 6500 |
| Communication Protocol | EtherNet/IP (via Kinetix drive) |
| Ambient Temperature | 0°C to +40°C (operating) |
| Mounting | Flange mount (IEC standard) |
Proven Application Environments
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and cartoning lines requiring sub-millisecond torque response.
- Material Handling: Conveyor indexing, robotic arm joints, and gantry positioning systems.
- Assembly Automation: Precision screw-driving, press-fit, and torque-controlled fastening stations.
- Printing & Converting: Web tension control and register mark tracking on continuous-feed lines.
- Semiconductor & Electronics: Wafer handling and PCB routing where micron-level repeatability is required.
Engineering Advantages
- Low Rotor Inertia: Enables rapid acceleration/deceleration cycles, reducing cycle time and improving throughput.
- SpeedTec DIN Connector (EJ): Single-cable power and feedback connection reduces wiring complexity and installation time by up to 40% versus legacy multi-cable designs.
- Seamless Kinetix Integration: Auto-identification within Studio 5000 Logix Designer — motor parameters load automatically upon drive power-up, eliminating manual tuning entry.
- IP65 Sealing: Suitable for washdown-adjacent environments and light coolant exposure without additional enclosure.
- High-Resolution Feedback: Supports advanced motion profiles including electronic camming, gearing, and coordinated multi-axis interpolation.
System Architecture & Signal Flow
The MPL-B230P-EJ44AA operates within a closed-loop servo architecture:
- Controller Layer: CompactLogix / ControlLogix PLC executes motion instructions via Studio 5000.
- Drive Layer: Kinetix 5500/5700 servo drive receives EtherNet/IP motion commands, regulates DC bus voltage, and outputs PWM power to the motor.
- Motor Layer: MPL-B230P-EJ44AA converts electrical energy to mechanical torque; encoder feedback is returned to the drive at high update rates (>1 kHz).
- Feedback Loop: Position, velocity, and torque errors are corrected in real time, achieving positioning repeatability typically within ±1 encoder count.
Sourcing & Quality Verification
- OEM Traceability: All units sourced through verified industrial distribution channels with full lot traceability.
- Inspection Protocol: Each unit undergoes visual inspection, connector integrity check, and encoder signal verification prior to shipment.
- Authenticity Assurance: Rockwell Automation product labels, date codes, and holographic seals are verified against known-good references.
- Warranty: 12-month replacement warranty against manufacturing defects from date of invoice.
- Condition: New (factory-sealed) and certified refurbished options available — specify at time of inquiry.
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quotation: Formal quotation issued within 1 business day, including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net-terms accounts.
- Inspection & Dispatch: Units inspected, photographed, and dispatched with packing list and certificate of conformance.
- Delivery & Support: Tracking provided upon shipment; post-delivery technical support available via email.
Technical FAQ
Q: Is the MPL-B230P-EJ44AA compatible with Kinetix 5700?
A: Yes. The MPL series is fully compatible with Kinetix 5500, 5700, and 6500 drive families. Motor parameters auto-load via the drive’s motor database.
Q: What does the “EJ” connector designation mean?
A: “EJ” denotes the SpeedTec DIN single-cable connector, which combines power and feedback in one connector body, simplifying installation and reducing cable management overhead.
Q: Can this motor be used without a Kinetix drive?
A: The MPL series is optimized for Kinetix drives. Use with third-party drives is technically possible but requires custom feedback interface configuration and is not recommended for production environments.
Q: What is the difference between “B” and “A” voltage class in the MPL series?
A: “B” denotes 230V AC input compatibility; “A” denotes 460V. Ensure your Kinetix drive input voltage matches the motor’s voltage class.
Q: Do you provide a certificate of conformance?
A: Yes. A certificate of conformance is included with every shipment at no additional charge.
