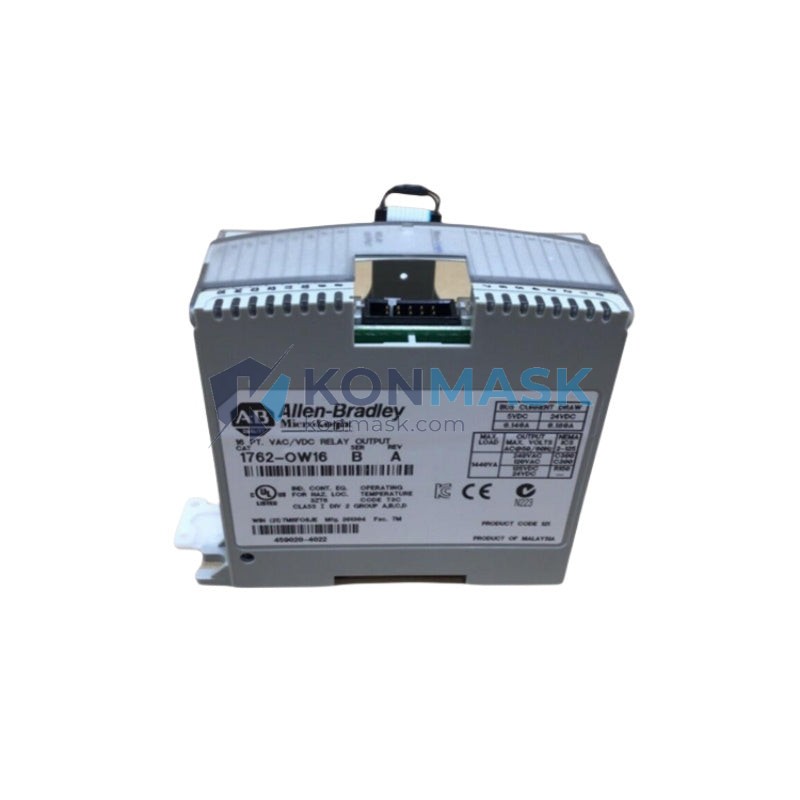

Allen-Bradley 1762-OW16 16-Point Relay Output Expansion Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1762-OW16 is a 16-point relay output expansion module designed for the MicroLogix 1100 and 1400 programmable controller platforms. It provides isolated relay contacts suitable for controlling motors, solenoids, and other AC/DC loads in industrial automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: 1762-OW16
- Catalog Number: AB1762-OW16
- Output Type: Relay (Form A, SPST-NO)
- Number of Outputs: 16 points
- Output Voltage Range: 5–265 V AC / 5–125 V DC
- Maximum Load Current: 2 A per point (resistive); 15 A per common
- Minimum Load Current: 10 mA
- Electrical Isolation: 1500 V AC (field side to logic side)
- Response Time (OFF→ON): ≤ 10 ms
- Response Time (ON→OFF): ≤ 10 ms
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5–95% (non-condensing)
- Power Consumption: 75 mA @ 5 V DC (from backplane)
- Dimensions (H × W × D): 90 × 40 × 87 mm (approx.)
- Weight: ~100 g
- Certifications: UL, CE, CSA
- Compatible Bus: MicroLogix 1762 I/O bus
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 1762-OW16. Always verify electrical ratings, bus compatibility, and firmware requirements before substitution.
- 1762-OW8 — Allen-Bradley 8-point relay output; half the I/O count, same bus; use when fewer outputs are needed
- 1762-OB16 — Allen-Bradley 16-point transistor (NPN) output; faster switching, DC loads only; not a drop-in relay replacement
- 1762-OB8 — Allen-Bradley 8-point transistor output; DC loads, compact footprint
- 1762-OA8 — Allen-Bradley 8-point triac (AC) output; suitable for AC-only loads without relay wear
- 1769-OW16 — CompactLogix platform relay output; functionally similar but requires CompactLogix controller — not bus-compatible with MicroLogix 1762
- Third-party equivalents — Some OEM-compatible modules exist; confirm I/O bus pinout, backplane current draw, and RSLogix 500 device profile compatibility before use
Why Choose the Original 1762-OW16
- Guaranteed bus compatibility — Native 1762 I/O bus; plug-and-play with MicroLogix 1100/1400 without additional configuration
- RSLogix 500 / Studio 5000 Logix Designer support — Full device profile, I/O tree integration, and online diagnostics
- Proven relay longevity — Rated mechanical life ensures reliable operation in high-cycle applications
- Rockwell Automation warranty & support — Access to firmware updates, TechConnect support, and global spare parts network
- Regulatory compliance — UL 508, CE, and CSA certifications for global machine builder requirements
Typical Applications
- Motor starter and contactor control in conveyor and packaging lines
- Solenoid valve switching in pneumatic and hydraulic systems
- Pilot light and alarm annunciator control panels
- HVAC equipment sequencing and building automation
- Pump and fan control in water treatment facilities
- Machine tool auxiliary output control
- Food & beverage processing equipment with mixed AC/DC loads
System Compatibility
- Compatible Controllers: MicroLogix 1100 (1763-L16xxx), MicroLogix 1400 (1766-L32xxx)
- Programming Software: RSLogix 500 v7.0+, RSLogix Micro
- Communication: Via controller (DH-485, Ethernet/IP on 1100/1400)
- Max Modules per System: Up to 7 expansion modules on MicroLogix 1100; up to 7 on MicroLogix 1400
- Bus Current Budget: Verify total backplane current does not exceed controller specification (typically 800 mA @ 5 V DC)
- Not Compatible With: MicroLogix 1000, 1200, SLC 500, CompactLogix, ControlLogix platforms
Selection Guide
Use the following criteria to confirm the 1762-OW16 is the right module for your application:
- Load type: Relay outputs support both AC and DC loads — ideal for mixed-voltage panels
- Output count: 16 points covers most mid-size control panels; consider 1762-OW8 for smaller I/O budgets
- Switching frequency: Relay contacts are suited for low-to-medium cycle rates (<1 Hz continuous); for high-speed switching, consider transistor output modules (1762-OB16)
- Load current: Confirm each output load does not exceed 2 A; derate for inductive loads and high ambient temperatures
- Isolation requirement: 1500 V AC isolation meets most industrial safety standards; verify against your panel design
- Backplane budget: 1762-OW16 draws 75 mA @ 5 V DC — calculate total system current before finalizing module count
Quality Assurance & Sourcing
- Authenticity: All units sourced through verified industrial distribution channels; original Rockwell Automation packaging where available
- Inspection: Each module undergoes visual inspection and functional verification prior to shipment
- Condition: New, surplus-new, and refurbished grades available — specify your requirement at inquiry
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume orders and expedited requirements
- Documentation: Datasheet, wiring diagram, and installation manual available upon request
- Export Compliance: ECCN classification and export documentation provided for international orders
How to Order
- Step 1: Confirm part number: 1762-OW16 (Allen-Bradley / Rockwell Automation)
- Step 2: Specify quantity and required condition (new / surplus-new / refurbished)
- Step 3: Submit your inquiry via the product page or contact us directly
- Step 4: Receive quotation with lead time, shipping options, and payment terms within 24 hours
- Step 5: Confirm order — we handle packaging, export documentation, and logistics
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use the 1762-OW16 with a MicroLogix 1200?
A: No. The 1762 I/O bus is only compatible with MicroLogix 1100 and 1400 controllers. MicroLogix 1200 uses the 1762 bus but is end-of-life — verify controller firmware compatibility before use.
Q: Is the 1762-OW16 a direct replacement for the 1762-OW8?
A: Functionally yes, but the OW16 provides 16 outputs vs. 8. The wiring terminals and I/O addressing will differ — update your RSLogix 500 program accordingly.
Q: Can I mix 1762-OW16 with other 1762 I/O modules in the same system?
A: Yes. The 1762 I/O bus supports mixing of input and output modules up to the maximum module count and backplane current budget.
Q: What is the relay contact life expectancy?
A: Rockwell Automation specifies mechanical life at rated load — refer to the official 1762-OW16 installation instructions (publication 1762-IN009) for detailed relay life data.
Q: Are third-party replacement modules safe to use?
A: Third-party modules may not carry full RSLogix 500 device profile support or Rockwell warranty. Konmask recommends original Allen-Bradley parts for critical applications. Contact us to discuss options.
