ABB 1KHL015107R1 P4LR Pulse Amplifier Module | Replacement, Equivalent & Selection Guide

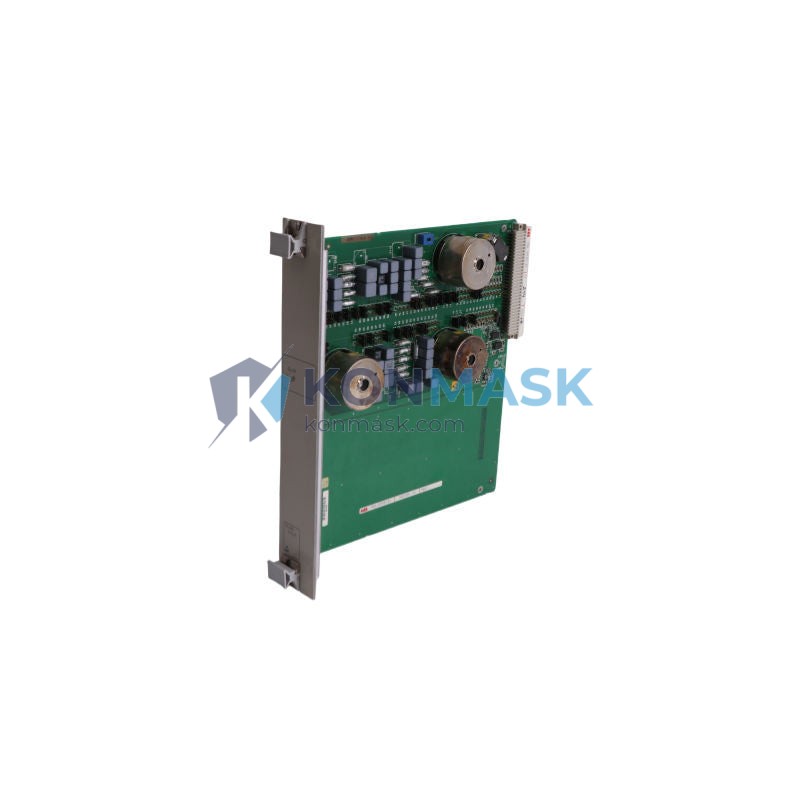

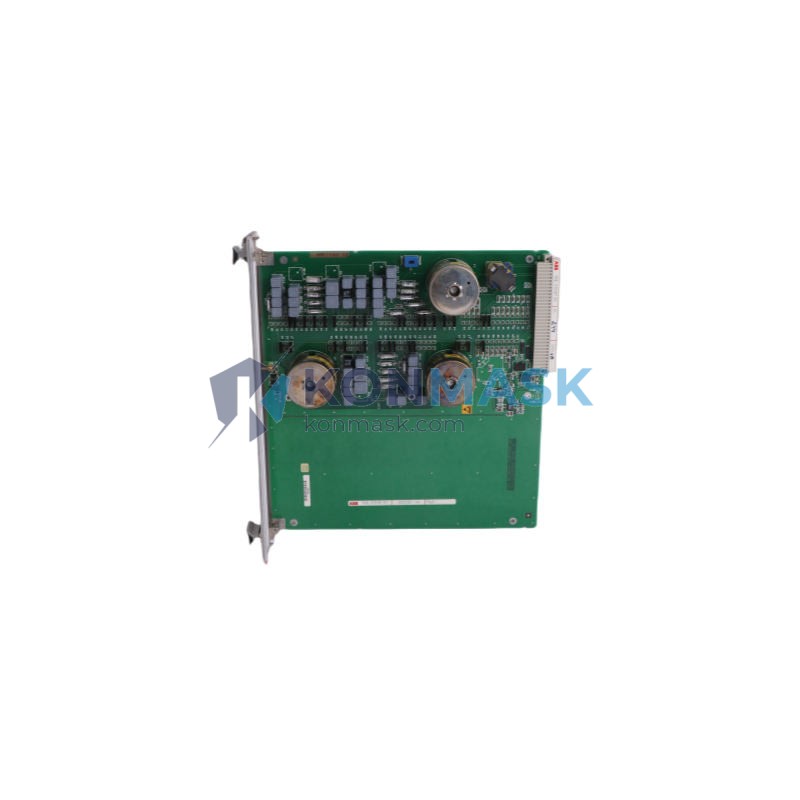

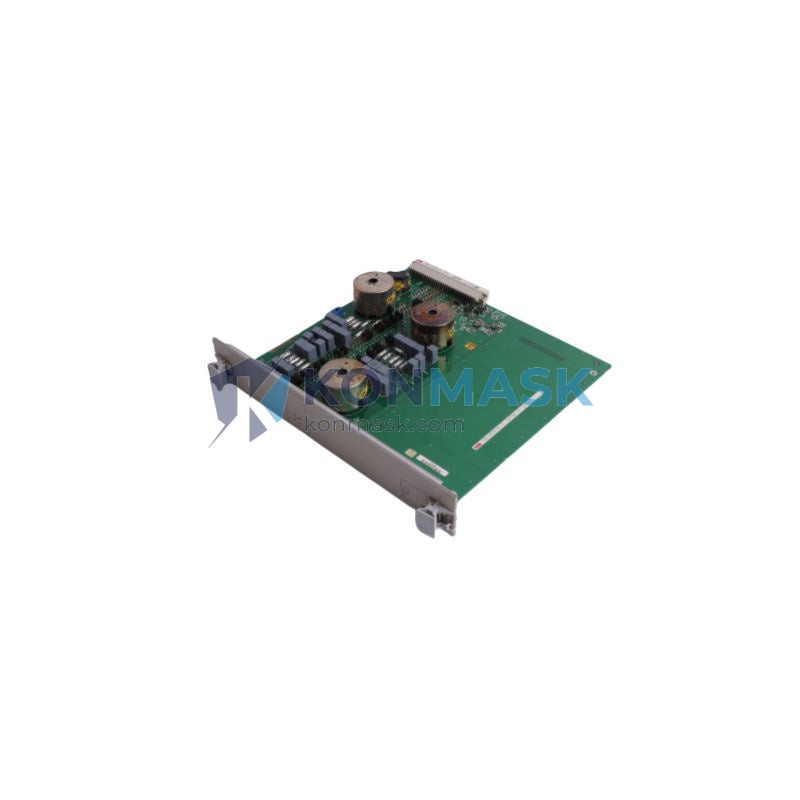

The ABB 1KHL015107R1 P4LR is a Pulse Amplifier (P4LR) module used in ABB drive and automation systems. This page provides full technical specifications, verified compatible replacements, equivalent alternatives, and a practical selection guide to help industrial buyers make confident sourcing decisions.
Technical Specifications
| Part Number | 1KHL015107R1 |
| Series / Type Code | P4LR |
| Function | Pulse Amplifier Module |
| Manufacturer | ABB |
| Weight | 660 g (approx.) |
| Condition | New / Refurbished / Tested (specify on order) |
| Compliance | CE, RoHS |
Note: Contact us to confirm the latest datasheet and firmware revision before ordering.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the ABB 1KHL015107R1 P4LR. Always verify electrical and mechanical compatibility with your system before substitution.
| Part Number | Brand | Type | Compatibility Notes |
|---|---|---|---|
| 1KHL015107R1 | ABB | OEM Original | Direct drop-in replacement |
| P4LR (variant) | ABB | Series Equivalent | Confirm revision suffix |
| Contact us | Multi-brand | Functional Equivalent | Evaluated case-by-case |
Why Choose the Original Model
- Guaranteed compatibility with ABB drive and control systems using the P4LR interface
- Factory-calibrated pulse amplification parameters — no field tuning required
- Full ABB warranty support when sourced through authorized channels
- Stable long-term supply via Konmask’s verified supplier network
Typical Applications
- ABB ACS / ACS800 / ACS880 series variable frequency drives (VFDs)
- ABB DCS800 DC drive systems
- Industrial motor control and encoder feedback loops
- Automation lines requiring precise pulse signal conditioning
- Process control panels in power, chemical, and manufacturing plants
System Compatibility
The 1KHL015107R1 P4LR module is designed for integration within ABB drive control boards that utilize the P4LR pulse amplifier slot. Confirm the following before ordering:
- Host drive model and firmware version
- Slot/board position (P4LR designation)
- Input encoder signal type (HTL / TTL / SinCos)
- Supply voltage rail on the host board
Selection Guide
Use this guide to select the correct module for your application:
| Requirement | Recommended Action |
|---|---|
| Direct OEM replacement | Order ABB 1KHL015107R1 P4LR (new or tested) |
| Budget-sensitive retrofit | Request refurbished / equivalent options via inquiry |
| Uncertain compatibility | Share your drive model & board photo — we’ll verify |
| Bulk / project quantity | Contact for volume pricing and lead time |
Quality Assurance & Sourcing
- All modules are inspected and function-tested before dispatch
- Sourced from ABB-authorized distributors and verified secondary market suppliers
- Traceability documentation available on request
- Packaging: anti-static bag + foam-lined carton
How to Order
- Add to cart directly, or contact us with your PO / inquiry
- Specify required condition: New, Refurbished, or Tested Used
- Provide your drive model number for compatibility confirmation
- Receive quotation with lead time within 1 business day
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a refurbished 1KHL015107R1 P4LR in a production environment?
A: Yes, provided it has been fully tested and certified. We supply test reports on request.
Q: Is there a newer revision of this module?
A: ABB may release updated revisions. Contact us with your system details and we’ll confirm the correct revision.
Q: What is the lead time for a new unit?
A: Typically 3–10 business days depending on stock. Expedited options available.
Q: Do you ship internationally?
A: Yes. We ship worldwide with DHL, FedEx, and UPS. Export documentation provided.
