WOODWARD EASYGEN-2500-5 Generator Set Controller | Replacement, Equivalent & Selection Guide

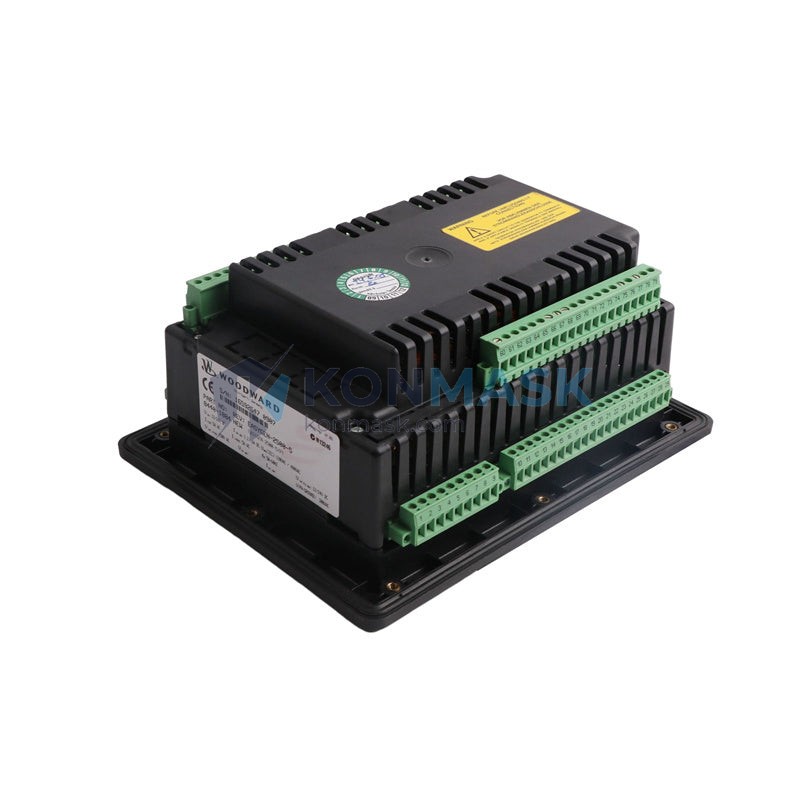

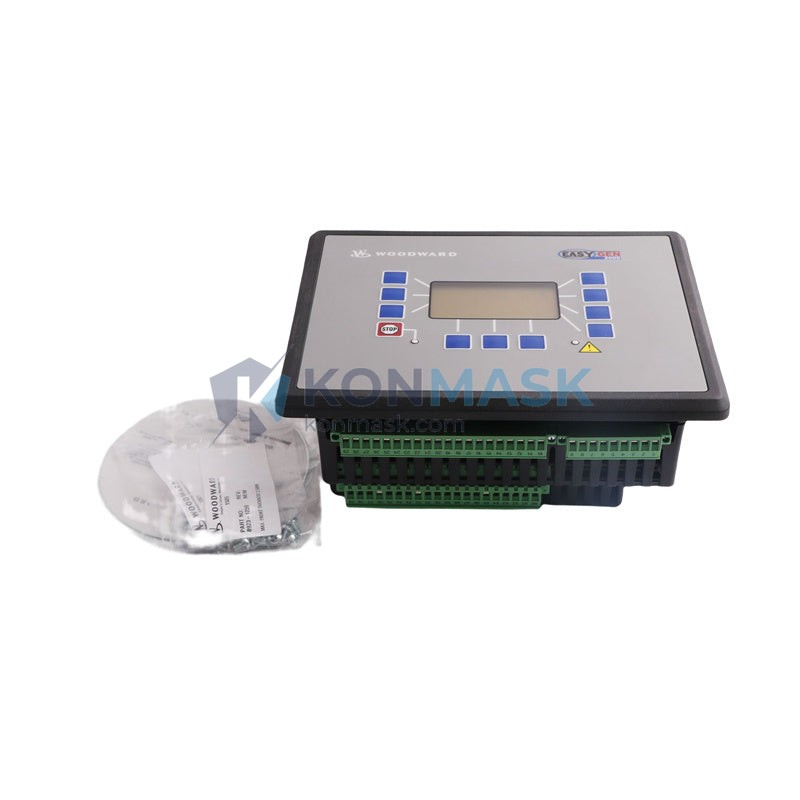

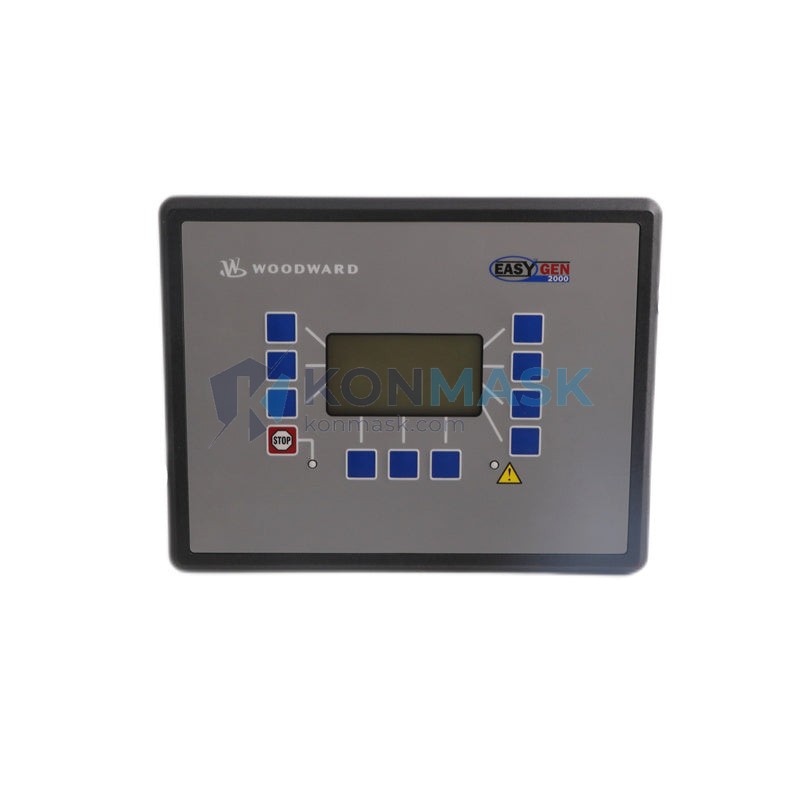

The WOODWARD EASYGEN-2500-5 is a high-performance genset controller designed for single and multiple generator set applications. It belongs to the EasyGen-2500 series — WOODWARD’s advanced platform for automatic mains failure (AMF), load sharing, and synchronization control in standby and prime power systems.
Selection Background
Buyers searching for an EASYGEN-2500-5 replacement or EASYGEN-2500-5 equivalent typically face one of three scenarios: an end-of-life unit requiring a direct substitute, a system upgrade requiring a functionally compatible controller, or a cross-brand migration from competing platforms. This guide covers all three paths and helps you confirm compatibility before ordering. Whether you need a drop-in replacement, a functional equivalent, or a cross-brand substitute, Konmask can source and verify the right solution for your application.
Technical Specifications
| Part Number | EASYGEN-2500-5 |
| Manufacturer | WOODWARD |
| Series | EasyGen-2500 |
| Function | Genset Controller — AMF, Load Sharing, Synchronization |
| Application | Single & Multiple Generator Set Control |
| Communication | CAN, Modbus RTU/TCP, J1939 |
| Display | Graphical LCD with keypad |
| Protection Functions | Over/under voltage, over/under frequency, overcurrent, reverse power, earth fault |
| Synchronization | Automatic synchronization with mains and bus |
| Load Sharing | Active and reactive load sharing (isochronous) |
| Power Supply | 8–35 VDC |
| Operating Temperature | -40°C to +70°C |
| Mounting | Panel mount (DIN rail optional) |
| Weight | 1,240 g |
| Certifications | CE, UL, cUL |
⚠️ Key parameters affecting replacement decisions: communication protocol (CAN/J1939), I/O count, synchronization capability, and firmware version compatibility.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These units share identical form factor, connector pinout, and firmware compatibility:
- WOODWARD EASYGEN-2500-5 (new production) — Exact OEM replacement; confirm firmware revision matches existing system configuration.
- WOODWARD EASYGEN-2500-5B — Revised hardware revision; functionally identical, minor firmware update may be required.
2. Functional Equivalents (Same Series)
Same platform, different feature set — may require parameter reconfiguration:
- WOODWARD EASYGEN-2500 — Base model without certain advanced I/O; verify I/O count matches your panel wiring.
- WOODWARD EASYGEN-2500-7 — Extended I/O variant; backward compatible with -5 wiring in most configurations.
- WOODWARD EASYGEN-3500 — Next-generation platform; enhanced features, requires full parameter migration and possible wiring changes.
3. Cross-Brand Alternatives
Functionally comparable controllers from other manufacturers — require engineering review before substitution:
- ComAp InteliGen 200 — Comparable AMF/load sharing controller; different communication protocol and wiring standard.
- Deif AGC-4 — Advanced genset controller with similar synchronization features; requires full I/O remapping.
- Basler BE1-GPS100 — Generator protection system; partial functional overlap, not a direct substitute for full AMF control.
⚠️ Cross-brand substitution must be validated by a qualified controls engineer. Contact Konmask for a compatibility assessment before ordering.
Why Choose the Original EASYGEN-2500-5
- Precision Control: Factory-calibrated synchronization and load sharing algorithms ensure ±0.1 Hz frequency accuracy and stable parallel operation.
- OEM Certification: CE, UL, and cUL certified — meets international safety and EMC standards required for critical power installations.
- Seamless Compatibility: Plug-and-play replacement within the EasyGen-2500 series; no wiring changes required for same-revision units.
- WOODWARD Technical Support: Full access to WOODWARD’s global service network, firmware updates, and application engineering support.
- Warranty Coverage: Genuine units carry WOODWARD’s standard warranty, protecting your installation investment.
- Long-Term Availability: WOODWARD maintains spare parts and firmware support for the EasyGen-2500 series across the product lifecycle.
Typical Applications
- Data Centers: Standby generator AMF control for critical IT infrastructure with sub-10-second transfer time requirements.
- Hospitals & Healthcare: Prime and standby power management with automatic mains failure detection and load shedding.
- Industrial Plants: Parallel generator operation for continuous process power with isochronous load sharing.
- Marine & Offshore: Genset synchronization and load sharing on vessels and offshore platforms (with appropriate marine-rated enclosures).
- Telecom Base Stations: Remote site generator control with Modbus/CAN SCADA integration for unmanned operation.
- Mining & Oil & Gas: Rugged generator control in harsh environments with wide operating temperature range (-40°C to +70°C).
System Compatibility
The EASYGEN-2500-5 is designed to integrate with the following components:
- WOODWARD ProAct Series — Electronic governor actuators for engine speed control
- WOODWARD DSLC / MSLC — Digital/Modular Synchronizer and Load Control modules for bus tie applications
- WOODWARD 2301D / 2301E — Load sharing and speed control modules for parallel operation
- WOODWARD NetCon 5000 — Network control system for multi-unit power plant management
- Standard AVR (Automatic Voltage Regulators) — Compatible with most major AVR brands via analog interface (±10V or 4–20mA)
- J1939-compatible Engines — Direct CAN bus integration with Cummins, Perkins, Volvo Penta, MTU, and other J1939 ECU engines
Selection Guide
Before ordering, confirm the following three points to ensure the EASYGEN-2500-5 is the right fit for your system:
- Is your application single-unit AMF or multi-unit parallel? The EASYGEN-2500-5 supports both, but parallel applications require additional DSLC/MSLC modules. Confirm your bus configuration.
- What communication protocol does your SCADA or BMS use? Verify Modbus RTU/TCP or CAN/J1939 compatibility with your existing supervisory system before specifying.
- What is the firmware version of your existing unit? For drop-in replacement, matching the firmware revision prevents parameter migration issues. Provide your existing unit’s label data to Konmask for verification.
📩 Not sure which model fits your system? Contact Konmask at support@konmask.com — our engineers will review your application and recommend the correct unit or equivalent.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources WOODWARD EASYGEN-2500-5 units through authorized distributors, OEM surplus channels, and certified refurbishers. All units are traceable to original manufacturer documentation.
4-Step Inspection Process:
- Visual Inspection: Check for physical damage, corrosion, counterfeit markings, and label authenticity against WOODWARD OEM standards.
- Functional Test: Power-on verification, I/O channel testing, communication port validation (CAN, Modbus), and display/keypad function check.
- Firmware Verification: Confirm firmware version and parameter set integrity using WOODWARD ToolKit software.
- Burn-In & Final QC: 24-hour operational burn-in under simulated load conditions before shipment.
Available Documentation: Test reports, firmware version certificates, original WOODWARD datasheets, and customs/export compliance documents available upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (EASYGEN-2500-5), required quantity, and any firmware or configuration requirements. Alternatively, use the contact form on this page.
- Receive Quotation & Compatibility Confirmation: Our team will respond within 24 hours with pricing, lead time, stock availability, and a compatibility confirmation for your application.
- Order & Ship: Confirm your order and receive tracking information. Express shipping available for urgent requirements. All units shipped with full QC documentation.
Replacement & Compatibility FAQ
Q1: Can the EASYGEN-2500-5 directly replace an EASYGEN-2500 without rewiring?
A: In most cases, yes. The EASYGEN-2500-5 is an enhanced variant of the base EASYGEN-2500 with additional I/O. If your panel wiring uses only the standard I/O points, it is a direct drop-in replacement. However, you should verify connector pinout and firmware compatibility before installation. Contact Konmask for a wiring review if needed.
Q2: Is the EASYGEN-2500-5 compatible with ComAp or Deif controllers as a substitute?
A: The EASYGEN-2500-5 is not a plug-and-play substitute for ComAp InteliGen or Deif AGC controllers due to differences in I/O wiring, communication protocols, and parameter structures. A cross-brand migration requires engineering review, wiring adaptation, and full recommissioning. Konmask can provide a compatibility assessment and migration support.
Q3: What is the equivalent WOODWARD model if the EASYGEN-2500-5 is discontinued or unavailable?
A: The closest functional equivalent within the WOODWARD lineup is the EASYGEN-3500, which offers backward-compatible functionality with enhanced features. For a direct equivalent with minimal reconfiguration, the EASYGEN-2500-7 (extended I/O variant) is also a strong candidate. Konmask will confirm current availability and recommend the best substitute based on your system requirements.
