ABB 1KHL178012R0016A – TRM01 Transformer Monitoring Board | UNITROL Series

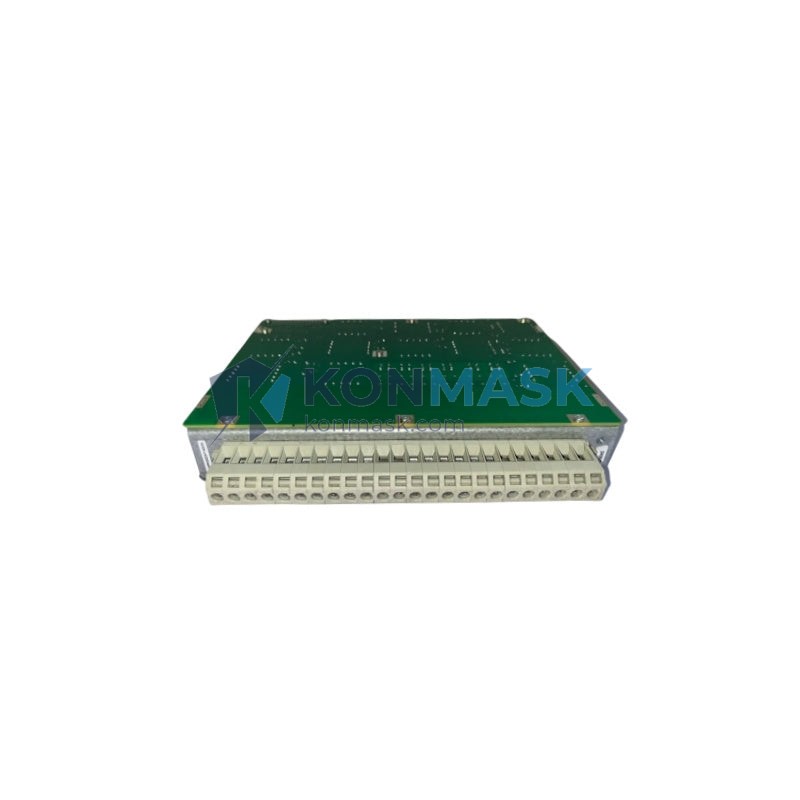

Engineering Background: The ABB 1KHL178012R0016A is a TRM01 (Transformer Monitoring Module) board designed for integration within ABB’s UNITROL excitation and voltage regulation platform. Engineered in Germany to IEC and ABB internal quality standards, this board serves as a critical signal-conditioning and monitoring interface for power transformers in utility-grade and industrial generation systems.
Product Positioning: Targeted at procurement engineers and maintenance teams responsible for transformer protection, excitation control, and generator voltage regulation in power plants, substations, and heavy industrial facilities. The TRM01 board provides real-time transformer parameter acquisition, enabling upstream controllers to execute protection and regulation algorithms with high fidelity.
Complete Technical Specifications
- Part Number: 1KHL178012R0016A
- Module Designation: TRM01 – Transformer Monitoring Board
- Platform: ABB UNITROL Excitation System
- Manufacturer: ABB Ltd. (Germany)
- Country of Origin: Germany (DE)
- Weight: 360 g
- Form Factor: PCB module / plug-in board
- Application Class: Transformer monitoring, excitation control interface
- Compliance: IEC 60068 (environmental), ABB internal quality standards
- Condition: New / Refurbished OEM-verified (specify on inquiry)
Proven Application Environments
- Utility-scale power generation plants (hydro, thermal, gas turbine)
- Industrial generator sets with ABB UNITROL excitation controllers
- High-voltage substations requiring transformer parameter monitoring
- Retrofit and upgrade projects for legacy ABB excitation systems
- OEM integration into custom switchgear and protection panels
Engineering Advantages
- OEM Precision: Manufactured to ABB’s original design specifications — no third-party substitution risk
- Signal Integrity: Dedicated signal conditioning circuitry minimizes noise in high-EMI environments
- Plug-and-Play Compatibility: Direct drop-in replacement for UNITROL platform installations
- Reliability: Designed for continuous duty in demanding industrial thermal and vibration conditions
- Traceability: Full OEM part number traceability for maintenance records and audit compliance
System Architecture & Signal Flow
The TRM01 board interfaces between transformer current/voltage transducers and the UNITROL excitation controller’s main processing unit. It conditions analog signals from PT/CT inputs, performs scaling and filtering, and outputs standardized signals to the controller bus. This architecture ensures that transformer thermal, voltage, and current parameters are accurately represented in the excitation control loop, enabling precise AVR (Automatic Voltage Regulator) response and transformer protection coordination.
Sourcing & Quality Verification
- All units sourced through verified ABB authorized channels or certified industrial surplus with full inspection
- Pre-shipment functional verification available on request
- Serialization and OEM labeling intact — no remarked or counterfeit components
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit
- Documentation: OEM datasheet, test report, and certificate of conformity available upon request
Procurement Process
- Step 1: Submit your RFQ via support@konmask.com with quantity and delivery timeline
- Step 2: Receive quotation with lead time, unit price, and shipping options within 24 hours
- Step 3: Confirm PO — payment via T/T, PayPal, or trade assurance
- Step 4: Dispatch within 3–5 business days; tracking provided
- Step 5: Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Is the 1KHL178012R0016A compatible with all UNITROL variants?
A: The TRM01 board is designed for specific UNITROL platform generations. Please confirm your UNITROL model number when submitting your RFQ to ensure compatibility.
Q: Can you supply both new and refurbished units?
A: Yes. Konmask stocks both new OEM and professionally refurbished units. Refurbished units undergo full functional testing and carry a 90-day warranty.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For out-of-stock items, lead time is 2–4 weeks depending on sourcing channel.
Q: Do you provide a certificate of conformity?
A: Yes. A certificate of conformity and inspection report are available upon request for all units.
Q: Can I return the unit if it is incompatible?
A: Konmask offers a 30-day return policy for unused, uninstalled units in original packaging. Contact support@konmask.com to initiate a return.
