ABB 1SFB527068D7084 – Control Circuit Board | ABB PSR / PST / PSTB Soft Starter & ACS Drive Platform

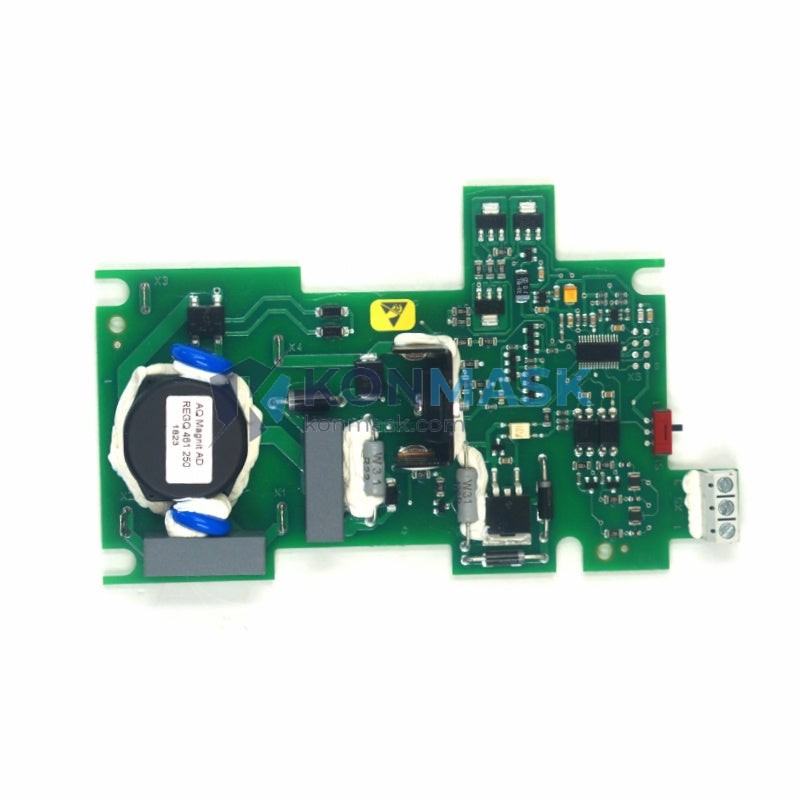

Engineering Background: The ABB 1SFB527068D7084 is a factory-original control circuit board (PCB) engineered for ABB’s industrial soft starter and variable frequency drive product lines. As the core signal-processing and protection-logic component, this board governs motor start/stop sequencing, overload protection, thermistor monitoring, and fieldbus communication interfacing within the drive system. It is a direct OEM replacement part, ensuring full hardware and firmware compatibility with the original drive architecture — no re-parameterization required in standard swap-out scenarios.
Product Positioning: Targeted at maintenance engineers, OEM system integrators, and MRO procurement teams who require a verified, drop-in replacement PCB without the lead time or capital cost of a full drive unit replacement. Konmask.com sources this component through audited industrial supply channels and provides traceability documentation upon request, supporting ISO 9001 and IEC 61511 audit requirements.
Complete Technical Specifications
- Part Number: 1SFB527068D7084
- Manufacturer: ABB Ltd.
- Component Type: Control Circuit Board (PCB)
- Platform Compatibility: ABB PSR / PST / PSTB Soft Starter Series; ABB ACS Drive Series
- Board Function: Motor control logic, protection relay interface, signal conditioning, fieldbus gateway
- Mounting: OEM slot-in, DIN-rail compatible drive chassis
- Operating Temperature: -10°C to +55°C (standard industrial range)
- Storage Temperature: -40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Certifications: CE, UL (per parent drive unit); RoHS 2011/65/EU compliant
- Condition: New OEM / Surplus New (specify at inquiry)
- Packaging: Anti-static ESD foam + shielded bag, outer carton
Proven Application Environments
- Water & Wastewater Treatment: Pump motor soft-start control boards in municipal lift stations and filtration plants
- Oil & Gas: Compressor and fan drive control in upstream/midstream facilities requiring SIL-rated protection logic
- Cement & Mining: Conveyor belt and crusher motor drive PCB replacement during scheduled maintenance shutdowns
- HVAC & Building Automation: Chiller and AHU fan drive control board swap-out in commercial high-rise facilities
- Pulp & Paper / Steel Mills: High-cycle motor control environments where PCB fatigue failure is a known failure mode
- Marine & Offshore: Auxiliary motor drive control in vessels operating ABB drive platforms
Engineering Advantages
- OEM-Identical Replacement: Eliminates firmware compatibility risk — no re-parameterization required in most applications
- Reduced Downtime: Board-level replacement vs. full drive swap reduces MTTR from days to hours
- Cost Efficiency: PCB replacement cost is typically 15–30% of a complete drive unit replacement
- Traceability: Each unit ships with batch/lot documentation available for ISO 9001 audit compliance
- Anti-Static Packaging: ESD-safe foam and shielded bag packaging prevents transit damage to sensitive CMOS components
- Warranty Coverage: 12-month warranty on new OEM units; 90-day warranty on surplus/refurbished units
System Architecture & Signal Flow
The 1SFB527068D7084 board occupies the control layer of the ABB drive architecture, bridging the operator panel/fieldbus layer and the power electronics gate driver stage. Key signal paths:
- Input: Digital I/O from PLC or relay logic (start / stop / fault reset commands)
- Processing: Onboard microcontroller executes motor protection algorithms — overload, phase loss, thermistor input, current imbalance detection
- Output: Gate trigger signals to IGBT/SCR power stage; relay output for fault annunciation and external interlock
- Communication: Serial/fieldbus interface — Modbus RTU / PROFIBUS DP depending on drive variant
Sourcing & Quality Verification
- All units sourced from ABB-authorized distributors or verified surplus channels with chain-of-custody records
- Pre-shipment visual inspection: solder joint integrity, component seating, connector pin condition, PCB trace continuity
- Functional test records available for refurbished units upon request
- Counterfeit-prevention: ABB holographic label and date code verification performed on every unit
- Storage: climate-controlled warehouse (18–25°C, <60% RH) to preserve PCB and electrolytic capacitor integrity
Procurement Process
- Confirm Compatibility: Provide your drive model number and existing PCB part number to support@konmask.com for cross-reference verification
- Request Quote: Receive a formal quotation with lead time, condition grade, and documentation package within 24 hours
- Place Order: Secure checkout via Konmask.com or via purchase order (B2B accounts welcome)
- Shipping: DHL / FedEx Express worldwide; ESD-safe packaging standard; export documentation included
- After-Sales: 12-month warranty on new units; 90-day warranty on surplus/refurbished units; technical support included
Technical FAQ
Q: Is 1SFB527068D7084 compatible with all ABB soft starter models?
A: This PCB is specific to certain ABB PSR/PST/PSTB and ACS drive variants. Please confirm your host unit model number before ordering. Our engineering team provides free compatibility verification within 24 hours.
Q: Can this board be reprogrammed or does it retain original firmware?
A: New OEM units retain factory firmware. Surplus units are tested to confirm firmware integrity. Re-flashing is not required for standard replacement applications.
Q: What is the typical lead time?
A: In-stock units ship within 1–2 business days. Out-of-stock units have a 2–4 week lead time depending on sourcing channel. Contact us for real-time stock status.
Q: Do you provide installation support?
A: Yes. Our technical team provides installation guidance, wiring diagrams, and parameter backup/restore procedures via email or video call at no additional charge.
Q: Is this part RoHS compliant?
A: ABB’s manufacturing complies with RoHS Directive 2011/65/EU. Compliance documentation is available upon request.
Q: Can I return the part if it is not compatible?
A: Yes. We offer a compatibility-verified return policy. Contact support@konmask.com within 7 days of receipt for return authorization.
