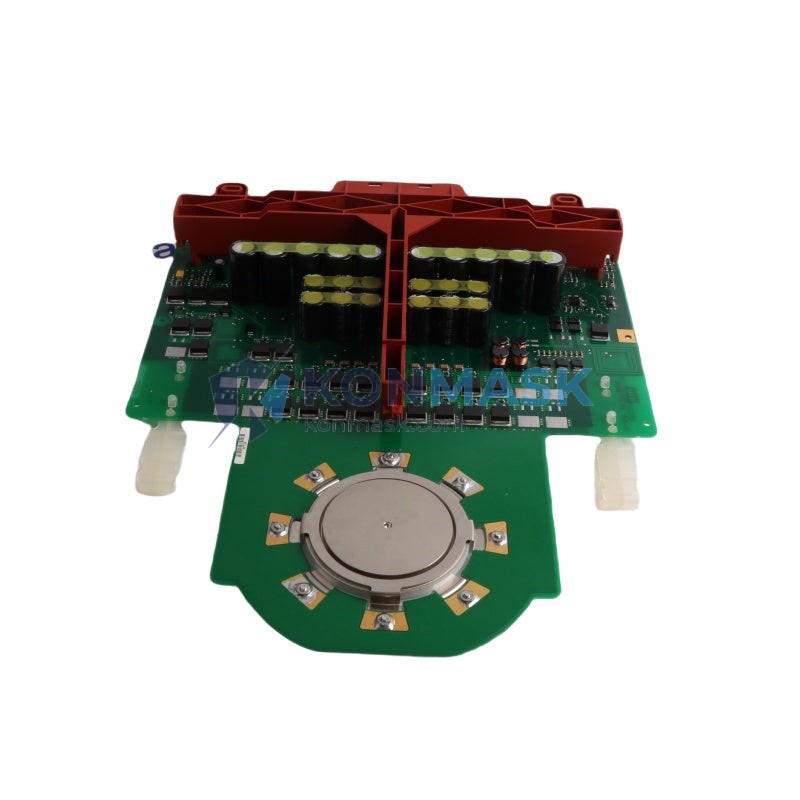

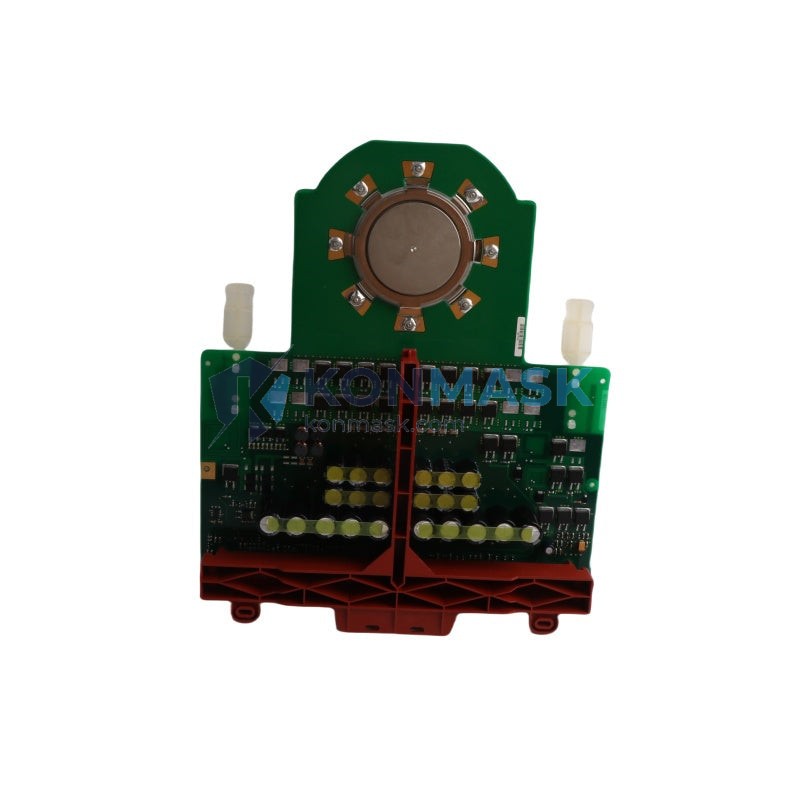

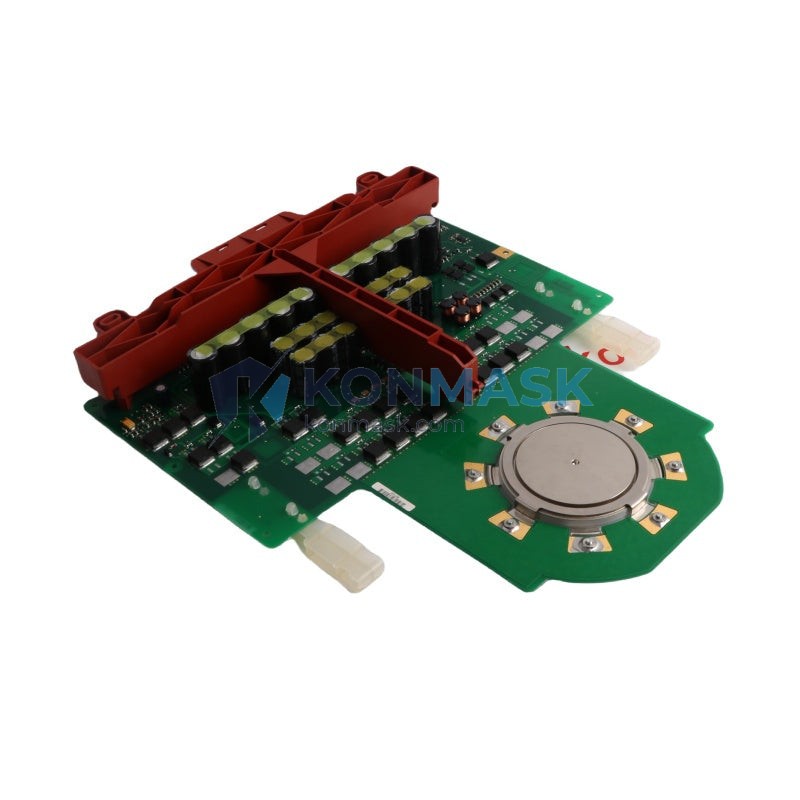

ABB 5SHX1445H0002 IGBT Gate Drive Control Module | ACS / ACS800 Drive Platform
Engineering Background: The ABB 5SHX1445H0002 is a high-power IGBT gate drive control module engineered within ABB’s proven power electronics platform. Cross-referenced under part numbers 3BHL000387R0101 and 3BHB003386R0101, with board designation 5SXE05-0153, this module serves as the core switching interface between the drive controller and the IGBT power stack in medium-to-high voltage variable frequency drive (VFD) systems.
Product Positioning: Designed for procurement engineers and maintenance teams operating ABB ACS / ACS800 series drives in heavy industrial environments. This module is a direct OEM-equivalent replacement, ensuring zero-compromise compatibility with existing drive architectures. Konmask.com supplies this component with full traceability documentation and pre-shipment functional verification.
Complete Technical Specifications
- Manufacturer: ABB (ASEA Brown Boveri)
- Primary Part Number: 5SHX1445H0002
- Cross-Reference P/N: 3BHL000387R0101 / 3BHB003386R0101
- PCB Board Designation: 5SXE05-0153
- Module Type: IGBT Gate Drive Control Module
- Compatible Platform: ABB ACS / ACS800 Series Variable Frequency Drives
- Function: Gate signal isolation, amplification, and protection for IGBT power stacks
- Protection Features: Short-circuit protection, desaturation detection, under-voltage lockout (UVLO)
- Isolation: Galvanic isolation between control and power circuits
- Operating Temperature: -10°C to +55°C (standard industrial range)
- Weight: 1,580 g
- Condition: New / Refurbished-Tested (specify at inquiry)
- Warranty: 12 months from shipment date
Proven Application Environments
- Steel mills and rolling mill drives (high-cycle, high-torque VFD applications)
- Marine propulsion and offshore platform power management systems
- Oil & gas compressor and pump drive systems
- Cement and mining conveyor belt drive systems
- Paper and pulp mill winder/unwinder drive control
- Water treatment and municipal pump station VFDs
- Power generation auxiliary drive systems
Engineering Advantages
- Direct OEM Replacement: Plug-and-play compatibility with existing ABB ACS/ACS800 drive cabinets — no firmware modification required.
- Dual P/N Traceability: Stocked and documented under both 3BHL000387R0101 and 3BHB003386R0101 for seamless BOM matching.
- Robust Gate Drive Architecture: Integrated desaturation and short-circuit protection minimizes IGBT stack damage risk during fault events.
- Galvanic Isolation: Ensures full electrical separation between low-voltage control signals and high-voltage power switching circuits.
- Industrial-Grade Reliability: Designed to ABB’s stringent quality standards for continuous-duty industrial operation.
System Architecture & Signal Flow
The 5SHX1445H0002 receives PWM gate signals from the ACS/ACS800 drive’s main control board (RMIO/RDCU). These signals are optically isolated, amplified to the required gate voltage levels, and delivered to the IGBT power module gates with precise timing. The module simultaneously monitors collector-emitter voltage (Vce) for desaturation events and reports fault status back to the control board via isolated feedback lines. This closed-loop gate drive architecture is critical for protecting the IGBT stack under short-circuit and overload conditions.
Sourcing & Quality Verification
- Source: Authorized distributor channels and verified OEM surplus — no gray-market or counterfeit supply chains.
- Inspection: Each unit undergoes visual inspection, PCB integrity check, and functional power-on test prior to shipment.
- Documentation: Certificate of conformance, test report, and packing list provided with every order.
- Packaging: Anti-static ESD bag + foam-lined export carton for international freight.
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability.
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Confirm PO — we accept T/T bank transfer, PayPal, and major credit cards.
- Unit is inspected, documented, and dispatched with full tracking information.
- Post-delivery technical support available for installation and commissioning queries.
Technical FAQ
Q: Is 3BHL000387R0101 the same as 3BHB003386R0101?
A: Yes. Both part numbers refer to the same ABB 5SHX1445H0002 gate drive control module. ABB uses parallel numbering systems across different product documentation revisions; both are fully interchangeable.
Q: Which ABB drive models is this module compatible with?
A: This module is designed for the ABB ACS and ACS800 series VFDs. Please confirm your drive’s exact model and firmware version with our technical team before ordering if you have any compatibility concerns.
Q: Can this module be repaired if it fails in the field?
A: Board-level repair is possible for certain fault types (e.g., blown gate resistors, failed optocouplers). Konmask offers repair evaluation services — contact us with your fault description.
Q: What is the typical failure mode of this module?
A: Most common failures include optocoupler degradation, gate resistor open-circuit, and UVLO circuit faults — typically caused by sustained overvoltage or thermal stress. Our pre-shipment test covers all these failure modes.
Q: Do you provide a test report with the shipment?
A: Yes. A functional test report and certificate of conformance are included with every unit shipped from Konmask.com.
