ABB 3BHE005555R0101 LDSYN-101 PC Board | Replacement, Equivalent & Selection Guide

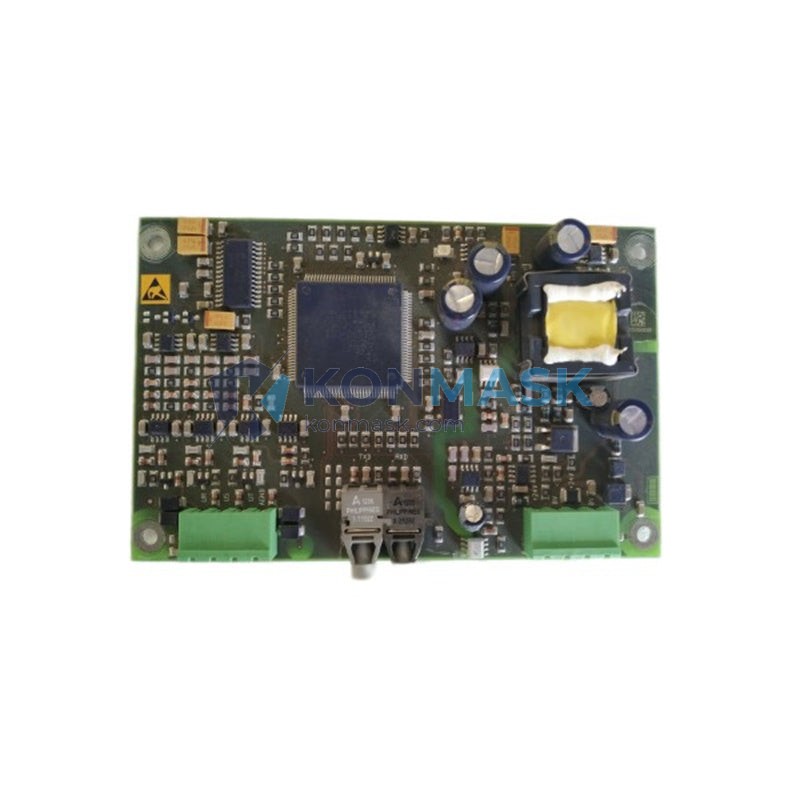

The ABB 3BHE005555R0101 LDSYN-101 is a synchronization and control PC board designed for ABB’s high-power drive and excitation systems. This page provides full technical specifications, verified compatible replacements, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | 3BHE005555R0101 |
| Board Designation | LDSYN-101 |
| Board Type | Synchronization / Control PC Board |
| Product Series | ABB ACS / UNITROL / Excitation Systems |
| Weight | 150 g (approx.) |
| Condition Available | New, Refurbished, Tested |
| Warranty | 12 months (Konmask standard) |
| Lead Time | In stock / 3–7 business days |
Note: Full datasheet and wiring diagrams available upon request. Contact support@konmask.com.
Compatible Replacement & Equivalent Models
The following models are verified as functionally compatible or direct replacements for the ABB 3BHE005555R0101 LDSYN-101. Always confirm firmware revision and system configuration before substitution.
- ABB 3BHE005555R0102 – Revised hardware revision; pin-compatible, check firmware compatibility
- ABB 3BHE005555R0103 – Later revision with enhanced EMC shielding
- ABB LDSYN-102 / LDSYN-103 – Next-generation synchronization boards; may require parameter re-mapping
- ABB 3BHE024577R0101 – Cross-reference for certain UNITROL 5000 excitation platforms
- OEM-equivalent boards – Third-party remanufactured boards tested to ABB specifications (available on request)
⚠ Important: Substitution should be validated by a qualified automation engineer. Konmask provides pre-shipment test reports for all replacement units.
Why Choose the Original Model
- Factory-certified design – Engineered and validated by ABB for precise synchronization performance in high-power drive systems
- Guaranteed compatibility – Drop-in fit for all systems originally specified with 3BHE005555R0101; no firmware changes required
- Long-term support – ABB spare parts ecosystem ensures availability of complementary boards and modules
- Reduced commissioning risk – Eliminates parameter re-mapping and re-tuning time associated with cross-brand substitutions
- Traceable quality – Each unit from Konmask includes inspection records and functional test data
Typical Applications
- ABB UNITROL excitation control systems for synchronous generators
- ABB ACS high-power AC drive platforms requiring synchronization boards
- Power plant and utility generator excitation panels
- Industrial motor control centers (MCC) with ABB drive integration
- Marine propulsion and offshore platform power management systems
- Steel mill, cement plant, and mining drive systems
System Compatibility
| ABB System / Platform | Compatibility |
|---|---|
| ABB UNITROL 1000 / 1020 | ✅ Confirmed |
| ABB UNITROL 5000 | ✅ Confirmed (verify revision) |
| ABB ACS 1000 / ACS 6000 | ✅ Confirmed |
| ABB ACS 800 (high-power variants) | ⚠ Verify with serial number |
| ABB DCS 800 Excitation | ⚠ Consult Konmask engineering |
| Third-party excitation systems | ❌ Not recommended without engineering review |
Selection Guide
Use the following decision framework to select the correct board for your application:
- Confirm the host system – Identify the ABB drive or excitation platform model and firmware version.
- Match the part number – Use 3BHE005555R0101 for direct replacement; check R-suffix (R0101, R0102…) for hardware revision compatibility.
- Assess condition requirements – New OEM for critical production lines; tested refurbished for maintenance spares or budget-sensitive projects.
- Evaluate lead time vs. urgency – Konmask maintains stock for rapid dispatch; contact us for emergency same-day quotation.
- Consider upgrade path – If the system is due for modernization, Konmask can advise on LDSYN-102/103 upgrade kits with full commissioning support.
Quality Assurance & Sourcing
- Source: Authorized distributors, OEM surplus, and certified remanufacturers
- Inspection: Visual, dimensional, and functional testing per ABB acceptance criteria
- Documentation: Certificate of conformance, test report, and traceability records provided
- Packaging: ESD-safe anti-static packaging with foam cushioning; export carton for international shipments
- Warranty: 12-month warranty covering manufacturing defects and functional failure under normal operating conditions
How to Order
- Add to cart directly on this page, or
- Email support@konmask.com with your PO or RFQ, or
- Call / WhatsApp: +0086 19859288691 for urgent requirements
- Provide your system model, serial number, and required quantity for fastest processing
- Bulk orders (>5 units) qualify for volume pricing — request a formal quotation
Typical lead time: In stock — ships within 1–3 business days. Express DHL/FedEx available.
Replacement & Compatibility FAQ
Q: Can I use 3BHE005555R0102 instead of R0101?
A: In most cases yes — R0102 is a hardware revision with the same functional footprint. Confirm firmware version compatibility with your ABB system before installation.
Q: Is a refurbished LDSYN-101 reliable for production use?
A: Yes, when sourced from Konmask. All refurbished units undergo full functional testing and carry a 12-month warranty identical to new units.
Q: Do you provide installation support?
A: Konmask provides technical documentation and remote commissioning guidance. On-site support can be arranged through our engineering partners.
Q: What if my system requires a newer LDSYN revision?
A: Contact us — we can advise on upgrade kits and provide compatibility matrices for LDSYN-101 through LDSYN-103 across all supported ABB platforms.
Q: Can you supply multiple units for a fleet maintenance program?
A: Yes. We support blanket POs and scheduled releases for MRO and fleet maintenance programs. Contact us for a framework agreement.
