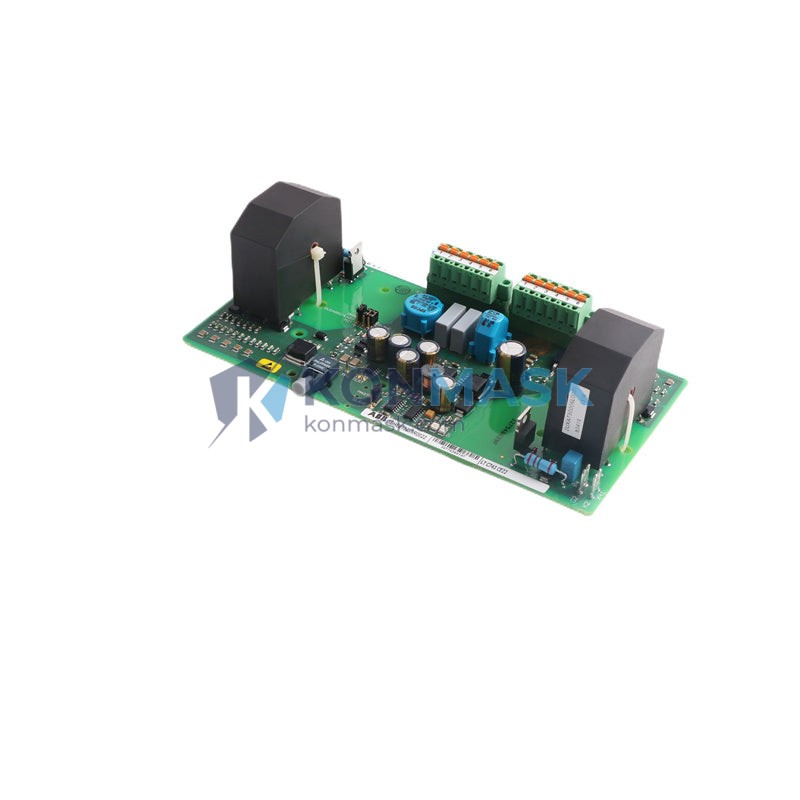

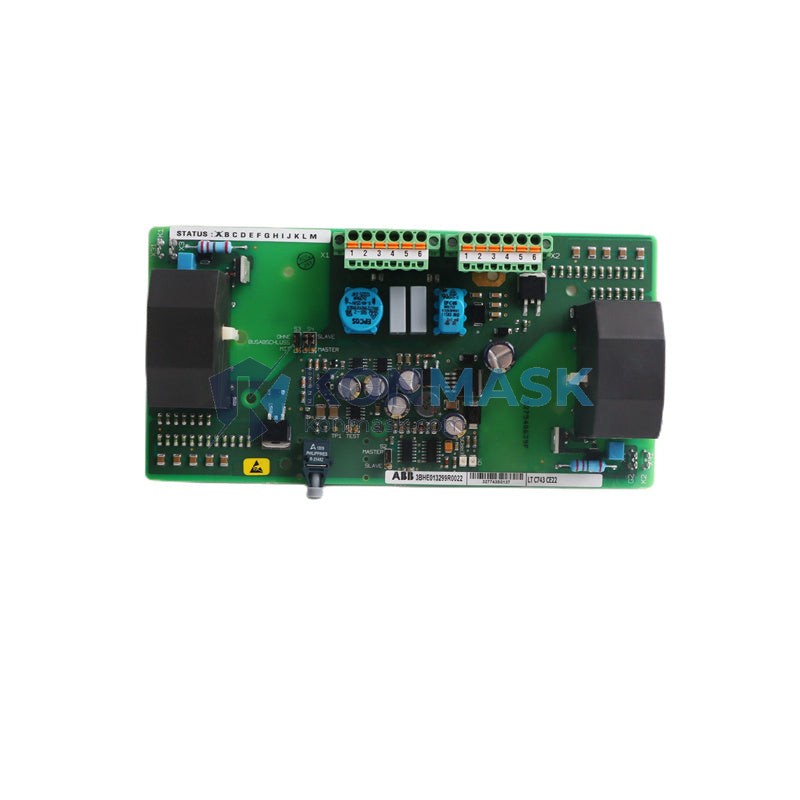

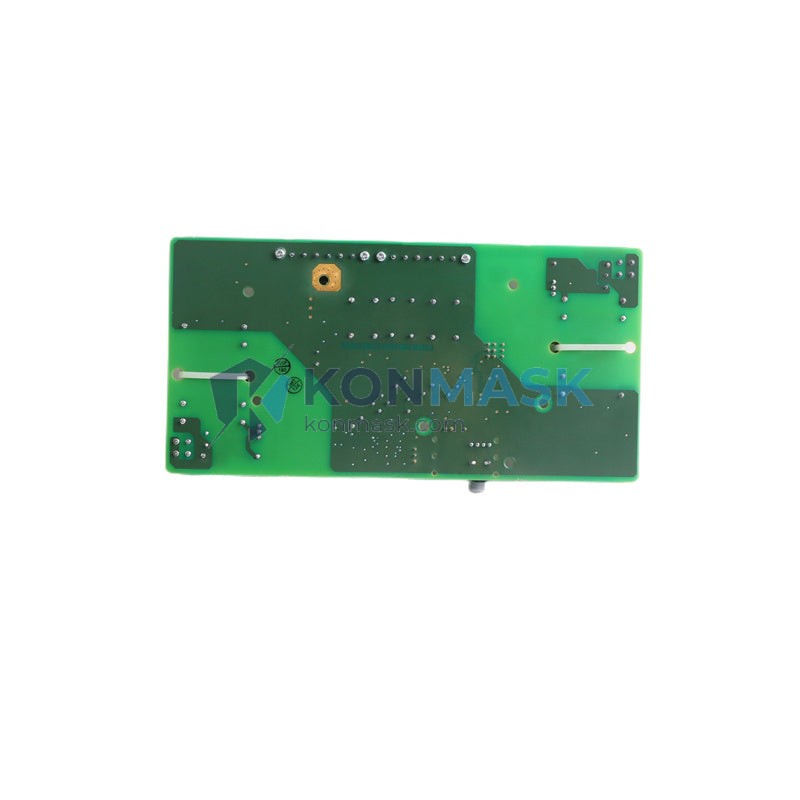

ABB 3BHE013299R0022 LTC743CE22 – Excitation Control Circuit Board | AC800PEC / UNITROL Platform
Engineering Background
The ABB 3BHE013299R0022 (board designation LTC743CE22) is a precision excitation control circuit board engineered for ABB’s AC800PEC high-performance controller platform and UNITROL excitation systems. Designed to operate in demanding power generation and industrial drive environments, this board manages field excitation regulation, feedback signal conditioning, and closed-loop AVR (Automatic Voltage Regulator) functions critical to generator stability and grid synchronization.
Product Positioning
This board is a direct OEM-equivalent replacement targeting power plant engineers, turbine OEM integrators, and industrial automation specialists who require a verified, drop-in solution with zero re-engineering overhead. Konmask.com sources this component through audited supply channels and subjects each unit to functional verification prior to dispatch.
Complete Technical Specifications
- Manufacturer: ABB (ASEA Brown Boveri)
- Part Number: 3BHE013299R0022
- Board Designation: LTC743CE22
- Platform Compatibility: AC800PEC High-Performance Controller; UNITROL 5000 / 6000 Excitation Systems
- Function: Excitation control, AVR signal processing, field current regulation
- Form Factor: Plug-in PCB module (DIN-rail / rack-mount chassis)
- Weight: 440 g (bare board)
- Operating Temperature: 0 °C to +55 °C (storage: −25 °C to +70 °C)
- Humidity: 5–95 % RH, non-condensing
- Communication Interface: Internal backplane bus (AC800PEC proprietary)
- Power Supply: Supplied via backplane (24 VDC logic rail)
- Compliance: CE marked; IEC 61131-2; RoHS
- Country of Origin: Germany / Sweden (ABB manufacturing)
Proven Application Environments
- Hydro, thermal, and gas turbine generator excitation control systems
- UNITROL AVR retrofit and upgrade projects
- Industrial synchronous motor drive systems requiring precise field regulation
- Power plant DCS integration with ABB Symphony / 800xA architectures
- Grid-connected generator protection and reactive power (VAR) control loops
- OEM turbine control panels using AC800PEC as the primary controller
Engineering Advantages
- Drop-in Replacement: Identical form, fit, and function to OEM specification — no firmware re-flashing or hardware modification required in standard configurations.
- Closed-Loop AVR Precision: Supports high-bandwidth excitation feedback loops essential for voltage stability under load transients.
- Robust Signal Conditioning: Onboard analog front-end filters and isolation circuitry protect against common-mode noise in high-voltage generator environments.
- Long-Term Availability: Konmask maintains buffer stock of legacy ABB excitation boards to support plants operating beyond OEM support windows.
- Tested Before Dispatch: Each unit undergoes power-on functional verification and visual inspection for component integrity.
System Architecture & Signal Flow
Within the AC800PEC chassis, the LTC743CE22 board occupies a dedicated slot in the excitation controller rack. It receives setpoint commands from the supervisory AVR software module via the internal backplane bus, processes field current feedback from the excitation transformer CT/PT inputs, and outputs PWM gate drive signals to the thyristor or IGBT power bridge. The closed-loop control cycle operates at sub-millisecond scan rates, ensuring tight voltage regulation (typically ±0.5% steady-state) across the full generator load range.
Sourcing & Quality Verification
- Source: Authorized surplus, OEM pull-outs from decommissioned plant upgrades, and vetted distributor stock
- Inspection Protocol: Visual inspection → power-on test → functional I/O verification → anti-static packaging
- Warranty: 12-month replacement warranty against manufacturing defects
- Traceability: Serial number and batch records retained; available on request
- Packaging: ESD-safe bag + foam-lined carton; humidity indicator card included
Procurement Process
- Inquiry: Submit your PO number, required quantity, and delivery timeline via email or the contact form.
- Stock Confirmation: Konmask confirms availability and provides a formal quotation within 1 business day.
- Payment: T/T (bank transfer), PayPal, or trade-term arrangements (FOB Xiamen).
- Dispatch: Ships within 3–5 business days of payment confirmation via DHL / FedEx / UPS with full tracking.
- After-Sales: Technical support available post-installation; RMA process initiated within 48 hours if defect reported.
Technical FAQ
Q: Is this board compatible with UNITROL 1000 / 1020?
A: No. The LTC743CE22 is designed for the AC800PEC platform and UNITROL 5000/6000 series. UNITROL 1000/1020 uses a different board architecture.
Q: Can this board be reprogrammed or reconfigured?
A: Configuration is managed at the AC800PEC software level via ABB’s Control Builder M tool. The hardware itself does not require field programming.
Q: Do you provide installation support?
A: Yes. Our engineering team can provide remote commissioning guidance and reference documentation upon request.
Q: What is the lead time if out of stock?
A: Typical lead time for sourced units is 2–4 weeks. Contact us to join the priority waitlist.
Q: Is a test report available?
A: Yes. A functional test report can be provided with shipment upon request at time of order.
