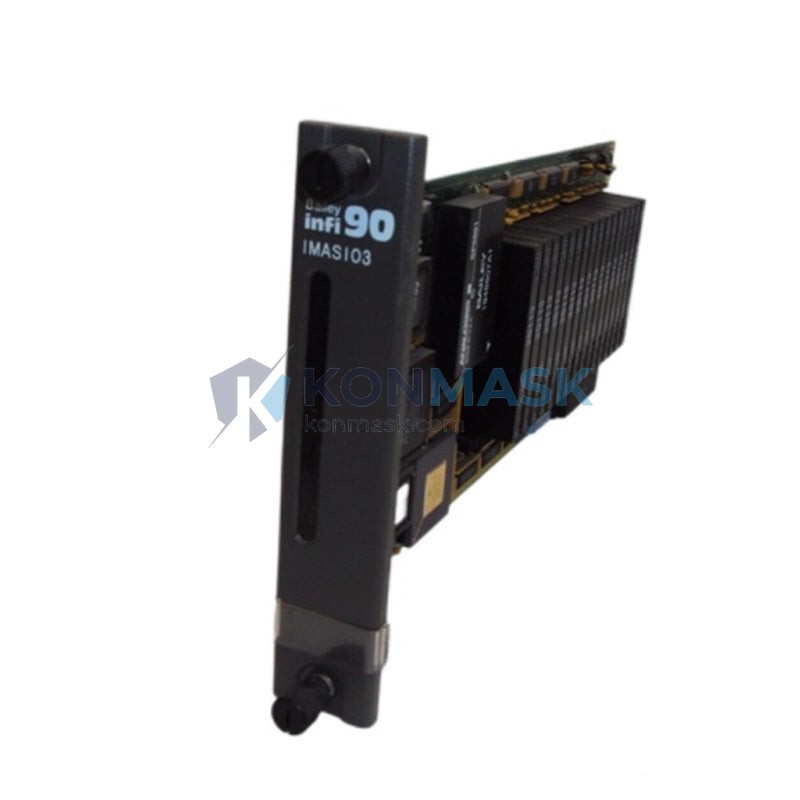

ABB IMASI03 Analog Input Slave Module – 8-Channel AI Interface | AC 800M DCS Platform
Engineering Background: The IMASI03 is a dedicated analog input slave module developed by ABB for integration within the AC 800M distributed control system (DCS) architecture. Designed to interface field-level instrumentation with the controller backbone, it provides high-fidelity signal acquisition across process-critical environments including oil & gas, power generation, chemical processing, and pulp & paper.
Product Positioning: As a slave I/O module in the S800 I/O family, the IMASI03 operates under the supervision of an AC 800M controller via the ModuleBus or PROFIBUS DP fieldbus. It is engineered for procurement engineers and system integrators who require a proven, spec-verified replacement or expansion module with full backward compatibility and minimal commissioning overhead.
Complete Technical Specifications
- Part Number: IMASI03 / 3BSE005766R1
- Module Type: Analog Input Slave Module (AI)
- Platform: ABB AC 800M / S800 I/O
- Number of Channels: 8 analog input channels
- Input Signal Range: 4–20 mA (HART-compatible), 0–10 V
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale
- HART Protocol: Supported (pass-through to controller)
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation
- Power Supply: Supplied via S800 I/O bus (no external power required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20
- Weight: Approx. 700 g
- Certifications: CE, UL, SIL 2 (IEC 61508)
- Mounting: DIN rail via S800 I/O base unit
- Communication Bus: ModuleBus (internal S800 I/O bus)
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, downstream refinery process control, HIPPS safety loops
- Power Generation: Turbine control systems, boiler instrumentation, grid-tie automation
- Chemical & Petrochemical: Reactor temperature/pressure acquisition, batch process control
- Pulp & Paper: Continuous digester control, bleaching process monitoring
- Water & Wastewater: Flow metering, level sensing, pump station automation
- Pharmaceutical: GMP-compliant process monitoring, validated control loops
Engineering Advantages
- Hot-swap capable: Module replacement without system shutdown minimizes process downtime
- HART pass-through: Enables remote device diagnostics and calibration without additional hardware
- High channel density: 8 AI channels per module slot reduces cabinet footprint and wiring cost
- SIL 2 rated: Suitable for safety instrumented functions per IEC 61511
- Galvanic isolation: Eliminates ground loop interference in multi-instrument installations
- Plug-and-play replacement: Full firmware and hardware compatibility with existing AC 800M configurations
System Architecture & Signal Flow
The IMASI03 mounts onto an S800 I/O base unit connected to the ModuleBus segment. Field transmitters (4–20 mA / HART) wire directly to the base unit terminal blocks. The module performs A/D conversion at 16-bit resolution and transmits digitized process values to the AC 800M controller via the internal ModuleBus. HART secondary variables and device diagnostics are passed transparently to the controller’s HART master function block. The controller then executes configured control strategies (PID, cascade, ratio) and writes outputs to corresponding AO/DO modules on the same or adjacent I/O stations.
Sourcing & Quality Verification
- Origin: Genuine ABB-manufactured hardware; sourced through authorized industrial distribution channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Traceability: Serial number and firmware revision documented per order
- Packaging: Anti-static ESD bag + foam-lined carton; compliant with IEC 61340-5-1
- Warranty: 12-month hardware warranty from shipment date
- Counterfeit prevention: All modules verified against ABB part number database before listing
Procurement Process
- Step 1 – RFQ: Submit your part number, required quantity, and delivery timeline via the product page or email [email protected]
- Step 2 – Quote: Receive a formal quotation with unit price, lead time, and shipping options within 24 hours
- Step 3 – Order Confirmation: Purchase order accepted via Shopify checkout, bank transfer (T/T), or PayPal
- Step 4 – Shipment: Dispatched within 1–3 business days via DHL / FedEx / UPS with full tracking
- Step 5 – After-sales: Technical support available post-delivery for integration and commissioning queries
Technical FAQ
Q: Is the IMASI03 compatible with AC 800M firmware version 6.x and above?
A: Yes. The IMASI03 is compatible with all AC 800M controller firmware versions from 4.0 onward, including the current 6.x release.
Q: Can the IMASI03 be used in a redundant I/O configuration?
A: Redundant I/O requires pairing with an S800 redundant base unit (TB820V2 or equivalent). The IMASI03 itself supports redundant operation when mounted on a compatible redundant base.
Q: What is the maximum cable length for field wiring?
A: ABB recommends a maximum of 1,000 m for shielded twisted-pair cable at 4–20 mA with proper grounding. HART communication is supported up to 3,000 m under optimal conditions.
Q: Does Konmask provide a test report or certificate of conformance?
A: Yes. A functional test report and certificate of conformance (CoC) can be provided upon request at no additional charge.
Q: What is the lead time for bulk orders (>10 units)?
A: Bulk orders are subject to stock availability. Contact [email protected] for a dedicated bulk pricing and lead time assessment.
