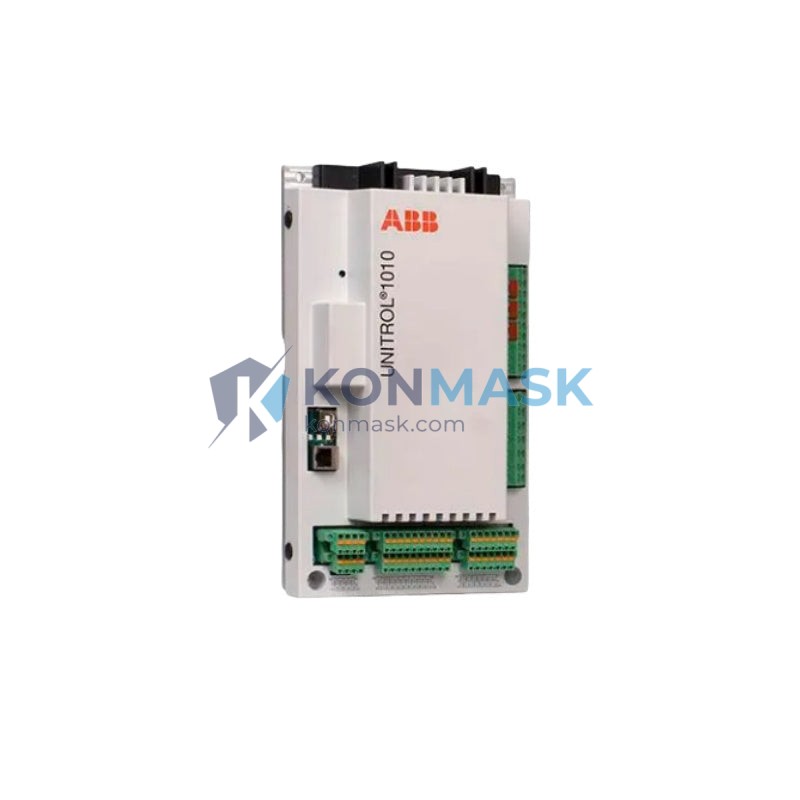

ABB 3BHE035301R1002 – Excitation Control Unit | AC800PEC Platform
Engineering Background: The ABB 3BHE035301R1002 (UNS0121A-Z, V1) is a high-performance excitation control unit engineered for ABB’s AC800PEC high-performance controller platform. Designed for demanding power generation and industrial drive applications, this module delivers precise, real-time excitation regulation with deterministic response times critical to grid-connected generator systems.
Product Positioning: Targeted at procurement engineers and maintenance teams managing ABB-based excitation systems in power plants, hydro turbines, and large synchronous motor installations. The 3BHE035301R1002 is a direct OEM replacement module, ensuring full compatibility with existing AC800PEC architectures without firmware re-engineering.
Complete Technical Specifications
- Part Number: 3BHE035301R1002
- Model / Variant: UNS0121A-Z, V1
- Manufacturer: ABB (ASEA Brown Boveri)
- Country of Origin: Sweden
- Platform: AC800PEC High-Performance Controller
- Module Type: Excitation Control Unit
- Series: UNS0121A-Z
- Hardware Version: V1
- Form Factor: Rack-mount / DIN-rail compatible module
- Communication Interface: Proprietary ABB backplane bus (AC800PEC)
- Operating Temperature: 0°C to +55°C (storage: -25°C to +70°C)
- Power Supply: Via AC800PEC backplane (24 VDC nominal)
- Weight: Approx. 500 g
- Compliance: CE, IEC 61131-2, RoHS
Proven Application Environments
- Hydro and thermal power plant excitation systems
- Large synchronous generator AVR (Automatic Voltage Regulator) loops
- Industrial synchronous motor drive control
- Grid-connected power conditioning and reactive power compensation
- ABB UNITROL® excitation system upgrades and replacements
- Offshore and onshore energy generation facilities
Engineering Advantages
- Deterministic Real-Time Control: Integrated with AC800PEC’s hard real-time OS for sub-millisecond excitation loop execution
- OEM Authenticity: Direct ABB factory part — no third-party remanufacturing, full firmware compatibility guaranteed
- Plug-and-Play Replacement: Drop-in replacement for existing UNS0121A-Z installations; no hardware modification required
- High Reliability: Designed to IEC 61131-2 industrial standards with extended MTBF for continuous 24/7 operation
- Reduced Commissioning Time: Pre-configured for AC800PEC backplane; minimal parameterization required on installation
System Architecture & Signal Flow
The 3BHE035301R1002 operates as a dedicated excitation control node within the AC800PEC rack. It receives setpoint commands from the master controller via the high-speed backplane bus, processes AVR algorithms in real time, and outputs regulated excitation current references to the power converter stage. Feedback signals (generator terminal voltage, field current) are sampled at high frequency to maintain tight voltage regulation under dynamic load conditions.
Typical signal flow: Master PLC (AC800PEC) → 3BHE035301R1002 Excitation Unit → Thyristor/IGBT Power Bridge → Generator Field Winding → Feedback to AVR Loop
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified OEM surplus stock
- Inspection: Each unit undergoes visual inspection, functional power-on test, and firmware version verification before shipment
- Traceability: Serial number and date code recorded; full documentation available on request
- Warranty: 12-month replacement warranty against manufacturing defects
- Packaging: ESD-safe anti-static bag, foam-padded export carton
Procurement Process
- Submit your RFQ or place order directly on Konmask.com
- Receive order confirmation and lead-time estimate within 24 hours
- Pre-shipment inspection report and photos provided upon request
- Worldwide DHL / FedEx / UPS express shipping with full tracking
- Post-delivery technical support available via email or phone
Technical FAQ
Q: Is the 3BHE035301R1002 compatible with all AC800PEC rack configurations?
A: Yes. The UNS0121A-Z V1 is designed for standard AC800PEC backplane slots. Confirm your rack firmware version with ABB documentation before installation.
Q: Can this unit be used as a standalone excitation controller?
A: No. It requires the AC800PEC host controller for configuration, communication, and supervisory control. It is not a standalone device.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact us for current availability confirmation.
Q: Do you provide a test report?
A: Yes. A functional test report is available upon request at no additional charge.
Q: Is export to my country supported?
A: We ship globally. Please contact us to confirm any export control requirements for your destination country.
