ABB 3BHL000986P3012 5SDD2545L0001 IGCT Module | Replacement, Equivalent & Selection Guide

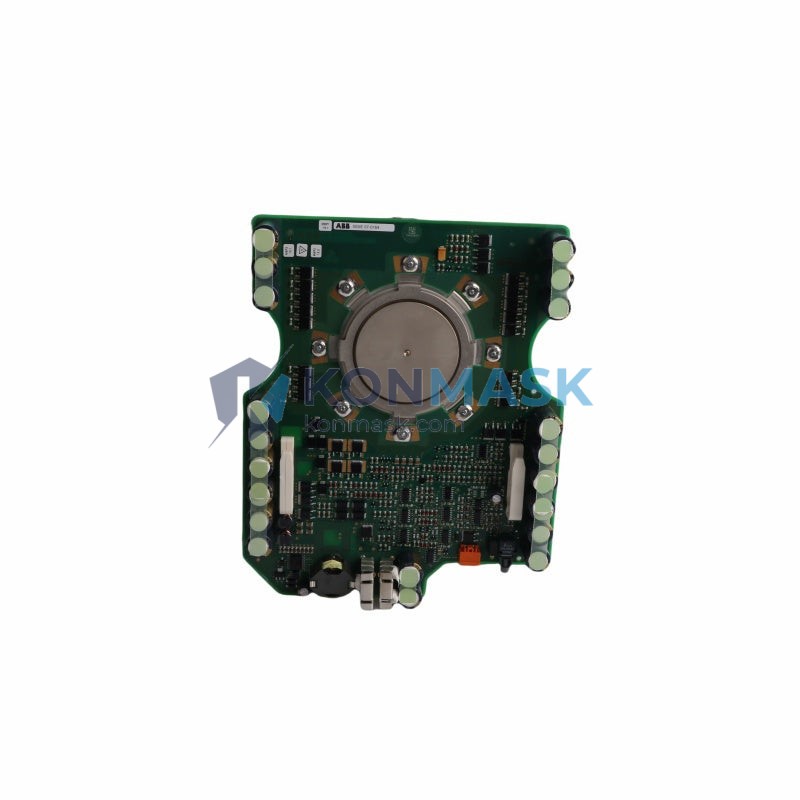

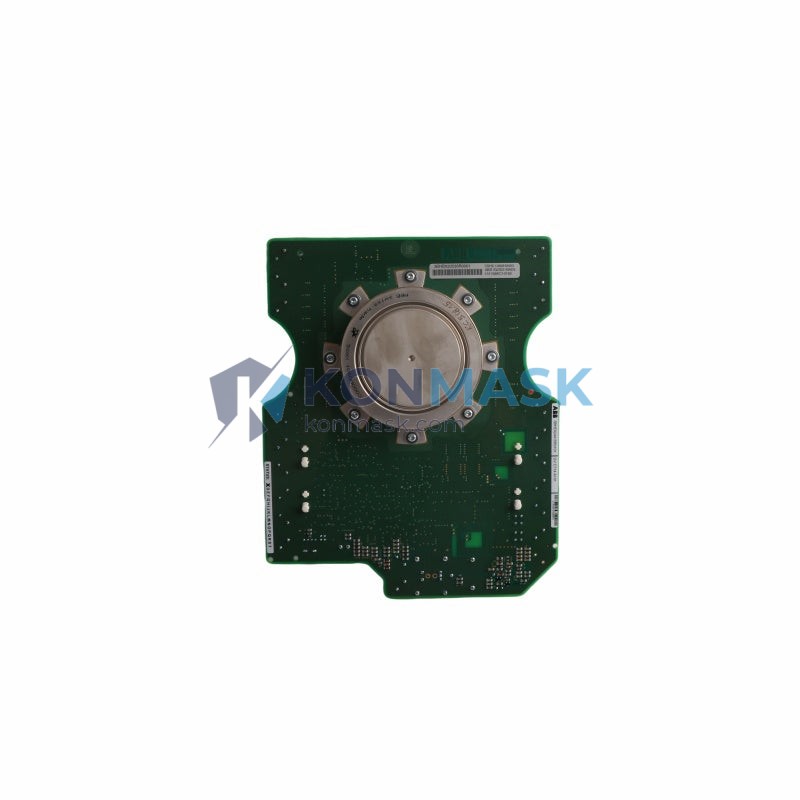

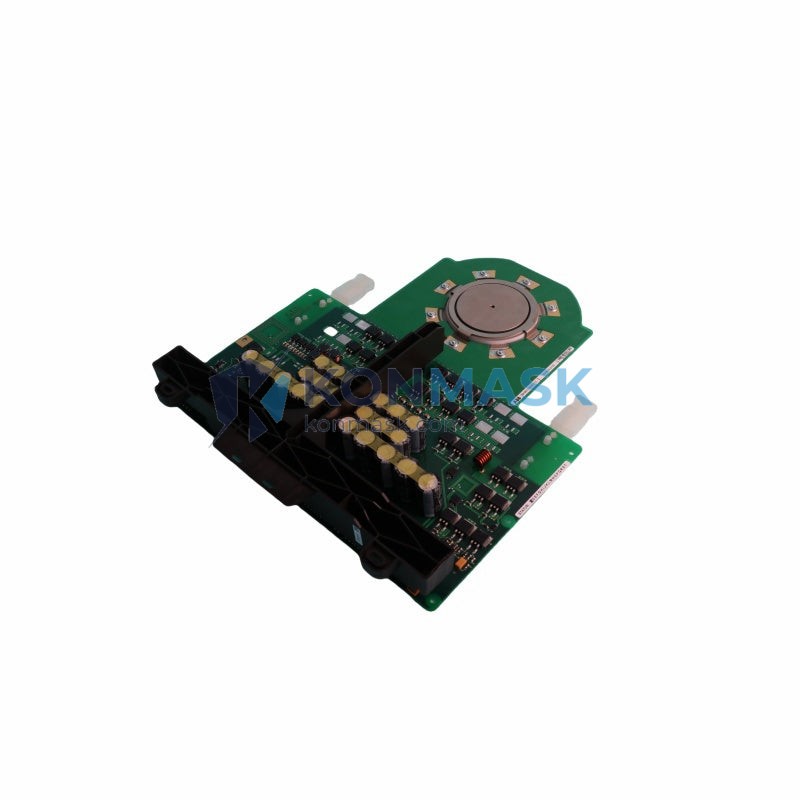

The ABB 3BHL000986P3012 / 5SDD2545L0001 is a high-power Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial power conversion applications. Konmask.com supplies genuine and verified-equivalent units with full traceability for MRO and OEM procurement.
Technical Specifications
| Manufacturer | ABB (Asea Brown Boveri) |
| Part Number | 3BHL000986P3012 |
| Device Type | 5SDD2545L0001 |
| Component Type | IGCT – Integrated Gate-Commutated Thyristor |
| Series | ABB 5SDD / 3BHL Power Semiconductor Series |
| Topology | Asymmetric GCT with integrated gate unit |
| Voltage Class | High voltage (consult datasheet for VDRM/VRRM) |
| Current Rating | High current (consult datasheet for ITGQM) |
| Gate Drive | Integrated gate drive electronics |
| Cooling | Press-pack / liquid-cooled compatible |
| Weight (listed) | ~80 g (module only) |
| Compliance | CE, RoHS-compatible |
Note: Always verify exact electrical parameters against the ABB 5SDD2545L0001 datasheet before substitution.
Compatible Replacement & Equivalent Models
When the original 3BHL000986P3012 / 5SDD2545L0001 is unavailable, the following models may serve as functional equivalents depending on system design tolerances. Always confirm with your system engineer before substitution.
| Part Number | Manufacturer | Notes |
|---|---|---|
| 5SDD2545L0002 | ABB | Revised revision – verify gate drive compatibility |
| 5SDD2545L0003 | ABB | Later revision; check firmware/gate unit version |
| 3BHL000986P3010 | ABB | Lower-suffix variant; confirm voltage/current class |
| 5SHY3545L0001 | ABB | IGCT alternative series; verify package dimensions |
| CM1200HC-66R | Mitsubishi | IGBT alternative; different topology – engineering review required |
⚠ Disclaimer: Cross-references are provided for reference only. Konmask.com does not guarantee drop-in compatibility. Consult your OEM documentation.
Why Choose the Original Model
- Proven reliability in ABB ACS/ACS6000, PCS6000, and MEGADRIVE-LCI drive platforms
- Integrated gate unit eliminates external gate driver complexity
- Press-pack construction ensures superior thermal cycling endurance
- Factory-matched gate drive timing for optimal dv/dt and di/dt control
- Full ABB traceability – date code, lot number, and test certificates available
Typical Applications
- Medium-voltage variable frequency drives (MVDs) – ABB ACS6000, ACS5000
- Static VAR compensators (SVC) and STATCOM systems
- High-power UPS and energy storage converters
- Wind turbine full-power converters
- Traction and railway power conversion
- Industrial motor drives >1 MW
System Compatibility
| Platform | Compatibility |
|---|---|
| ABB ACS6000 Drive | ✅ Direct fit (verify firmware revision) |
| ABB PCS6000 Converter | ✅ Confirmed compatible |
| ABB MEGADRIVE-LCI | ✅ Confirmed compatible |
| ABB ACS5000 | ⚠ Verify gate unit interface version |
| Third-party MV drives | ⚠ Engineering review required |
Selection Guide
Use the following criteria to confirm the 3BHL000986P3012 / 5SDD2545L0001 is the correct choice for your application:
- Voltage class – Match VDRM/VRRM to your DC bus voltage with ≥20% derating margin.
- Current rating – Confirm ITGQM ≥ peak load current under worst-case conditions.
- Gate drive interface – Verify compatibility with existing gate unit (3BHB series).
- Cooling system – Confirm liquid cooling flow rate and thermal resistance match.
- Revision level – Match P3012 suffix to your drive’s BOM to avoid firmware conflicts.
- Quantity – IGCT modules are typically installed in series/parallel stacks; order matched sets.
Quality Assurance & Sourcing
- ✅ Genuine ABB stock sourced from authorized distribution channels
- ✅ Visual & functional inspection performed before shipment
- ✅ Anti-static packaging with humidity indicator cards
- ✅ Certificate of conformance available on request
- ✅ Traceability documentation (date code, lot, test report) provided
- ✅ Export compliance – ECCN classification and customs documentation supported
How to Order
- Add ABB 3BHL000986P3012 / 5SDD2545L0001 to cart, or contact us for bulk/project pricing.
- Provide your application details (drive model, firmware version, quantity) for pre-sales verification.
- Receive order confirmation with lead time and shipping options (DHL Express / sea freight).
- Shipment with full documentation: packing list, CoC, invoice, and export declaration.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace 5SDD2545L0001 with 5SDD2545L0002?
A: Possibly. Revision L0002 may have updated gate drive timing. Confirm with ABB service documentation or contact us for guidance.
Q: Is this module repairable?
A: ABB IGCT press-pack modules are generally not field-repairable. Replacement is the standard MRO approach.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items typically have a 4–12 week lead time depending on ABB production schedules.
Q: Do you provide test reports?
A: Yes. Static parameter test reports are available for all units upon request.
Q: Can you supply matched pairs or sets?
A: Yes. For series/parallel stacks, we can supply matched sets with consistent date codes and test parameters.
