ABB 3BSC950089R3 TK801V012 Modulebus Extension Shielded Cable – AC800M Controller Series
In a modern distributed control system, every millisecond of communication latency matters. When the Modulebus cable connecting your AC800M controller to its I/O modules fails or is absent, the entire process loop goes blind — operators lose real-time feedback, safety interlocks may trip, and unplanned downtime cascades across the production line. The ABB 3BSC950089R3 TK801V012 Modulebus Extension Shielded Cable is the precision-engineered link that keeps your AC800M backbone communicating without interruption.
The TK801V012 is ABB’s purpose-built shielded extension cable for the AC800M Modulebus architecture — one of the most widely deployed DCS platforms in power generation, oil & gas, pulp & paper, and chemical processing worldwide. As part number 3BSC950089R3, this cable is a genuine ABB spare that meets the exact impedance, shielding, and connector specifications required by the AC800M backplane, ensuring signal integrity across the full Modulebus segment length. Its global installed base and long product lifecycle make it a critical stocking item for any plant maintenance team running ABB automation infrastructure.
Technical Specifications

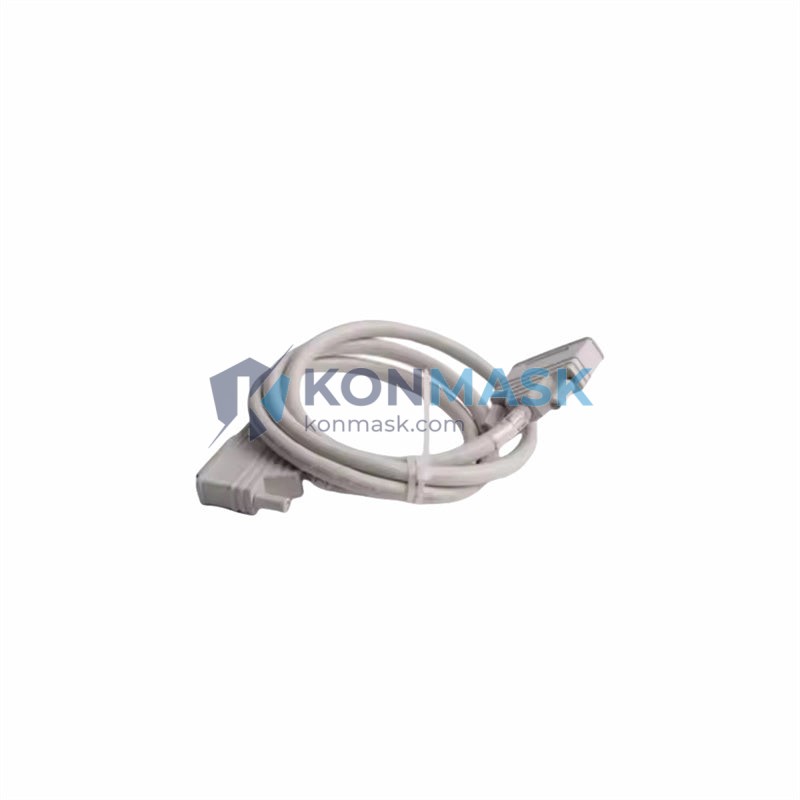

- Part Number: 3BSC950089R3
- Cable Type: TK801V012 Modulebus Extension Shielded Cable
- Brand: ABB
- Series: AC800M / Modulebus
- Application: Modulebus segment extension between AC800M controller and I/O modules
- Shielding: Full electromagnetic shielding for noise immunity in industrial environments
- Weight: 4,460 g (approx.)
- Condition: New / Refurbished available — specify on inquiry
- Compliance: Designed to ABB AC800M system specifications
Key Features & Benefits
- OEM-Grade Signal Integrity: Matched impedance and shielding prevent data corruption on the Modulebus, eliminating spurious I/O faults.
- Plug-and-Play Compatibility: Designed exclusively for ABB AC800M backplane connectors — no adapters, no modifications required.
- Industrial-Grade Shielding: Full EMI/RFI shielding protects communication in electrically noisy plant environments (VFDs, high-voltage switchgear, welding equipment).
- Extended Segment Reach: Allows flexible physical layout of AC800M I/O racks without compromising Modulebus timing.
- Long Product Lifecycle Support: ABB AC800M is a long-lifecycle platform; genuine spare cables ensure continued system support without costly controller upgrades.
- Reduced Troubleshooting Time: Using the correct OEM cable eliminates cable-related diagnostic ambiguity during fault-finding.
Industry & Equipment Applications
- Power Generation: Turbine control, boiler management, and balance-of-plant automation using ABB AC800M DCS.
- Oil & Gas: Upstream/downstream process control, compressor stations, and HIPPS safety systems.
- Pulp & Paper: Continuous digester control, recovery boiler automation, and paper machine drives.
- Chemical & Petrochemical: Reactor control, distillation column automation, and batch process management.
- Water & Wastewater: SCADA-integrated pump station and treatment plant control.
- Marine & Offshore: Vessel automation and platform process control with ABB Marine DCS.
System Integration & Compatible Parts
The 3BSC950089R3 TK801V012 is designed for use within the ABB AC800M distributed control system ecosystem. Compatible and commonly paired components include:
- ABB AC800M PM851 / PM856 / PM860 / PM866 Controller Modules
- ABB S800 I/O Modules (AI810, AO810, DI810, DO810, etc.)
- ABB TB820V2 Modulebus Optical Port
- ABB CI854 / CI857 Communication Interface Modules
- ABB TK801V003 / TK801V006 Modulebus Cables (shorter variants)
When planning a Modulebus segment, ensure total cable length does not exceed ABB’s specified maximum for your controller revision. Contact our technical team for segment planning assistance.
Our Quality Assurance Process
At Konmask.com, every ABB spare part goes through a structured verification process before shipment:
- Source Verification: Parts are sourced from authorized distributors, certified MRO suppliers, or decommissioned systems with documented history.
- Visual & Physical Inspection: Connectors, shielding integrity, jacket condition, and labeling are inspected against ABB OEM standards.
- Documentation: Each shipment includes available traceability documentation (test reports, certificates of conformity where applicable).
- Secure Packaging: Anti-static, moisture-resistant packaging with foam protection for international freight.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond within 24 business hours with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation and international shipping (DHL, FedEx, sea freight).
Why Choose Konmask.com?
- 🌐 Global B2B Supplier — Serving engineering firms, EPCs, and plant maintenance teams in 50+ countries.
- 🔧 Technical Expertise — Our team includes experienced automation engineers who understand your system context.
- 📦 Fast Sourcing — Access to global MRO networks for hard-to-find ABB legacy and current-generation parts.
- 📋 Full Documentation — Traceability records, packing lists, and commercial invoices for customs clearance.
- 🤝 Dedicated Account Support — One point of contact from inquiry to delivery.
Frequently Asked Questions
Q: Is the 3BSC950089R3 the same as TK801V012?
A: Yes. 3BSC950089R3 is ABB’s catalog part number for the TK801V012 Modulebus Extension Shielded Cable. Both designations refer to the same product.
Q: What is the maximum Modulebus segment length supported?
A: Maximum segment length depends on the AC800M controller revision and number of nodes. Please consult ABB’s AC800M Hardware Configuration manual or contact our technical team for your specific topology.
Q: Can I use a third-party cable instead of the OEM TK801V012?
A: ABB does not recommend substituting third-party cables on the Modulebus. Impedance mismatches can cause intermittent communication errors that are difficult to diagnose. Using the genuine 3BSC950089R3 eliminates this risk.
Q: Do you offer expedited shipping for urgent plant shutdowns?
A: Yes. Please indicate urgency in your inquiry and we will prioritize sourcing and arrange express courier (DHL Express, FedEx Priority) to your site.
Q: What warranty applies to this part?
A: Warranty terms depend on part condition (new vs. tested/refurbished). Details are provided in the formal quotation. Please specify your requirement when inquiring.
