ABB 3BSE003127R1 DSAI130D Analog Input Module | Replacement, Equivalent & Selection Guide

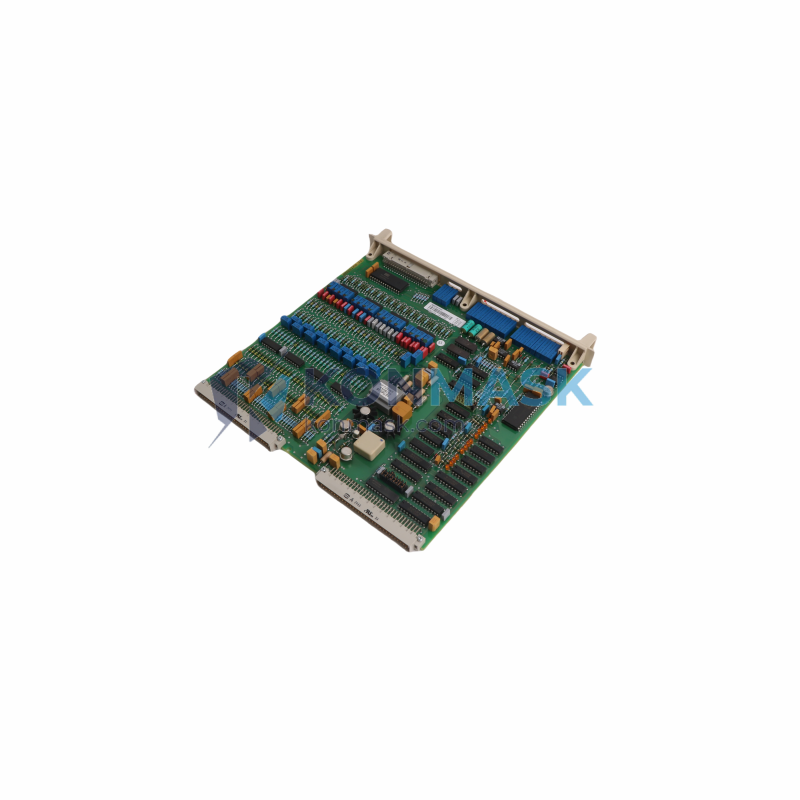

The ABB 3BSE003127R1 DSAI130D is a 16-channel analog input module designed for ABB’s Advant OCS and MOD 300 distributed control systems. Konmask.com stocks genuine and compatible units, fully tested and ready to ship — minimizing your downtime and simplifying your spare-parts sourcing.
Technical Specifications
- Part Number: 3BSE003127R1
- Module Type: DSAI130D — Analog Input Module
- Series: Advant OCS / MOD 300
- Manufacturer: ABB
- Input Channels: 16 channels
- Signal Types: 4–20 mA, 0–10 V DC, thermocouple, RTD (configurable per channel)
- Resolution: 12-bit A/D conversion
- Isolation: Galvanic isolation between field and system bus
- Power Supply: 24 V DC (via backplane)
- Communication: S100 I/O bus
- Operating Temperature: 0 °C to +55 °C
- Weight: 460 g
- Dimensions: Standard Advant S100 module form factor
- Certifications: CE, UL (system-level)
Compatible Replacement & Equivalent Models
When the DSAI130D (3BSE003127R1) is unavailable or end-of-life, the following models are commonly evaluated as replacements. Always verify firmware revision and backplane compatibility before substitution.
| Model | Part No. | Channels | Signal Type | Compatibility Note |
|---|---|---|---|---|
| DSAI130D | 3BSE003127R1 | 16 | mA / V / TC / RTD | Original — direct fit |
| DSAI130 | 3BSE003124R1 | 16 | mA / V | Earlier revision; no TC/RTD support |
| DSAI133 | 3BSE018293R1 | 16 | mA / V / TC / RTD | Enhanced version; check firmware |
| AI810 | 3BSE008516R1 | 8 | 4–20 mA | AC800M platform; not pin-compatible |
| AI820 | 3BSE008544R1 | 8 | 4–20 mA HART | AC800M platform; HART capable |
Contact Konmask.com for cross-reference verification before ordering a substitute.
Why Choose the Original Model
- Drop-in replacement: Identical S100 bus pinout — no rewiring or configuration changes required.
- Full signal flexibility: Supports mA, voltage, thermocouple, and RTD inputs on the same module.
- Proven reliability: Widely deployed in petrochemical, power generation, and pulp & paper plants worldwide.
- Long service life: Robust design rated for continuous industrial operation at up to 55 °C.
- Simplified sparing: One module covers multiple signal types, reducing spare-parts inventory complexity.
Typical Applications
- Process temperature monitoring via thermocouple or RTD inputs
- Flow, pressure, and level measurement (4–20 mA transmitters)
- Analyzer signal acquisition in refinery and chemical plants
- Boiler and turbine control in power generation facilities
- Pulp & paper process control and batch management
System Compatibility
- ABB Advant OCS (Operator Control Station) — primary platform
- ABB MOD 300 — fully compatible via S100 I/O bus
- Advant Controller AC410 / AC450 — compatible with correct S100 bus configuration
- Not compatible with AC800M, AC800PEC, or System 800xA I/O platforms without an I/O adapter.
Selection Guide
Use the decision tree below to confirm the right module for your application:
- Platform check: Confirm your DCS is Advant OCS or MOD 300 with S100 I/O bus.
- Signal type: If you need TC or RTD inputs, DSAI130D is required (DSAI130 does not support these).
- Channel count: Need more than 16 channels? Stack additional DSAI130D modules — no gateway required.
- HART requirement: DSAI130D does not support HART. If HART is needed, consider migrating to AI820 with an appropriate bus adapter.
- Revision matching: Match the hardware revision (R1) to your existing backplane firmware to avoid compatibility issues.
Quality Assurance & Sourcing
- All units undergo power-on functional testing prior to shipment.
- Sourced from decommissioned plant upgrades, authorized distributors, and OEM surplus — traceable supply chain.
- Shipped in anti-static packaging with individual inspection records.
- 90-day warranty on all tested units; extended warranty available on request.
- Export compliance: HS Code 8537.10 — please confirm import regulations for your destination country.
How to Order
- Add ABB 3BSE003127R1 DSAI130D to cart and proceed to checkout.
- For bulk orders (>3 units) or urgent requirements, email [email protected] for a dedicated quote.
- Lead time: In-stock units ship within 1–3 business days; sourced units 5–10 business days.
- Payment: T/T, PayPal, credit card accepted. LC available for orders > USD 5,000.
Replacement & Compatibility FAQ
Q: Can DSAI130 (3BSE003124R1) replace DSAI130D directly?
A: Only if your application uses mA or voltage inputs exclusively. DSAI130 does not support thermocouple or RTD inputs.
Q: Is DSAI133 a drop-in replacement for DSAI130D?
A: Physically compatible on the S100 bus, but firmware and configuration differences may require engineering review. Contact us for a compatibility assessment.
Q: Do you supply tested or as-removed units?
A: Both options are available. All tested units include a functional test report. As-removed units are clearly labeled and priced accordingly.
Q: Can this module be used in a System 800xA environment?
A: Not directly. System 800xA uses a different I/O architecture. An S100 I/O bus adapter or migration to native 800xA I/O modules is required.
Q: What is the lead time for out-of-stock units?
A: Typically 5–10 business days for sourced units. Contact us with your urgency and we will prioritize accordingly.
