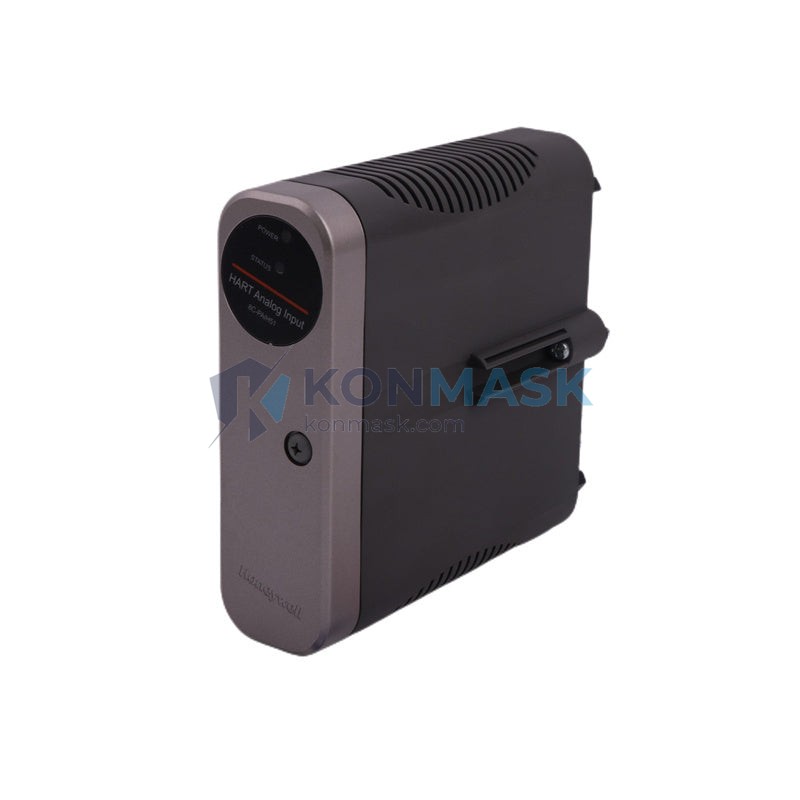

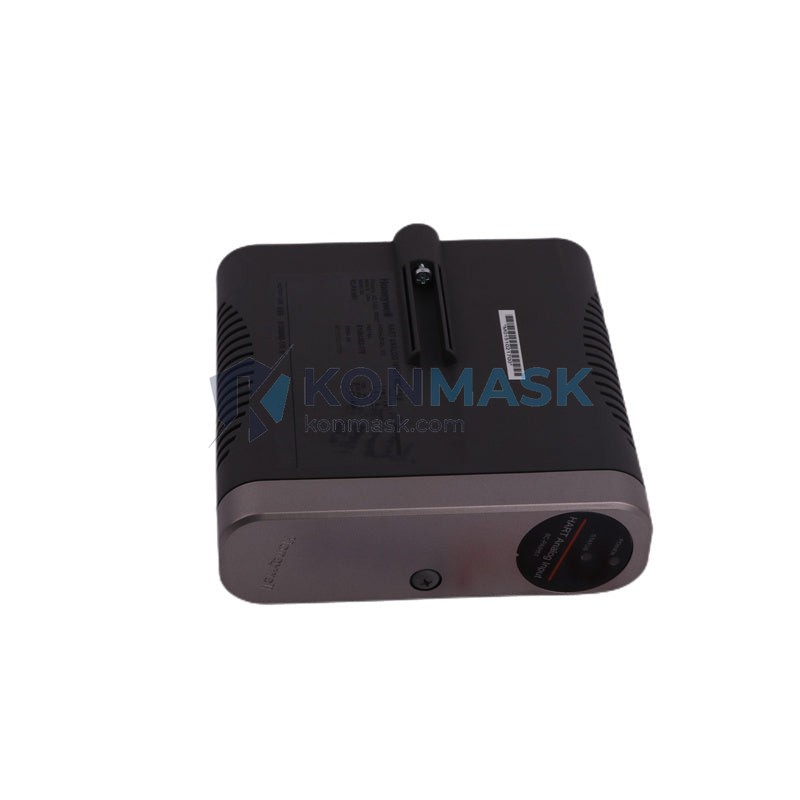

HONEYWELL 8C-PAIH51 HART Analog Input Signal Conditioning – Experion PKS Series
When a HART analog input module fails in a live process plant, the consequences are immediate and measurable: field transmitters go blind, loop controllers lose their process variable, and operators are forced into manual mode—or worse, a full unit shutdown. In refinery crude units, chemical reactors, and offshore platform topsides, even a 30-minute unplanned outage can cost tens of thousands of dollars per hour. The HONEYWELL 8C-PAIH51 (Part No. 51454352-175) is the module that keeps those loops alive, delivering reliable HART-enabled analog signal acquisition directly into the Experion PKS control backbone.
Within the Experion PKS C300 Controller ecosystem, the 8C-PAIH51 occupies a specific and non-substitutable role: it is the 8-channel HART analog input I/O module designed for the Series C I/O subsystem. Unlike generic 4–20 mA input cards, this module supports simultaneous HART communication on all channels, enabling device diagnostics, secondary variable polling, and remote configuration without breaking the primary process signal. It is widely deployed across Honeywell’s installed base in oil & gas, petrochemical, and power generation facilities globally.
Technical Specifications
Electrical
- Input Type: 4–20 mA analog with simultaneous HART (revision 5/6/7)
- Number of Channels: 8 (single-ended)
- Input Impedance: ≤250 Ω (HART load resistor integrated)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale at 25°C
- Common Mode Rejection: >120 dB at 50/60 Hz
- Channel-to-Channel Isolation: 250 V AC (per channel)
- Power Consumption: Supplied via Series C I/O bus
Mechanical
- Part Number: 8C-PAIH51
- Alternate Part Number: 51454352-175
- Form Factor: Series C I/O module (plug-in card)
- Weight: Approx. 300 g
- Connector: Series C I/O backplane edge connector
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
Certifications & Standards
- HART Communication Foundation certified
- CE marked (EMC Directive)
- Designed to IEC 61511 (functional safety) application requirements
- Industry standard reference: IEC 61784 (fieldbus communication profiles)
Key Features & Benefits
- 8-Channel Simultaneous HART Communication – All 8 channels support concurrent HART polling without multiplexing delays, reducing device diagnostic scan cycles from minutes to seconds in large loop counts.
- 16-Bit A/D Resolution at ±0.1% Accuracy – Meets the signal fidelity requirements of custody transfer and advanced process control (APC) applications where measurement drift directly impacts product quality or regulatory compliance.
- Integrated HART Load Resistor – Eliminates the need for external resistor modules in the marshalling cabinet, reducing wiring complexity and potential failure points in the signal path.
- Native Experion PKS Integration – Recognized and configured directly within Honeywell’s Control Builder environment; no third-party driver or OPC gateway required, preserving system certification integrity.
- Channel-to-Channel Isolation at 250 V AC – Compliant with IEC 61010-1 for measurement category II, protecting the controller backplane from ground loops and transient surges common in heavy industrial environments.
- Hot-Swap Capable on Series C Backplane – Supports module replacement under power in non-SIL-rated loops, enabling maintenance without process interruption and reducing mean time to repair (MTTR).
Industry & Equipment Applications
- Oil & Gas – Upstream: Wellhead pressure and temperature transmitter loops, separator level control, and multiphase flow measurement on production platforms.
- Oil & Gas – Downstream / Refining: Crude distillation unit (CDU) feed flow control, hydrocracker reactor temperature profiling, and product blending ratio control.
- Petrochemical & Chemical: Reactor jacket temperature monitoring, distillation column differential pressure measurement, and feed-forward control loops in continuous processes.
- Power Generation: Boiler drum level transmitter inputs, turbine lube oil pressure monitoring, and flue gas oxygen analyzer signal acquisition.
- Pulp & Paper: Digester pressure and temperature loop inputs, bleach plant chemical dosing flow measurement, and recovery boiler combustion air control.
- Water & Wastewater: Influent flow metering, dissolved oxygen analyzer inputs, and chemical dosing pump feedback loops in municipal treatment facilities.
System Integration & Compatible Parts
Upstream (Controller): HONEYWELL C300 Controller (51309276-175 / CC-PCNT01) – the 8C-PAIH51 mounts on the Series C I/O Link and communicates via the C300’s I/O bus.
Downstream (Field Wiring): Series C I/O Terminal Assembly (TA) – field cables terminate on the TA, which mates directly with the 8C-PAIH51 module slot.
Power Supply: Experion PKS Series C I/O Power Supply modules (e.g., 51454401-175) provide bus power; no separate module power wiring required.
Equivalent / Replacement Considerations:
- 8C-PAIH51 ↔ 51454352-175: These are the same module; the second number is the Honeywell catalog part number. Either reference is acceptable for ordering.
- Functional predecessor – CC-PAIH01: The older Experion LS analog input module is not a drop-in replacement; backplane connector and firmware addressing differ. Substitution requires engineering review.
- Non-HART analog input – 8C-PAIN51: If HART communication is not required, the 8C-PAIN51 provides 8-channel standard 4–20 mA input at lower cost, but loses all HART diagnostic capability.
Our Quality Assurance Process
Every 8C-PAIH51 module shipped from Konmask.com passes through a four-step verification process before dispatch:
- Visual & Mechanical Inspection: Board-level inspection for component damage, corrosion, bent connector pins, and label integrity. Modules with any physical anomaly are quarantined.
- Functional Power-On Test: Module is energized on a Series C test backplane. LED status indicators, backplane communication handshake, and channel response are verified against factory baseline behavior.
- HART Channel Verification: A calibrated HART field communicator is connected to each of the 8 channels to confirm HART token-passing, device descriptor recognition, and primary variable read-back within ±0.1% of injected signal.
- Documentation & Packaging: Test records are archived. Module is packed in anti-static ESD bag, foam-lined carton, and labeled with lot number and test date for full traceability.
Available documentation upon request: Test report, photos of physical condition, datasheet (Honeywell PM), certificate of conformance (CoC), and export packing list.
How to Order
- Submit Your Inquiry: Send your required part number (8C-PAIH51 or 51454352-175), quantity, and destination country via the contact form or email [email protected].
- Receive Quotation: Our team will respond within 24 hours with availability, lead time, unit price (EXW/FOB Xiamen), and payment terms.
- Confirm & Ship: Upon order confirmation and payment, modules are packed, tested, and dispatched with full shipping documentation including commercial invoice and packing list.
📞 WhatsApp / WeChat: +0086 19859288691 | ✉️ [email protected]
Why Choose Konmask.com?
- Verified Stock, Not Broker Listings: We physically inspect and hold inventory in our warehouse—no drop-shipping from unknown third parties.
- HART-Level Functional Testing: Unlike general electronics resellers, our team tests HART channel integrity on every analog input module before shipment.
- B2B Export Experience: We handle export documentation, EXW/FOB/CIF terms, and customs paperwork for buyers in Southeast Asia, the Middle East, and Europe.
- Responsive Technical Support: Our engineers understand Experion PKS architecture and can advise on compatibility, firmware versions, and installation requirements—not just part numbers.
- Transparent Condition Reporting: Every module is sold with a clear condition statement (new surplus, refurbished, or used-tested) and photographic evidence. No surprises on arrival.
Frequently Asked Questions
Q: Is the HONEYWELL 8C-PAIH51 compatible with Experion PKS R500 and later firmware versions?
A: The 8C-PAIH51 is designed for the Experion PKS Series C I/O subsystem and is supported across Experion PKS R400 through R500+ releases. For specific firmware compatibility with your C300 controller revision, we recommend verifying against Honeywell’s I/O compatibility matrix or contacting our technical team with your controller firmware version.
Q: Can I use the 8C-PAIH51 HART analog input module as a direct replacement for a failed CC-PAIH01 in an older Experion LS system?
A: No—the 8C-PAIH51 is a Series C I/O module and is not physically or electrically compatible with the Experion LS (Series A/B) backplane. Substituting between these series requires a backplane and terminal assembly change, which constitutes a system modification requiring engineering sign-off.
Q: What is the lead time for the HONEYWELL 51454352-175 HART analog input module, and do you offer expedited shipping to the Middle East or Southeast Asia?
A: For in-stock units, we typically dispatch within 3–5 business days of order confirmation. Expedited air freight to UAE, Saudi Arabia, Singapore, and Malaysia is available via DHL Express or FedEx International Priority. Contact us with your destination for a freight quote.
