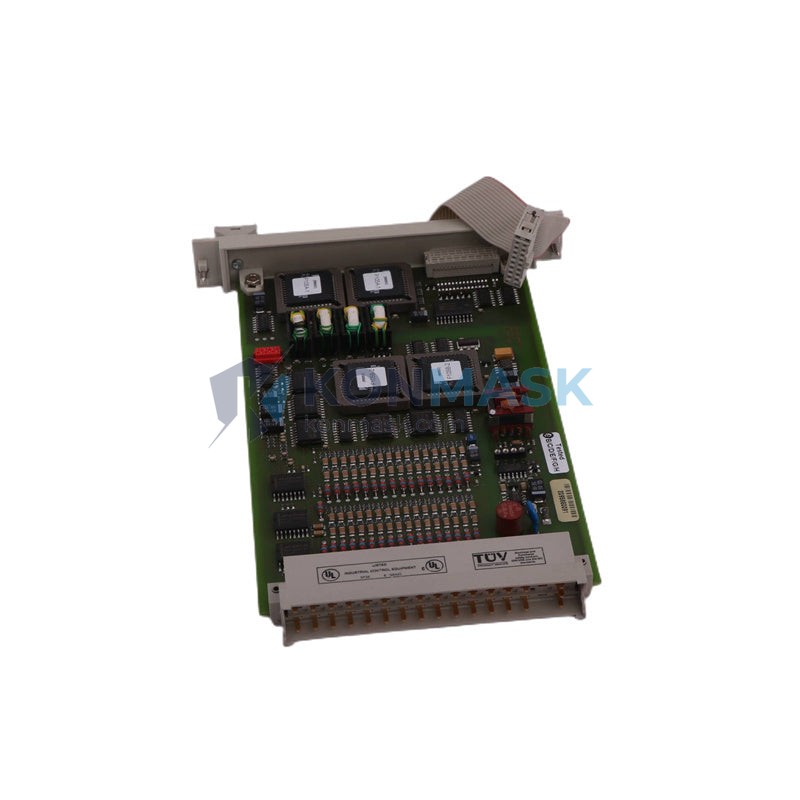

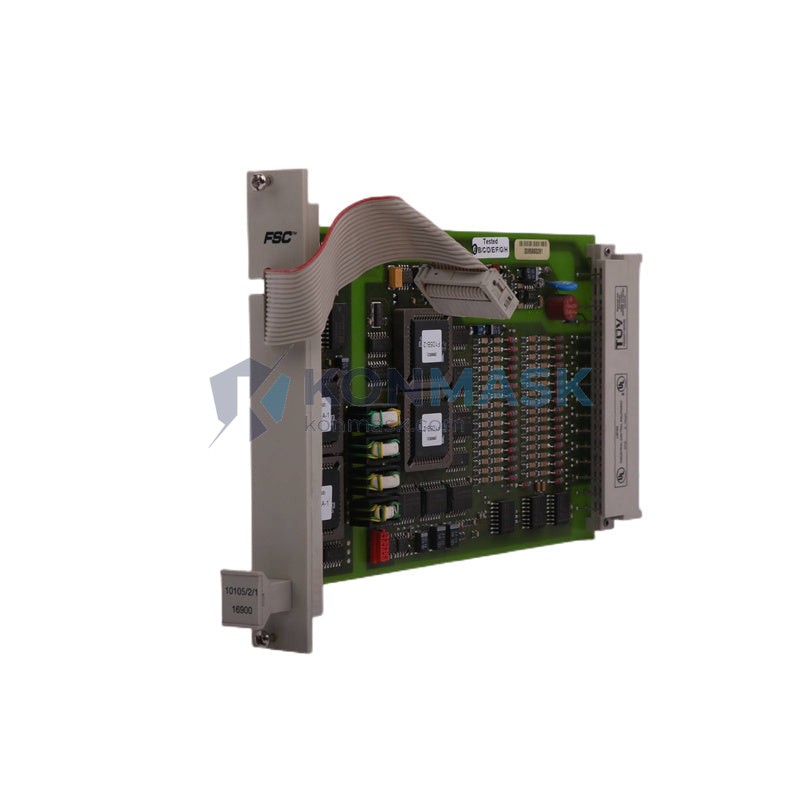

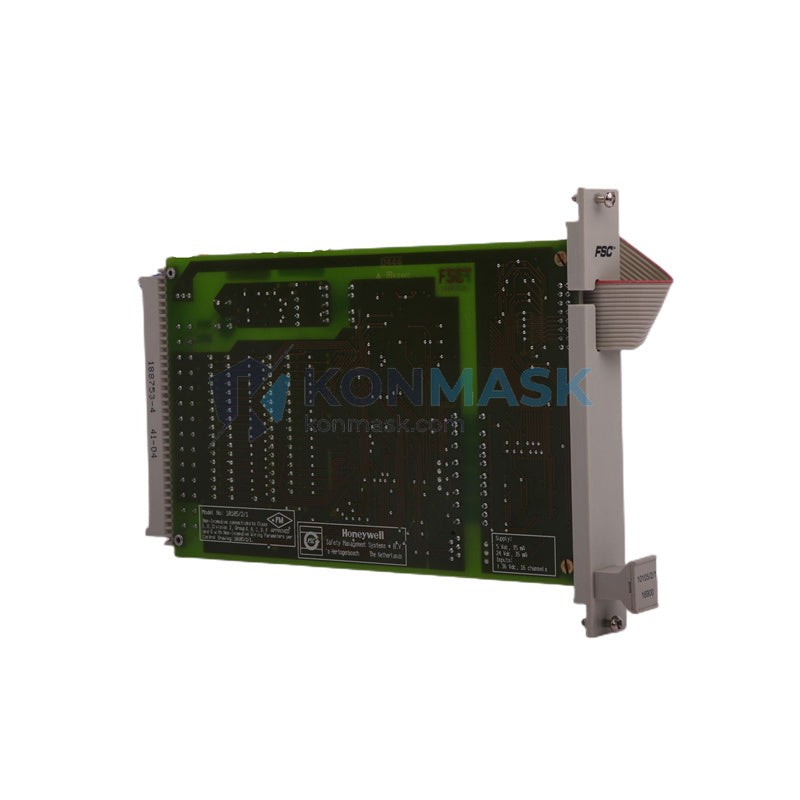

HONEYWELL 10105/2/1 – Analog Input Module | TDC 3000 / TotalPlant Solution Platform
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) and its successor TotalPlant Solution (TPS) represent one of the most widely deployed DCS architectures in continuous-process industries. Installed base spans refineries, ethylene crackers, power generation units, and municipal water treatment facilities commissioned from the 1980s through the 2000s. The 10105/2/1 is a field-proven analog input module residing in the High-Performance Process Manager (HPPM) or Basic Process Manager (BPM) subsystem, converting field-level 4–20 mA and voltage signals into engineering-unit values consumed by the control strategy. Its role is foundational: every PID loop, cascade, and feedforward scheme that depends on a field measurement passes through this class of module.
Product Positioning: Within the 10105 family, the /2/1 suffix designates a specific channel-count and isolation configuration optimized for high-density analog acquisition in environments where channel-to-channel isolation is required to prevent ground-loop interference. It is the preferred choice over the /1/1 variant when field wiring runs exceed 300 m or when signals originate from multiple earthing zones. It is not a universal replacement for the 10105/1/1 in all rack positions — slot assignment and firmware revision compatibility must be verified against the HPPM configuration database before substitution.
Complete Technical Specifications
Electrical
- Input Type: 4–20 mA (2-wire / 4-wire transmitter compatible), 1–5 V DC, thermocouple (with optional CJC)
- Input Channels: 16 channels per module (8 differential pairs)
- Resolution: 12-bit ADC (4096 counts), effective resolution ≥ 11.5 bits
- Accuracy: ±0.1% of full scale at 25 °C
- Input Impedance: ≥ 250 Ω (current mode); ≥ 1 MΩ (voltage mode)
- Channel Isolation: Channel-to-channel isolation ≥ 500 V DC (optical)
- Loop Power Supply: 24 V DC ± 10%, max 25 mA per channel
- Backplane Bus: TDC 3000 UCN / LCN compatible
- Power Consumption: ≤ 8 W from backplane
Mechanical
- Form Factor: Single-slot card, TDC 3000 standard card cage
- Dimensions: 233 mm × 160 mm × 25 mm (H × W × D)
- Weight: ~150 g (PCB assembly)
- Connector: 96-pin DIN 41612 Type C backplane connector
- Field Termination: Via FTA (Field Termination Assembly) — 16-channel FTA required
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6, 10–150 Hz, 1 g
- EMC: Designed to IEC 61000-4 series (ESD, EFT, surge, conducted RF)
- Altitude: Up to 2000 m without derating
Certifications
- CE Marking (EMC Directive 2014/30/EU)
- UL Listed (Industrial Control Equipment)
- FM Approved (Class I, Div 2, Groups A–D — with certified barrier)
- ATEX Zone 2 compatible (with certified Zener barriers or galvanic isolators)
Data source: Honeywell TDC 3000 Hardware Reference Manual (Doc. No. EP-DSS-300-R310), Honeywell PM/APM/HPPM I/O Module Specification Sheets. Specifications are representative; always cross-reference against the specific firmware revision installed in the target system.
Proven Application Environments
- Petroleum Refining – Crude Distillation Unit: Monitoring column tray temperatures and feed flow rates under continuous 24/7 operation with high ambient heat and hydrocarbon vapor exposure.
- Ethylene / Petrochemical Cracking: Acquiring furnace tube skin temperatures via thermocouple inputs across multiple earthing zones, where channel isolation prevents ground-loop faults from corrupting adjacent measurements.
- Coal-Fired Power Generation – Boiler Control: Reading drum pressure, steam flow, and feedwater flow transmitters in a high-EMI environment generated by large motor drives and switchgear.
- Combined-Cycle Gas Turbine (CCGT) Plant: Integrating with existing TDC 3000 HPPM racks for turbine exhaust temperature monitoring during load-following operation.
- Municipal Water Treatment – Filtration Control: Acquiring pH, turbidity, and flow signals from field transmitters distributed across a large site with mixed earthing infrastructure.
- Chemical Batch Processing – Reactor Monitoring: Handling multi-channel temperature and pressure acquisition during exothermic batch reactions where signal integrity is critical for safety interlock validation.
Engineering Advantages
- For multi-zone field wiring with mixed earthing, this analog input module provides channel-to-channel optical isolation ≥ 500 V DC, because ground-loop currents between zones would otherwise introduce measurement offsets exceeding process control tolerance.
- For high-density signal acquisition in constrained cabinet space, this module delivers 16 channels per single card-cage slot, because the TDC 3000 rack architecture limits available slots and each additional module requires a dedicated FTA and wiring harness.
- For aging TDC 3000 systems approaching end-of-support, this module maintains full backward compatibility with HPPM and BPM firmware, because replacing the control strategy or migrating to a new DCS platform carries significantly higher project risk and cost than sourcing verified spare modules.
- For transmitter loop diagnostics, this module supports HART pass-through (firmware-dependent), because field technicians can interrogate smart transmitters from the engineering workstation without breaking the 4–20 mA loop.
- For SIS boundary applications, this module’s FM Class I Div 2 rating (with appropriate barriers) allows installation in the same cabinet as SIS field wiring, because separate enclosures would increase installation cost and cable routing complexity.
- For procurement risk management, the /2/1 variant’s long installed base means verified refurbished units are available with full test records, because Honeywell’s TDC 3000 platform was deployed globally from the 1980s and a large secondary market of tested surplus stock exists.
System Architecture & Signal Flow
Field transmitters (4–20 mA, 2-wire or 4-wire) connect to the Field Termination Assembly (FTA). The FTA marshals signals through the module connector into the 10105/2/1 card. The on-board ADC samples each channel sequentially at the configured scan rate, applies engineering-unit conversion per the HPPM configuration database, and places the result on the UCN/LCN backplane for consumption by the Process Manager control strategy. Alarm limits, bad-value detection, and signal conditioning (filtering, square-root extraction for differential pressure flow) are applied in firmware.
Compatible Modules & Assemblies:
- 10105/1/1 – Single-ended input variant; compatible in the same rack but without channel-to-channel isolation. Suitable for short field runs within a single earthing zone.
- 10105/3/1 – Extended-range variant supporting ±10 V inputs; compatible where voltage-output transmitters are used.
- 51304485-150 / 51304485-175 – Honeywell FTA assemblies for 16-channel analog input termination; required for field wiring connection.
- 51401642-150 – Replacement FTA for high-density installations.
Substitution Conditions: The 10105/2/1 can substitute for a failed 10105/1/1 in the same slot provided: (1) the HPPM configuration database is updated to reflect the /2/1 isolation topology; (2) the FTA wiring is verified for differential-pair termination; (3) firmware revision is ≥ R310. Cross-substitution in the reverse direction is not recommended in multi-earthing-zone installations.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from decommissioned process plants, authorized surplus dealers, and controlled-environment storage facilities. Each unit undergoes the following verification process before listing:
- Visual Inspection: PCB examined for corrosion, component damage, burn marks, and connector pin integrity under magnification.
- Functional Power-On Test: Module installed in a TDC 3000-compatible test rack; backplane communication verified; all 16 channels stimulated with calibrated 4–20 mA source and output values compared against reference.
- Firmware Revision Check: EPROM or flash revision recorded and disclosed in shipment documentation.
- Packaging: Anti-static bag, foam-lined carton, humidity indicator card; shipped with desiccant for international orders.
Available Documentation (upon request):
- Functional test report with channel-by-channel measurement data
- Firmware revision label photograph
- Honeywell original datasheet / hardware reference excerpt
- Certificate of conformance (CoC) for export compliance
Procurement Process
- Inquiry Submission: Send the exact part number (10105/2/1), required quantity, and target delivery date to support@konmask.com or via the on-site inquiry form. Include the firmware revision if known.
- Stock Confirmation & Quotation: A response with stock status, unit price (HKD/USD), lead time, and shipping options will be provided within 24 hours on business days. For urgent plant shutdowns, same-day response is available — mark the inquiry URGENT – PLANT DOWN.
- Order Fulfillment: Upon payment confirmation, the unit is re-inspected, packaged, and dispatched within 1–2 business days. DHL Express, FedEx International Priority, and sea freight consolidation are available. A tracking number and test report are issued at shipment.
Technical Support: Pre-sale support includes compatibility verification against the target HPPM rack configuration, firmware revision guidance, and FTA selection. Post-sale support includes installation guidance and troubleshooting assistance via email or video call.
Technical FAQ
- Q: Is the 10105/2/1 compatible with the TotalPlant Solution (TPS) platform, or only TDC 3000?
- A: The module is compatible with both TDC 3000 and TPS environments, as TPS was designed as a superset of TDC 3000 hardware using the same HPPM card cage and backplane architecture. Verify that the TPS system firmware version supports the /2/1 isolation topology — confirmed in the HPPM Hardware Reference for TPS (Doc. EP-DSS-300-R400 and later).
- Q: Can the 10105/2/1 replace a 10105/1/1 without modifying the control strategy?
- A: In most cases, yes — the control strategy (function blocks, PV tags, alarm limits) does not require modification because the engineering-unit output format is identical. However, the HPPM hardware configuration database must be updated to reflect the /2/1 module type, and the FTA wiring must be verified for differential-pair termination. Failure to update the hardware configuration may result in the Process Manager flagging a hardware mismatch fault.
- Q: Is this module certified for use in Zone 1 hazardous areas?
- A: The 10105/2/1 itself is rated for installation in non-hazardous (safe-area) cabinet environments. For Zone 1 or Zone 2 hazardous area field wiring, certified Zener barriers (e.g., MTL 787+) or galvanic isolators must be installed between the field device and the FTA. The module’s FM Class I Div 2 rating applies to the cabinet location, not the field wiring zone. Always consult the site area classification drawing and IEC 60079 / NEC 500 requirements before installation.
