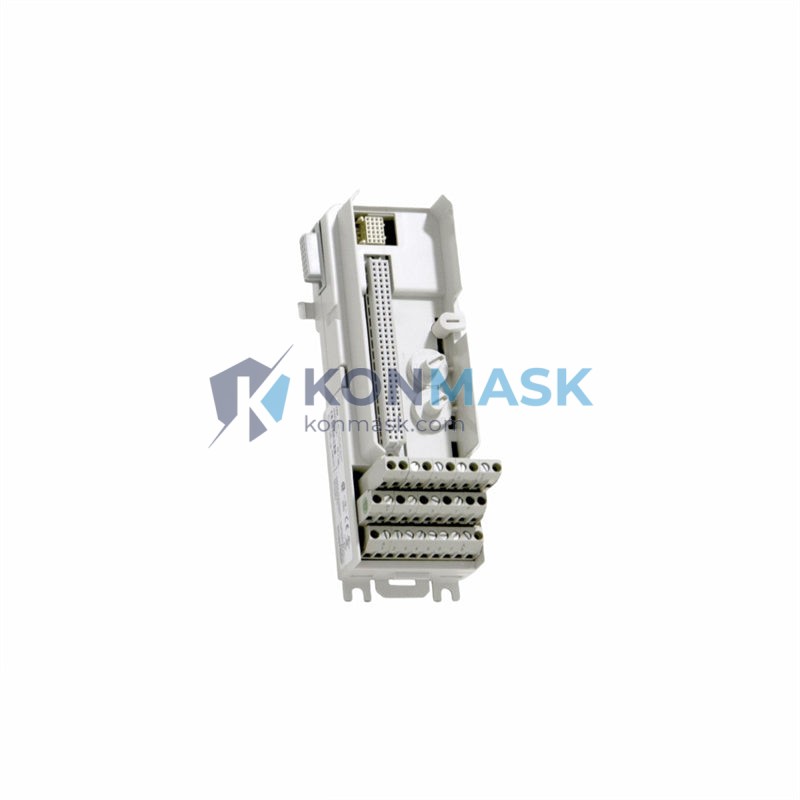

Industrial I/O Wiring Solution – ABB TU811V1 (3BSE013231R1) | AC800M Series
Where This Product Is Used
The ABB TU811V1 Compact Module Termination Unit (part number 3BSE013231R1) is engineered for field-level I/O wiring in ABB AC800M distributed control systems. Engineers specify this unit across a wide range of demanding industrial environments:
- Oil & Gas Processing Plants – Connects analog and digital I/O modules to field instruments such as pressure transmitters, flow meters, and control valves in ATEX-adjacent marshalling cabinets.
- Power Generation & Utilities – Provides reliable termination for turbine control, boiler management, and substation automation panels where signal integrity is critical.
- Chemical & Pharmaceutical Manufacturing – Used in GMP-compliant control cabinets requiring traceable, documented wiring infrastructure.
- Pulp & Paper / Water Treatment – Deployed in wet-environment control rooms where compact DIN-rail footprint and robust screw-terminal connections reduce maintenance downtime.
- Building Automation & HVAC – Integrates with AC800M controllers for large-scale BMS installations requiring modular, scalable I/O expansion.
Technical Specifications
- Part Number: 3BSE013231R1
- Model: TU811V1
- Series: AC800M / S800 I/O
- Type: Compact Module Termination Unit
- Manufacturer: ABB
- Mounting: DIN Rail (35 mm)
- Compatible Modules: AI810, AO810, DI810, DO810, and other S800 I/O modules
- Terminal Type: Screw-clamp field wiring terminals
- Weight: 940 g
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Protection Class: IP20 (panel-mounted)
- Compliance: CE, cULus, IEC 61131-2
Why Engineers Specify This Model
- Plug-and-Play Module Interface – The TU811V1 accepts S800 I/O modules without tools; the module snaps in and locks, eliminating wiring errors during commissioning.
- Compact Footprint – Optimized for high-density marshalling cabinets where panel space is at a premium.
- Hot-Swap Capability – Supports module replacement under power when used with redundant AC800M configurations, minimizing process interruptions.
- Integrated Bus Connection – Internal ModuleBus connector eliminates separate bus cables, reducing BOM complexity and installation time.
- Long Product Lifecycle – ABB AC800M platform is actively supported with a published lifecycle roadmap, protecting capital investment.
Complete System Bill of Materials
For a fully operational AC800M I/O node using the TU811V1, engineers typically specify:
- ABB TU811V1 (3BSE013231R1) – Compact Module Termination Unit (this item)
- ABB AI810 / AO810 / DI810 / DO810 – S800 I/O Signal Modules
- ABB TB820V2 (3BSE013208R1) – ModuleBus Modem (for remote I/O)
- ABB PM866 / PM891 – AC800M CPU Module
- ABB SD802F (3BSE020440R1) – Power Supply Module
- ABB CI854B (3BSE030220R1) – PROFIBUS DP Interface Module (if applicable)
Compliance & Industry Standards
- IEC 61131-2 – Programmable Controllers: Equipment Requirements & Tests
- CE Marking – EU Low Voltage Directive & EMC Directive
- cULus Listed – UL 508 Industrial Control Equipment
- RoHS Compliant – Restriction of Hazardous Substances
- ATEX-compatible cabinet integration (module itself is non-ATEX; consult ABB for zone-specific configurations)
Quality Assurance & Sourcing
All ABB modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware/revision verification against ABB product documentation
- Anti-static packaging with humidity indicator card
- Certificate of conformity available upon request
We do not supply grey-market, refurbished, or counterfeit components. Authenticity is guaranteed.
How to Source This Part
To place an order or request a quotation for the ABB 3BSE013231R1 TU811V1:
- Online: Add to cart directly on this page for in-stock units.
- Bulk / Project Orders: Contact support@konmask.com for volume pricing and lead-time confirmation.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock ABB orders typically 2–4 weeks.
Application-Specific FAQ
Q: Is the TU811V1 compatible with both S800 and S900 I/O modules?
A: The TU811V1 is designed for the S800 I/O family within the AC800M architecture. It is not directly compatible with S900 I/O modules, which use a different termination unit series.
Q: Can I replace an S800 module on the TU811V1 without shutting down the controller?
A: Yes. When the AC800M system is configured for redundancy or the I/O channel is in a safe state, modules can be hot-swapped. Always follow ABB’s commissioning guidelines (document 3BSE041434) before performing live replacements.
Q: What is the maximum number of TU811V1 units per ModuleBus segment?
A: ABB specifies a maximum of 12 S800 I/O modules per ModuleBus segment. Consult the AC800M Hardware Configuration manual (3BSE041434) for segment length and power budget calculations.
Q: Does Konmask provide ABB factory warranty on this part?
A: We supply genuine ABB parts. Warranty terms follow ABB’s standard product warranty policy. Contact us for project-specific warranty documentation requirements.
Q: Can this unit be used in SIL-rated safety loops?
A: The TU811V1 itself is not SIL-certified. For functional safety applications, ABB offers dedicated S800 I/O Safety modules with corresponding SIL-rated termination units. Contact our technical team for guidance.
