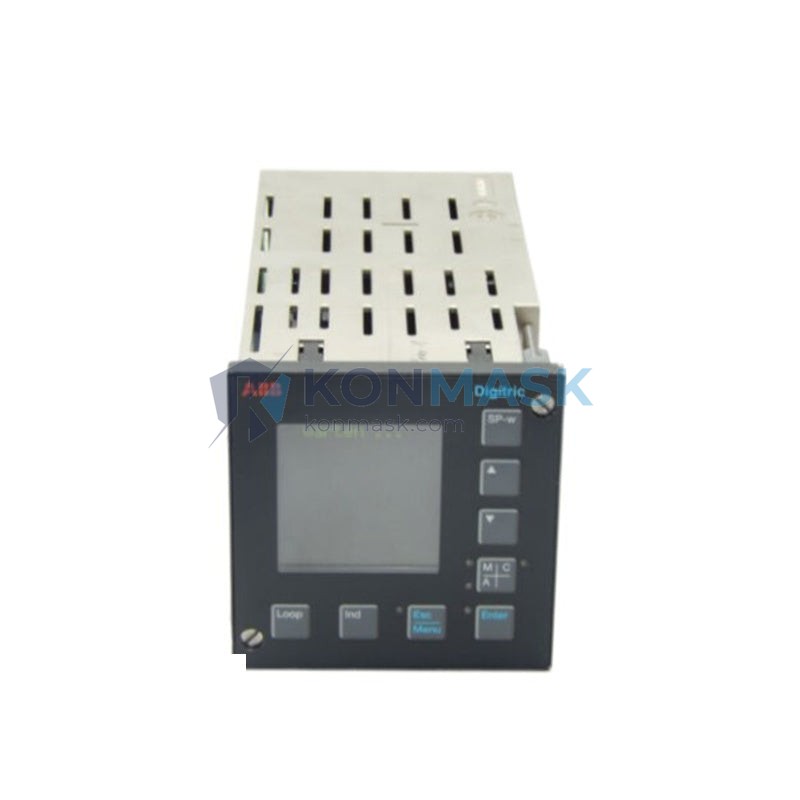

ABB DIGITRIC 500 61615-0-1200000 – Precision Panel Controller | DIGITRIC 500 Series
Engineering Background
The ABB DIGITRIC 500 series represents ABB’s flagship line of digital panel controllers engineered for demanding industrial process environments. Designed to meet the rigorous requirements of continuous process industries, the DIGITRIC 500 platform delivers high-accuracy measurement, robust PID control, and flexible signal conditioning in a compact DIN-rail or panel-mount form factor. Part number 61615-0-1200000 is a fully configured panel controller variant optimized for temperature and analog process variable regulation.
Product Positioning
Targeted at procurement engineers and system integrators in power generation, chemical processing, oil & gas, and heavy manufacturing, this controller bridges the gap between basic single-loop controllers and full DCS functionality. It is the preferred choice when engineers require deterministic loop control, multi-input flexibility, and seamless integration with existing ABB instrumentation infrastructure—without the overhead of a full distributed control system.
Complete Technical Specifications
| Manufacturer | ABB (Asea Brown Boveri) |
| Series | DIGITRIC 500 |
| Part Number | 61615-0-1200000 |
| Device Type | Digital Panel Controller |
| Control Mode | PID / ON-OFF / Manual |
| Input Types | Thermocouple (TC), RTD (Pt100/Pt1000), mA, mV, V (configurable) |
| Output Types | Relay, SSR drive, 4–20 mA analog (configurable per variant) |
| Display | Dual 4-digit LED display (PV / SP) |
| Setpoint Range | Full input range, configurable |
| Control Accuracy | ±0.2% FS typical |
| Power Supply | 85–265 V AC / 24 V DC (universal input) |
| Panel Cutout | 92 × 92 mm (1/4 DIN) |
| Enclosure Rating | IP54 (front panel) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Weight | ~900 g |
| Communication | RS-485 / MODBUS RTU (optional) |
| Certifications | CE, UL (refer to ABB datasheet for regional approvals) |
| SKU | DIGITRIC 500 61615-0-1200000 |
Proven Application Environments
- Power Generation: Boiler temperature regulation, turbine inlet control, and steam process monitoring
- Chemical & Petrochemical: Reactor temperature loops, distillation column control, and exothermic process management
- Oil & Gas: Pipeline heating trace control, separator temperature management, and wellhead instrumentation
- Pulp & Paper: Dryer section temperature profiling and digester pressure/temperature control
- Food & Beverage: Pasteurization loop control, CIP temperature management, and oven/kiln regulation
- HVAC & Building Automation: Chiller plant control, AHU temperature regulation, and district heating systems
- Pharmaceutical: Autoclave sterilization cycles, cleanroom temperature control, and validated batch processes
Engineering Advantages
- Universal Input Flexibility: Accepts TC, RTD, mA, mV, and voltage signals without hardware changes—reducing spare-part complexity across multi-sensor installations
- Auto-Tune PID: Integrated self-tuning algorithm minimizes commissioning time and optimizes loop stability for varying process dynamics
- Dual Display Architecture: Simultaneous PV and SP readout eliminates operator error during setpoint adjustment under live process conditions
- Compact 1/4 DIN Form Factor: Maximizes panel density in space-constrained control cabinets without sacrificing functionality
- Robust EMC Design: Engineered to ABB’s industrial EMC standards, ensuring reliable operation in high-noise electrical environments
- MODBUS RTU Integration: Native RS-485 support enables seamless SCADA/DCS integration without additional protocol converters
- Wide Power Supply Range: 85–265 V AC universal input eliminates the need for separate power conditioning in global deployments
System Architecture & Signal Flow
The DIGITRIC 500 61615-0-1200000 operates as a standalone single-loop controller within a hierarchical control architecture:
- Field Level: Process sensor (TC/RTD/transmitter) → 4–20 mA or direct mV/Ω signal → Controller input terminals
- Control Level: Internal A/D conversion → PID algorithm execution (configurable cycle time) → Output calculation
- Output Level: Relay contact / SSR drive / 4–20 mA retransmission → Final control element (valve, heater, VFD)
- Supervisory Level: RS-485 MODBUS RTU → SCADA / HMI / DCS historian for data logging and remote setpoint adjustment
- Alarm Management: Configurable high/low process alarms and deviation alarms with independent relay outputs
Sourcing & Quality Verification
- Origin: Genuine ABB manufactured component; sourced through verified industrial distribution channels
- Condition: New (factory-sealed) or refurbished units available—condition specified at time of quotation
- Traceability: Each unit ships with ABB part number label, serial number, and date code for full traceability
- Inspection: Pre-shipment functional verification available upon request (power-on test, display check, I/O continuity)
- Documentation: ABB datasheet, wiring diagram, and calibration certificate available upon request
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 30 days
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation: Receive formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation: Submit PO or place order directly via Konmask.com checkout
- Quality Check & Packing: Unit inspected, photographed, and packed in anti-static, shock-resistant packaging
- Shipping: DHL / FedEx / UCP express worldwide; EXW, FOB, CIF Incoterms available for bulk orders
- After-Sales: Technical support available post-delivery for installation and commissioning queries
Technical FAQ
Q: Is the 61615-0-1200000 compatible with Pt100 RTD sensors?
A: Yes. The DIGITRIC 500 supports Pt100 and Pt1000 RTD inputs natively. Confirm the input configuration code in your part number suffix before ordering.
Q: Can this controller communicate with a Siemens S7 PLC via MODBUS?
A: Yes. The RS-485 MODBUS RTU interface is vendor-agnostic and compatible with any MODBUS master, including Siemens S7, Allen-Bradley, and Schneider PLCs.
Q: What is the difference between the DIGITRIC 500 and DIGITRIC 600 series?
A: The DIGITRIC 600 offers expanded I/O, larger display, and enhanced communication options (PROFIBUS, Ethernet). The DIGITRIC 500 is optimized for cost-effective single-loop applications where those advanced features are not required.
Q: Do you supply the matching ABB wiring accessories and mounting hardware?
A: Yes. Panel cutout gaskets, mounting clips, and terminal covers are available. Specify when submitting your RFQ.
Q: What is the lead time for this part number?
A: In-stock units ship within 3–5 business days. Out-of-stock items typically have a 2–6 week lead time depending on ABB production schedules. Contact us for real-time availability.
