Industrial Drive & Pump Solution — ABB 3GAA081001-E | M2AA 80B-4 Series
Where This Product Is Used

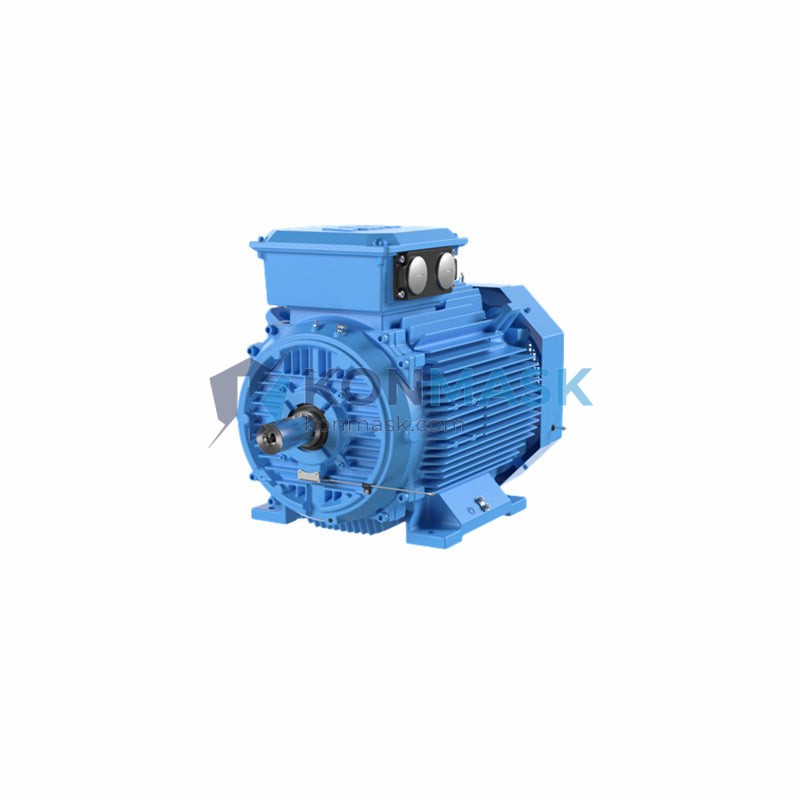

The ABB 3GAA081001-E is an aluminium-frame AC induction motor engineered for continuous-duty industrial applications where compact size, reliable torque delivery, and energy efficiency are critical. Typical deployment environments include:
- Conveyor & Material Handling Systems — drives belt conveyors, roller tables, and sorting lines in warehousing and logistics facilities.
- Pump & Fan Drives — paired with centrifugal pumps and HVAC fans in water treatment plants, building services, and process cooling loops.
- Packaging Machinery — powers filling, sealing, and labelling stations where a compact footprint and low vibration are mandatory.
- Light Compressor Duty — suitable for small reciprocating and rotary-vane compressors in workshop and pneumatic tool supply applications.
- Agitator & Mixer Drives — used in chemical dosing, food processing, and wastewater treatment agitators requiring steady low-speed torque.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 3GAA081001-E |
| Brand | ABB |
| Series | M2AA (MACH Aluminium) |
| Frame Size | IEC 80B |
| Rated Output Power | 0.75 kW (1.0 HP) |
| Number of Poles | 4-Pole |
| Synchronous Speed | 1500 RPM (50 Hz) / 1800 RPM (60 Hz) |
| Rated Speed (approx.) | 1390 RPM @ 50 Hz |
| Voltage | 230/400 V Δ/Y (50 Hz) | 265/460 V Δ/Y (60 Hz) |
| Efficiency Class | IE2 (High Efficiency) |
| Insulation Class | F (155 °C) |
| Protection Rating | IP55 |
| Cooling Method | IC411 (TEFC — Totally Enclosed Fan Cooled) |
| Mounting | B3 (Foot) / B14 (Face) — combination frame |
| Frame Material | Die-cast Aluminium |
| Weight | 2.45 kg (approx.) |
| HS Code | 8501.52 |
Why Engineers Specify This Model
- IE2 Efficiency — meets EU Regulation 640/2009 and equivalent international standards, reducing energy costs versus standard EFF2 motors by up to 3–5% at full load.
- Aluminium Frame Advantage — lighter than cast-iron equivalents, enabling easier installation in elevated or mobile machinery without sacrificing rigidity.
- IP55 Sealing — dust-tight and jet-water resistant, suitable for wash-down zones and outdoor-sheltered installations.
- Class F Insulation with Class B Temperature Rise — extended thermal margin prolongs winding life in high-ambient or variable-load duty cycles.
- Dual-Voltage Winding — single motor SKU covers both 50 Hz and 60 Hz markets, simplifying global machine builds and spare-parts inventory.
- VFD Compatible — suitable for use with ABB ACS series and third-party variable frequency drives for speed-controlled applications.
Complete System Bill of Materials
For a fully integrated drive system using the ABB 3GAA081001-E, engineers typically specify the following complementary components:
- Variable Frequency Drive — ABB ACS310-03E-07A5-4 (0.75 kW, 3-phase) for speed control and soft-start.
- Motor Circuit Breaker — ABB MS116-1.6 or equivalent (1.0–1.6 A setting range).
- Contactor — ABB A9-30-10 (9 A, 4 kW @ 400 V) for DOL starting.
- Overload Relay — ABB TA25DU-1.4 (1.0–1.4 A) for thermal protection.
- Flexible Coupling — jaw-type coupling, 19 mm bore, for pump or gearbox connection.
- Cable Gland — M20 × 1.5 brass gland for 6–12 mm cable OD.
Compliance & Industry Standards
- IEC 60034-1 — Rotating Electrical Machines: Rating and Performance
- IEC 60034-30-1 — Efficiency Classes (IE2 certified)
- EU Regulation No. 640/2009 (ErP Directive)
- CE Marked — Low Voltage Directive 2014/35/EU
- RoHS Compliant
- ISO 9001 Manufacturing Quality System (ABB Motors & Generators)
Quality Assurance & Sourcing
Konmask.com sources ABB motors exclusively through authorised distribution channels and verified industrial surplus networks. Every unit undergoes the following pre-shipment checks:
- Visual inspection of frame, shaft, and terminal box for transit damage.
- Insulation resistance test (Megger) — minimum 100 MΩ @ 500 VDC.
- Shaft rotation check for smooth bearing operation.
- Nameplate verification against order SKU (3GAA081001-E).
- Packaging integrity check with moisture-barrier wrap for sea-freight orders.
Original ABB documentation, including the motor data sheet and EU Declaration of Conformity, is available upon request.
How to Source This Part
To place an order or request a quotation for the ABB 3GAA081001-E:
- Online: Add to cart directly on this page. Secure checkout with T/T bank transfer, PayPal, and major credit cards accepted.
- Email RFQ: Send your quantity, required delivery date, and destination port to support@konmask.com.
- WhatsApp / WeChat: +0086 19859288691 — for urgent requirements and volume pricing.
- Lead Time: In-stock units ship within 1–3 business days. Ex-factory orders: 4–8 weeks.
- MOQ: 1 unit. Volume discounts available from 5 units.
Application-Specific FAQ
Q: Can this motor be used with a VFD for variable-speed pump control?
A: Yes. The 3GAA081001-E is suitable for inverter duty at a switching frequency of 3–12 kHz. For continuous operation below 25 Hz, ensure adequate external cooling or derate per ABB application guide.
Q: What is the shaft diameter and keyway dimension?
A: The IEC 80B frame specifies a 19 mm shaft diameter with a 6 × 6 × 40 mm keyway per DIN 6885.
Q: Is this motor suitable for outdoor installation?
A: IP55 protection makes it suitable for sheltered outdoor locations. For fully exposed outdoor duty, specify an IP65 variant or add a motor canopy.
Q: Can I replace a legacy EFF2 motor directly with this unit?
A: Yes. The M2AA 80B-4 maintains the same IEC 80 frame footprint and shaft dimensions as previous-generation motors, allowing direct drop-in replacement.
Q: What warranty applies?
A: Konmask.com provides a 12-month warranty against manufacturing defects from the date of shipment. ABB factory warranty terms apply to new-in-box units.
