ABB NKHS03-15 – Hydraulic Servo Termination Cable | NKHS Series Platform
Engineering Background

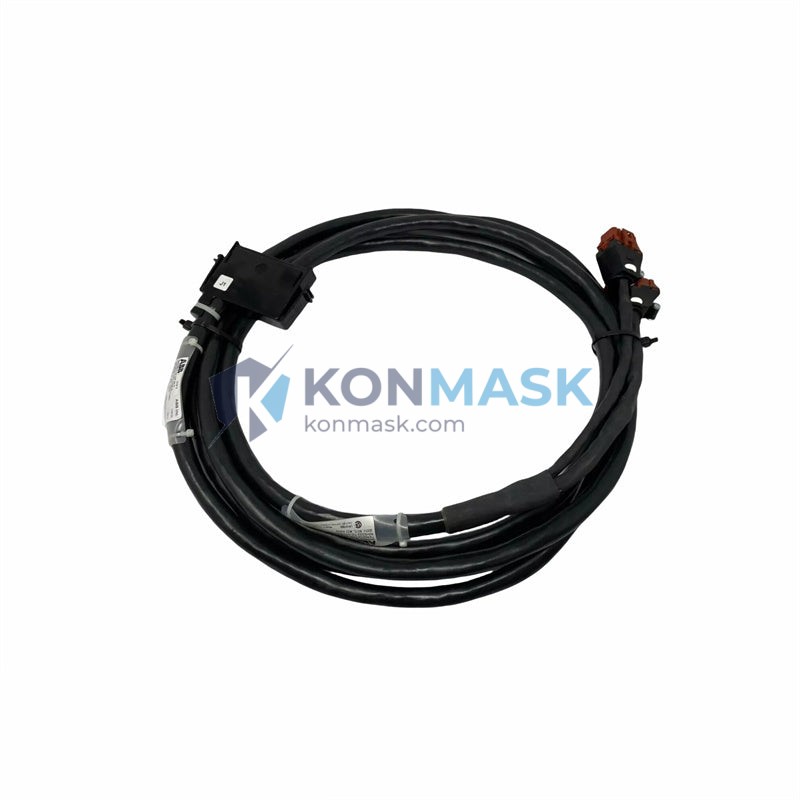

The ABB NKHS03-15 is a factory-engineered hydraulic servo termination cable designed for precision signal routing within ABB servo drive systems. As part of the NKHS series, this cable assembly provides reliable electrical termination between servo controllers and hydraulic actuator feedback circuits, ensuring signal integrity in demanding industrial environments.
Product Positioning
Targeted at procurement engineers and system integrators working with ABB servo drive platforms, the NKHS03-15 is the OEM-specified termination solution for hydraulic servo loops. It eliminates field-fabricated wiring risks and ensures full compatibility with ABB drive firmware and hardware interfaces. Konmask.com supplies this component with full traceability and quality verification for MRO and project procurement.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | NKHS03-15 |
| Manufacturer | ABB |
| Series | NKHS (Hydraulic Servo Cable Series) |
| Function | Hydraulic Servo Termination Cable |
| Cable Length | 15 (refer to ABB datasheet for unit) |
| Application | Servo drive signal termination, hydraulic actuator feedback |
| Compatibility | ABB servo drive systems (NKHS series) |
| Weight | 470 g |
| Country of Origin | Refer to product label / ABB documentation |
| Condition | New, OEM |
Proven Application Environments
- Hydraulic Press Control Systems – Servo termination for closed-loop hydraulic press feedback circuits
- CNC Machining Centers – Signal cable for ABB servo-driven hydraulic clamping and feed axes
- Injection Molding Machines – Reliable termination in high-cycle hydraulic servo loops
- Industrial Robotics – Feedback cable in ABB robot hydraulic joint control architectures
- Steel & Metal Processing Lines – Servo signal routing in rolling mill and press brake hydraulic systems
- Marine & Offshore Automation – Vibration-tolerant termination in hydraulic servo steering and positioning systems
Engineering Advantages
- OEM-Specified Design – Factory-engineered to ABB servo drive interface standards; eliminates field wiring errors and impedance mismatches
- Signal Integrity Assurance – Shielded construction minimizes EMI/RFI interference in high-noise industrial environments
- Plug-and-Play Compatibility – Pre-terminated connectors ensure zero-configuration installation with ABB NKHS-series drive hardware
- Mechanical Durability – Rated for repeated flexing and industrial temperature ranges; suitable for dynamic cable management systems
- Reduced Downtime Risk – Direct OEM replacement eliminates compatibility guesswork during emergency MRO procurement
System Architecture & Signal Flow
In a typical ABB hydraulic servo system, the NKHS03-15 cable connects the servo drive controller output stage to the hydraulic valve actuator’s position/velocity feedback transducer. Signal flow: ABB Servo Drive Controller → NKHS03-15 Termination Cable → Hydraulic Servo Valve / Actuator Feedback Sensor. The cable provides both command signal delivery and encoder/resolver feedback return paths within a single shielded assembly, maintaining loop bandwidth and phase margin across the full operating speed range.
Sourcing & Quality Verification
- Authorized Supply Chain – Konmask.com sources ABB components through verified industrial distribution channels with full documentation traceability
- Pre-Shipment Inspection – Each unit undergoes visual inspection and part number verification before dispatch
- Genuine OEM Parts – All ABB products supplied are original manufacturer components; no aftermarket or counterfeit substitutes
- Documentation Available – CE declarations, packing lists, and test certificates available upon request for project procurement
Procurement Process
- Confirm Part Number – Verify NKHS03-15 against your ABB drive system BOM or service manual
- Request Quote – Contact support@konmask.com with quantity and delivery requirements for volume pricing
- Place Order – Secure checkout via Konmask.com; B2B purchase orders accepted for qualified accounts
- Shipping & Lead Time – In-stock units ship within 1–3 business days; express DHL/FedEx available globally
- After-Sales Support – Technical support and return/exchange policy available; contact our engineering team for application questions
Technical FAQ
Q: Is the NKHS03-15 compatible with all ABB servo drives?
A: The NKHS03-15 is designed for ABB NKHS-series hydraulic servo systems. Please verify connector type and pinout against your specific drive model before ordering. Contact us for compatibility confirmation.
Q: Can this cable be used in outdoor or wet environments?
A: Refer to ABB’s official IP rating documentation for the NKHS03-15. For harsh environment applications, confirm jacket material and connector sealing ratings with our technical team.
Q: What is the lead time for bulk orders?
A: Standard in-stock orders ship within 1–3 business days. For bulk quantities (>10 units), contact support@konmask.com for availability and lead time confirmation.
Q: Do you provide a warranty?
A: Yes. All OEM ABB components supplied by Konmask.com carry the manufacturer’s standard warranty. Extended warranty and service contracts are available for qualified B2B accounts.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your part number and application details. We will provide available ABB technical documentation upon request.
