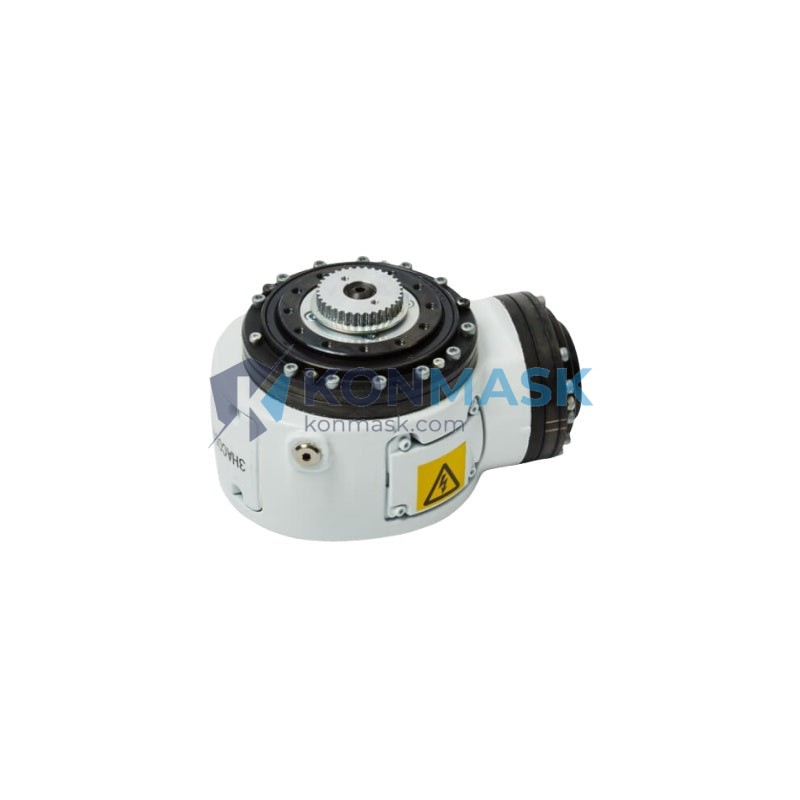

ABB 3HAC023854-001 / 3HAC5954-1 – Drive Unit Axis 5 & 6 Clean Room | IRB4400 Robot Platform
The ABB 3HAC023854-001 (also referenced as 3HAC5954-1 and superseded/cross-referenced by 3HAC056146-001) is the OEM-specification drive unit governing Axis 5 and Axis 6 motion on the ABB IRB4400 industrial robot. Engineered for clean-room environments, this module delivers precise torque control, low-particulate operation, and seamless integration with ABB’s S4C+ and IRC5 controller architectures.
Procurement engineers specifying replacement or spare drive units for semiconductor fabs, pharmaceutical lines, and precision assembly cells rely on this part to restore full kinematic performance without re-qualification of the robot cell.
Complete Technical Specifications
- OEM Part Number: 3HAC023854-001
- Cross-Reference / Alternate PN: 3HAC5954-1 | 3HAC056146-001
- Compatible Robot: ABB IRB4400 (all variants)
- Axis Coverage: Axis 5 (wrist bend) & Axis 6 (wrist rotation)
- Environment Rating: Clean Room (ISO Class 5 / Class 100 compliant)
- Controller Compatibility: S4C+ / IRC5
- Drive Technology: AC servo drive with integrated resolver feedback
- Enclosure: Low-outgassing, sealed housing; anti-static coating
- Mounting Interface: OEM bolt pattern – direct drop-in replacement
- Weight: approx. 200 g (module only)
- Country of Origin: Sweden (ABB Robotics)
Proven Application Environments
- Semiconductor wafer handling & photolithography lines (ISO Class 5–7 clean rooms)
- Pharmaceutical blister-pack and vial-filling automation
- Flat-panel display (FPD) assembly and inspection
- Precision electronics pick-and-place and soldering cells
- Medical device assembly requiring particulate-controlled environments
- Aerospace composite layup and inspection fixtures
Engineering Advantages
- Zero-compromise clean-room design: sealed housing eliminates lubricant mist and particulate shedding that would contaminate sensitive processes.
- Drop-in OEM replacement: identical connector pinout and bolt pattern; no mechanical adaptation or software re-parameterization required.
- Dual-PN traceability: 3HAC023854-001 and 3HAC5954-1 are functionally equivalent; 3HAC056146-001 is the current ABB catalog successor – all three are interchangeable in the IRB4400 wrist assembly.
- Resolver-based feedback: absolute position sensing survives power loss without homing cycles, reducing downtime after E-stop events.
- Thermal management: low-heat dissipation profile compatible with clean-room HVAC constraints.
System Architecture & Signal Flow
Within the IRB4400 kinematic chain, the drive unit receives velocity and torque commands from the Drive Module (DSQC 661 / DSQC 662) in the controller cabinet via the Measurement Board (DSQC 633). The unit converts these commands into PWM-modulated current to the wrist servo motors, while simultaneously returning resolver position data to the measurement board for closed-loop control. The clean-room variant substitutes standard cable sheathing with low-outgassing PTFE-jacketed harnesses and replaces standard grease with PFPE-based lubricant in all rotating interfaces.
Sourcing & Quality Verification
- Stock condition: New OEM / Refurbished OEM – each unit inspected and function-tested before dispatch.
- Traceability: Serial number and date code recorded; documentation available on request.
- Packaging: ESD-safe anti-static bag, foam-lined carton; clean-room units shipped in double-sealed poly bags.
- Warranty: 12-month operational warranty against manufacturing defects.
- Certifications: CE marked; RoHS compliant; ABB OEM supply chain.
Procurement Process
- Confirm your IRB4400 serial number and controller type (S4C+ or IRC5) to validate compatibility.
- Submit your purchase order or RFQ to support@konmask.com with quantity and required delivery date.
- Receive proforma invoice with lead time confirmation within 1 business day.
- Payment via T/T, PayPal, or credit card; export documentation (CO, packing list, commercial invoice) included.
- Global shipping via DHL / FedEx / UPS with full tracking; expedited options available.
Technical FAQ
Q: Is 3HAC023854-001 the same as 3HAC5954-1?
A: Yes. ABB issued 3HAC5954-1 as an early catalog reference; 3HAC023854-001 is the standardized successor PN. Both describe the same physical assembly. 3HAC056146-001 is the current active catalog number and is a direct functional replacement.
Q: Can this drive unit be used in a standard (non-clean-room) IRB4400?
A: Yes. The clean-room variant is a superset of the standard specification – it will operate correctly in any IRB4400 regardless of environment classification.
Q: Does installation require ABB service authorization?
A: ABB recommends certified service personnel for drive unit replacement. Konmask can provide the relevant ABB service manual section upon request.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock units are sourced within 7–21 business days depending on global supply availability.
Q: Do you provide a test report?
A: Yes. A functional test report is available for refurbished units. New OEM units ship with ABB factory documentation.
